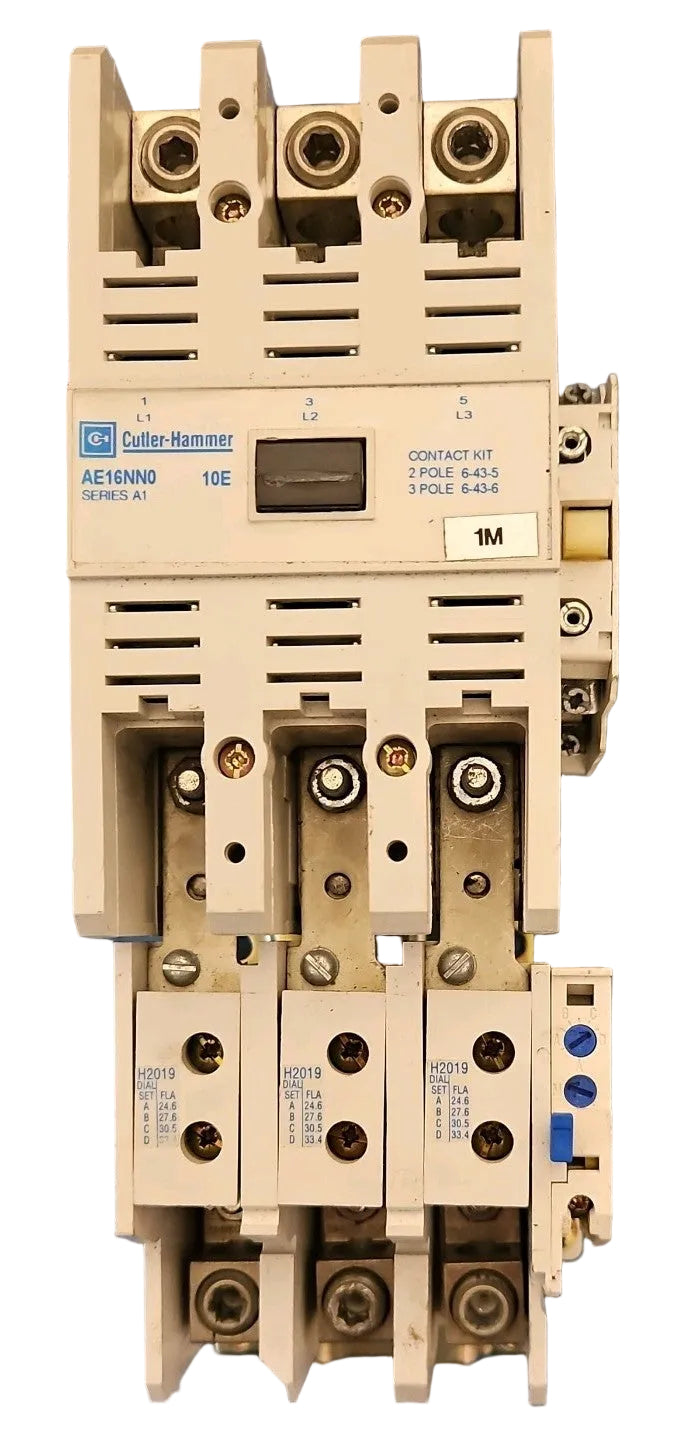

Eaton AE16NN0 Freedom Series 140A 3-Pole Non-Reversing Magnetic Motor Starter 110-120V Coil

Description

The Eaton Cutler-Hammer AE16NN0 is a Freedom Series three-pole, non-reversing magnetic motor starter designed for controlling three-phase industrial motors and providing overload protection. Eaton part number AE16NN0 combines a 140 A contactor, a 110–120 VAC operating coil, and an overload relay assembly identified as 10-6530-3, with a reported adjustable overload range of 84–115 A. Designed for industrial motor control systems operating at up to 600 VAC, this starter supports motor switching and protection in machinery, pumps, compressors, and other heavy-duty equipment.

Technical Specifications

Information About AE16NN0

The AE16NN0 is part of Eaton's Cutler-Hammer Freedom Series of electromagnetic motor control equipment, featuring a modular contactor and overload relay arrangement for industrial electrical installations. Its three-pole construction provides simultaneous switching of three-phase power circuits, while the 110–120 VAC coil allows operation through conventional industrial control circuits. The associated 10-6530-3 overload assembly provides adjustable motor overload protection, with the setting selected according to the connected motor's nameplate current and applicable installation requirements. Designed for installation in compatible motor control centers, industrial control panels, and electrical enclosures, the starter uses full-voltage, non-reversing operation and supports maintenance or replacement of compatible Freedom Series motor control components.

Key Features:

• Freedom Series Construction: Eaton Cutler-Hammer electromagnetic motor starter designed for industrial motor control applications.

• 140 A Contactor Rating: Provides high-current switching capability for compatible three-phase motor loads.

• Three-Pole Configuration: Controls all three phases of a three-phase electrical supply.

• Non-Reversing Operation: Supports conventional forward motor operation without an integrated reversing contactor.

• 110–120 VAC Coil: Electromagnetic operating coil designed for standard AC control circuits.

• 600 VAC Maximum Voltage: Suitable for motor control installations with rated supply voltages up to 600 VAC.

• Overload Protection: Includes an associated overload relay assembly for motor overcurrent protection.

• Adjustable Overload Range: Reported 84–115 A setting range for the 10-6530-3 overload assembly.

• Full-Voltage Starting: Connects the motor directly to the supply during normal starting operation.

• Modular Component Design: Supports servicing and replacement of compatible contactor and overload components.

• Industrial Panel Integration: Designed for use in motor control centers, equipment panels, and industrial electrical systems.

The AE16NN0 delivers the reliability and precision required for three-phase motor switching, adjustable overload protection, and industrial machinery control.
