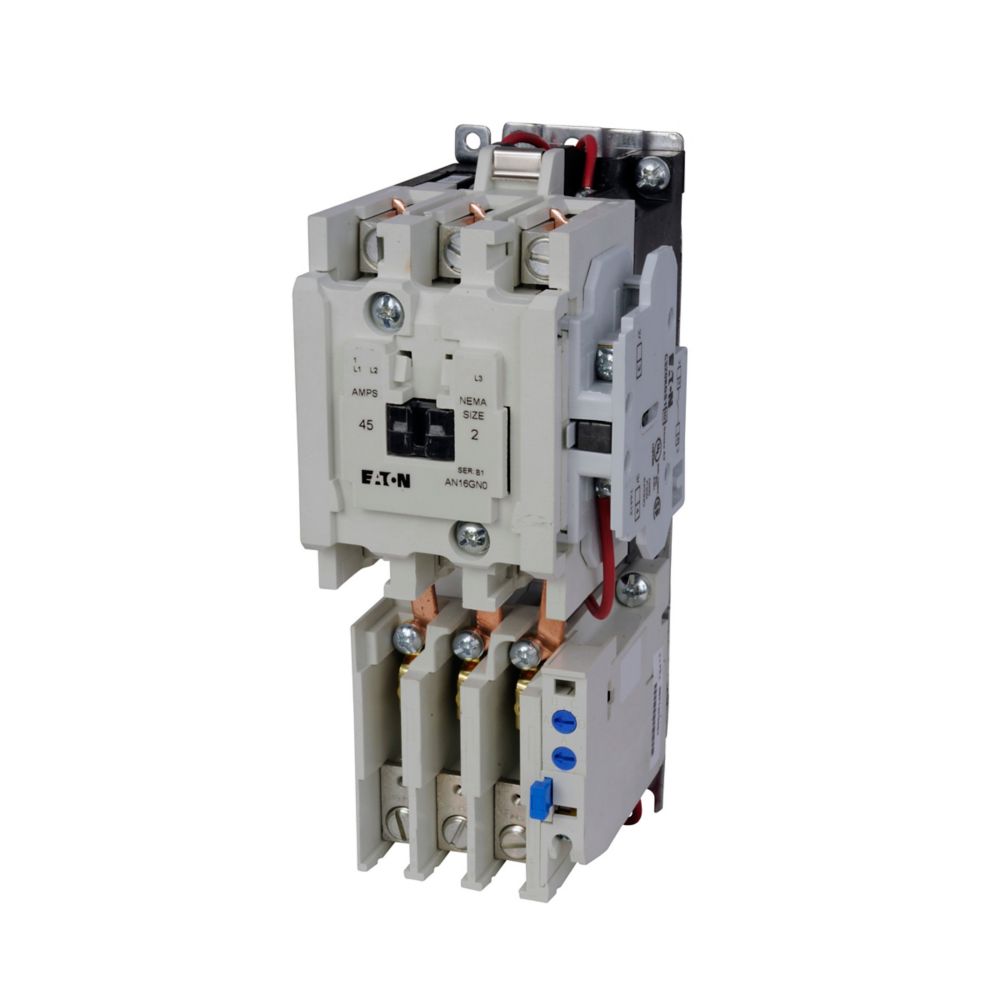

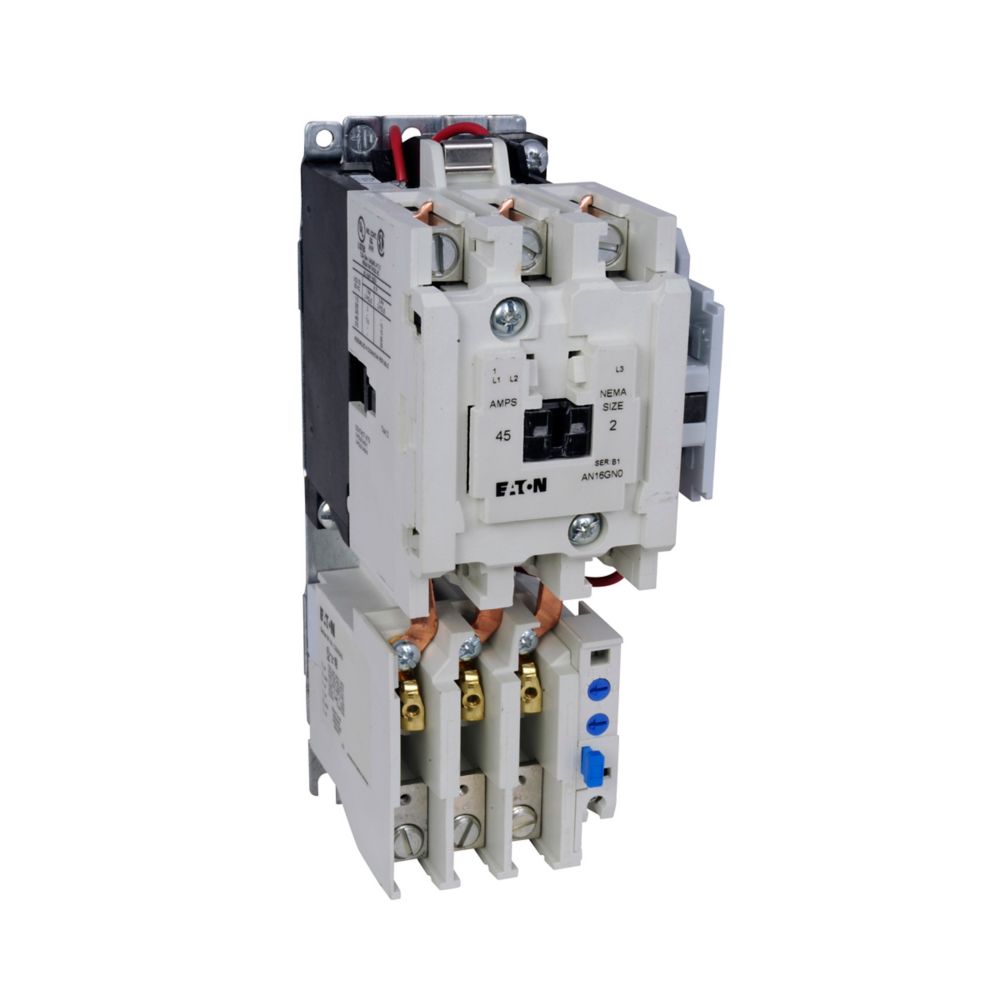

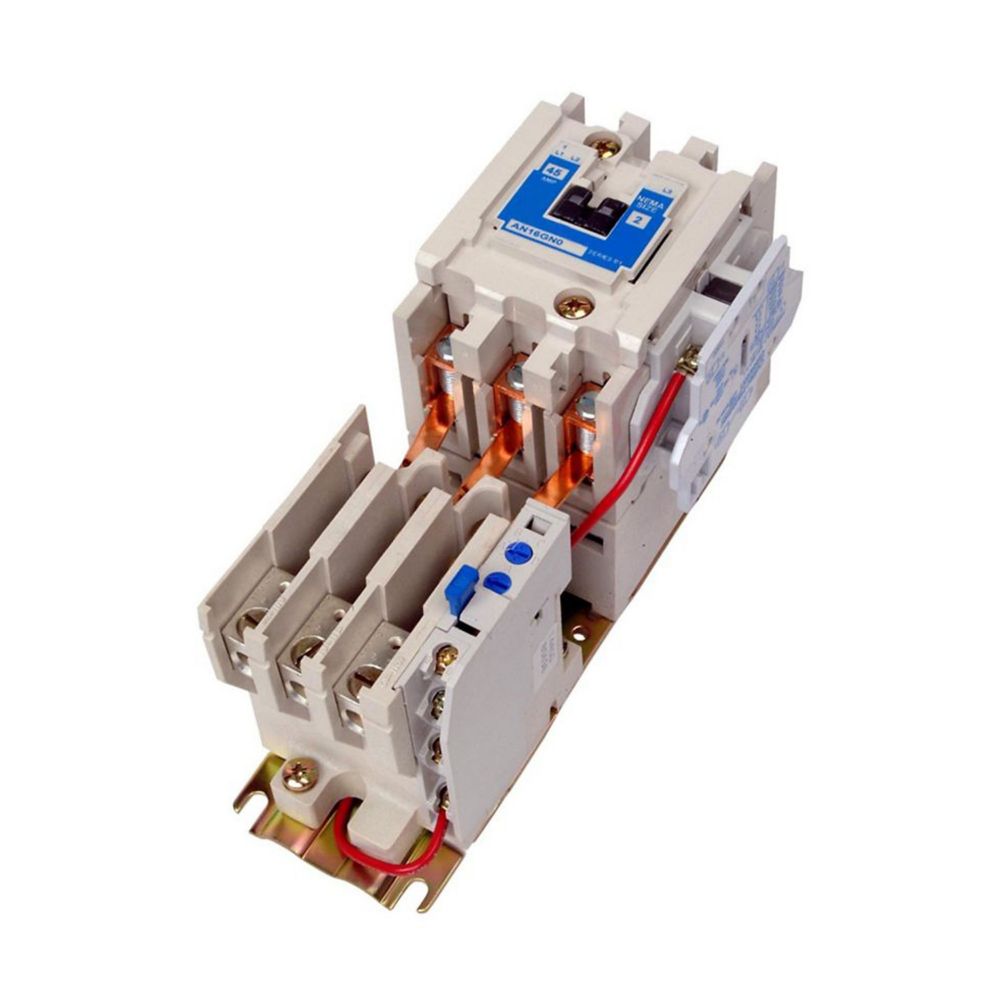

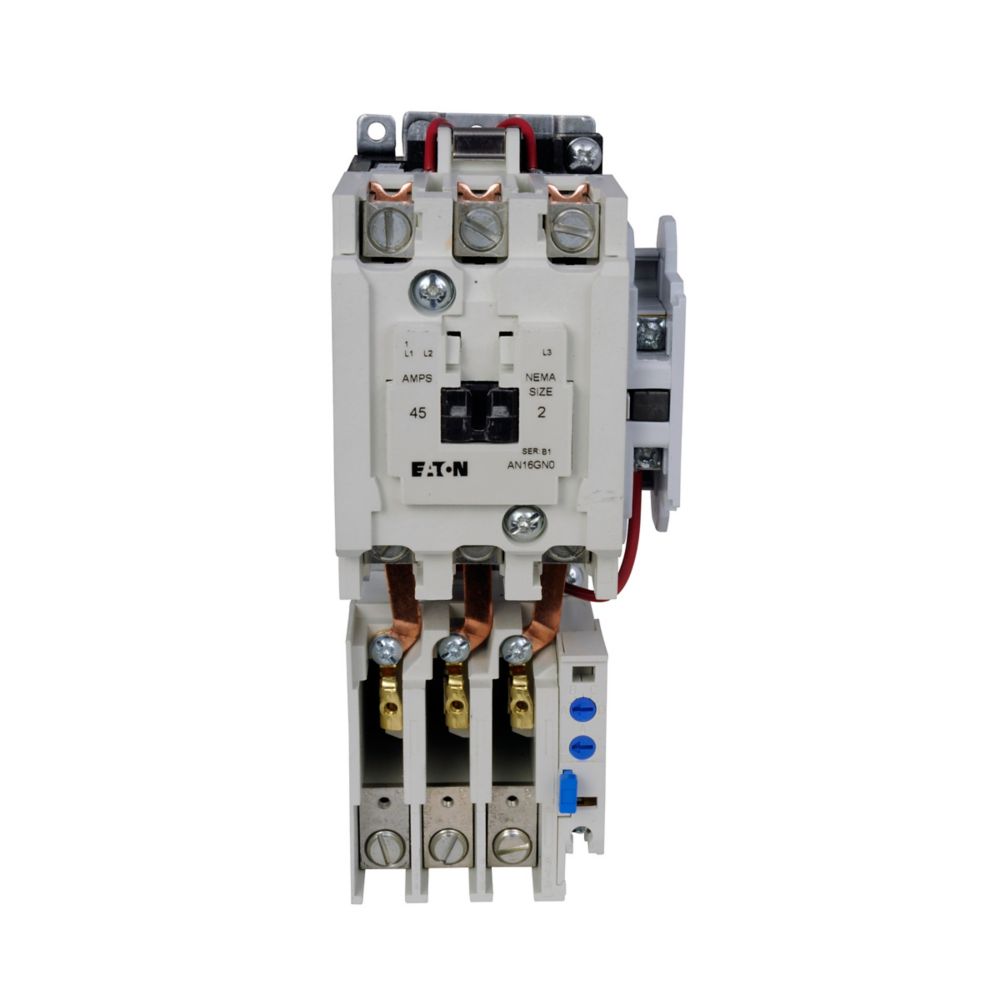

Eaton AN16GN0AB Freedom NEMA Size 2 Motor Control Starter with C306 Overload Relay
- Regular price
- $455.00
- Sale price
- $455.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: AN16GN0AB
Description
The Eaton AN16GN0AB is a Freedom NEMA motor control starter designed to provide reliable starting and overload protection for industrial electric motors. Eaton part number AN16GN0AB integrates a Size 2 starter with a C306 bi-metal overload relay to protect motors from overload conditions. Its robust design supports both single-phase and three-phase motor applications in commercial and industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Motor Control |
| Part Number | AN16GN0AB |
| Subcategory | Motor Starter |
| Product Type | Motor Control Starter |
| Series | Eaton Freedom NEMA |
| Starter Size | NEMA Size 2 |
| Amperage Rating | 45 A |
| Phase Compatibility | Single-phase, Three-phase |
| Overload Relay Type | C306 Bi-Metal Overload Relay |
| Mounting | Horizontal |
| Maximum Horsepower Rating | 3 hp at 115 V; 7.5 hp at 230 V; 10 hp at 208 V; 15 hp at 240 V; 25 hp at 480/600 V |
| Catalog Notes | Heater packs must be purchased separately |
| Certifications | UL Listed; CSA Certified |
| Product Dimensions (L × W × H) | 4.94 × 4.38 × 3.31 in |
| Warranty | Eaton Selling Policy 25-000 |
| Weight | 3.3 lb |
Information About AN16GN0AB
The AN16GN0AB is a NEMA-rated motor control starter from Eaton’s Freedom series, engineered to control and protect electric motors in demanding industrial systems. It incorporates a C306 bi-metal overload relay (OLR) that provides dependable thermal protection against motor overload conditions. Designed for horizontal mounting, the unit supports a wide range of motor horsepower ratings across multiple voltage levels. Heater packs must be selected separately, allowing the starter to be configured precisely for the specific motor current requirements.
Key Features:
- NEMA Size 2 Motor Starter: Designed for controlling and protecting medium-sized industrial motors.
- C306 Bi-Metal Overload Relay: Provides reliable thermal overload protection for motor circuits.
- Multi-Voltage Motor Compatibility: Supports motors operating from 115 V through 600 V systems.
- Single-Phase and Three-Phase Operation: Suitable for a wide range of motor configurations.
- 45 Amp Current Rating: Handles demanding motor loads in industrial applications.
- Flexible Heater Pack Configuration: Heater elements can be selected separately to match motor current ratings.
- Horizontal Mounting Design: Simplifies installation in motor control panels and industrial equipment.
- Freedom Series Construction: Built with Eaton’s proven motor control technology for durability and reliability.
The AN16GN0AB delivers the reliability and precision required for controlling and protecting industrial electric motor systems.
