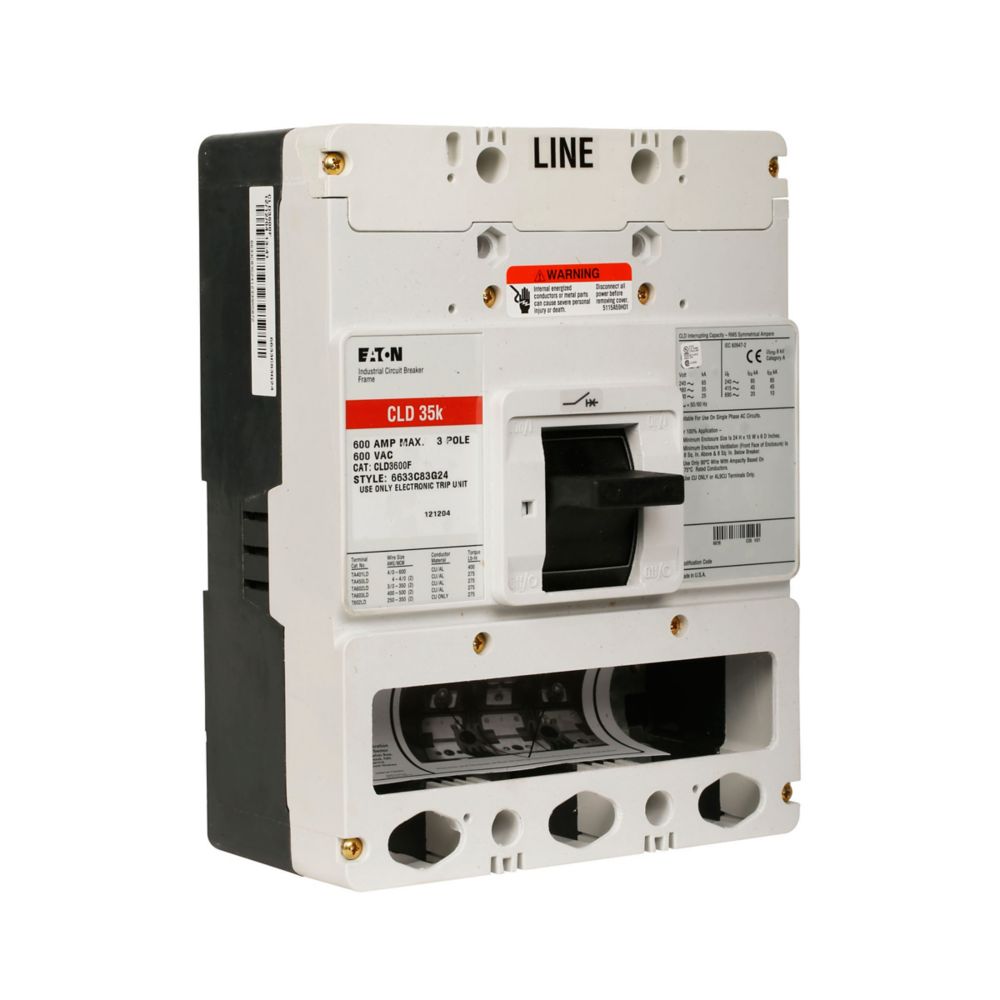

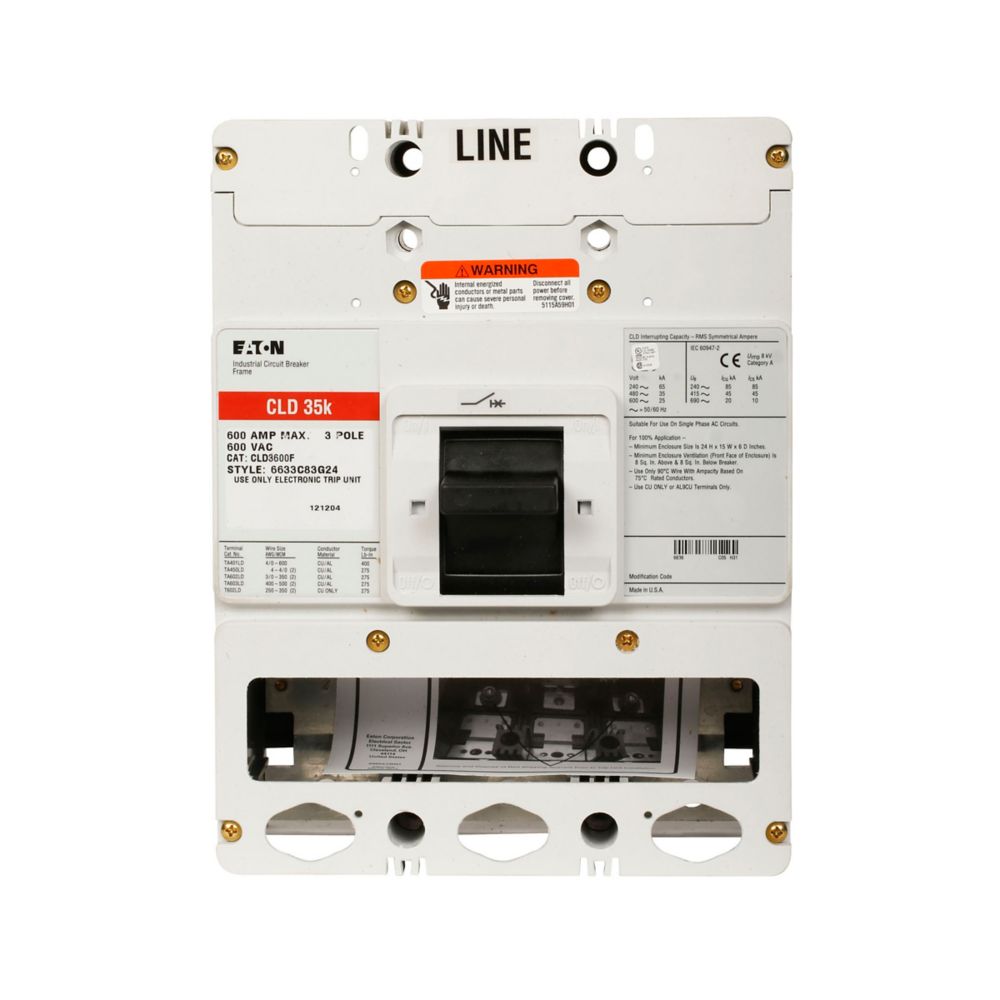

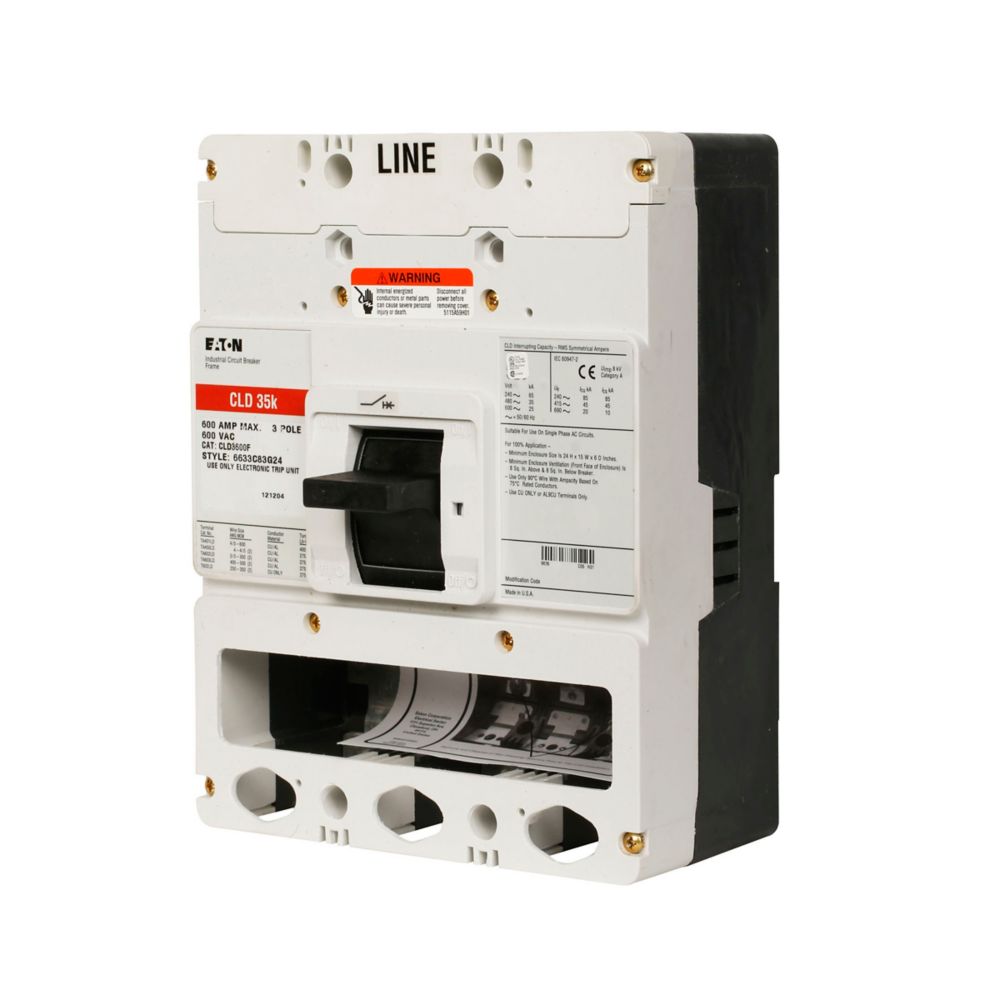

Eaton CHLD3600F Series C 600A 3-Pole Molded Case Circuit Breaker Frame Only
- Regular price
- $2,199.00
- Sale price
- $2,199.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CHLD3600F
Description
The Eaton CHLD3600F is a Series C molded case circuit breaker frame designed for high-capacity electrical distribution systems. Eaton CHLD3600F provides a 600 A rated frame that supports configurable trip units for flexible protection solutions. It is commonly used in industrial and commercial applications requiring dependable and scalable circuit protection infrastructure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | CHLD3600F |
| Subcategory | Molded Case Circuit Breakers |
| Product Type | Molded case circuit breaker (frame only) |
| Series | Series C |
| Frame | L |
| Circuit Breaker Type | CHLD |
| Frame Type | Frame only |
| Amperage Rating | 600 A |
| Voltage Rating | 600 Vac, 250 Vdc |
| Trip Type | T186 |
| Number of Poles | Three-pole |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 65 kAIC at 480 Vac |
| Rating | 100% rated |
| Certifications | UL Listed |
| Product Length/Depth | 8.25 in |
| Product Height | 8.25 in |
| Product Width | 4.06 in |
| Weight | 23 lb |
Information About CHLD3600F
The CHLD3600F is part of Eaton’s Series C product line, known for its durability and performance in demanding power distribution environments. This unit is a frame-only configuration, allowing customization with compatible trip units and accessories to meet specific protection requirements. It features a three-pole design and supports both AC and DC voltage applications, making it suitable for a wide range of installations. Engineered with a 100% rated capacity, it ensures continuous operation under full load conditions in panelboards, switchgear, and industrial systems.
Key Features:
- Series C Platform: Built on Eaton’s proven Series C architecture for reliable performance.
- 600 A Frame Rating: Supports high-capacity power distribution applications.
- Frame-Only Design: Enables flexible configuration with selectable trip units.
- Dual Voltage Capability: Rated for 600 Vac and 250 Vdc applications.
- High Interrupt Rating: Provides up to 65 kAIC at 480 Vac for strong fault protection.
- Three-Pole Construction: Designed for three-phase electrical systems.
- 100% Rated Operation: Suitable for continuous full-load current without derating.
- UL Listed Certification: Meets recognized safety and performance standards.
The CHLD3600F delivers the reliability and precision required for customizable circuit protection systems in industrial and commercial power applications.
