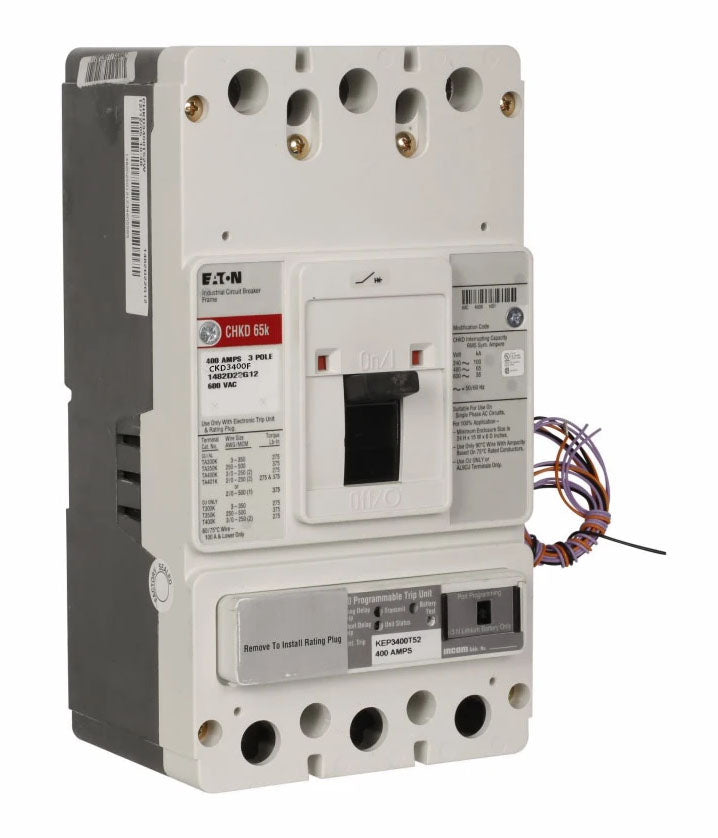

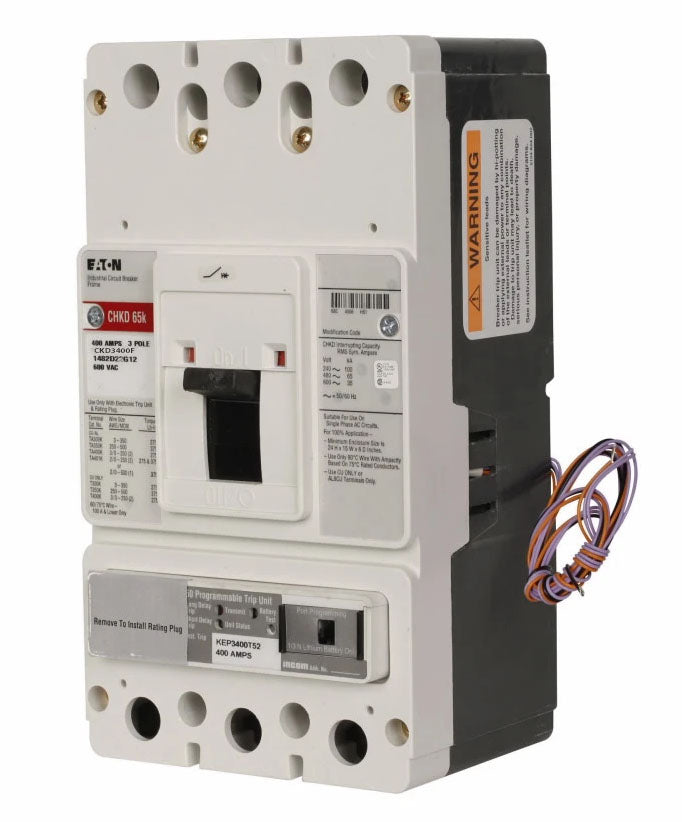

Eaton CKD3400F Molded Case Circuit Breaker Frame
- Regular price
- $1,889.00
- Sale price
- $1,889.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CKD3400F
Description
The Eaton CKD3400F molded case circuit breaker frame is a 3-pole power distribution component designed for commercial and industrial electrical protection systems. Built as part of the Eaton Series C K-frame family, it supports up to 400 A with 600 VAC and 250 VDC operation for demanding branch and feeder circuit applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Electrical Distribution |
| Part Number | CKD3400F |
| Subcategory | Molded Case Circuit Breaker Frames |
| Series | Series C |
| Frame Type | K-Frame |
| Circuit Breaker Type | CKD |
| Number of Poles | 3 |
| Amperage Rating | 400 A |
| Voltage Rating | 600 VAC / 250 VDC |
| Interrupt Rating | 35 kAIC at 480 VAC / 25 kAIC at 600 VAC |
| Trip Type | Fixed Thermal, Fixed Magnetic |
| Frequency Rating | 50/60 Hz |
| Mounting Type | Bolt-On |
| Rating | 100% Rated |
| Application | Panelboards, Switchboards, Motor Control Centers |
| Dimensions | 6 in D x 7 in W x 6.3 in H |
| Weight | 10 lb |
Information About CKD3400F
The CKD3400F is a molded case circuit breaker frame manufactured by Eaton for high-capacity electrical distribution and protection applications. This Series C K-frame breaker is engineered for use in commercial and industrial systems requiring dependable overload and short-circuit protection performance. Designed with a 3-pole configuration, the unit supports operation up to 600 VAC and 250 VDC with interrupt ratings up to 35 kAIC at 480 VAC and 25 kAIC at 600 VAC. Its bolt-on mounting design and compatibility with legacy Eaton, Cutler-Hammer, and Westinghouse systems make it suitable for retrofit and new installation projects.
Key Features:
- 400 Amp Frame Capacity: Supports high-demand industrial distribution applications.
- 3-Pole Configuration: Designed for multi-phase power distribution systems.
- 600 VAC / 250 VDC Rating: Suitable for AC and DC electrical installations.
- Series C K-Frame Design: Compatible with Eaton industrial breaker systems.
- Fixed Thermal Magnetic Trip: Provides reliable overload and short-circuit protection.
- High Interrupt Ratings: Rated up to 35 kAIC at 480 VAC and 25 kAIC at 600 VAC.
- Bolt-On Mounting: Supports secure installation in switchboards and panelboards.
- Legacy System Compatibility: Suitable for Eaton, Cutler-Hammer, and Westinghouse systems.
The CKD3400F delivers the reliability and precision required for industrial power distribution and molded case circuit protection applications.
