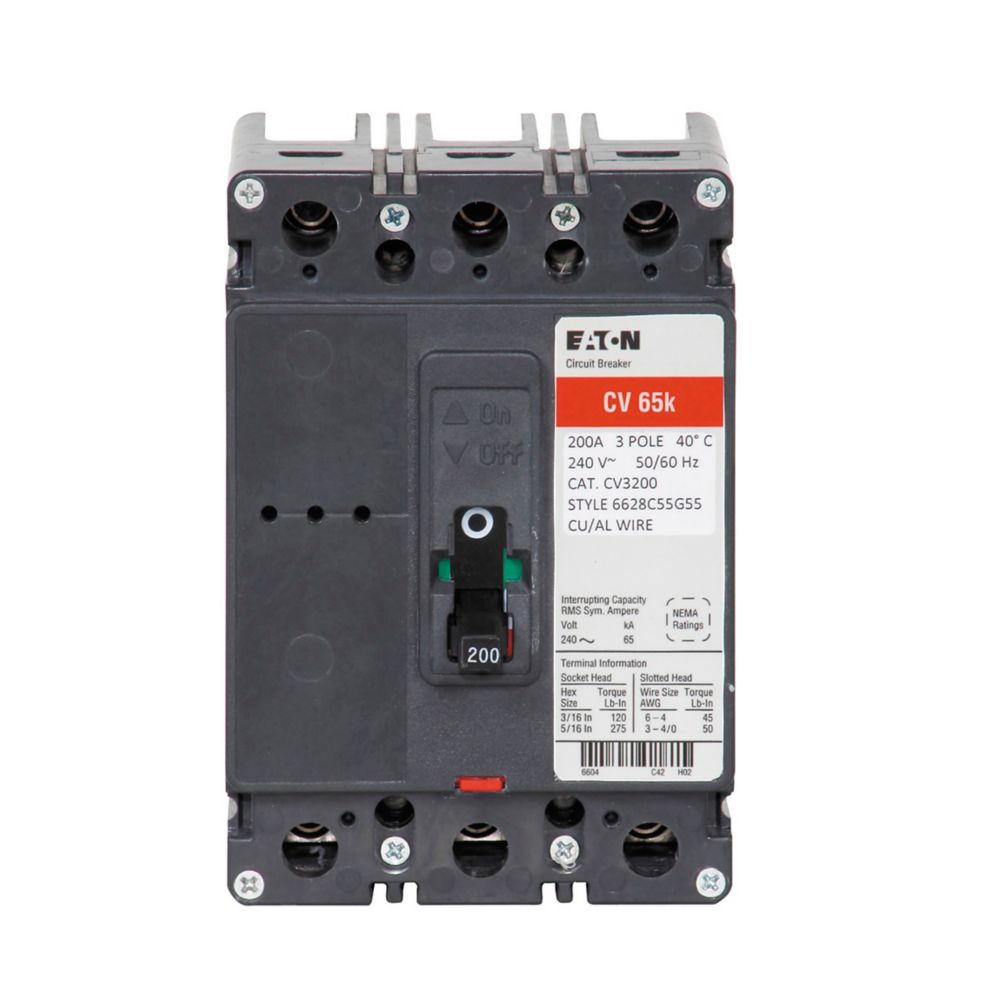

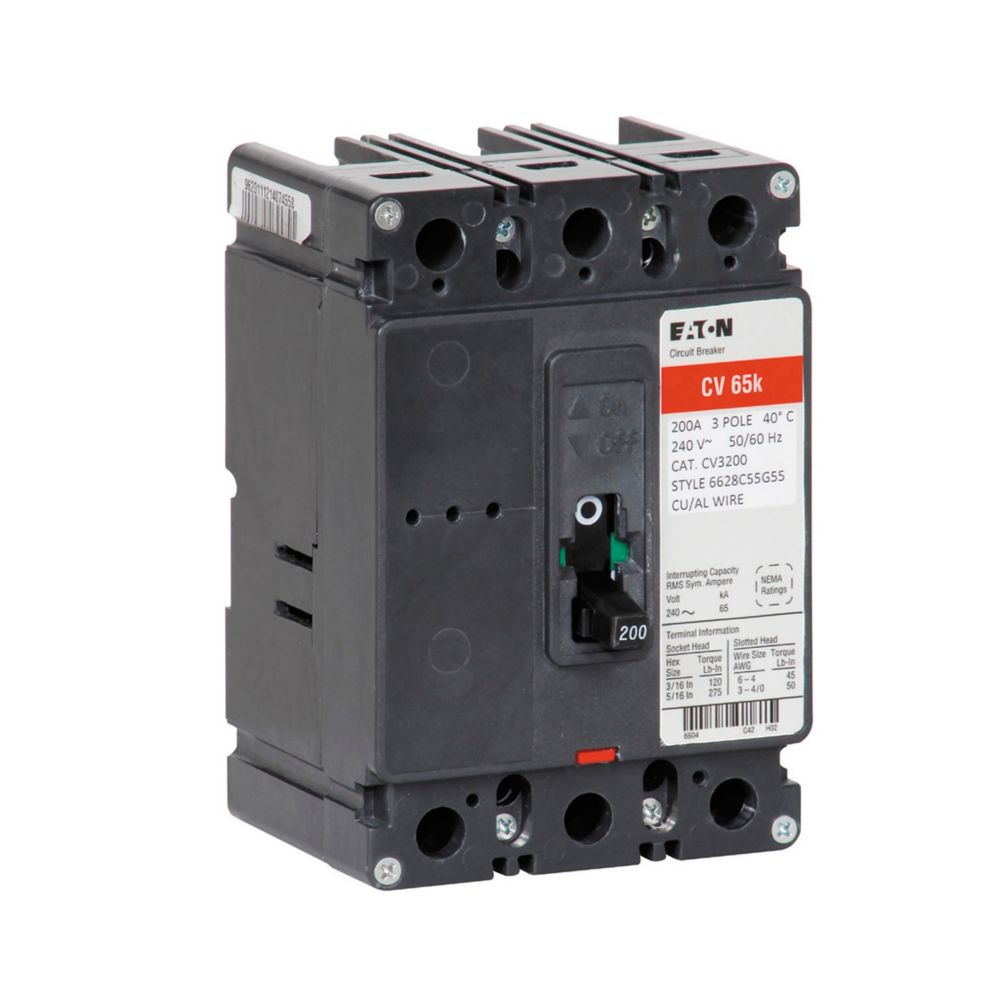

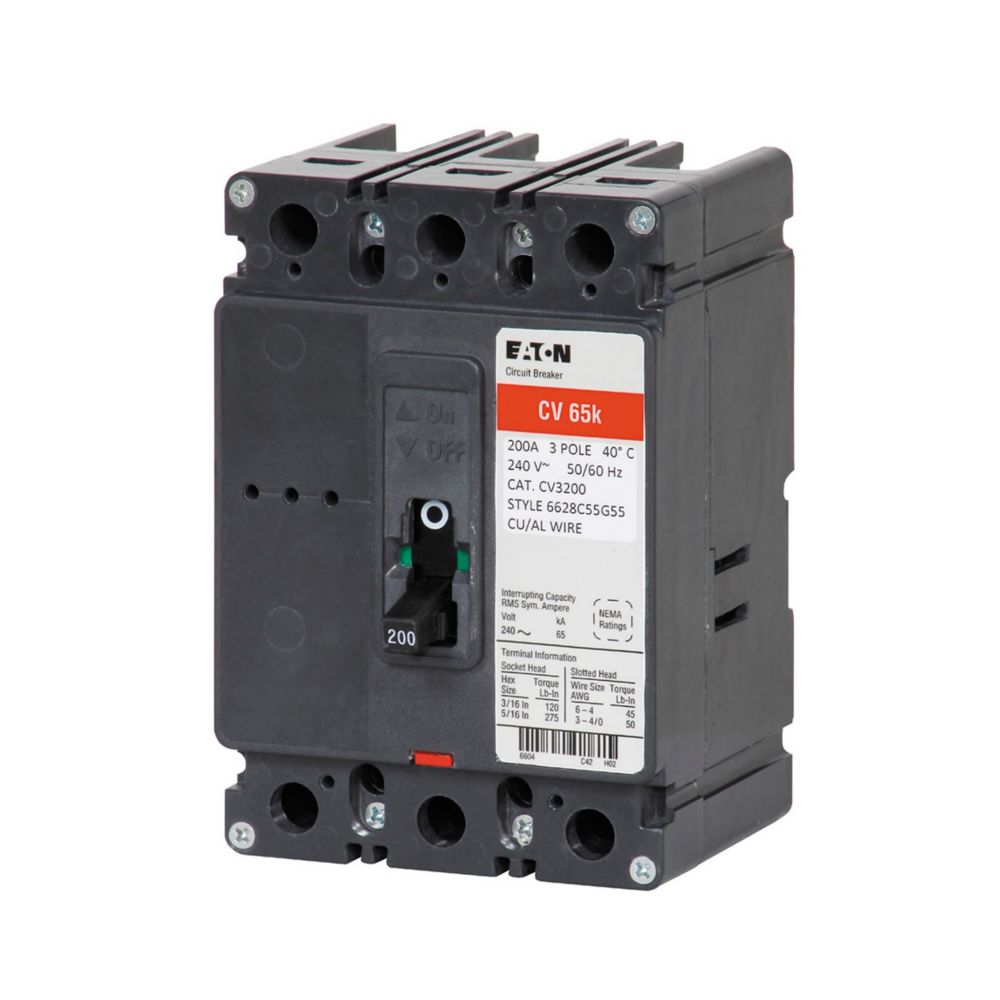

Eaton CVS3200X 200A 3-Pole Tenant Main Molded Case Circuit Breaker for Commercial Service Equipment
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CVS3200X
Description
The Eaton CVS3200X is a molded case tenant main circuit breaker designed to provide primary overcurrent protection for tenant electrical distribution systems. Eaton part number CVS3200X features a 200 A rating and a high interrupt capacity, making it suitable for commercial service entrance and sub-distribution applications. Its durable molded case construction and three-pole configuration ensure reliable performance in multi-phase power systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | CVS3200X |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Tenant Main Breaker |
| Circuit Breaker Frame Type | CV |
| Amperage Rating | 200 A |
| Number of Poles | Three-pole |
| Interrupt Rating | 42 kAIC |
| Wire Size Compatibility | #6–4/0 AWG Cu/Al |
| Terminal Capacity | #4/0 kcmil maximum load |
| Certifications | UL 489; CSA Std. C22.2 No. 5 |
| Product Dimensions (L × W × H) | 7.5 × 5 × 5 in |
| Warranty | Limited lifetime |
| Weight | 5 lb |
Information About CVS3200X
The CVS3200X is a tenant main breaker from Eaton’s CCV/CV circuit protection family, engineered for use in commercial metering and tenant service equipment. It is designed to serve as the main disconnect and protective device for tenant electrical services in multi-occupancy buildings. The breaker includes heavy-duty terminals capable of accepting large conductors and supports both copper and aluminum wiring. With UL 489 and CSA certification, the device is widely used in commercial electrical distribution installations where dependable main circuit protection is required.
Key Features:
- 200 Amp Current Rating: Provides reliable overcurrent protection for tenant electrical service panels.
- Tenant Main Breaker Design: Specifically designed for use in commercial metering and tenant service equipment.
- Three-Pole Configuration: Supports protection of three-phase electrical distribution systems.
- High Interrupting Capacity: Rated up to 42 kAIC to protect circuits against high fault currents.
- CV Frame Construction: Durable molded case design for long-term reliability in electrical distribution systems.
- Large Conductor Terminals: Accepts conductors up to #4/0 kcmil for flexible installation.
- Copper and Aluminum Compatibility: Supports wiring sizes #6–4/0 AWG Cu/Al.
- Certified Protection Device: UL 489 and CSA certified for commercial electrical installations.
The CVS3200X delivers the reliability and precision required for protecting commercial tenant electrical distribution systems.
