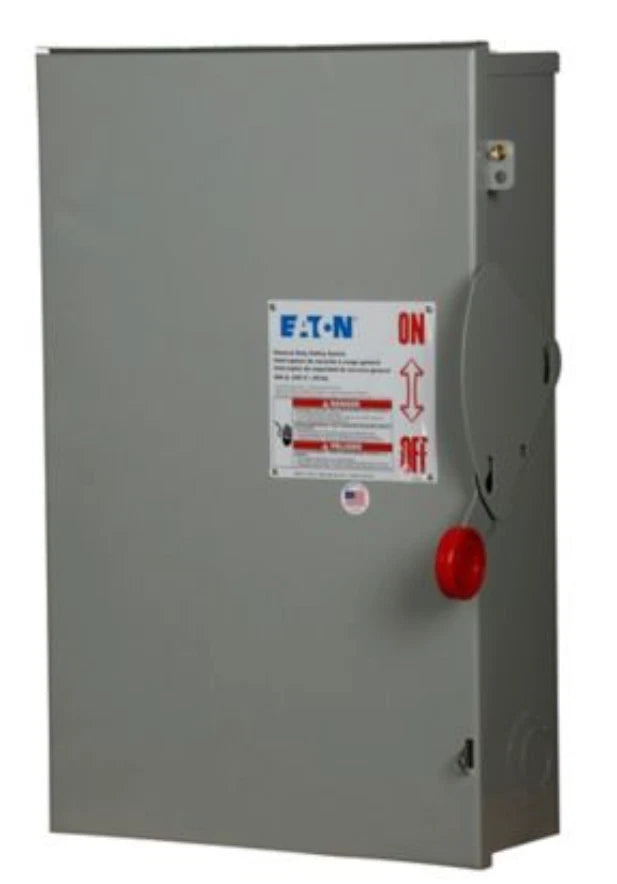

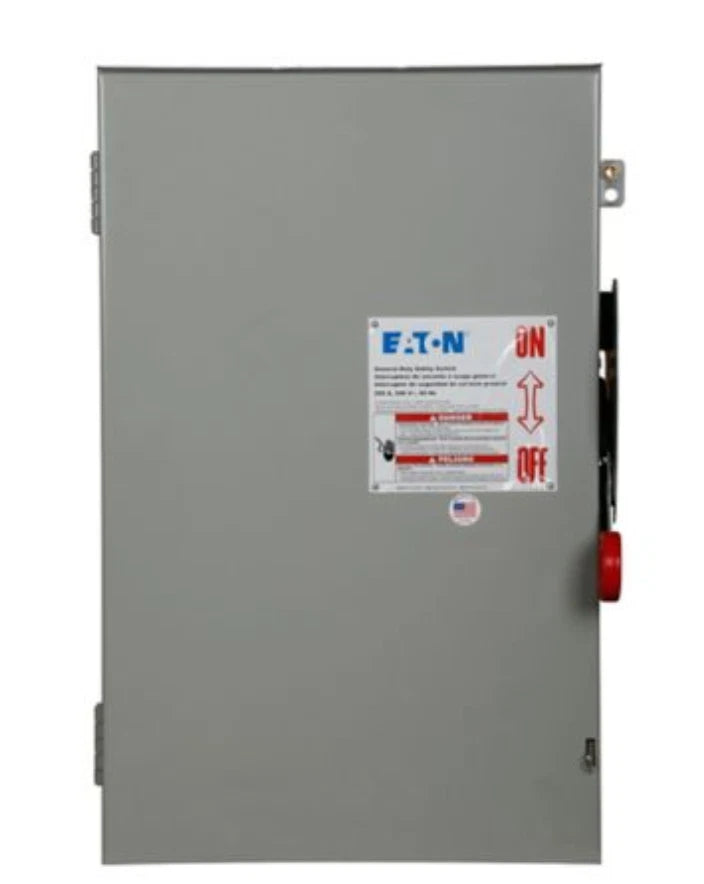

DG224URK | Eaton 200A 240V General Duty Non-Fusible Safety Switch NEMA 3R
- Regular price
- $927.00
- Sale price
- $927.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DG224URK
Description
The Eaton DG224URK is a general-duty non-fusible safety switch designed for reliable manual power disconnection in commercial and light industrial electrical systems. Manufactured by Eaton, the DG224URK provides a 200 amp rating with a two-pole configuration and operates at up to 240 volts AC. Its rainproof NEMA 3R enclosure ensures dependable performance in outdoor or indoor environments requiring secure circuit isolation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | DG224URK |
| Subcategory | Safety Switch |
| Switch Type | General Duty Non-Fusible |
| Amperage Rating | 200 A |
| Voltage Rating | 240 V AC |
| Number of Poles | 2 |
| Number of Wires | 2 |
| Phase Compatibility | Single Phase |
| Throw Type | Single-Throw |
| Enclosure Rating | NEMA 3R (Rainproof) |
| Enclosure Material | Painted Galvanized Steel |
| Fuse Configuration | Non-Fusible |
| Horsepower Rating (240V 1Ø) | 15 HP |
| Mounting Type | Surface Mount |
| Certifications | UL Listed |
| Compliance | NEC 230.62(C) Compliant Barrier |
| Height | 25.5 in |
| Width | 16 in |
| Depth | 11.25 in |
| Weight | 55 lb |
Information About DG224URK
The DG224URK is part of Eaton’s general-duty safety switch lineup designed for economical and dependable circuit disconnect applications. This non-fusible single-throw switch is intended for systems where external overcurrent protection devices are already present, allowing it to function purely as a manual disconnect. Built with a painted galvanized steel enclosure and NEMA 3R weather-resistant rating, the unit is suitable for outdoor installations exposed to rain or moisture. It is commonly used in residential, commercial, and light industrial installations to isolate power for equipment, HVAC systems, lighting circuits, and distribution panels.
Key Features:
- 200 Amp Current Rating: Provides reliable disconnect capability for medium-capacity electrical circuits.
- Single-Throw Switching Mechanism: Simple and dependable manual switching for circuit isolation.
- Non-Fusible Configuration: Designed for installations where circuit protection is provided externally.
- Two-Pole Design: Suitable for single-phase electrical systems and two-wire configurations.
- NEMA 3R Rainproof Enclosure: Weather-resistant construction allows outdoor installation.
- Painted Galvanized Steel Housing: Durable enclosure improves corrosion resistance and structural strength.
- 100% Load Break and Load Make Rating: Ensures safe switching under rated electrical loads.
- Bolt-On Hub Provision: Simplifies conduit installation for NEMA 3R enclosures.
The DG224URK delivers the reliability and precision required for safe electrical circuit disconnect in commercial and light industrial power systems.
