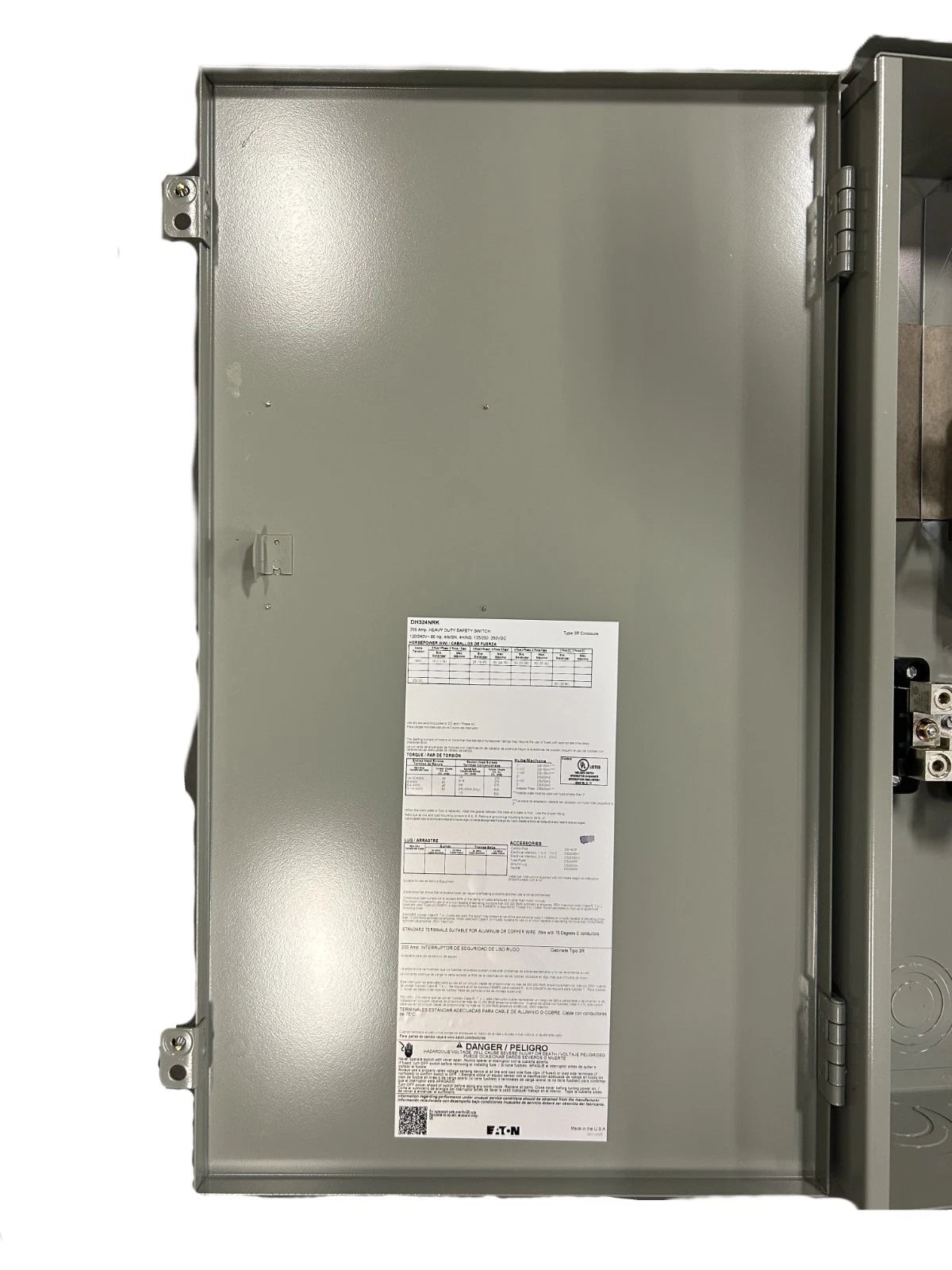

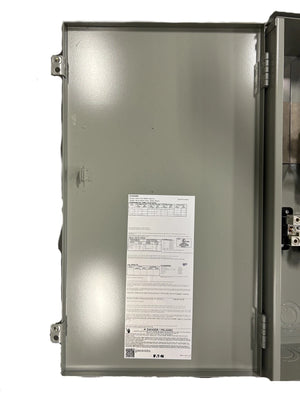

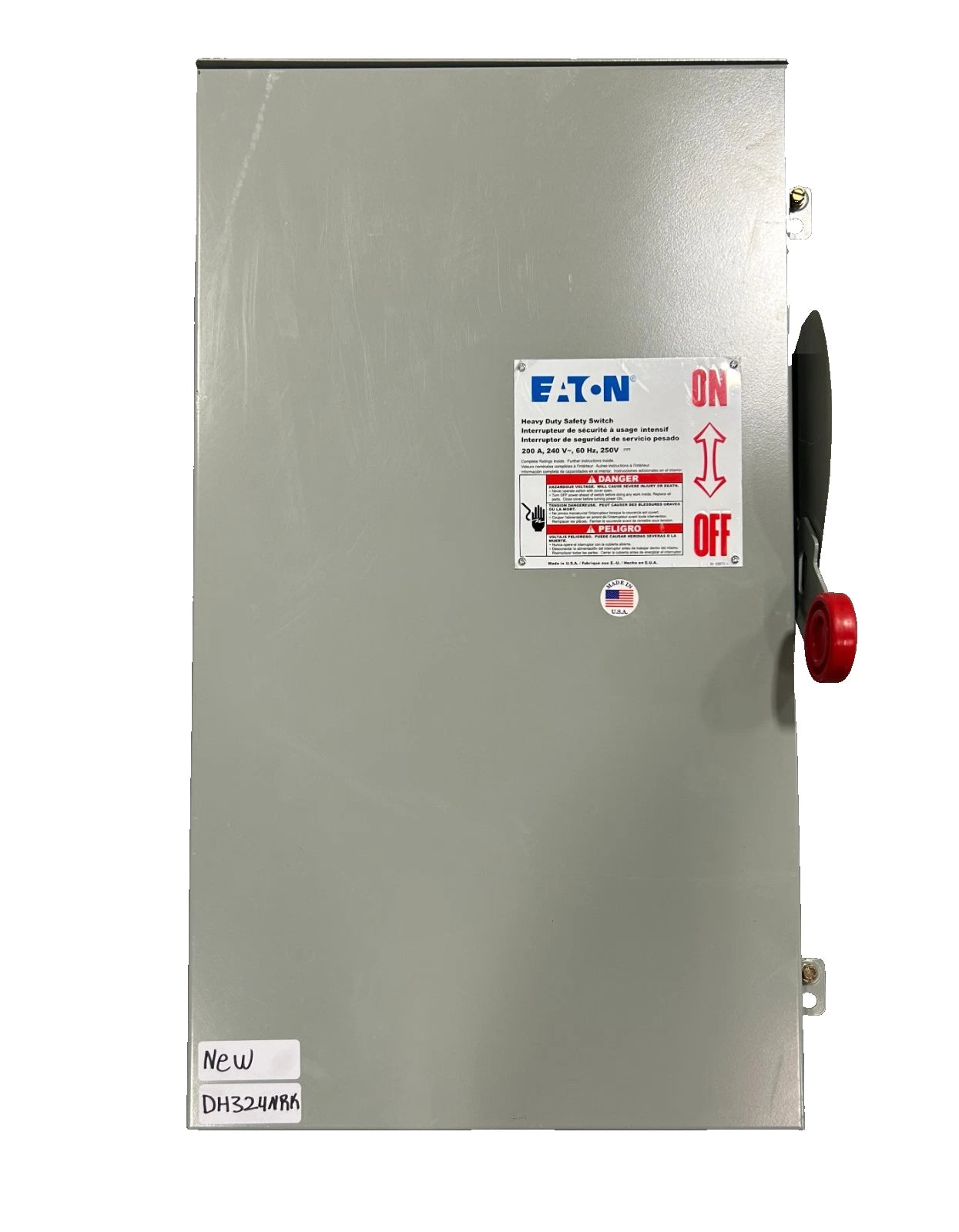

DH324NRK | Eaton 200A 240V 3-Pole Heavy Duty Fusible Safety Switch NEMA 3R
- Regular price
- $1,147.00
- Sale price
- $1,147.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DH324NRK
Description
The Eaton DH324NRK is a heavy-duty fusible safety switch designed for secure power disconnect and circuit protection in industrial and commercial electrical systems. Manufactured by Eaton, the DH324NRK features a 200 amp rating with a three-pole, four-wire configuration and operates at 240V AC. Its NEMA 3R weather-resistant enclosure and visible blade mechanism provide reliable operation and safe isolation for service entrance and distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | DH324NRK |
| Subcategory | Fusible Safety Switch |
| Switch Type | Heavy Duty Fusible Disconnect |
| Amperage Rating | 200 A |
| Voltage Rating (AC) | 240 V |
| Voltage Rating (DC) | 250 V |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Neutral Type | Solid Neutral |
| Fuse Type | Class H Cartridge, Time Delay |
| Fuse Configuration | Fusible with Neutral |
| Wire Size Range | #6 AWG – 250 kcmil Cu/Al |
| Enclosure Rating | NEMA 3R |
| Enclosure Material | Painted Galvanized Steel |
| Applicable Standard | NEMA KS-1 |
| Certification | UL 98 |
| Width | 16 in |
| Depth | 11.25 in |
| Height | 27.63 in |
| Weight | 52 lb |
Information About DH324NRK

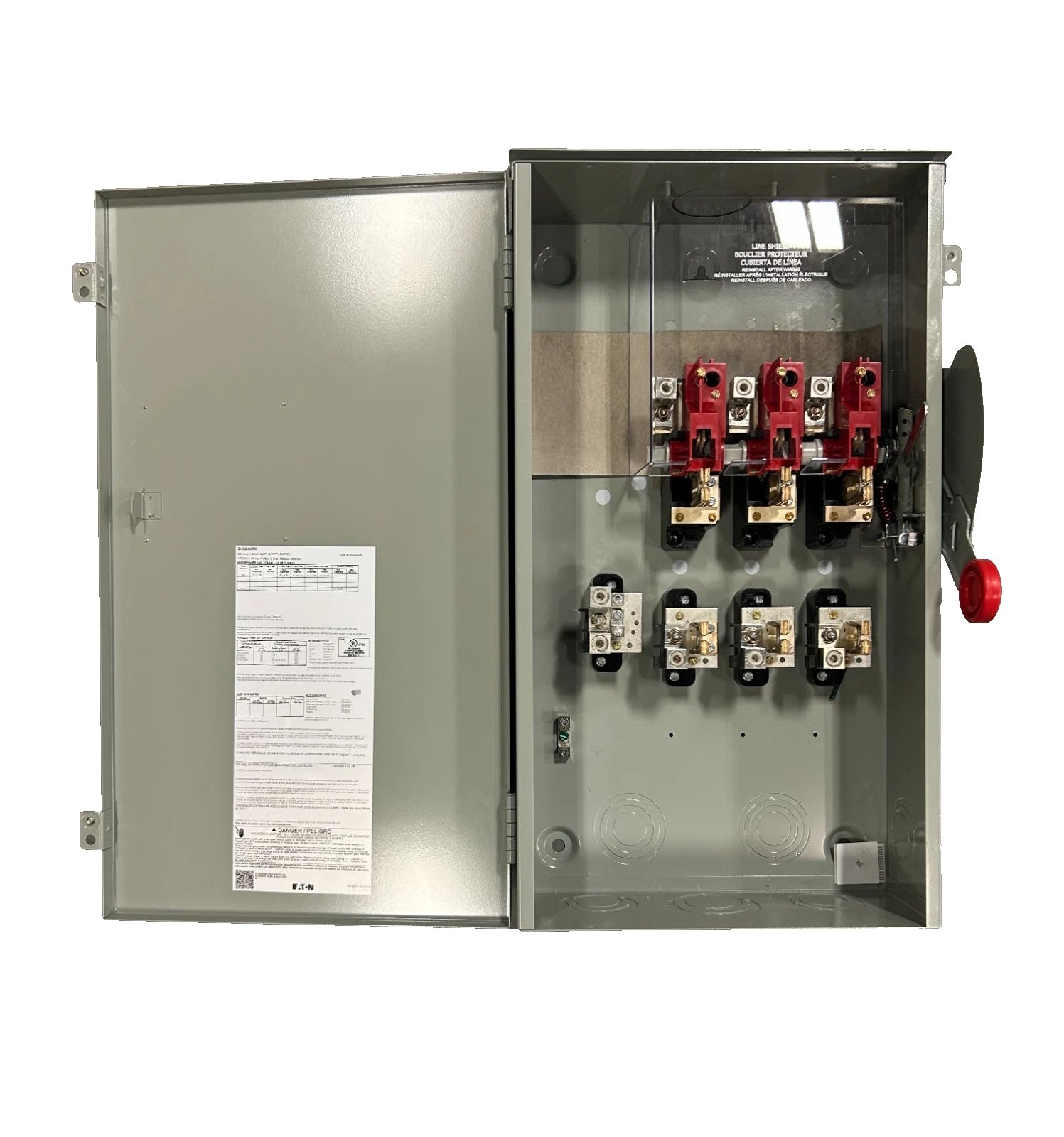

The DH324NRK is part of Eaton’s heavy-duty safety switch series engineered for high-performance power isolation and circuit protection. This fusible disconnect switch uses Class H cartridge fuses to provide overcurrent protection while enabling manual switching of electrical circuits. The unit incorporates a visible double-break rotary blade mechanism that ensures positive opening and closing of contacts while improving durability and contact life. Designed for service entrance installations and outdoor environments, the switch features a painted galvanized steel enclosure with a NEMA 3R rating to protect internal components from weather exposure.
Key Features:
- 200 Amp Current Rating: Supports medium-capacity electrical circuits in commercial and industrial installations.
- Fusible Safety Switch Design: Provides overcurrent protection through installed Class H cartridge fuses.
- Three-Pole, Four-Wire Configuration: Designed for systems requiring a solid neutral connection.
- NEMA 3R Weather-Resistant Enclosure: Suitable for indoor and outdoor installations exposed to rain or moisture.
- Visible Double-Break Blade Mechanism: Ensures clear visual confirmation of circuit disconnection and improved contact performance.
- Padlockable Handle Design: Allows multiple padlocks for increased personnel safety during maintenance.
- Door Interlock Safety Feature: Prevents opening the enclosure when the switch is in the ON position.
- Service Entrance Capability: Designed for use in service entrance applications with proper configuration.
The DH324NRK delivers the reliability and precision required for safe circuit isolation and overcurrent protection in electrical distribution systems.
