Eaton DH362URK 60A 600V 3-Pole Heavy Duty Non-Fusible Safety Switch NEMA 3R
- Regular price
- $735.00
- Sale price
- $735.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DH362URK
Description

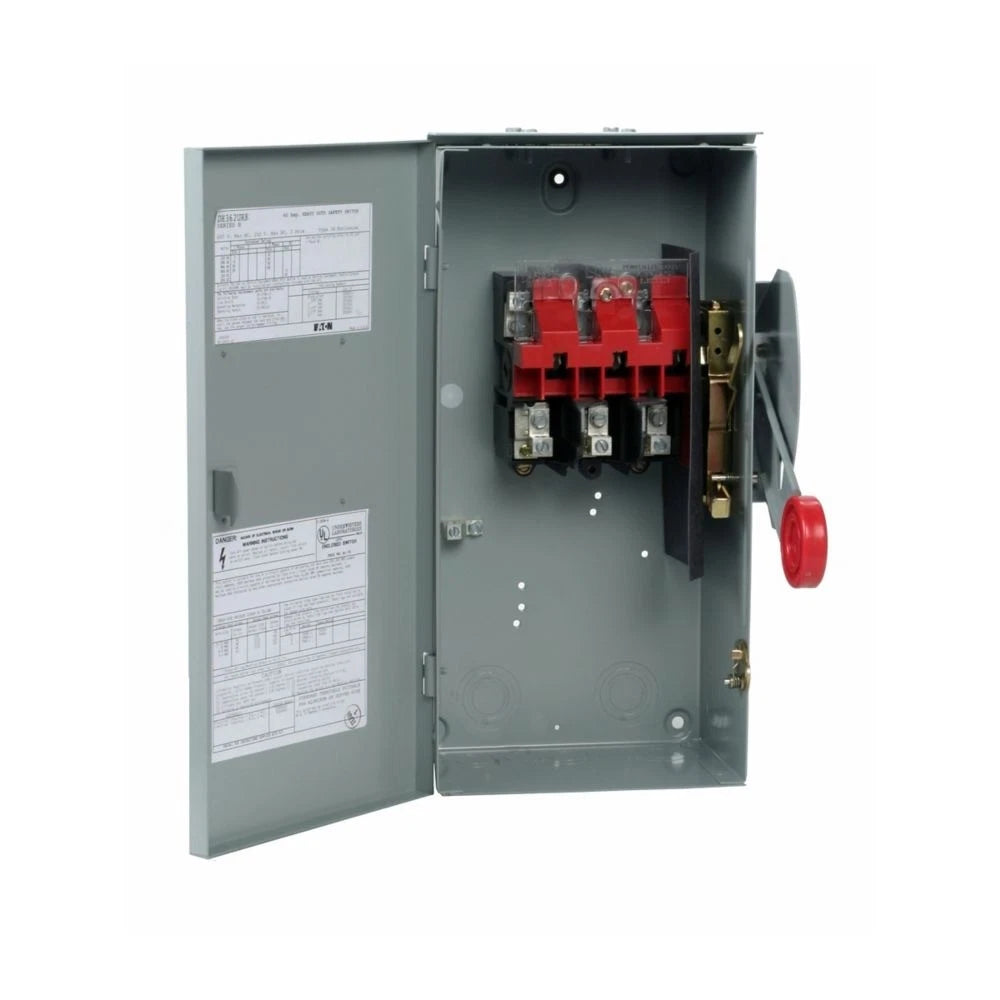

The Eaton DH362URK is a heavy-duty, non-fusible safety switch designed to provide manual electrical isolation and load switching in industrial, commercial, and power distribution systems. Eaton part number DH362URK features a 60 A current rating, 600 VAC capacity, three-pole single-throw configuration, and a NEMA 3R painted galvanized steel enclosure suitable for indoor and outdoor installations.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Eaton / Cutler-Hammer |
|
Category |
Electrical Distribution & Control |
|
Part Number |
DH362URK |
|
Subcategory |
Non-Fusible Safety Switches |
|
Series |
DH Series |
|
Product Type |
Heavy-Duty Non-Fusible Safety Switch |
|
Switch Configuration |
Single-Throw, 3PST |
|
Rated Current |
60 A |
|
Rated Voltage |
600 VAC |
|
Number of Poles |
3 |
|
Number of Wires |
3 |
|
Phase Compatibility |
Single-Phase / Three-Phase |
|
Fuse Configuration |
Non-Fusible |
|
Enclosure Rating |
NEMA 3R |
|
Enclosure Material |
Painted Galvanized Steel |
|
Mounting Type |
Panel / Surface Mount |
|
Maximum Motor Rating |
60 HP at 600 VAC, Three-Phase |
|
Service Entrance Suitability |
With Required Neutral or Ground Lug Kit |
|
Dimensions |
16.5 × 9.12 × 8.31 in (L × W × H) |
|
Weight |
16.00 lb |
Information About DH362URK
The DH362URK is part of Eaton's DH Series of heavy-duty safety switches, engineered for electrical disconnect applications requiring high mechanical durability and reliable switching performance. Its galvanized steel enclosure provides protection against falling rain and sleet, while the mechanically interlocked cover restricts access to internal components when the switch is in the ON position. The three-pole, three-wire design supports single-phase and three-phase electrical systems, with horsepower ratings up to 60 HP at 600 VAC three-phase. Featuring visible double-break switching blades, a quick-make/quick-break operating mechanism, and service entrance suitability when properly equipped, this switch supports safe electrical equipment isolation and maintenance operations.
Key Features:
-
Heavy-Duty Construction: Designed for industrial and commercial electrical distribution systems requiring frequent manual disconnect operations.
-
60 A Current Rating: Supports electrical circuits with a maximum continuous current rating of 60 amperes.
-
600 VAC Voltage Rating: Suitable for electrical distribution and equipment disconnect applications operating at voltages up to 600 VAC.
-
Three-Pole Configuration: Provides simultaneous switching of three conductors in a single-throw, three-wire arrangement.
-
Non-Fusible Design: Provides manual circuit disconnection without integrated overcurrent protection fuses.
-
NEMA 3R Enclosure: Painted galvanized steel housing provides protection against rain, sleet, and external ice formation.
-
Quick-Make/Quick-Break Mechanism: Double-break switching blades provide rapid contact engagement and separation during operation.
-
Mechanically Interlocked Cover: Restricts access to energized internal components while the disconnect handle is in the ON position.
-
Visible Position Indication: External red operating handle provides clear ON/OFF status identification.
-
High Horsepower Capacity: Supports motor disconnect applications rated up to 60 HP at 600 VAC three-phase.
-
Service Entrance Compatibility: Suitable for service entrance applications when the required neutral or grounding lug kit is installed and applicable electrical codes are satisfied.
-
Load Switching Capability: Rated for full-load making and breaking within the manufacturer's specified electrical ratings.
The DH362URK delivers the reliability and precision required for electrical equipment isolation, motor disconnect operations, and industrial power distribution systems.
