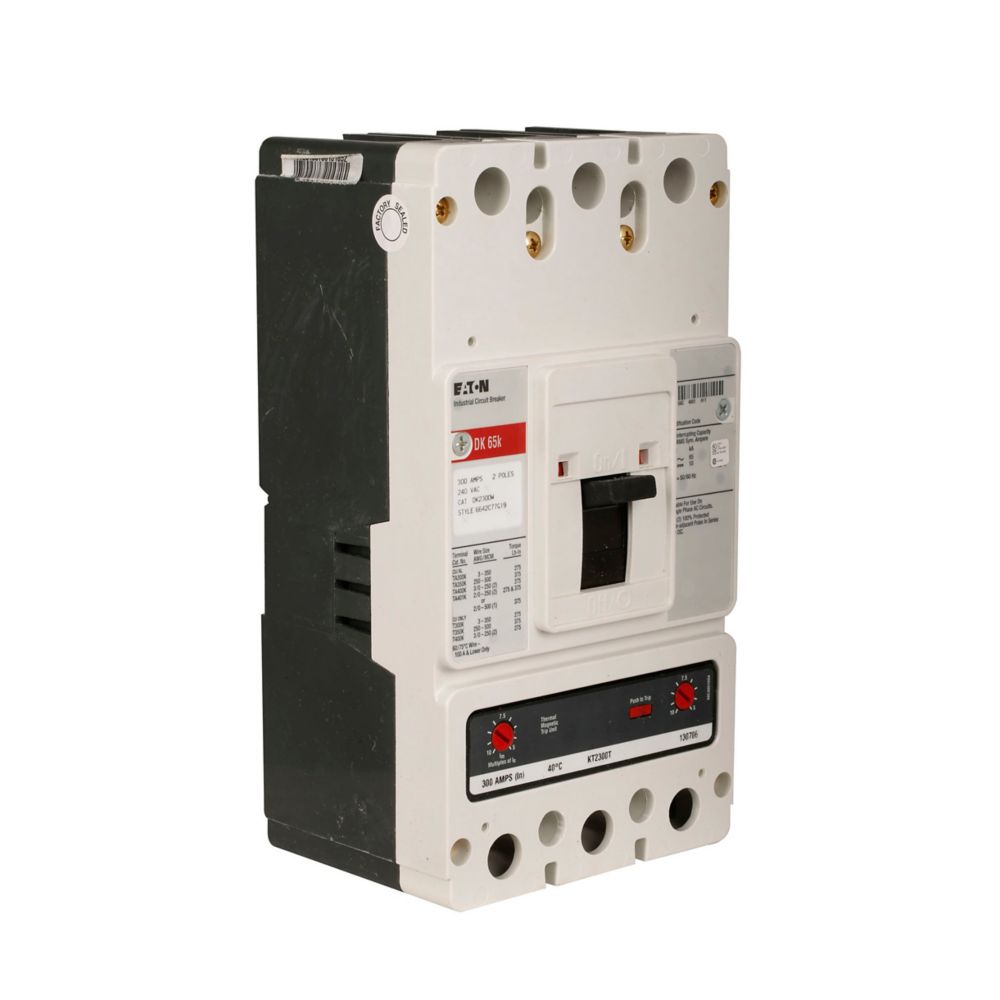

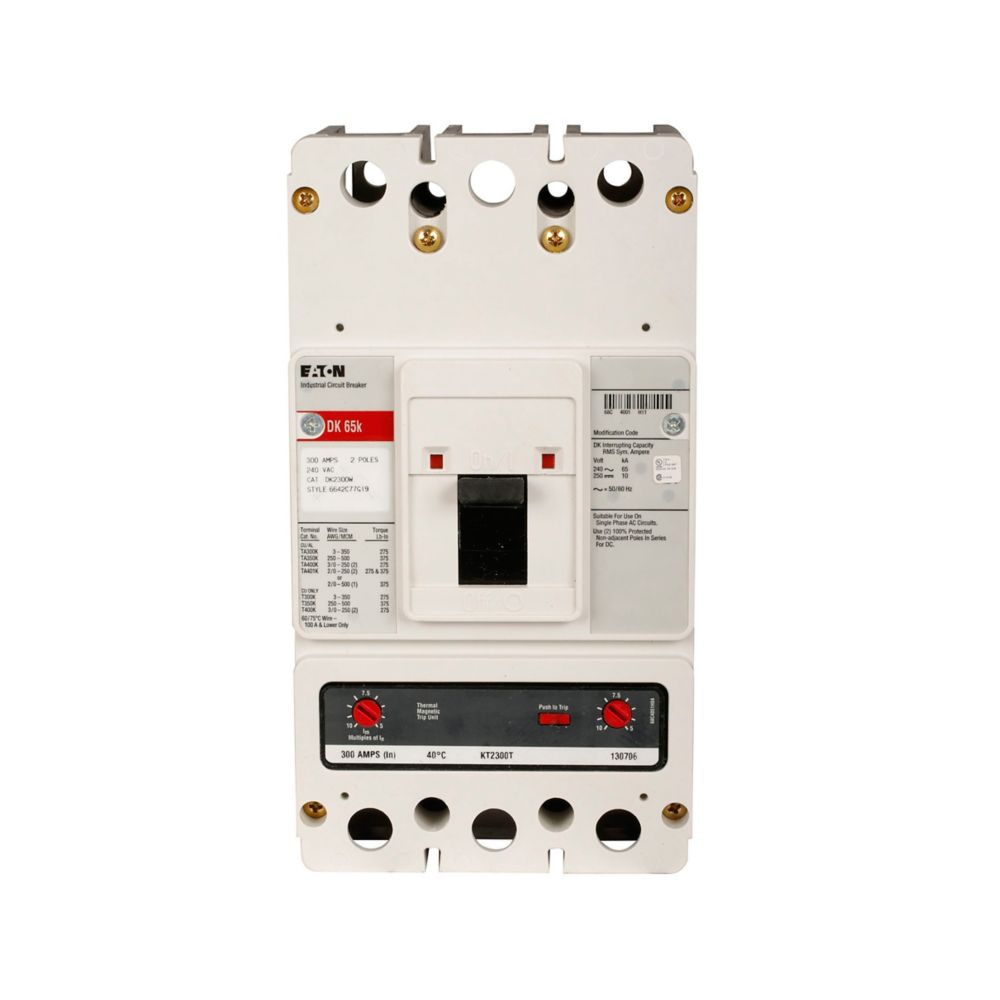

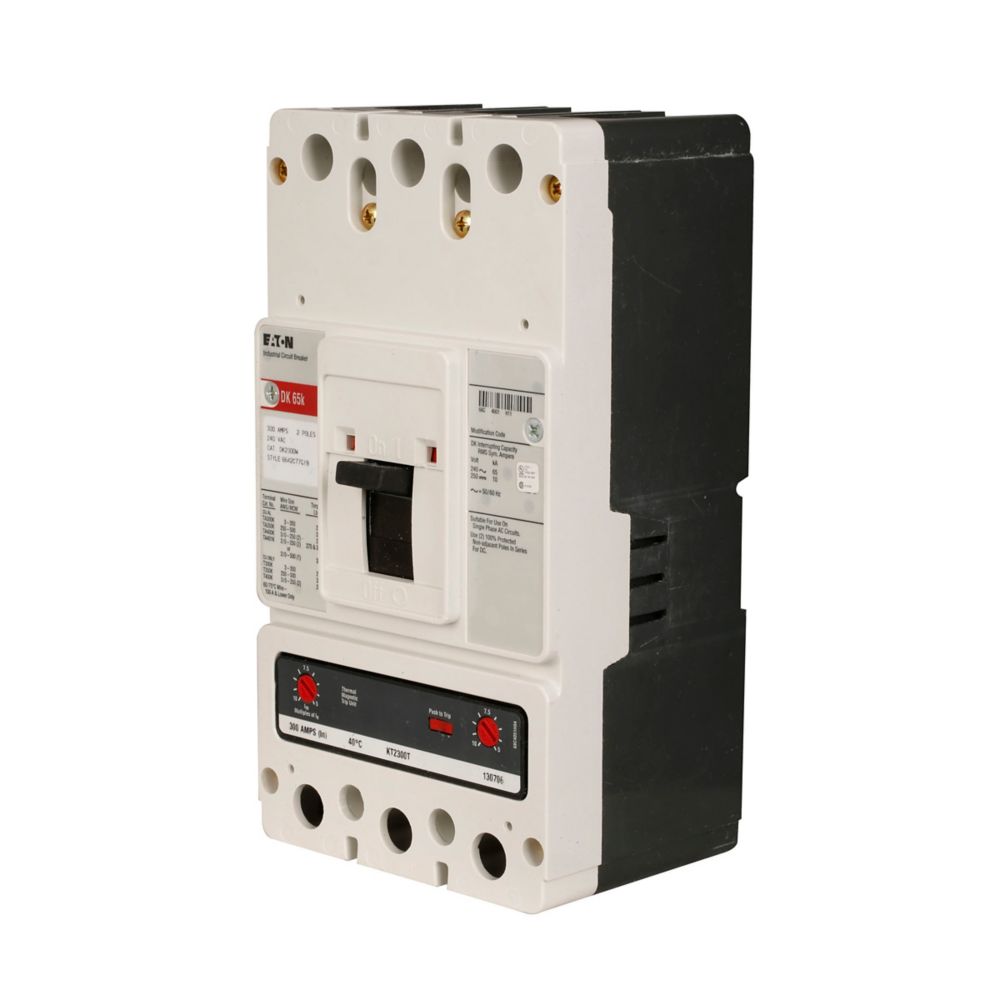

Eaton DK2250W Series C 250A 2-Pole Molded Case Circuit Breaker K-Frame
- Regular price
- $6,318.00
- Sale price
- $6,318.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DK2250W
Description
The Eaton DK2250W is a Series C molded case circuit breaker designed to provide dependable overcurrent protection for industrial and commercial electrical systems. Eaton part number DK2250W features a 250 A rating, two-pole configuration, and a thermal-magnetic trip unit engineered for accurate response to overload and short-circuit faults. Its durable K-frame construction ensures reliable operation in demanding power distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | DK2250W |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Molded case circuit breaker |
| Series | Series C |
| Circuit Breaker Type | DK |
| Frame | K |
| Circuit Breaker Frame Type | Complete breaker |
| Amperage Rating | 250 A |
| Voltage Rating | 240 Vac / 250 Vdc |
| Trip Type | T186 |
| Number of Poles | Two-pole |
| Frequency Rating | 50–60 Hz |
| Terminals | Without terminals |
| Interrupt Rating | 65 kAIC at 240 Vac |
| Additional Interrupt Rating | 10 kAIC at 250 Vdc |
| Certifications | UL Listed |
| Product Dimensions (L × W × H) | 4.1 × 5.5 × 5.5 in |
| Warranty | Eaton Selling Policy 25-000 |
| Weight | 11.5 lb |
Information About DK2250W
The DK2250W is a complete molded case circuit breaker from Eaton’s Series C circuit protection family, built to deliver reliable protection in electrical distribution systems. It utilizes a T186 thermal-magnetic trip mechanism that combines overload protection with instantaneous fault interruption capability. The breaker is built on the K frame platform and is supplied without terminals to allow customized connection hardware suited to the installation. Designed for 240 Vac or 250 Vdc systems and certified to UL standards, it is suitable for industrial control panels and commercial electrical equipment.
Key Features:
- 250 Amp Current Rating: Provides dependable protection for feeder and distribution circuits in commercial and industrial installations.
- Series C Circuit Protection Platform: Built on Eaton’s proven Series C design known for durability and consistent performance.
- T186 Thermal-Magnetic Trip Unit: Combines thermal overload sensing with instantaneous magnetic fault protection.
- High Interrupt Capacity: Rated up to 65 kAIC at 240 Vac for safe interruption of high fault currents.
- Two-Pole Configuration: Designed for protection of single-phase or specific two-pole distribution circuits.
- K-Frame Breaker Construction: Heavy-duty frame supports high current capacity and long service life.
- Flexible Terminal Configuration: Supplied without terminals to allow installation with application-specific connection hardware.
- UL Listed Certification: Meets recognized safety standards for circuit protection equipment.
The DK2250W delivers the reliability and precision required for protecting commercial and industrial electrical distribution circuits.
