Eaton E51DT1 E51 Series Shielded Inductive Proximity Sensor Head 0.51 Inch Top Sensing
- Regular price
- $399.00
- Sale price
- $399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: E51DT1
Description

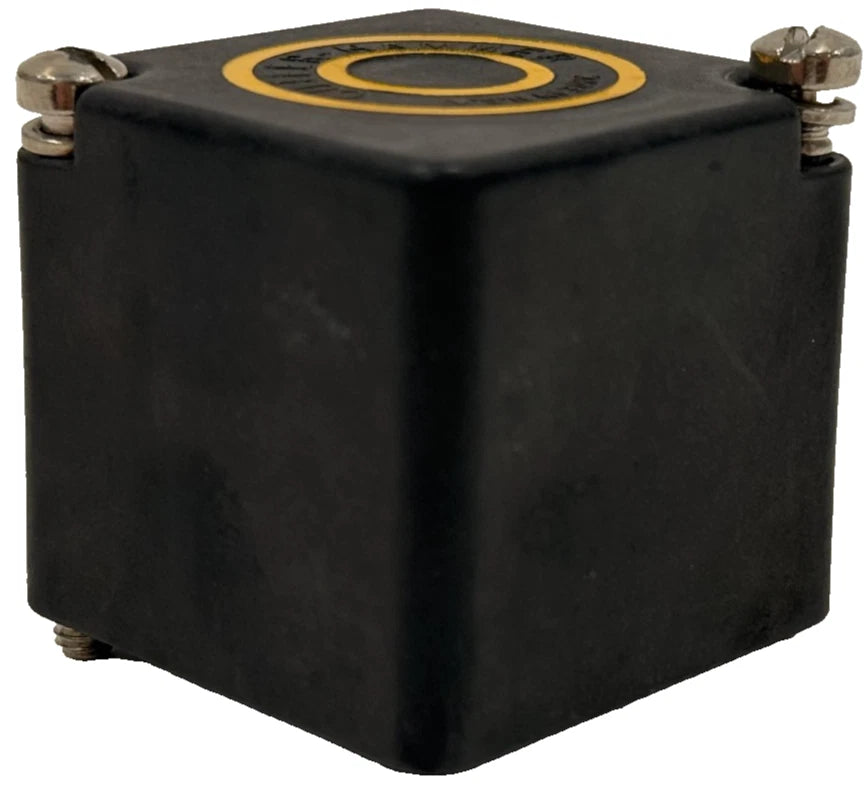

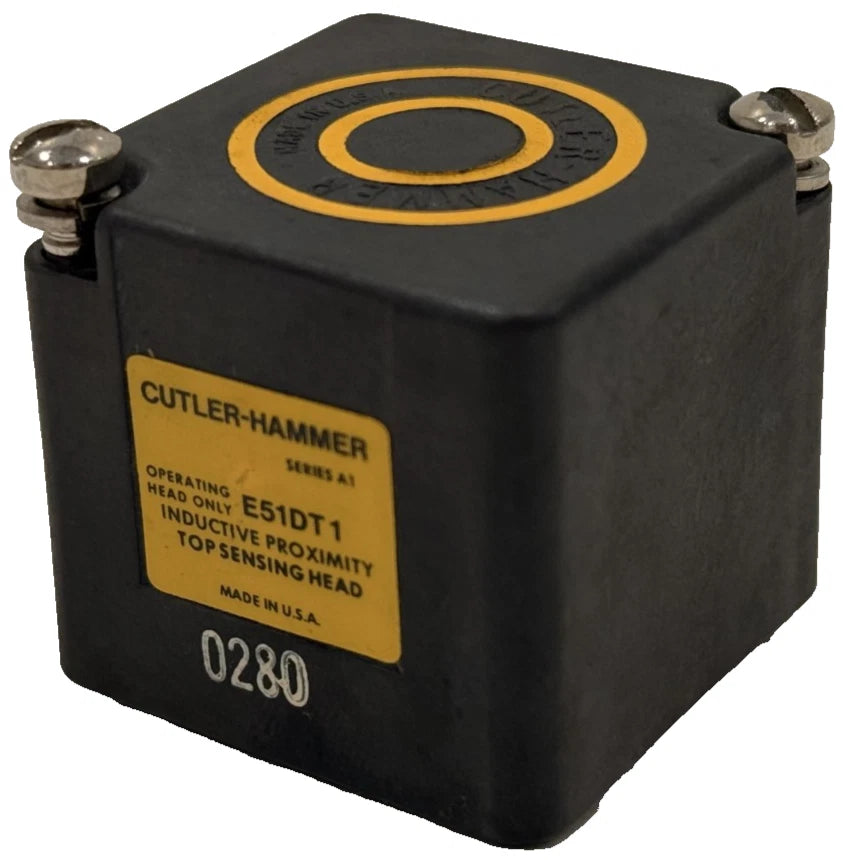

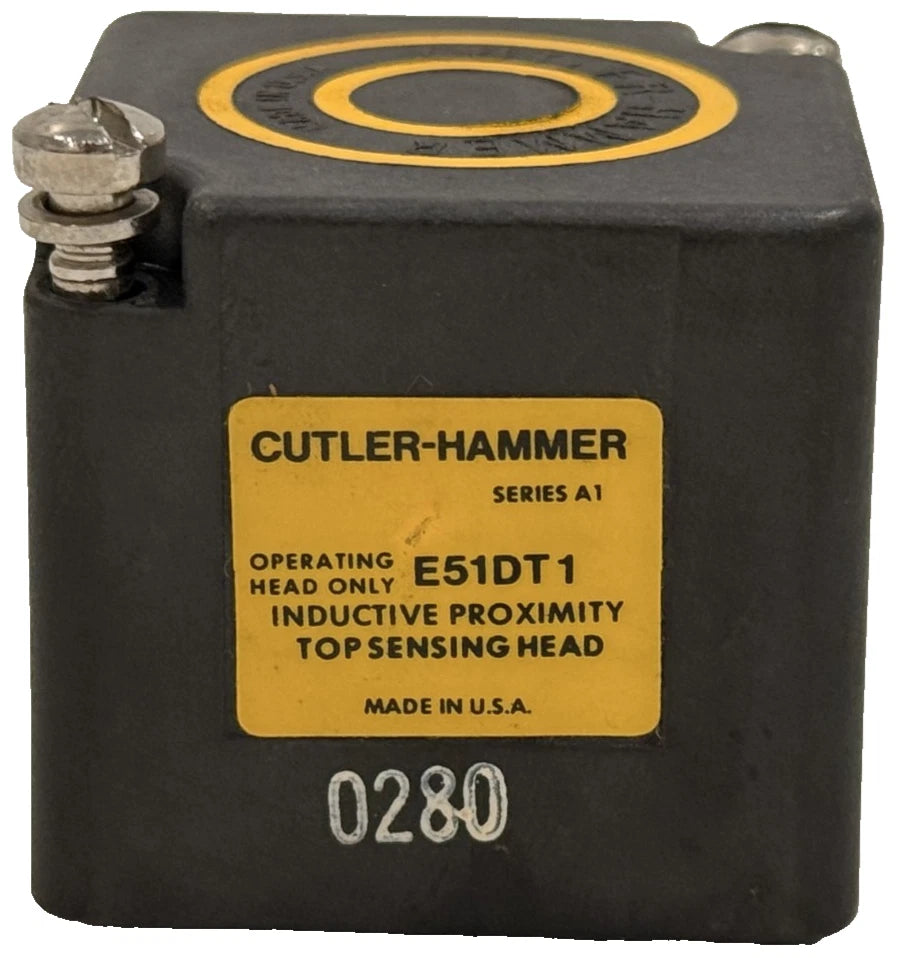

The Eaton E51DT1 is an E51 Series inductive proximity sensor head designed for non-contact detection of metallic objects in industrial machinery and automated control systems. Eaton part number E51DT1 features a shielded, top-sensing configuration with a nominal sensing range of 0.51 inches (13 mm), providing reliable position and presence detection in demanding industrial environments.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Eaton / Cutler-Hammer |
|
Category |
Industrial Automation & Controls |
|
Part Number |
E51DT1 |
|
Subcategory |
Inductive Proximity Sensors |
|
Series |
E51 |
|
Product Type |
Inductive Proximity Sensor Head |
|
Sensing Technology |
Inductive, Non-Contact |
|
Sensing Position |
Top Sensing |
|
Nominal Sensing Range |
0.51 in (13 mm) |
|
Actuator Function |
Shielded |
|
Frequency Rating |
Standard |
|
Target Material |
Metallic Objects |
|
Output Selection |
Normally Open / Normally Closed, Configurable with Compatible Assembly |
|
Housing Material |
Plastic |
|
Environmental Rating |
NEMA 3, 3S, 4, 4X, 6, 6P, 12, 13 |
|
Ingress Protection |
IP67 |
|
Operating Temperature |
-13°F to 158°F (-25°C to 70°C) |
|
Dimensions |
1.51 in H × 1.51 in W × 1.38 in D |
|
Compatible Equipment |
Eaton E51 Series Modular Sensor Assemblies |
|
Certifications |
UL Listed, CSA Certified |
|
Weight |
0.1 lb |
Information About E51DT1
The E51DT1 is part of Eaton's E51 Series modular proximity sensing family, developed for industrial limit-switch applications requiring electronic detection without mechanical contact. Its compact plastic housing incorporates a shielded inductive sensing element with a top-facing detection surface, allowing installation in compatible E51 modular sensor assemblies. The sensor head is designed for use with appropriate E51 electronic output modules, which provide the electrical interface needed to communicate detection signals to industrial control equipment. With NEMA 3, 3S, 4, 4X, 6, 6P, 12, and 13 environmental ratings and IP67 protection, it is suitable for equipment operating in wet, dusty, or otherwise demanding industrial conditions.
Key Features:
-
Inductive Proximity Detection: Detects metallic targets without physical contact, reducing mechanical wear associated with conventional limit switches.
-
0.51-Inch Sensing Range: Provides a nominal detection distance of 0.51 inches (13 mm) under specified sensing conditions.
-
Top-Sensing Configuration: Positions the active sensing face at the top of the sensor head for application-specific target detection.
-
Shielded Sensing Element: Helps control the sensing field and reduces interference from nearby metallic mounting structures.
-
Standard Frequency Operation: Uses the standard-frequency sensing configuration specified for the E51 Series.
-
Modular E51 Design: Intended for integration with compatible Eaton E51 proximity sensor assemblies and electronic output modules.
-
High Environmental Protection: Supports NEMA 3, 3S, 4, 4X, 6, 6P, 12, and 13 enclosure ratings.
-
IP67 Protection: Provides protection against dust ingress and temporary water immersion when properly assembled and installed.
-
Wide Operating Temperature: Rated for operation from -13°F to 158°F (-25°C to 70°C).
-
Compact Plastic Housing: Measures approximately 1.51 inches high and wide, with a depth of 1.38 inches.
-
Industrial Certifications: UL Listed and CSA Certified for applicable industrial sensing applications.
-
Non-Contact Position Monitoring: Suitable for metal object detection, machine position monitoring, and automated equipment sensing.
The E51DT1 delivers the reliability and precision required for non-contact metallic object detection and position monitoring in industrial automation and machinery control systems.
