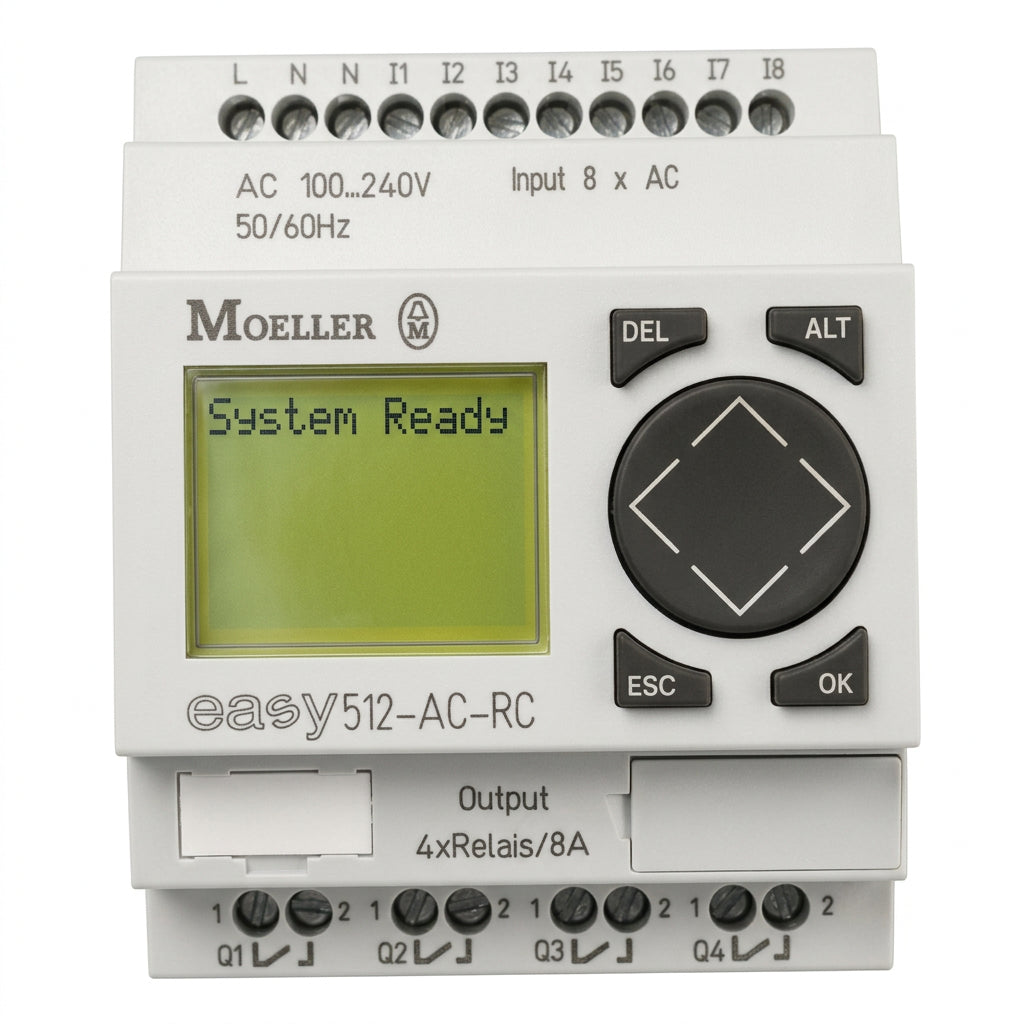

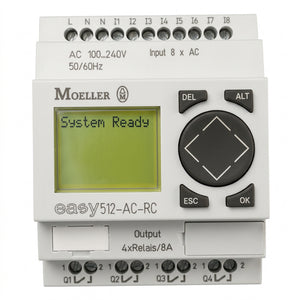

Eaton EASY512-AC-RC easy500 Programmable Smart Relay 110–240VAC with 8 Inputs, 4 Outputs and LCD

Description

The Eaton EASY512-AC-RC is an easy500 Series programmable control relay designed for industrial automation, machine control, and electrical switching applications. Eaton part number EASY512-AC-RC operates from a 110–240 VAC power supply and combines eight digital inputs, four relay outputs, an integrated display, and a real-time clock for programmable control of electrical equipment.

Technical Specifications

Information About EASY512-AC-RC

The EASY512-AC-RC is part of Eaton's easy500 Series of programmable control relays, developed to replace conventional relay logic, timers, and auxiliary control components in compact automation systems. Its integrated LCD display and operating buttons allow users to configure control programs, monitor input and output conditions, and adjust operating parameters directly from the device. The controller features eight AC digital inputs and four relay outputs, supporting applications such as motor control, lighting automation, pump operation, and equipment sequencing. With a built-in real-time clock, DIN-rail mounting, and an IP20 enclosure, the unit provides programmable switching and time-dependent control functions within industrial electrical cabinets.

Key Features:

• 12-Point I/O Configuration: Combines eight digital inputs and four relay outputs in a compact programmable control relay.

• 110–240 VAC Power Supply: Supports operation from standard AC industrial control voltages.

• Eight Digital Inputs: Monitors compatible AC control signals from switches, sensors, and auxiliary contacts.

• Four Relay Outputs: Provides independent switching contacts for controlling compatible electrical loads.

• Integrated LCD Display: Displays control programs, operating conditions, and configuration parameters.

• Built-In Real-Time Clock: Enables time-based switching, scheduling, and calendar-dependent control functions.

• Front-Panel Programming: Allows configuration and modification of control logic using integrated operating buttons.

• Programmable Logic Functions: Supports relay logic, timers, counters, and other control functions without a conventional PLC installation.

• DIN-Rail Mounting: Designed for installation on standard 35 mm mounting rails inside electrical control panels.

• Wide Operating Temperature: Supports operation from -25°C to +55°C in suitable industrial environments.

• IP20 Enclosure Protection: Provides protection against accidental finger contact with internal components when properly installed.

• Compact Control Architecture: Combines multiple conventional control functions into one programmable device, reducing external wiring requirements.

The EASY512-AC-RC delivers the reliability and precision required for programmable relay logic, timed switching, and automated electrical equipment control.
