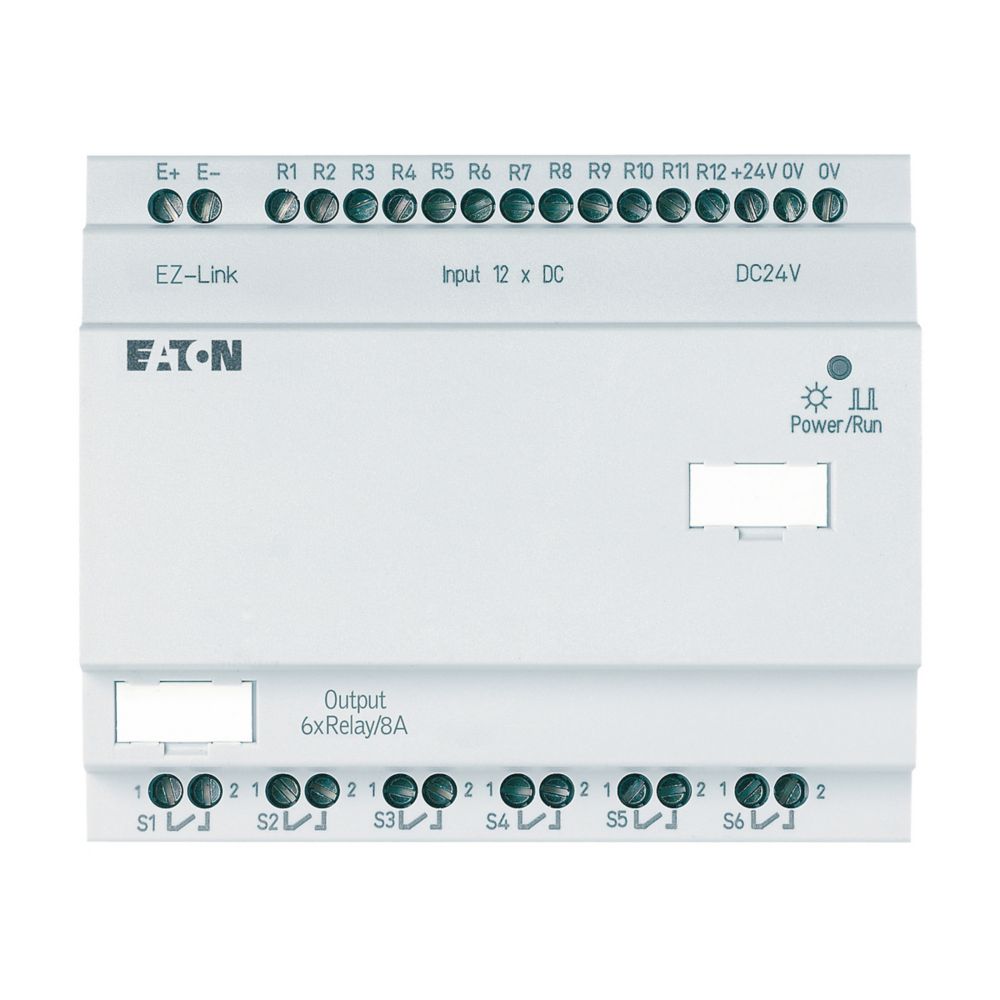

Eaton EASY618-DC-RE 18-Point Digital I/O Expansion Module with 12 Inputs and 6 Relay Outputs

Description

The Eaton EASY618-DC-RE is an 18-point digital I/O expansion module designed to extend the input and output capacity of compatible Eaton easy programmable relay systems. Eaton Cutler-Hammer part number EASY618-DC-RE provides 12 digital inputs rated for 24 VDC and six relay outputs, enabling additional monitoring and switching functions in industrial automation, machine control, and electrical panel applications.

Technical Specifications

Information About EASY618-DC-RE

The EASY618-DC-RE is part of Eaton's easy600 programmable relay family and functions as an expansion unit for compatible easy control relays. Its compact DIN-rail-mounted housing contains 12 digital input channels and six relay outputs, allowing the connected controller to monitor additional field signals and operate external electrical loads. The module operates with a 24 VDC power supply and uses screw-terminal connections for integration with switches, sensors, contactors, indicator lights, and other compatible control devices. Designed for industrial control cabinets, it supports distributed input and output functions while allowing the main programmable relay to execute the application logic.

Key Features:

• 18-Point I/O Expansion: Adds 12 digital inputs and six relay outputs to compatible Eaton easy programmable relay systems.

• 24 VDC Digital Inputs: Accepts 12 discrete input signals from compatible industrial switches, sensors, and control contacts.

• Six Relay Outputs: Provides electrically operated switching contacts for external control devices and electrical loads.

• easy600 Series Compatibility: Designed for expansion of compatible Eaton easy600 programmable relay configurations.

• 24 VDC Power Supply: Uses a standard industrial DC control voltage for module operation.

• DIN-Rail Mounting: Installs on a standard top-hat mounting rail inside an industrial electrical enclosure.

• Screw-Terminal Connections: Supports secure wiring connections for field inputs, relay outputs, and supply power.

• Flexible Wire Sizes: Accepts solid conductors from 0.2 to 4.0 mm² and flexible conductors from 0.2 to 2.5 mm².

• Wide Operating Temperature: Designed for operation from -25°C to +55°C in suitable industrial environments.

• Modular Expansion Architecture: Extends the available control points without requiring replacement of the compatible main controller.

• Industrial Load Switching: Relay outputs can control compatible contactors, pilot lights, solenoids, and auxiliary circuits within their electrical ratings.

• Panel Space Efficiency: Compact enclosure combines multiple input and output channels in a single DIN-rail-mounted module.

The EASY618-DC-RE delivers the reliability and precision required for expanding digital monitoring and relay switching capabilities in industrial programmable relay systems.
