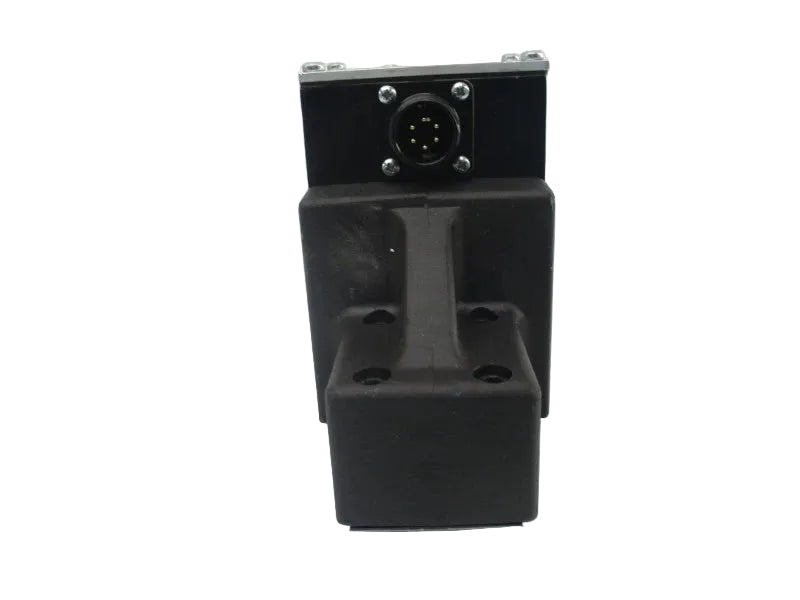

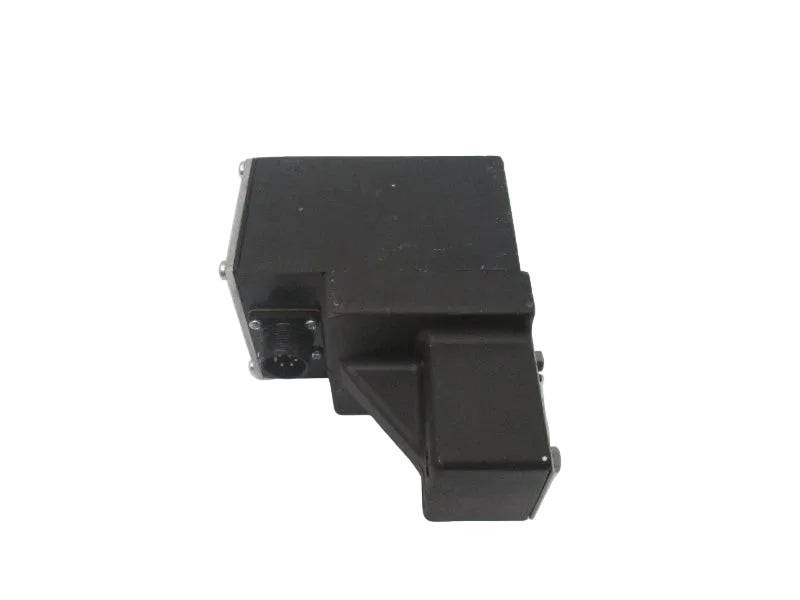

EHST-3-FVF-40 | Eaton ISO 4401 Size 3 Proportional Pressure Control Valve 210 Bar
- Regular price
- $2,147.00
- Sale price
- $2,147.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EHST-3-FVF-40
Description
The Eaton EHST-3-FVF-40 is a solenoid-controlled hydraulic proportional pressure control valve with integrated electronics for precise pressure regulation in industrial systems. Designed to ISO 4401 Size 3 standards, it supports a pressure range of 5.5 to 210 bar and operates with a 0–10 VDC command signal. This valve is engineered for applications requiring accurate, electronically controlled hydraulic pressure management.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Hydraulics |
| Part Number | EHST-3-FVF-40 |
| Subcategory | Proportional Pressure Control Valves |
| Valve Type | Proportional Pressure Control Valve |
| Actuation | Solenoid Controlled |
| Integrated Electronics | Yes (Onboard Amplifier) |
| Mounting Standard | ISO 4401 Size 3 (CETOP 3 / NG6) |
| Pressure Range | 5.5 – 210 bar |
| Command/Input Signal | 0–10 VDC |
| Output Signal | Integrated Feedback Output |
| Supply Voltage | 22–28 VDC |
| Electrical Connector | Requires MS3106A-14S Mating Connector |
| Control Type | Electrohydraulic Proportional |
| Application | Hydraulic Pressure Regulation |
| Weight | Approx. 3 kg |
Information About EHST-3-FVF-40
The EHST-3-FVF-40 is an electrohydraulic proportional pressure control valve manufactured by Eaton for closed-loop hydraulic systems. It features integrated onboard electronics, eliminating the need for an external amplifier and enabling direct 0–10 VDC input signal control. Built to ISO 4401 Size 3 (CETOP 3 / NG6) mounting standards, it allows straightforward manifold installation in modular hydraulic assemblies. Operating on a 22–28 VDC supply and requiring an MS3106A-14S mating connector, it delivers stable and repeatable pressure control across a working range of 5.5 to 210 bar.
Key Features:
- Proportional Pressure Control: Provides precise modulation of hydraulic pressure via electrical input signal.
- Integrated Electronics: Built-in amplifier enables direct 0–10 VDC command signal operation.
- Wide Pressure Range: Adjustable control from 5.5 to 210 bar for flexible system integration.
- ISO 4401 Size 3 Mounting: Standardized interface for manifold and subplate installation.
- Solenoid-Controlled Actuation: Ensures responsive and stable proportional performance.
- 22–28 VDC Supply Voltage: Compatible with standard industrial DC power systems.
- Signal Output and Bias Function: Supports monitoring and fine adjustment of control parameters.
- MS3106A-14S Connector Requirement: Designed for secure and reliable electrical connection.
The EHST-3-FVF-40 delivers the reliability and precision required for proportional hydraulic pressure control in advanced industrial fluid power systems.
