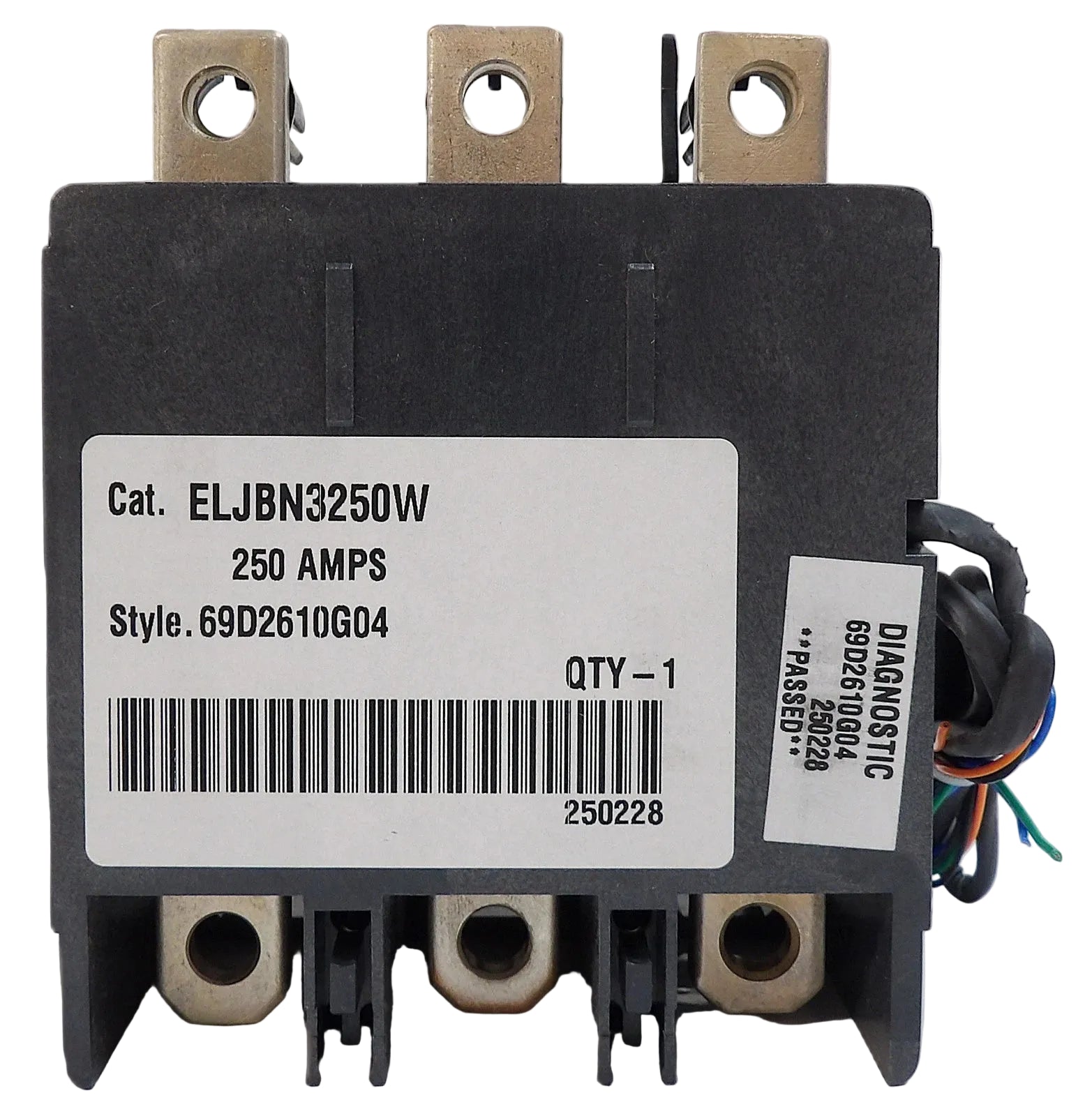

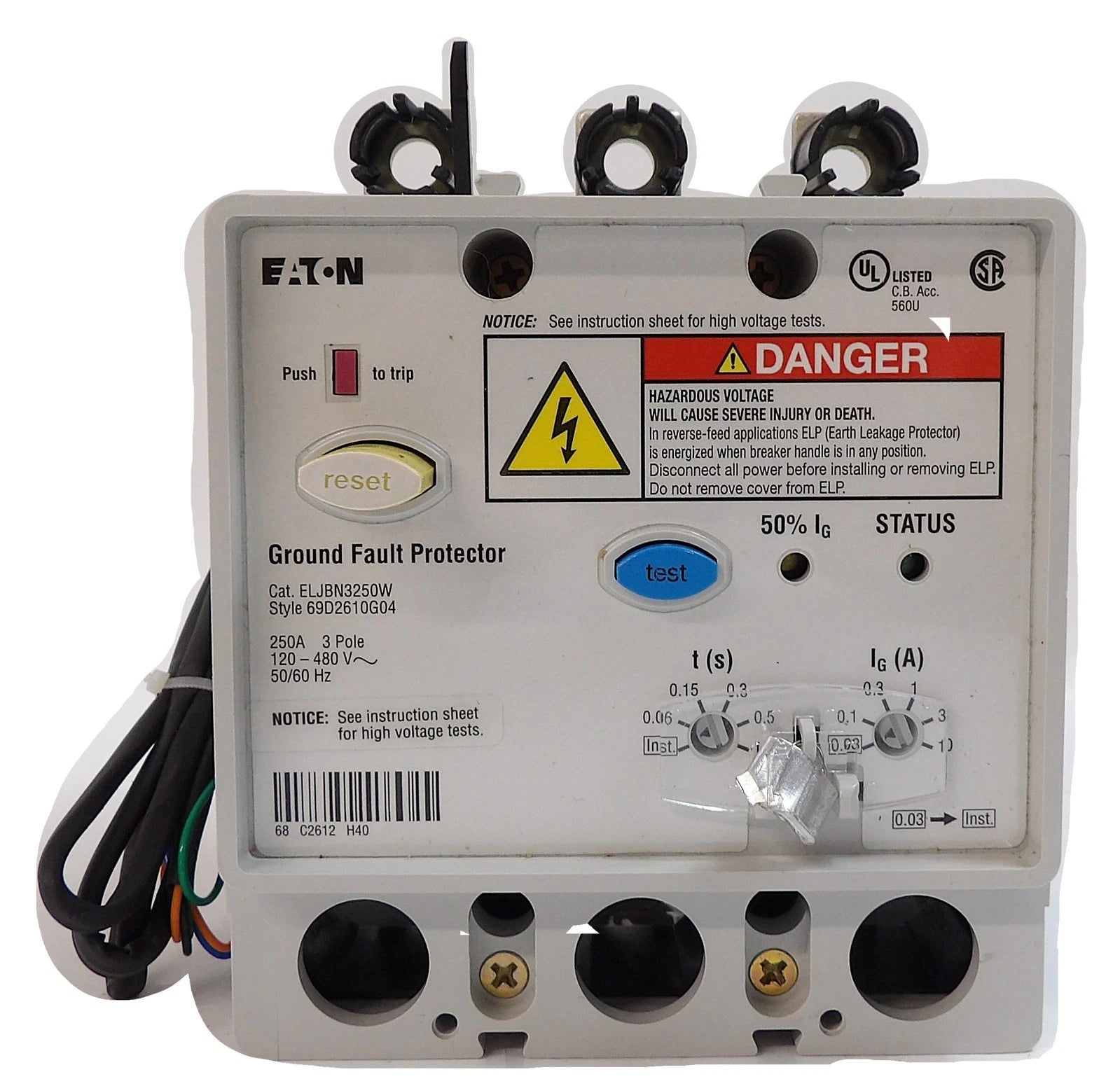

Eaton ELJBN3250W Series G 250A JG-Frame Earth Leakage Module
- Regular price
- $1,695.00
- Sale price
- $1,695.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: ELJBN3250W
Description
The Eaton ELJBN3250W earth leakage module is a Series G molded case circuit breaker accessory designed for JG-frame three-pole breaker systems rated at 250A and 480VAC. Engineered for ground fault and earth leakage protection, the module enhances electrical safety in commercial and industrial power distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breakers |
| Part Number | ELJBN3250W |
| Subcategory | Ground Fault Modules |
| Series | Series G |
| Product Type | Molded Case Circuit Breaker Accessory |
| Class | Earth Leakage |
| Accessory Type | Earth Leakage Module |
| Frame Type | JG-Frame |
| Circuit Breaker Type | Complete Breaker |
| Current Rating | 250A |
| Voltage Rating | 480VAC |
| Frequency Rating | 50/60 Hz |
| Pole Configuration | Three-Pole |
| Mounting Method | Bottom Mounted |
| Terminals | Without Terminals |
| Certifications | UL Listed |
| Product Length/Depth | 3.57 in |
| Product Height | 4.13 in |
| Product Width | 4.13 in |
| Weight | 3.0 lb |
Information About ELJBN3250W
The ELJBN3250W is an Eaton Series G earth leakage module developed for use with JG-frame molded case circuit breaker systems in demanding electrical distribution environments. Designed as a complete breaker accessory, the module provides earth leakage and ground fault protection to help detect fault currents and improve system safety. The unit supports three-pole 250A applications operating at 480VAC and is intended for installation in commercial and industrial power systems requiring advanced protective functionality. Its bottom-mounted configuration and UL Listed certification support reliable integration into Eaton molded case breaker assemblies used in low-voltage distribution networks.
Key Features:
- Series G Compatibility: Designed for Eaton Series G molded case circuit breaker systems.
- Earth Leakage Protection: Provides detection and protection against leakage current conditions.
- Ground Fault Module Design: Enhances electrical safety within power distribution systems.
- JG-Frame Integration: Engineered for compatible JG-frame breaker assemblies.
- 250A Current Rating: Supports medium-capacity industrial and commercial electrical applications.
- Three-Pole Configuration: Designed for three-phase power distribution systems.
- 480VAC Operation: Rated for use in 480VAC electrical networks at 50/60 Hz.
- Bottom-Mounted Installation: Allows secure attachment to compatible breaker assemblies.
The ELJBN3250W delivers the reliability and precision required for ground fault protection and electrical distribution safety applications.
