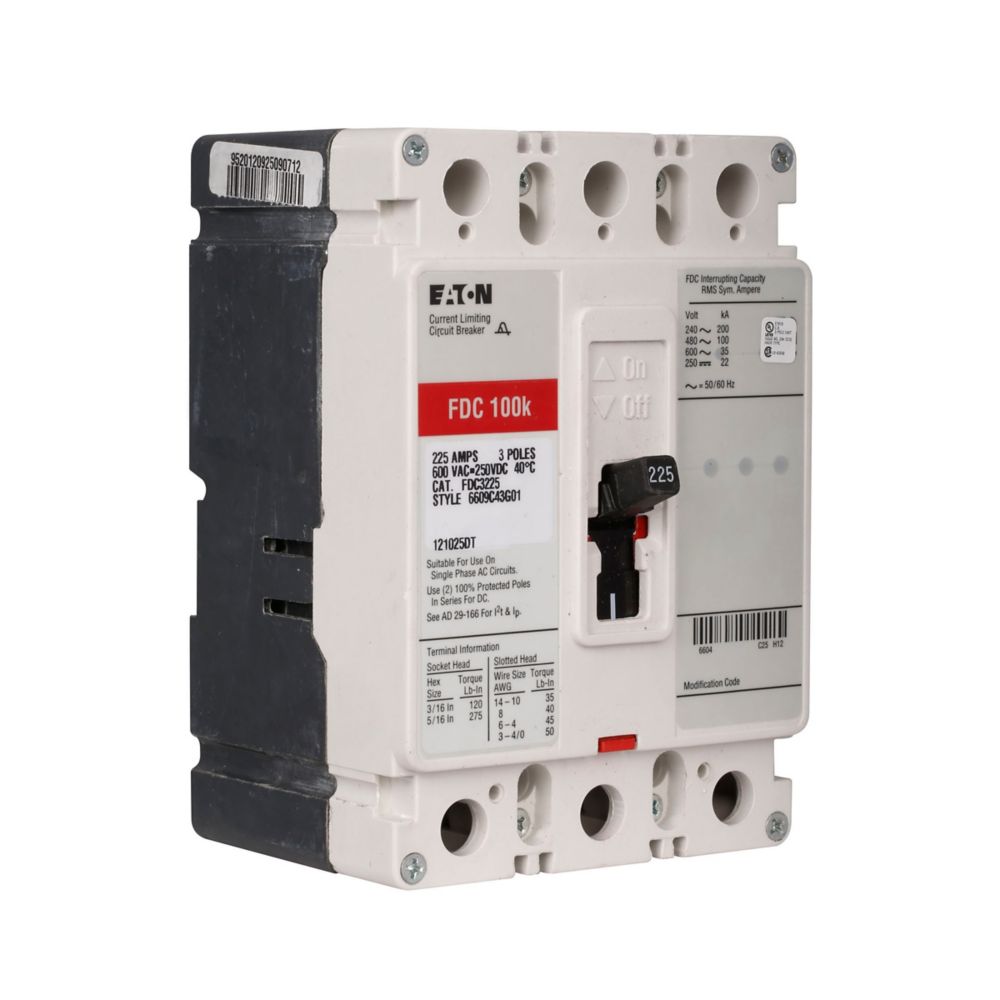

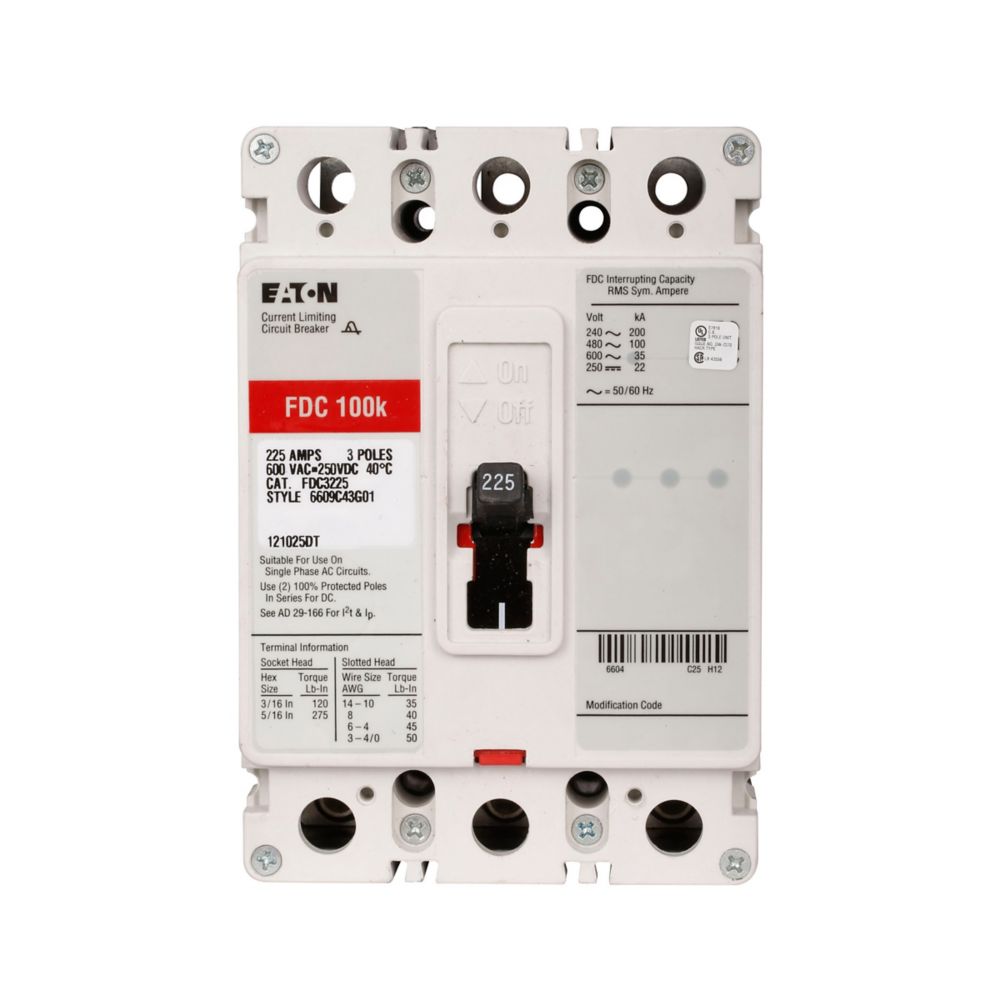

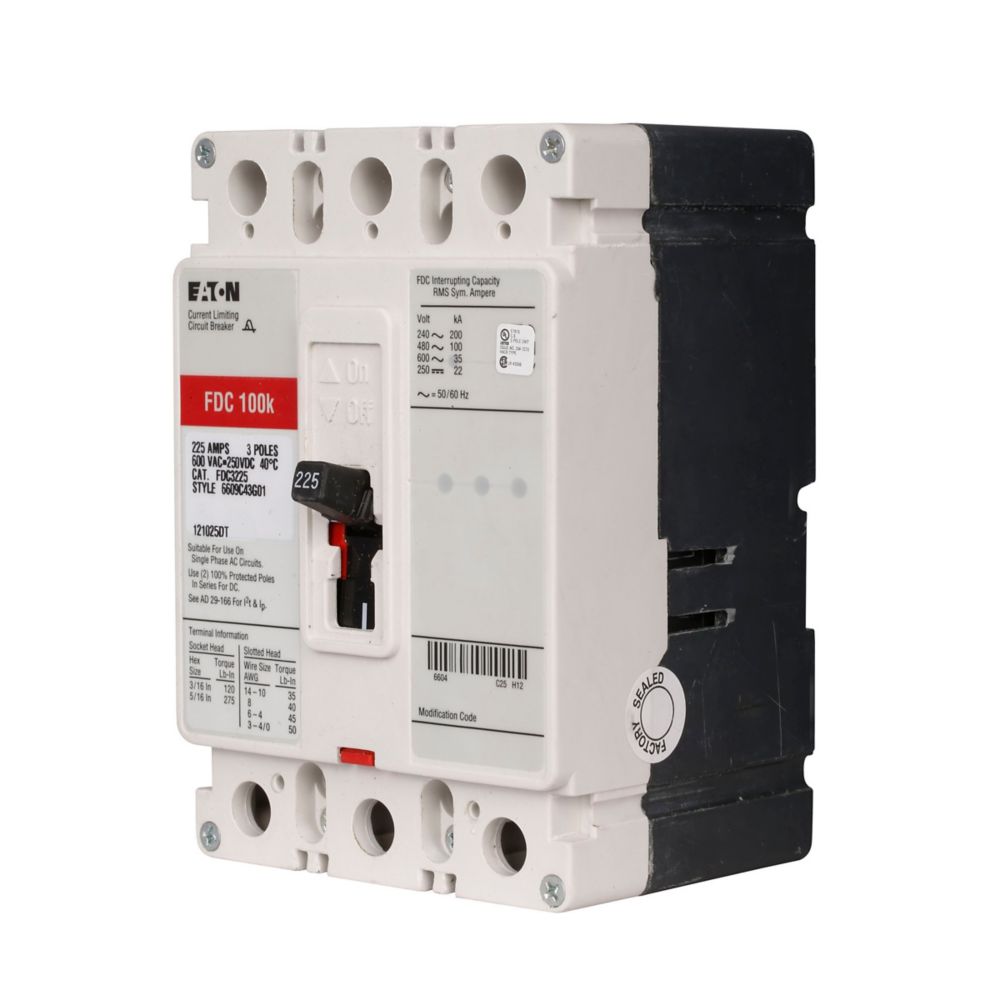

FDC3225 | Eaton Series C 225A 3-Pole Molded Case Circuit Breaker
- Regular price
- $712.00
- Sale price
- $712.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FDC3225
Description
The Eaton FDC3225 is a molded case circuit breaker designed to protect electrical distribution systems from overloads and short circuits in industrial and commercial applications. This Eaton part number FDC3225 provides a 225 amp current rating with a three-pole configuration and supports operation up to 600 VAC. As part of the Series C breaker family, it offers high interrupting capacity and reliable circuit protection for demanding power systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | FDC3225 |
| Subcategory | Molded Case Circuit Breaker |
| Series | Series C |
| Frame Type | F Frame |
| Breaker Type | FDC Molded Case Circuit Breaker |
| Number of Poles | 3 Pole |
| Current Rating | 225 A |
| Voltage Rating | 600 VAC / 250 VDC |
| Trip Unit | T186 Thermal-Magnetic |
| Frequency Rating | 50–60 Hz |
| Interrupt Rating | 100 kAIC @ 480 VAC; 200 kAIC @ 240 VAC |
| Terminals | Load Side |
| Certifications | UL Listed |
| Dimensions (L×W×H) | 3.38 × 4.13 × 4.13 in |
| Weight | 4.5 lbs |
Information About FDC3225
The FDC3225 is part of Eaton’s Series C molded case circuit breaker line, engineered to deliver dependable protection for modern electrical distribution equipment. It features an F-frame design with a T186 trip unit that provides thermal-magnetic protection against overloads and fault conditions. The breaker supports both AC and DC systems with voltage ratings up to 600 VAC and 250 VDC, making it suitable for a wide range of industrial installations. With UL listing and a high interrupting capacity rating, it integrates easily into switchboards, panelboards, and industrial control panels.
Key Features:
- 225 Amp Current Rating: Provides dependable protection for medium-capacity electrical circuits.
- Three-Pole Configuration: Designed for balanced protection of three-phase power systems.
- Series C Platform: Part of Eaton’s proven molded case circuit breaker family for industrial power distribution.
- High Interrupting Capacity: Rated up to 100 kAIC at 480 VAC and 200 kAIC at 240 VAC for strong fault protection.
- Thermal-Magnetic Trip Unit: T186 trip mechanism provides reliable overload and short-circuit protection.
- Dual Voltage Capability: Supports systems rated up to 600 VAC and 250 VDC.
- F-Frame Construction: Compact molded case design optimized for panelboard and switchgear installation.
- Load-Side Terminals: Designed for secure electrical connections in distribution panels.
The FDC3225 delivers the reliability and precision required for protecting industrial power distribution circuits and electrical control equipment.
