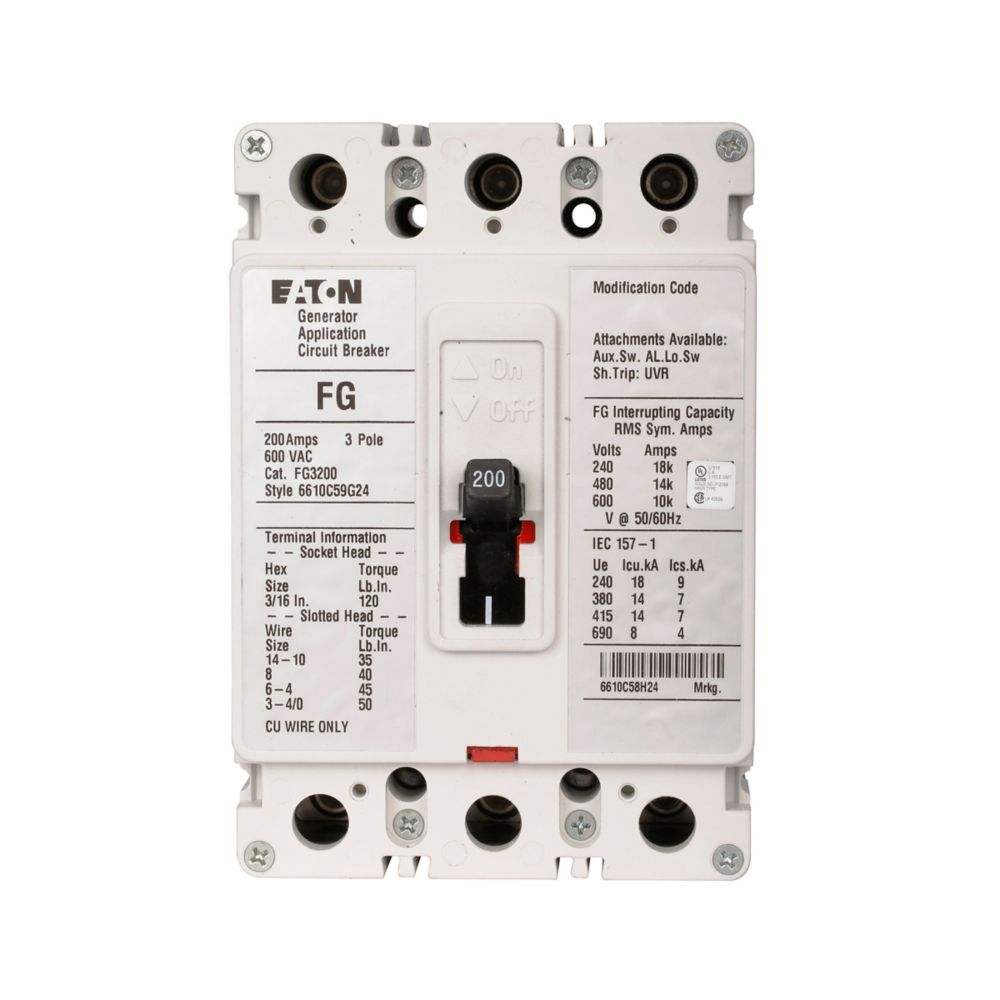

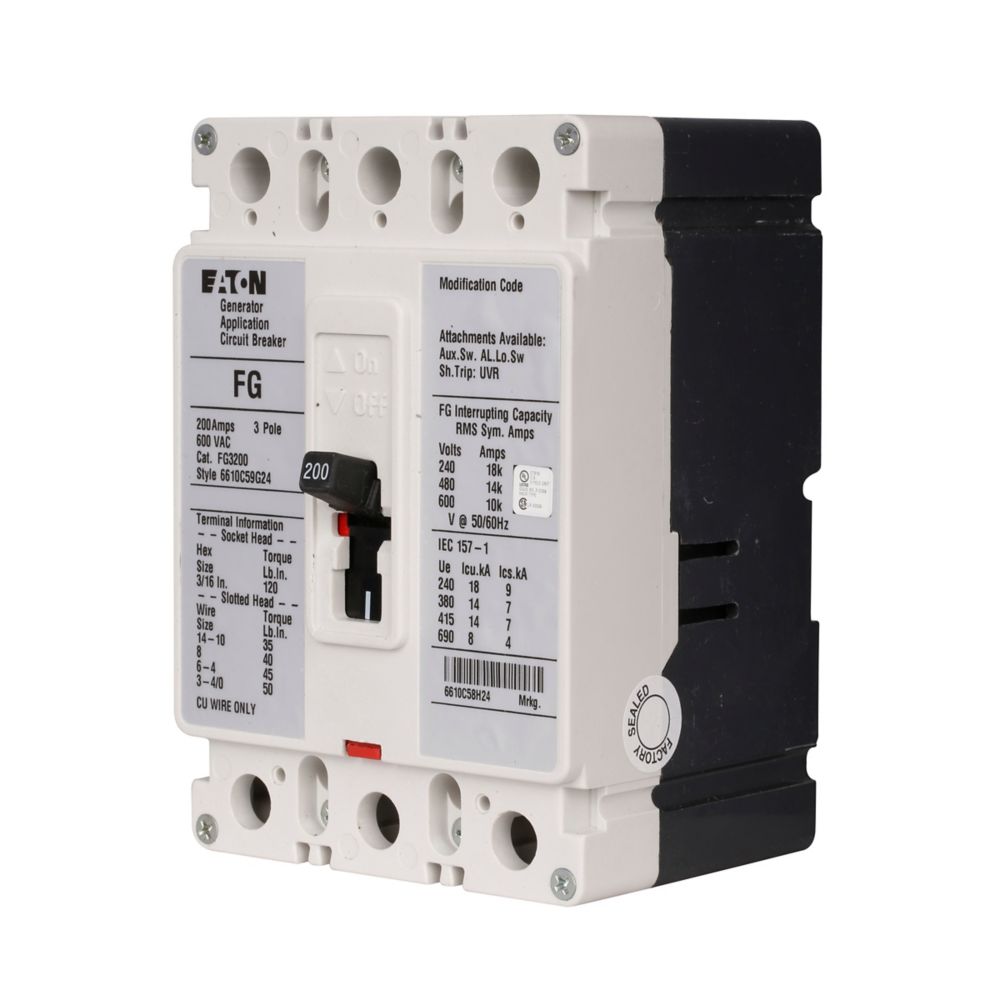

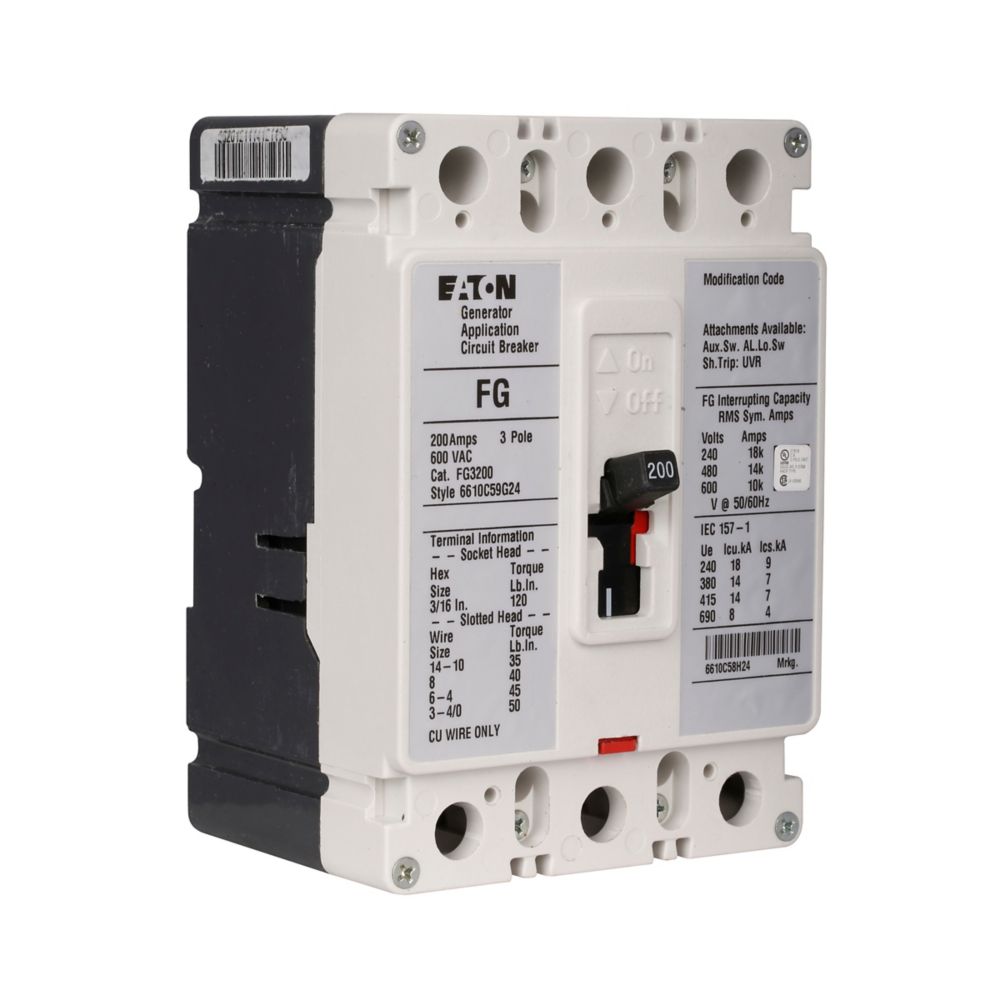

FG3200 | Eaton 200A F-Frame Engine Generator Molded Case Circuit Breaker 600VAC 3-Pole
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FG3200
Description
The Eaton FG3200 is a complete engine generator molded case circuit breaker designed to provide dependable overcurrent protection in generator-based power distribution systems. This Eaton part number FG3200 features a 200 A rating, three-pole configuration, and supports electrical systems up to 600 Vac. Engineered specifically for generator applications, it provides reliable fault interruption and system protection for standby and prime power installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | FG3200 |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Engine Generator Molded Case Circuit Breaker |
| Series / Class | Engine Generator |
| Frame | F Frame |
| Circuit Breaker Type | FG |
| Number of Poles | Three-pole |
| Amperage Rating | 200 A |
| Voltage Rating | 600 Vac |
| Trip Type | T186 |
| Pickup | Fixed |
| Frequency Rating | 60 Hz |
| Interrupt Rating | 18 kAIC @ 240 Vac; 14 kAIC @ 480 Vac |
| Generator Rating | 72 kVA / 58 kW @ 240 Vac; 144 kVA / 116 kW @ 480 Vac; 181 kVA / 144 kW @ 600 Vac |
| Terminals | Line and Load |
| Certifications | UL Listed, CSA Certified, IEC Rated |
| Compliance | MIL-DTL-17361 |
| Dimensions (L × W × H) | 7.7 × 4.9 × 4.9 in |
| Weight | 4.5 lb |
Information About FG3200
The FG3200 is an engine generator molded case circuit breaker manufactured by Eaton and built on the F-frame platform for industrial and power generation environments. It incorporates a fixed pickup T186 trip unit designed to handle generator power characteristics while maintaining stable protection performance. The breaker includes line and load terminals and supports reverse power protection functionality, which helps safeguard generator equipment during abnormal operating conditions. Certified to UL, CSA, and IEC standards and compliant with MIL-DTL-17361 requirements, the unit is suitable for demanding industrial and generator-powered electrical systems.
Key Features:
- 200 Amp Current Rating: Designed to protect generator circuits carrying loads up to 200 A.
- Engine Generator Application: Optimized for generator-powered electrical distribution systems.
- Three-Pole Configuration: Supports three-phase generator and power distribution installations.
- F-Frame Breaker Design: Provides compact yet durable construction for industrial electrical panels.
- T186 Fixed Trip Unit: Ensures consistent overload and short-circuit protection performance.
- Reverse Power Function: Helps protect generators from reverse current flow conditions.
- Line and Load Terminals Included: Simplifies wiring and installation in switchgear and control panels.
- Certified Industrial Compliance: Meets UL, CSA, IEC, and MIL-DTL-17361 electrical protection standards.
The FG3200 delivers the reliability and precision required for protecting engine generator power distribution systems in industrial and standby power applications.
