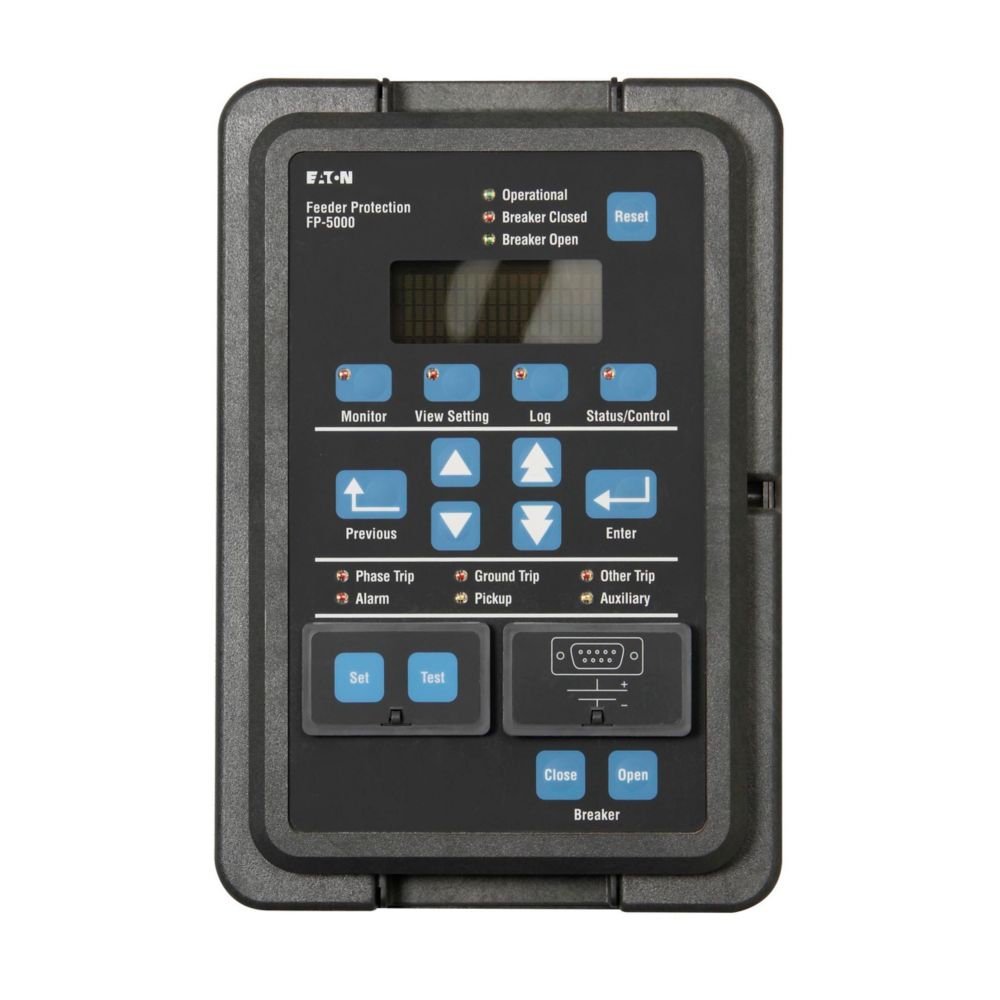

Eaton FP5200-10 Feeder Protection Relay 5A Drawout Switchgear Relay
- Regular price
- $2,599.00
- Sale price
- $2,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FP5200-10
Description
The Eaton FP5200-10 is a feeder protection relay designed to monitor and protect electrical distribution circuits from abnormal operating conditions. Eaton part number FP5200-10 provides precise current sensing and protective control functions for feeder circuits rated up to 5 A secondary current. Its drawout construction and advanced protection capabilities make it suitable for use in industrial substations, switchgear, and power distribution systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Power Protection |
| Part Number | FP5200-10 |
| Subcategory | Protection Relay |
| Product Type | Relay |
| Relay Type | Feeder protection relay |
| Amperage Rating | 5 A |
| Special Features | Drawout packaging |
| Compliance | CE Marked |
| Certifications | UL 508; CSA Std. C22.2 No.14-95; ANSI/IEEE Std C37.78 |
| Global Catalog | FP5200-10 |
| Product Dimensions (L × W × H) | 7.7 × 7.72 × 11.34 in |
| Application | Electrical feeder circuit protection |
| Warranty | Eaton standard warranty policy |
| Weight | 12.5 lb |
Information About FP5200-10
The FP5200-10 is a feeder protection relay manufactured by Eaton for monitoring and safeguarding electrical feeder circuits in power distribution networks. It is designed to detect electrical faults and abnormal conditions while enabling protective actions to maintain system stability and equipment safety. The relay uses a drawout packaging design that simplifies installation, testing, and maintenance in switchgear assemblies. Certified to UL, CSA, and ANSI/IEEE standards, it is engineered for dependable operation in commercial and industrial electrical infrastructure.
Key Features:
- Feeder Protection Functionality: Designed to monitor and protect electrical feeder circuits in distribution systems.
- 5A Current Input Rating: Compatible with standard current transformer secondary outputs for precise current measurement.
- Drawout Relay Design: Allows easy installation, testing, and maintenance without removing wiring connections.
- Industrial Protection Relay: Suitable for integration into switchgear, substations, and industrial power systems.
- Standards-Compliant Operation: Certified to UL 508, CSA C22.2 No.14, and ANSI/IEEE C37.78 standards.
- Reliable Fault Detection: Detects abnormal current conditions to initiate protective system responses.
- Durable Electrical Construction: Designed for consistent performance in demanding power distribution environments.
- Panel and Switchgear Integration: Compatible with protection panels and feeder control systems.
The FP5200-10 delivers the reliability and precision required for protecting feeder circuits and maintaining stability in electrical power distribution systems.
