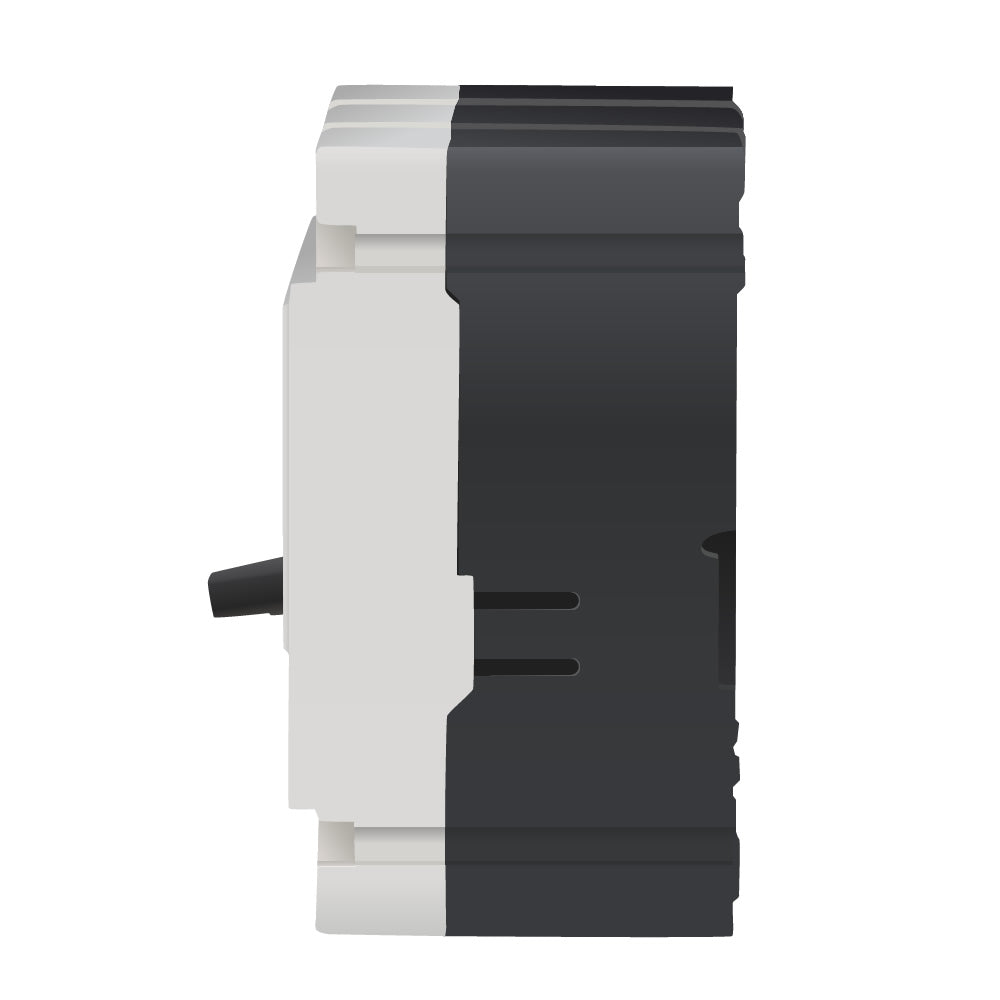

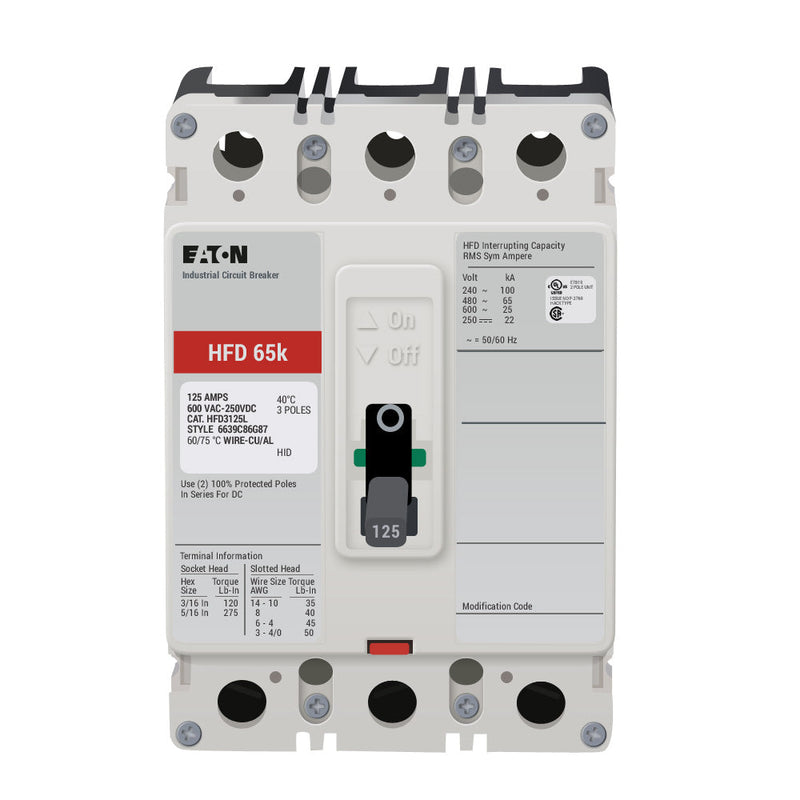

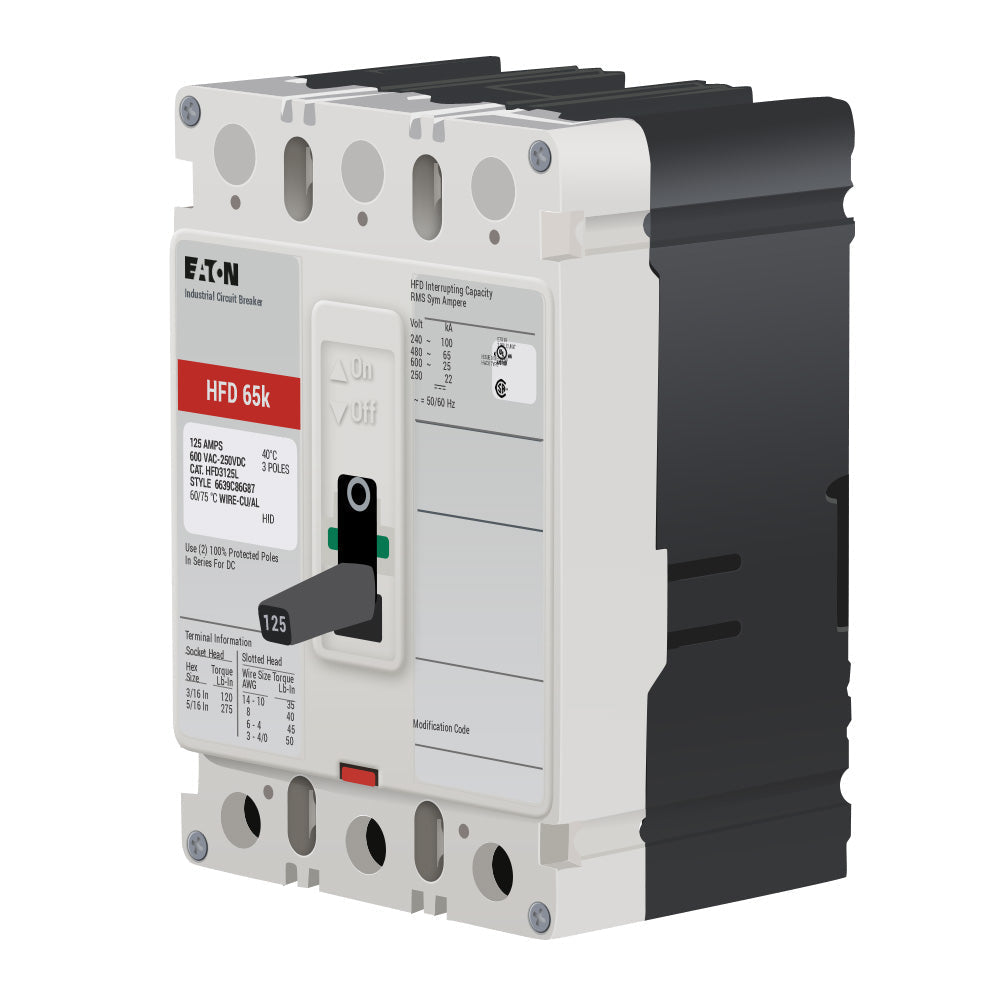

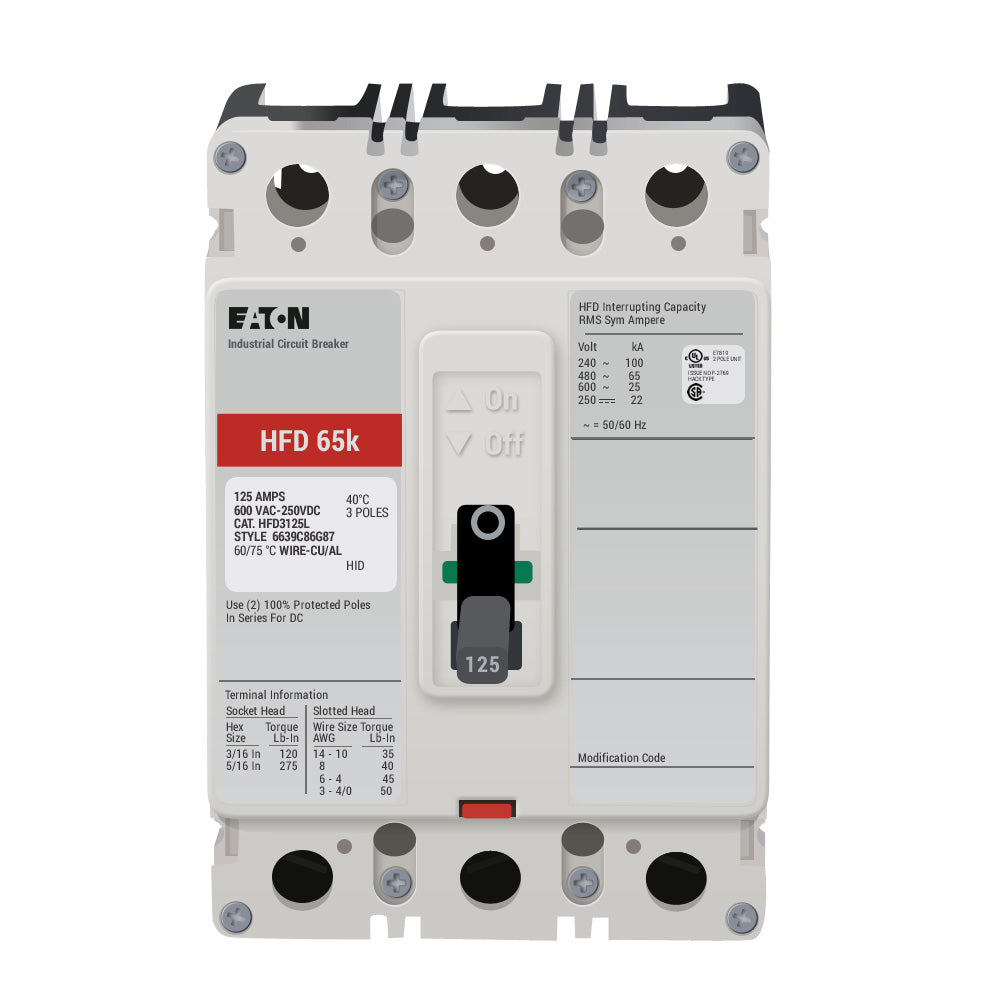

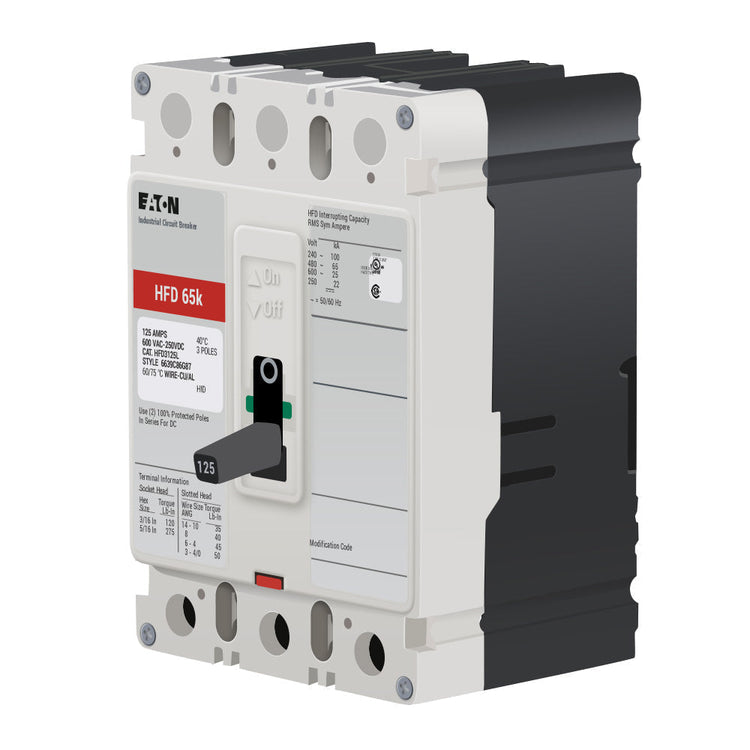

HFD3125L | Eaton Series C 125A 3-Pole F-Frame Molded Case Circuit Breaker
- Regular price
- $894.00
- Sale price
- $894.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HFD3125L
Description
The Eaton HFD3125L is a Series C molded case circuit breaker designed to provide dependable overload and short-circuit protection in industrial and commercial electrical systems. Manufactured by Eaton / Cutler-Hammer, the HFD3125L features a 125 amp rating with a three-pole configuration and supports up to 600VAC and 250VDC systems. Its fixed thermal and magnetic trip unit ensures rapid response to electrical faults and stable protection performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton / Cutler-Hammer |
| Category | Circuit Protection |
| Part Number | HFD3125L |
| Subcategory | Molded Case Circuit Breaker |
| Series | Series C |
| Frame Type | F-Frame |
| Circuit Breaker Type | HFD |
| Amperage Rating | 125 A |
| Voltage Rating | 600 VAC / 250 VDC |
| Trip Type | Fixed Thermal / Fixed Magnetic |
| Number of Poles | 3 |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating (240VAC) | 100 kAIC |
| Interrupt Rating (480VAC) | 65 kAIC |
| Interrupt Rating (600VAC) | 25 kAIC |
| Terminal Type | Line and Load Lugs |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C to 70°C (-13°F to 158°F) |
| Width | 4.13 in |
| Height | 4.9 in |
| Depth | 7.4 in |
| Weight | 4.3 lb |
Information About HFD3125L
The HFD3125L is part of Eaton’s Series C molded case circuit breaker family engineered for high reliability and advanced electrical protection. Built on an F-frame platform, the breaker incorporates a fixed thermal and magnetic trip mechanism that provides accurate protection against overloads and instantaneous short-circuit conditions. It is designed for installation in panelboards, switchboards, and industrial distribution systems where dependable circuit protection is essential. With high interrupting capacity and durable construction, the breaker is well suited for demanding power distribution applications across commercial facilities and industrial equipment.
Key Features:
- 125 Amp Current Rating: Provides reliable protection for medium-capacity power distribution circuits.
- Three-Pole Configuration: Designed for safe protection of three-phase electrical systems.
- Fixed Thermal-Magnetic Trip Unit: Combines overload protection with fast short-circuit interruption.
- Series C F-Frame Construction: Robust breaker design built for long service life in industrial environments.
- High Interrupting Capacity: Rated up to 100 kAIC at 240VAC and 65 kAIC at 480VAC for high fault current systems.
- Dual Voltage Capability: Operates in systems up to 600VAC or 250VDC.
- Line and Load Terminal Design: Allows flexible installation in panelboards and distribution equipment.
- Compact Industrial Form Factor: Space-efficient design simplifies integration into electrical panels.
The HFD3125L delivers the reliability and precision required for industrial-grade circuit protection in electrical distribution systems.
