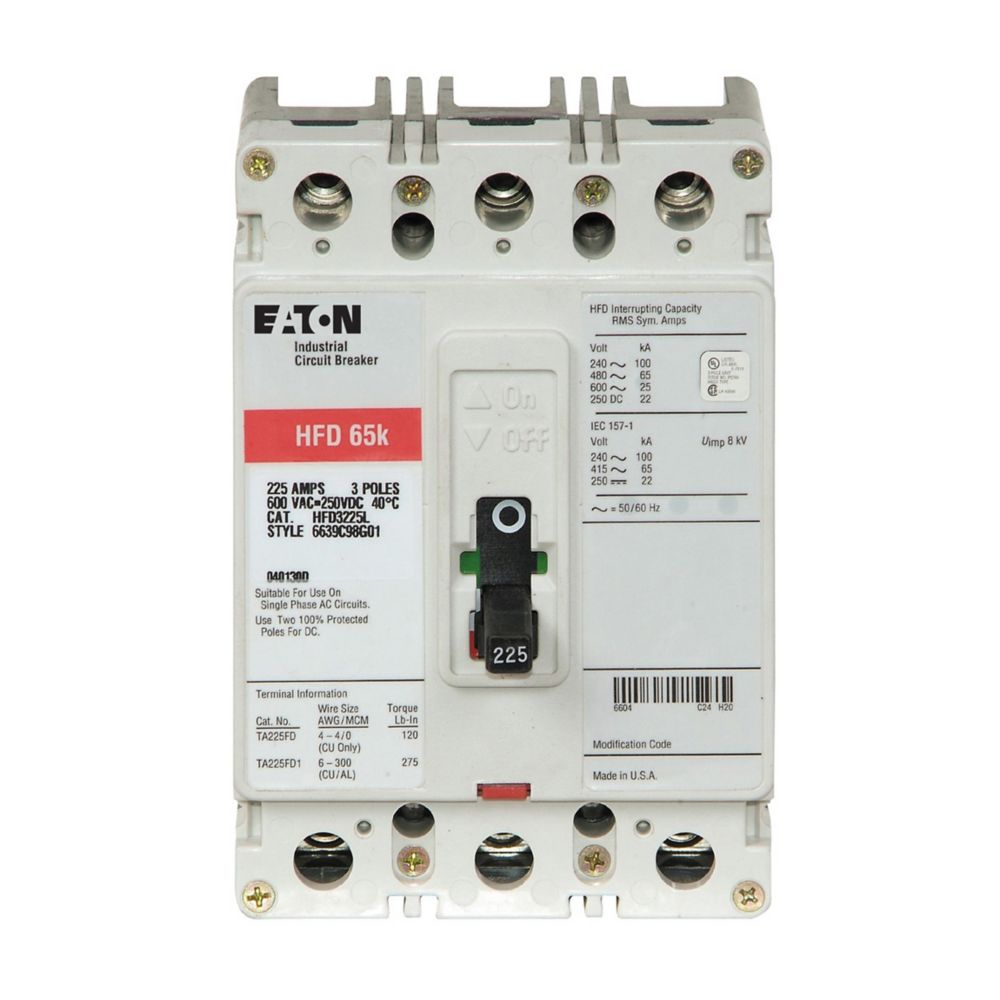

Eaton HFD3225L Series C 225A 3-Pole Molded Case Circuit Breaker for Industrial Power Distribution
- Regular price
- $3,997.00
- Sale price
- $3,997.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HFD3225L
Description
The Eaton HFD3225L is a Series C molded case circuit breaker engineered to provide dependable overcurrent protection in commercial and industrial electrical distribution systems. Eaton part number HFD3225L features a 225 A rating and supports operation up to 600 Vac and 250 Vdc. Its robust construction and high interrupting capacity make it suitable for protecting feeders, panels, and equipment from overload and short-circuit conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | HFD3225L |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Molded Case Circuit Breaker |
| Series | Series C |
| Circuit Breaker Type | HFD |
| Frame | F |
| Circuit Breaker Frame Type | Complete breaker |
| Amperage Rating | 225 A |
| Number of Poles | Three-pole |
| Voltage Rating | 600 Vac, 250 Vdc |
| Trip Type | T186 Thermal-Magnetic |
| Frequency Rating | 50–60 Hz |
| Interrupt Rating | 100 kAIC at 240 Vac; 65 kAIC at 480 Vac |
| Terminals | Line and load |
| Certifications | UL Listed |
| Product Dimensions (L × W × H) | 3.38 × 4.13 × 4.13 in |
| Warranty | Eaton Selling Policy 25-000 |
| Weight | 5 lb |
Information About HFD3225L
The HFD3225L is a complete molded case circuit breaker from Eaton’s Series C family, designed to deliver reliable circuit protection in demanding electrical installations. It incorporates a thermal-magnetic trip unit (T186) that provides accurate protection against overloads and short circuits. Built on the compact F-frame platform with a three-pole configuration, it is well suited for three-phase power distribution systems. With UL certification and high interrupt ratings, it is commonly used in switchboards, panelboards, and industrial control assemblies where reliable fault protection is essential.
Key Features:
- 225 Amp Current Rating: Designed for protecting higher-capacity feeders and distribution circuits.
- Series C Breaker Platform: Engineered using Eaton’s proven Series C technology for durability and system compatibility.
- Thermal-Magnetic Trip Unit: T186 trip mechanism provides reliable overload and short-circuit protection.
- Three-Pole Configuration: Supports protection for three-phase electrical systems.
- High Interrupting Capacity: Rated up to 100 kAIC at 240 Vac for protection against high fault currents.
- Wide Voltage Capability: Operates at up to 600 Vac and 250 Vdc across multiple electrical applications.
- Compact F-Frame Design: Space-efficient breaker design suitable for switchboards and panelboards.
- Line and Load Terminals: Allows straightforward installation and secure electrical connections.
The HFD3225L delivers the reliability and precision required for protecting industrial and commercial electrical power distribution systems.
