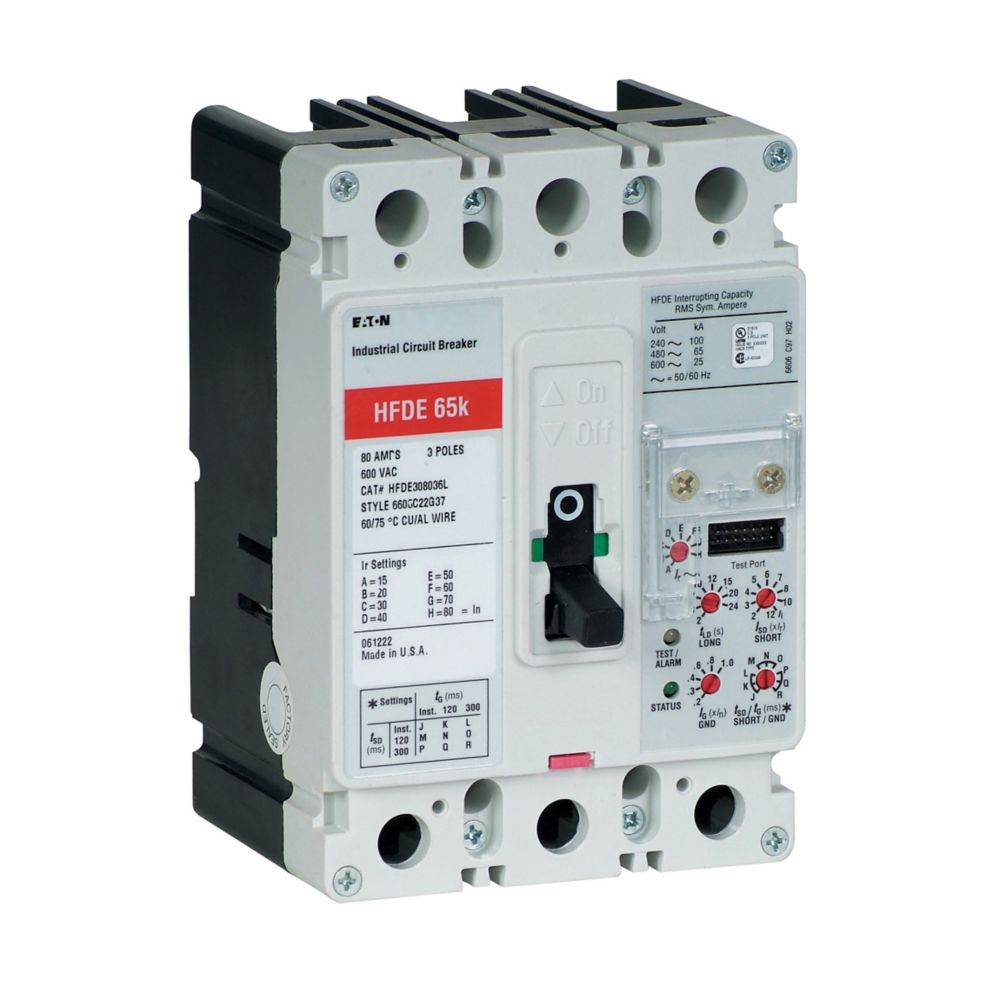

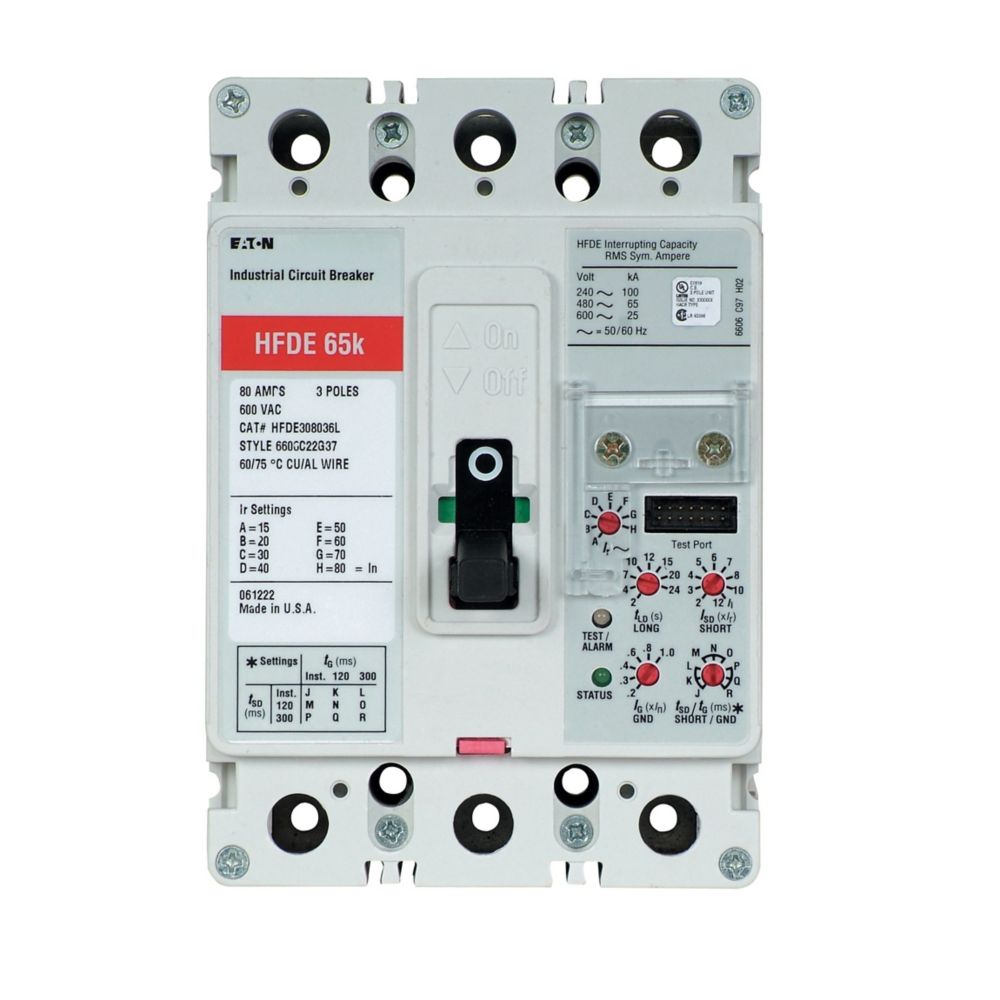

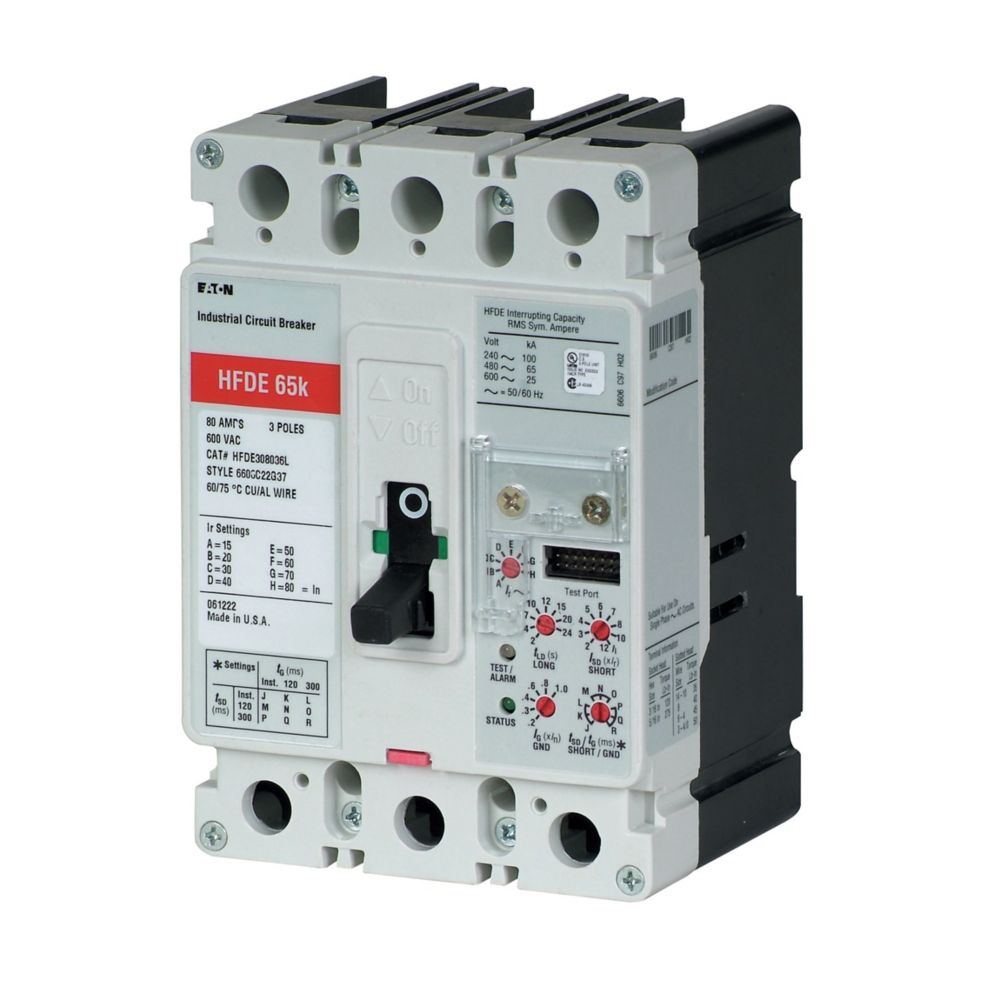

Eaton HFDE308032 Series C 80A 3-Pole Electronic Molded Case Circuit Breaker LSI
- Regular price
- $1,136.00
- Sale price
- $1,136.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HFDE308032
Description
The Eaton HFDE308032 is a Series C electronic molded case circuit breaker designed to provide precise overcurrent protection in industrial and commercial power systems. Eaton part number HFDE308032 features an 80 A rating with an electronic LSI trip unit for enhanced fault detection and coordination. Its compact F-frame construction and high interrupting capacity make it suitable for demanding electrical distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | HFDE308032 |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Electronic molded case circuit breaker |
| Series | Series C |
| Circuit Breaker Type | HFD |
| Frame | F |
| Circuit Breaker Frame Type | Complete breaker |
| Amperage Rating | 80 A |
| Trip Type | Electronic LSI |
| Voltage Rating | 600 Vac / 250 Vdc |
| Number of Poles | Three-pole |
| Frequency Rating | 50/60 Hz |
| Terminals | Load side |
| Interrupt Rating | 65 kAIC at 480 Vac |
| Additional Interrupt Rating | 100 kAIC at 240 Vac |
| Certifications | UL Listed |
| Dimensions (L × W × H) | 3.38 × 4.13 × 6 in |
| Warranty | Eaton Selling Policy 25-000 |
| Weight | 4.1 lb |
Information About HFDE308032
The HFDE308032 is an electronic molded case circuit breaker from Eaton’s Series C product line, built to deliver advanced protection and reliability. It utilizes an electronic LSI (long-time, short-time, instantaneous) trip unit that allows accurate response to varying fault conditions and improved system coordination. Designed as a complete breaker on an F-frame platform, it supports both AC and DC applications with voltage ratings up to 600 Vac and 250 Vdc. This breaker is commonly used in panelboards, switchgear, and industrial distribution systems where dependable circuit protection is required.
Key Features:
- 80 Amp Current Rating: Suitable for branch and feeder circuit protection in industrial systems.
- Electronic LSI Trip Unit: Provides precise and adjustable protection for overload and short-circuit conditions.
- Series C Platform: Eaton’s proven design for reliable and consistent breaker performance.
- Dual Voltage Capability: Rated for 600 Vac and 250 Vdc applications.
- Three-Pole Configuration: Designed for three-phase electrical distribution systems.
- High Interrupt Capacity: Up to 100 kAIC at 240 Vac for safe fault interruption.
- Compact F-Frame Design: Optimized for panelboard and switchgear installations.
- UL Listed Certification: Meets industry safety and compliance standards.
The HFDE308032 delivers the reliability and precision required for protecting electrical circuits in industrial and commercial power distribution systems.
