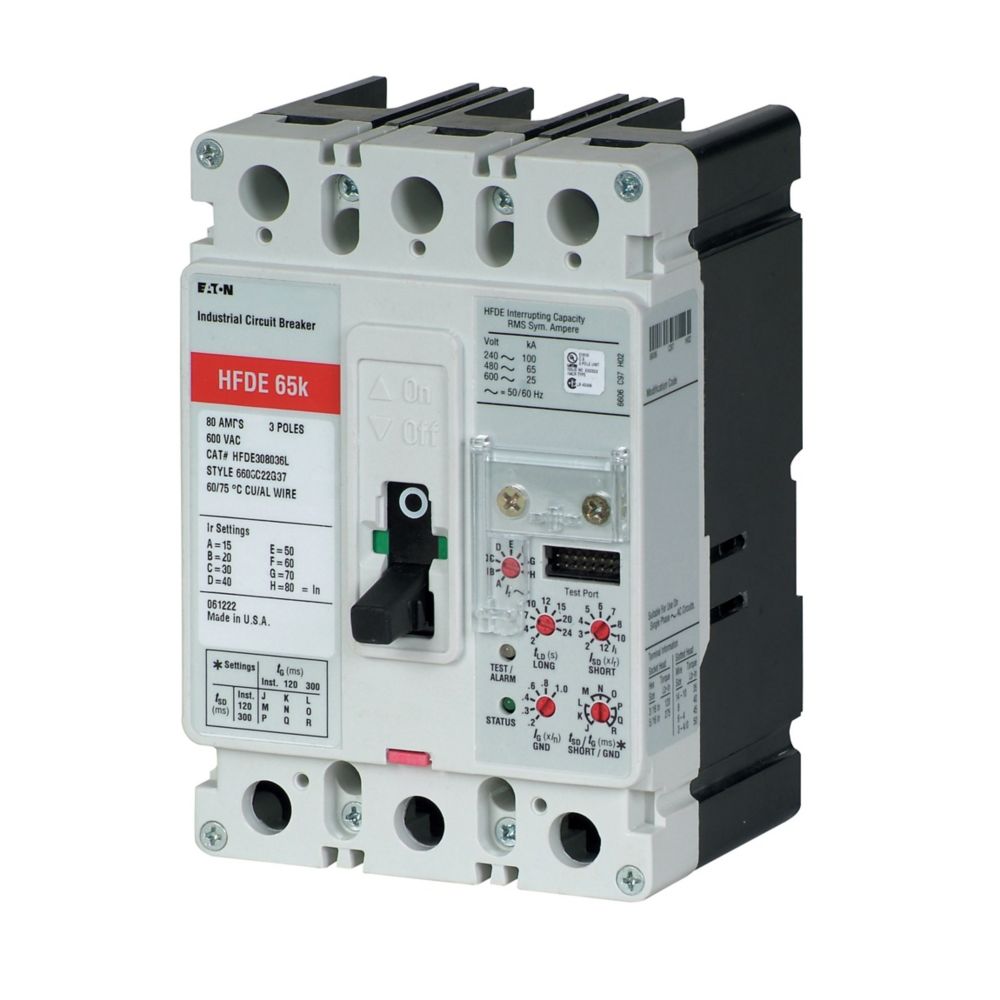

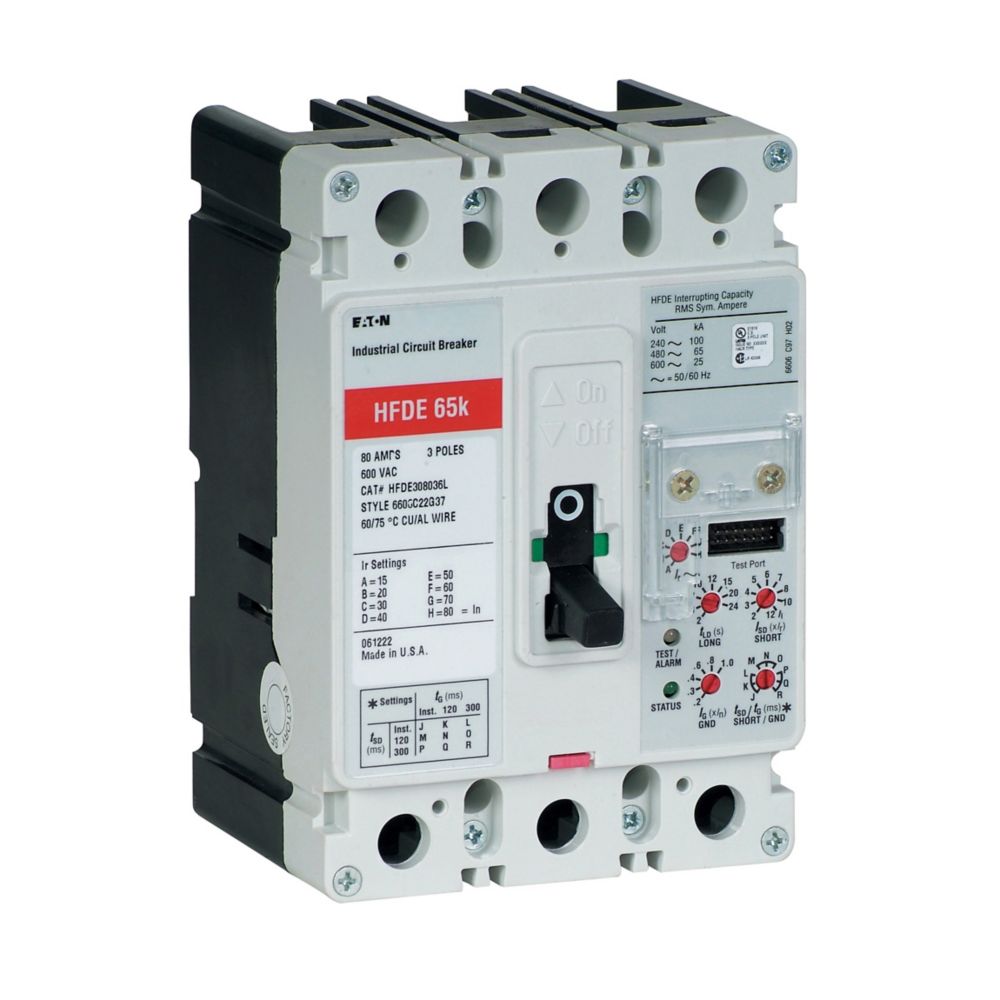

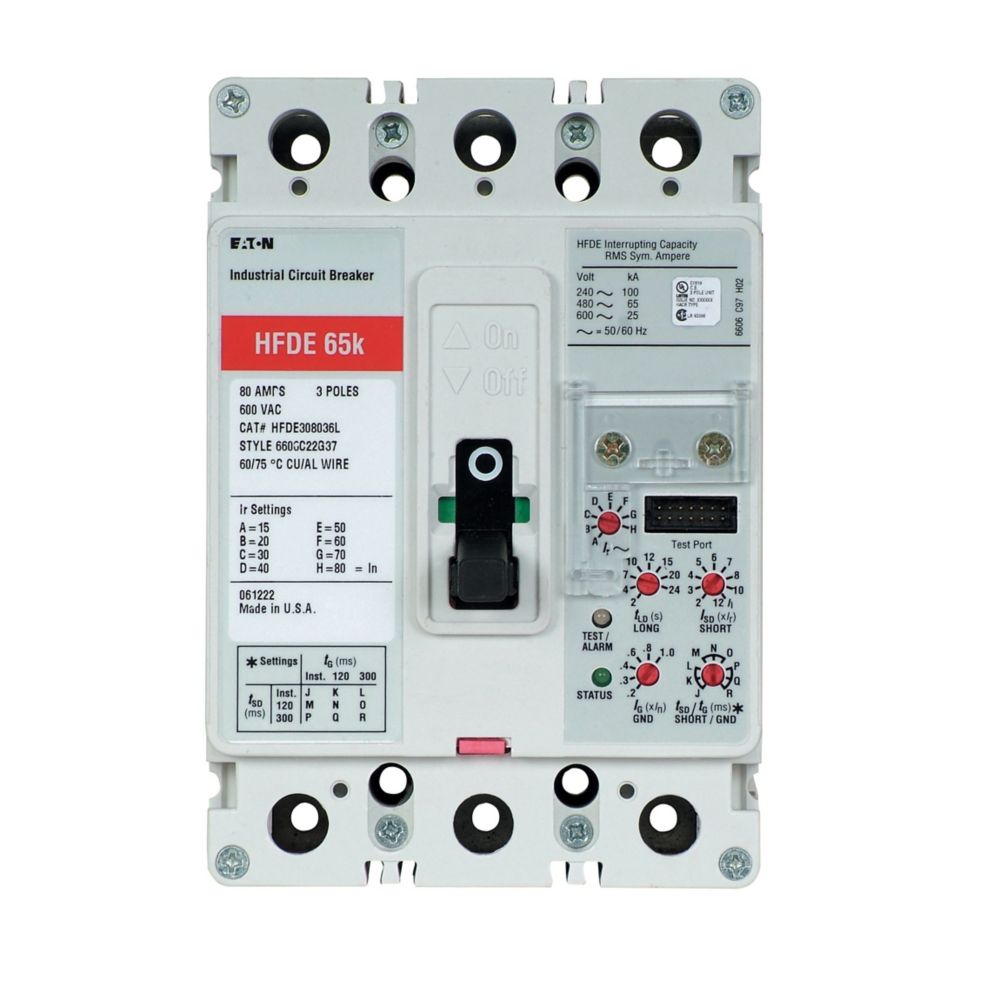

Eaton HFDE308036 Series C 80A 3-Pole Electronic Molded Case Circuit Breaker
- Regular price
- $1,449.00
- Sale price
- $1,449.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HFDE308036
Description
The Eaton HFDE308036 is a Series C electronic molded case circuit breaker designed to provide reliable overcurrent protection for commercial and industrial electrical distribution systems. Eaton part number HFDE308036 features an 80 A rating and a three-pole configuration with an advanced electronic trip unit for accurate fault detection. Its high interrupting capacity and durable construction make it suitable for demanding power protection applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | HFDE308036 |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Electronic molded case circuit breaker |
| Series | Series C |
| Circuit Breaker Type | HFD |
| Frame | F |
| Circuit Breaker Frame Type | Complete breaker |
| Amperage Rating | 80 A |
| Voltage Rating | 600 Vac / 250 Vdc |
| Trip Type | T172 electronic trip |
| Number of Poles | Three-pole |
| Frequency Rating | 50/60 Hz |
| Terminals | Load side |
| Interrupt Rating | 65 kAIC at 480 Vac |
| Additional Interrupt Ratings | 100 kAIC at 240 Vac |
| Certifications | UL Listed |
| Product Dimensions (L × W × H) | 3.38 × 4.13 × 6 in |
| Warranty | Eaton Selling Policy 25-000 |
| Weight | 4.1 lb |
Information About HFDE308036
The HFDE308036 is a complete electronic molded case circuit breaker from Eaton’s Series C circuit protection platform. Built on the F-frame architecture, it incorporates a T172 electronic trip unit that provides precise response to overload and short-circuit conditions. The breaker includes load-side terminals and supports installations in systems rated up to 600 Vac or 250 Vdc. Designed for commercial and industrial electrical distribution equipment, it offers dependable protection while meeting UL safety certification requirements.
Key Features:
- 80 Amp Current Rating: Designed for branch circuit and feeder protection in commercial and industrial electrical systems.
- Series C Electronic Breaker Platform: Eaton’s advanced circuit protection technology for improved performance and reliability.
- T172 Electronic Trip Unit: Provides accurate and responsive protection against overload and short-circuit faults.
- High Interrupt Capacity: Rated up to 65 kAIC at 480 Vac for safe interruption of high fault currents.
- Three-Pole Configuration: Suitable for protecting three-phase electrical distribution circuits.
- F-Frame Breaker Construction: Durable design supporting consistent electrical protection performance.
- Wide Voltage Compatibility: Rated for systems up to 600 Vac and 250 Vdc.
- Load-Side Terminal Configuration: Simplifies installation and secure conductor connection.
The HFDE308036 delivers the reliability and precision required for protecting commercial and industrial electrical distribution circuits.
