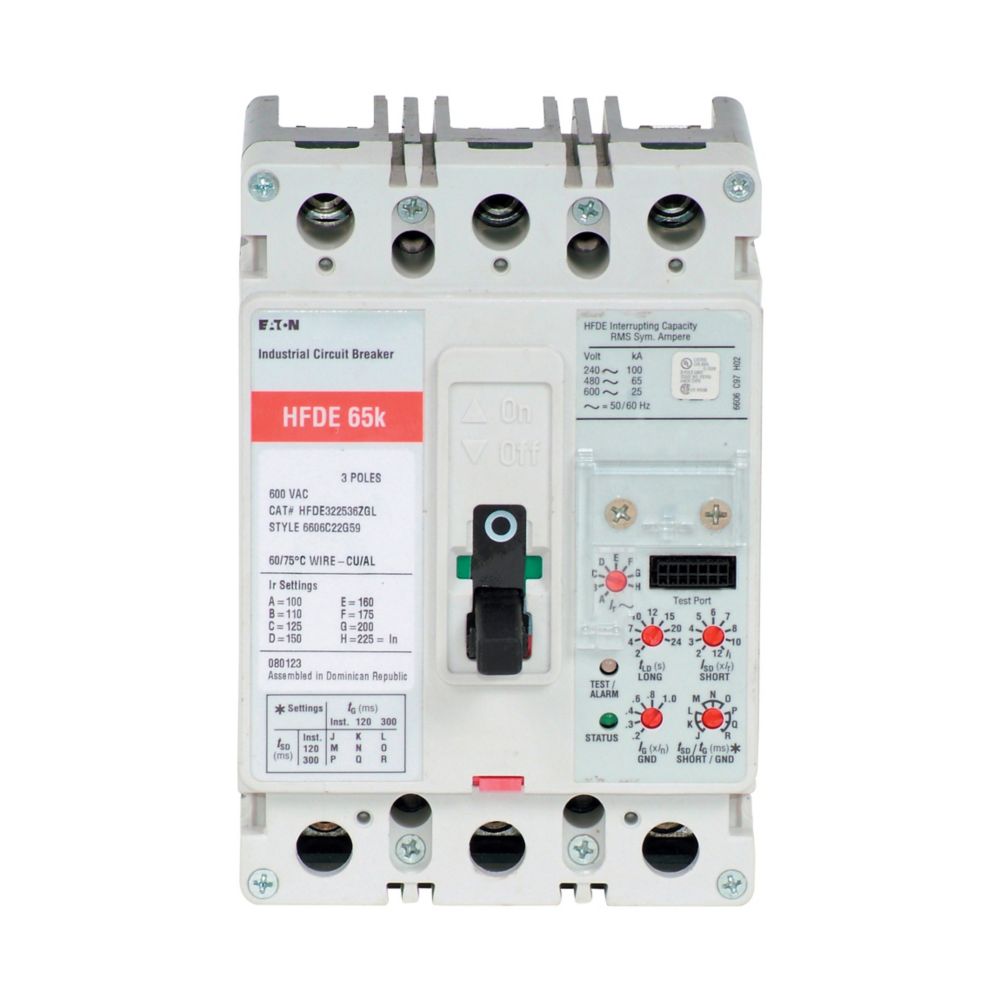

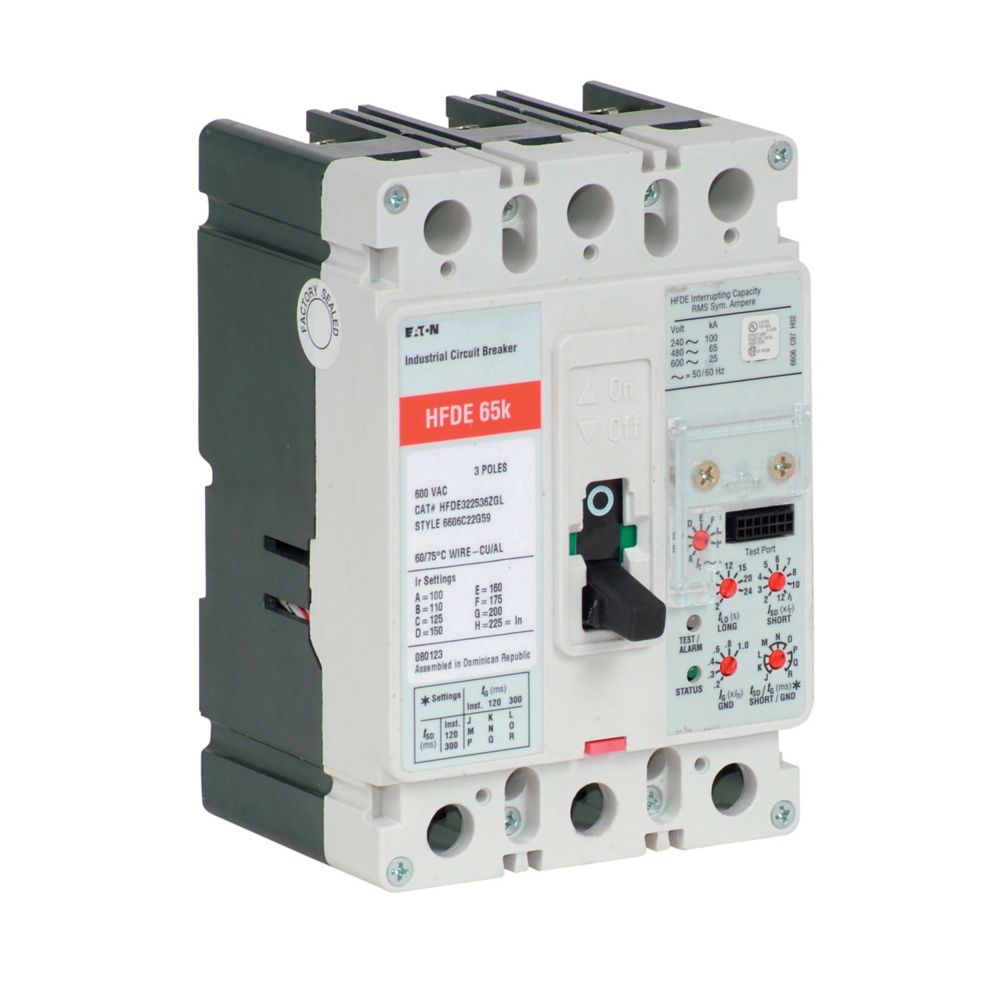

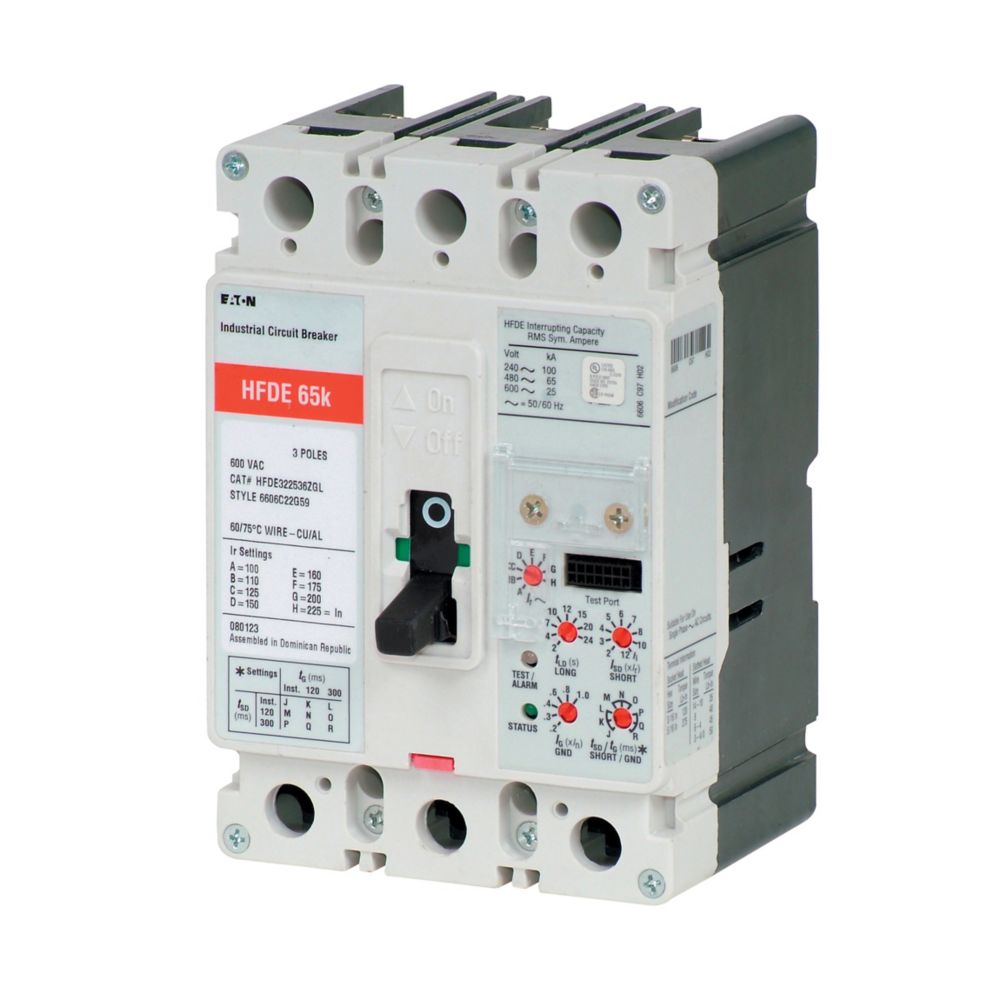

Eaton HFDE322536 Series C 225A 3-Pole Electronic Molded Case Circuit Breaker
- Regular price
- $1,702.00
- Sale price
- $1,702.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HFDE322536
Description
The Eaton HFDE322536 is a Series C electronic molded case circuit breaker designed to provide advanced overcurrent protection for commercial and industrial electrical distribution systems. Eaton part number HFDE322536 features a 225 A rating and an electronic trip unit for precise fault detection and protection. Its three-pole configuration and high interrupt capacity make it suitable for protecting feeders, panels, and power distribution equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | HFDE322536 |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Electronic Molded Case Circuit Breaker |
| Series | Series C |
| Circuit Breaker Type | HFDE |
| Frame | F |
| Circuit Breaker Frame Type | Complete breaker |
| Amperage Rating | 225 A |
| Number of Poles | Three-pole |
| Trip Type | T172 Electronic Trip |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 100 kAIC at 240 Vac; 65 kAIC at 480 Vac |
| Terminals | Load side |
| Certifications | UL Listed |
| Product Dimensions (L × W × H) | 7.7 × 4.9 × 4.8 in |
| Warranty | Eaton Selling Policy 25-000 |
| Weight | 4.3 lb |
Information About HFDE322536
The HFDE322536 is a complete electronic molded case circuit breaker from Eaton’s Series C product line, engineered for dependable protection in modern power distribution systems. It incorporates a T172 electronic trip unit that enables more accurate and responsive fault protection compared to traditional thermal-magnetic designs. Built on the compact F-frame platform, the breaker is designed for installation in switchboards, panelboards, and industrial electrical equipment. With UL certification and high interrupting capability, it provides reliable protection against overloads and short circuits in demanding applications.
Key Features:
- 225 Amp Current Rating: Designed to protect medium-to-high capacity electrical distribution circuits.
- Electronic Trip Technology: T172 electronic trip unit delivers precise and responsive overcurrent protection.
- Series C Platform: Built using Eaton’s Series C technology for reliability and compatibility with existing systems.
- Three-Pole Breaker Design: Suitable for protecting three-phase electrical power systems.
- High Interrupting Capacity: Rated up to 100 kAIC at 240 Vac for reliable interruption of high fault currents.
- Compact F-Frame Construction: Space-efficient breaker design ideal for panelboards and switchgear installations.
- Industrial Distribution Applications: Suitable for commercial facilities, manufacturing plants, and infrastructure systems.
- Load-Side Terminal Configuration: Designed for secure load-side electrical connections.
The HFDE322536 delivers the reliability and precision required for protecting industrial and commercial power distribution circuits.
