Eaton HLDDC3600F PV Guard 600A 3-Pole Molded Case Circuit Breaker Frame AC/DC
- Regular price
- $4,699.00
- Sale price
- $4,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HLDDC3600F
Description

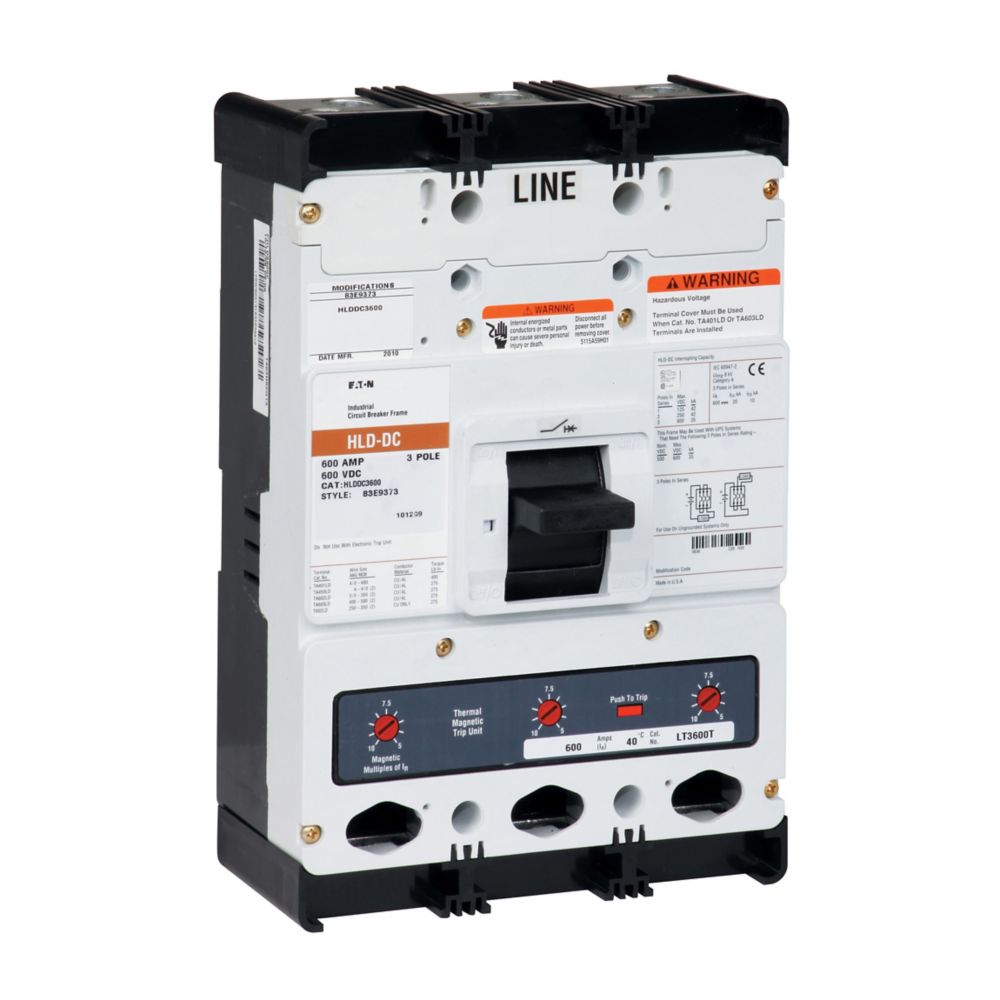

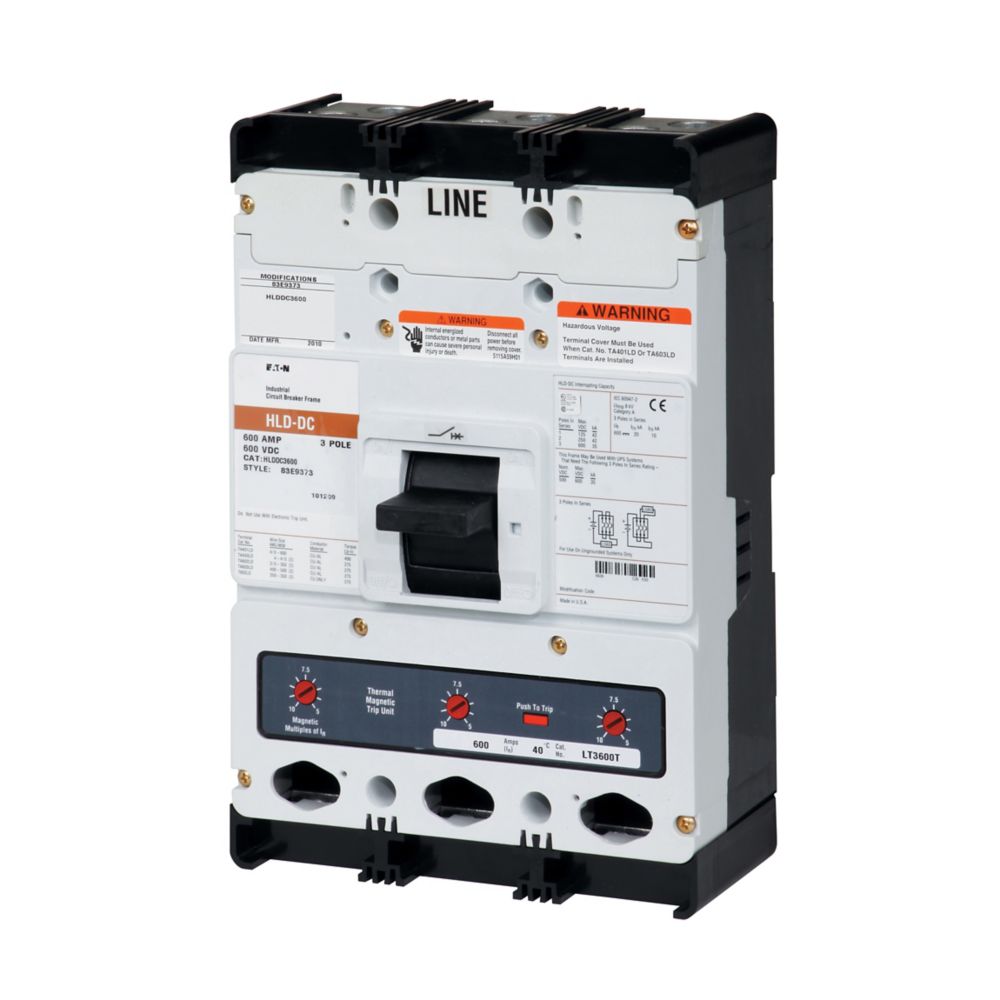

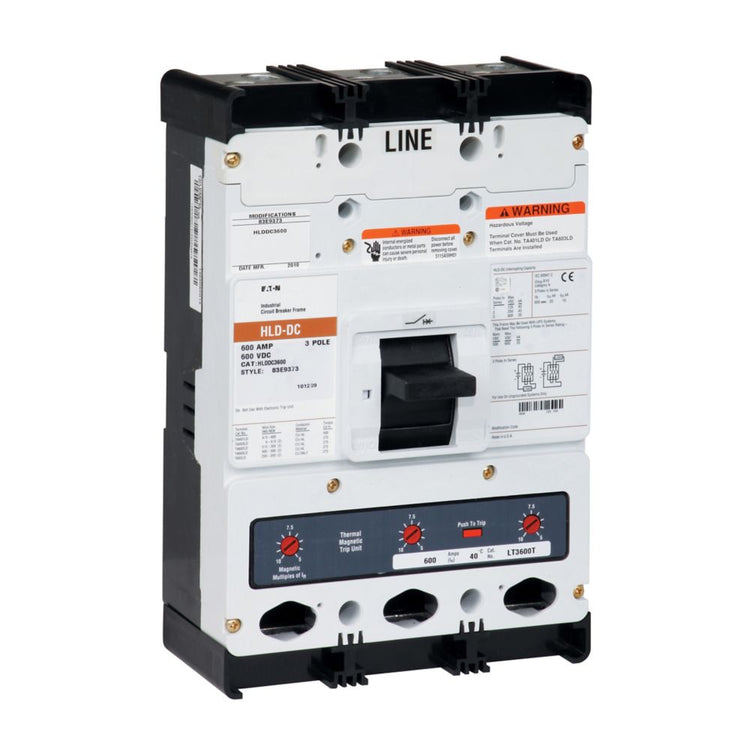

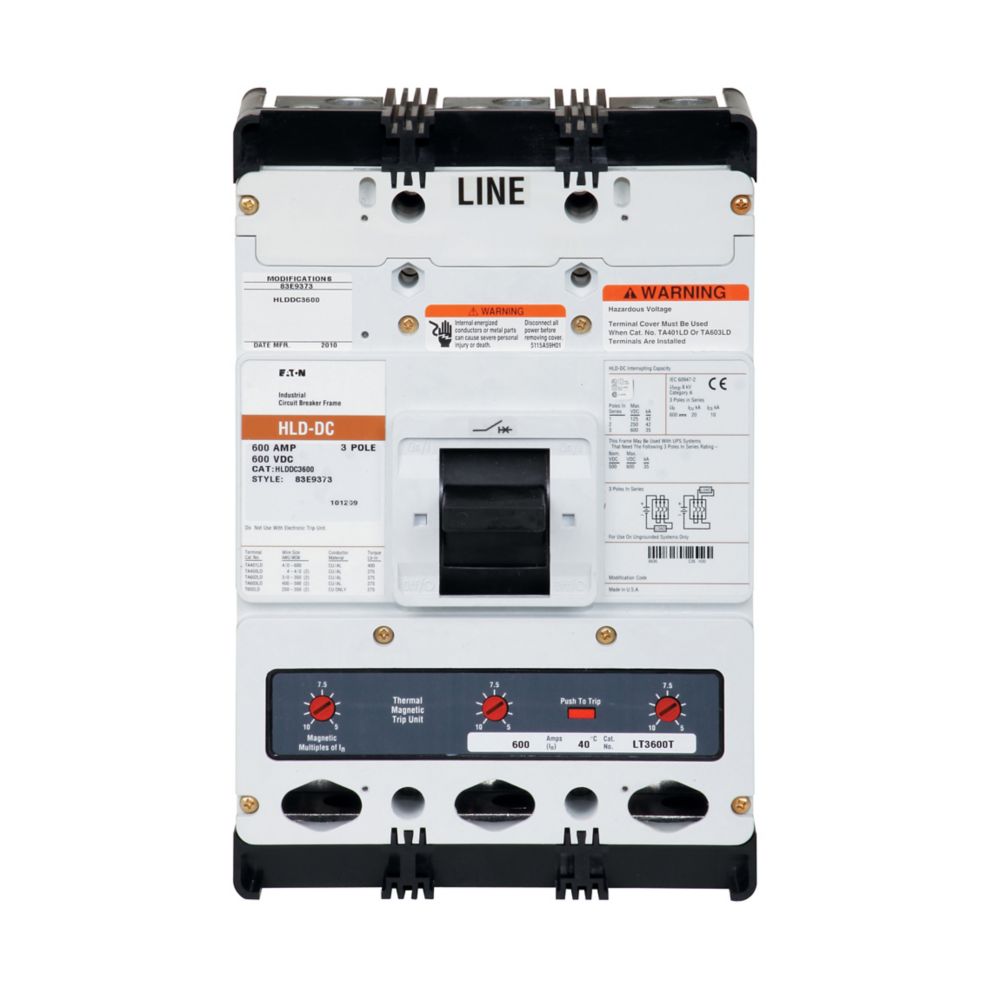

The Eaton HLDDC3600F is a PV Guard molded case circuit breaker frame designed for high-performance protection in solar and DC power distribution systems. Eaton part number HLDDC3600F supports up to 600 A with a three-pole configuration and is engineered for both AC and DC applications. Its robust L-frame design ensures reliable operation in demanding renewable energy and industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | HLDDC3600F |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Molded case circuit breaker frame |
| Series | PV Guard |
| Circuit Breaker Type | HLD |
| Frame | L |
| Circuit Breaker Frame Type | Frame only |
| Amperage Rating | 600 A |
| Voltage Rating | 600 Vac / 600 Vdc |
| Trip Type | T186 |
| Number of Poles | Three-pole |
| Terminals | Line and load |
| Interrupt Rating (DC) | 50 kAIC at 250 Vdc |
| Interrupt Rating (AC) | 35 kAIC at 600 Vac |
| Class | Vdc |
| Certifications | UL 489 |
| Product Dimensions (L × W × H) | 8.25 × 8.25 × 8.25 in |
| Warranty | Eaton Selling Policy 25-000 |
| Weight | 17.4 lb |
Information About HLDDC3600F
The HLDDC3600F is a molded case circuit breaker frame from Eaton’s PV Guard series, specifically developed for photovoltaic and DC power systems. Built on the L-frame platform, it provides a 600 A capacity and supports both 600 Vac and 600 Vdc applications, making it suitable for renewable energy installations. This unit is supplied as a frame-only configuration with line and load terminals, allowing integration with appropriate trip units and accessories. Designed to meet UL 489 standards, it delivers dependable protection in solar arrays, combiner boxes, and industrial DC distribution systems.
Key Features:
- PV Guard Solar Design: Engineered specifically for photovoltaic and DC system protection applications.
- 600 Amp Capacity: Supports high-current loads in large-scale solar and industrial installations.
- Dual Voltage Capability: Rated for both 600 Vac and 600 Vdc applications.
- Frame-Only Configuration: Allows customization with compatible trip units and accessories.
- Three-Pole Construction: Suitable for three-phase and DC system configurations.
- High Interrupt Ratings: Provides 50 kAIC at 250 Vdc and 35 kAIC at 600 Vac for safe fault handling.
- L-Frame Platform: Heavy-duty construction ensures durability in demanding environments.
- UL 489 Certified: Meets industry safety standards for circuit protection equipment.
The HLDDC3600F delivers the reliability and precision required for protecting photovoltaic systems and high-capacity DC and AC power distribution circuits.
