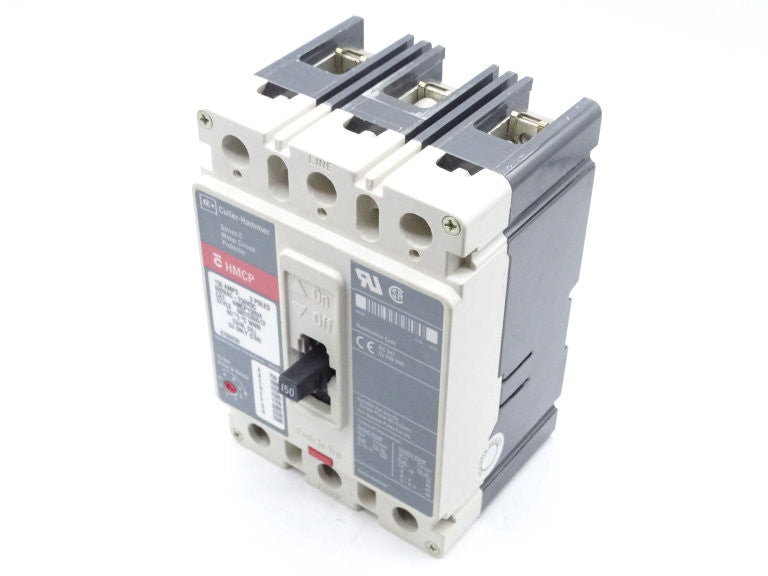

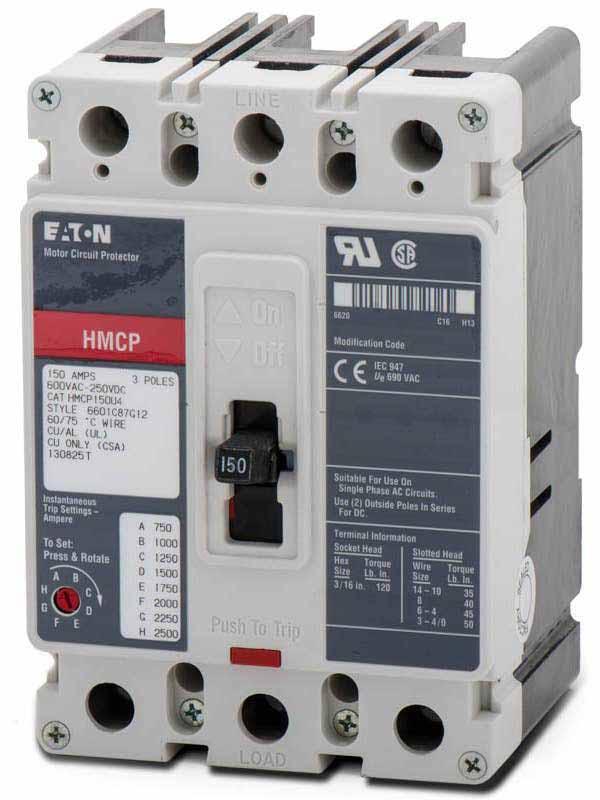

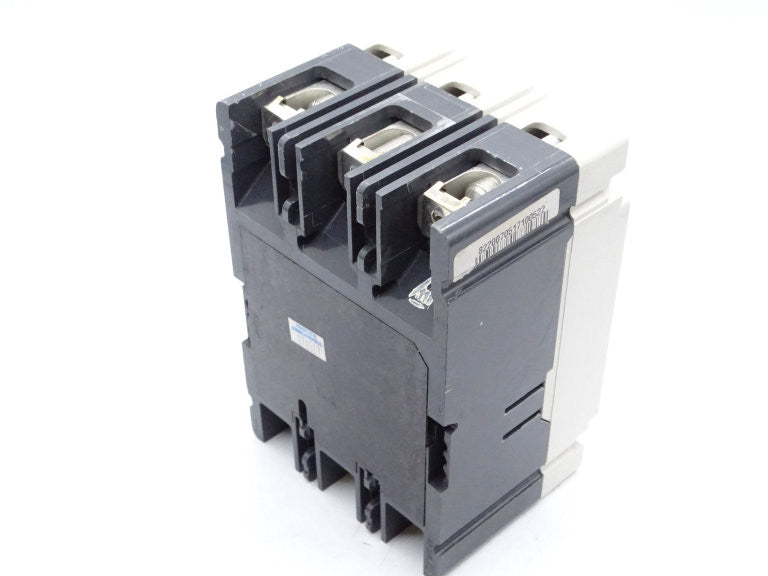

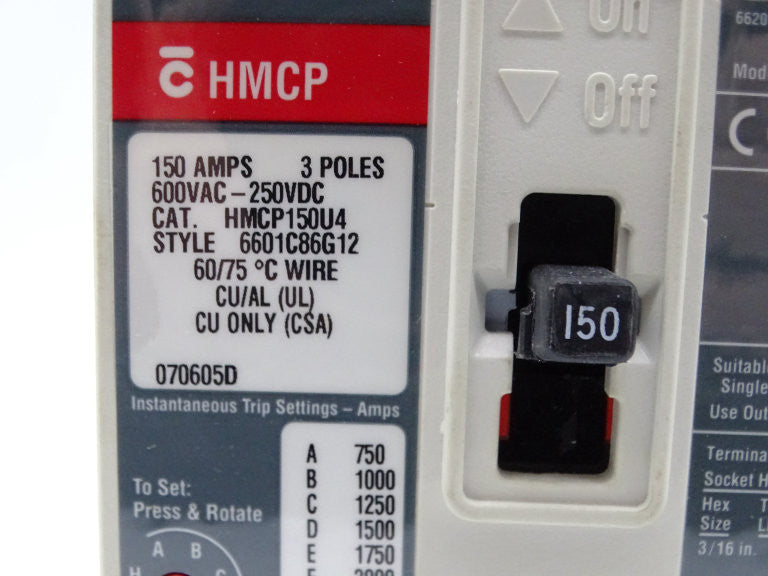

HMCP150U4 | Eaton Series C 150A 3-Pole Motor Circuit Protector Breaker
- Regular price
- $577.00
- Sale price
- $577.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HMCP150U4
Description
The Eaton HMCP150U4 is a molded case circuit breaker designed to provide reliable motor circuit protection in industrial electrical systems. This Eaton part number HMCP150U4 features a three-pole configuration with a 150 amp rating and operates at voltages up to 600 VAC or 250 VDC. Built within Eaton’s Series C platform, it offers adjustable magnetic trip protection suitable for motor control and NEMA Size 4 starter applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | HMCP150U4 |
| Subcategory | Molded Case Circuit Breaker |
| Series | Series C |
| Breaker Type | Motor Circuit Protector |
| Number of Poles | 3 Pole |
| Current Rating | 150 A |
| Voltage Rating (AC) | 600 VAC |
| Voltage Rating (DC) | 250 VDC |
| Trip Type | Magnetic Only |
| Adjustable Trip Range | 750–2500 A |
| Starter Compatibility | NEMA Size 4 |
| Application | Motor Branch Circuit Protection |
| Weight | 4.00 lbs |
Information About HMCP150U4
The HMCP150U4 is part of Eaton’s Series C motor circuit protector family, engineered specifically for protecting motor branch circuits against short-circuit conditions. It uses a magnetic-only trip mechanism with an adjustable pickup range between 750 and 2500 amps, allowing coordination with motor starting currents. Designed for installation in motor control centers and industrial distribution equipment, it integrates easily with NEMA Size 4 starter assemblies. The rugged molded case construction ensures durability and dependable operation in demanding industrial environments.
Key Features:
- 150 Amp Rating: Provides protection for motor branch circuits up to 150 A.
- Three-Pole Configuration: Designed for three-phase industrial motor systems.
- Series C Platform: Part of Eaton’s industrial molded case circuit breaker family.
- Magnetic-Only Trip: Adjustable trip range from 750 to 2500 A for motor inrush tolerance.
- High Voltage Capability: Rated up to 600 VAC and 250 VDC operation.
- Motor Circuit Protection: Optimized for short-circuit protection in motor control circuits.
- NEMA Starter Compatibility: Designed for use with NEMA Size 4 motor starters.
- Molded Case Construction: Durable housing for industrial control environments.
The HMCP150U4 delivers the reliability and precision required for protecting industrial motor circuits and control equipment from short-circuit faults.
