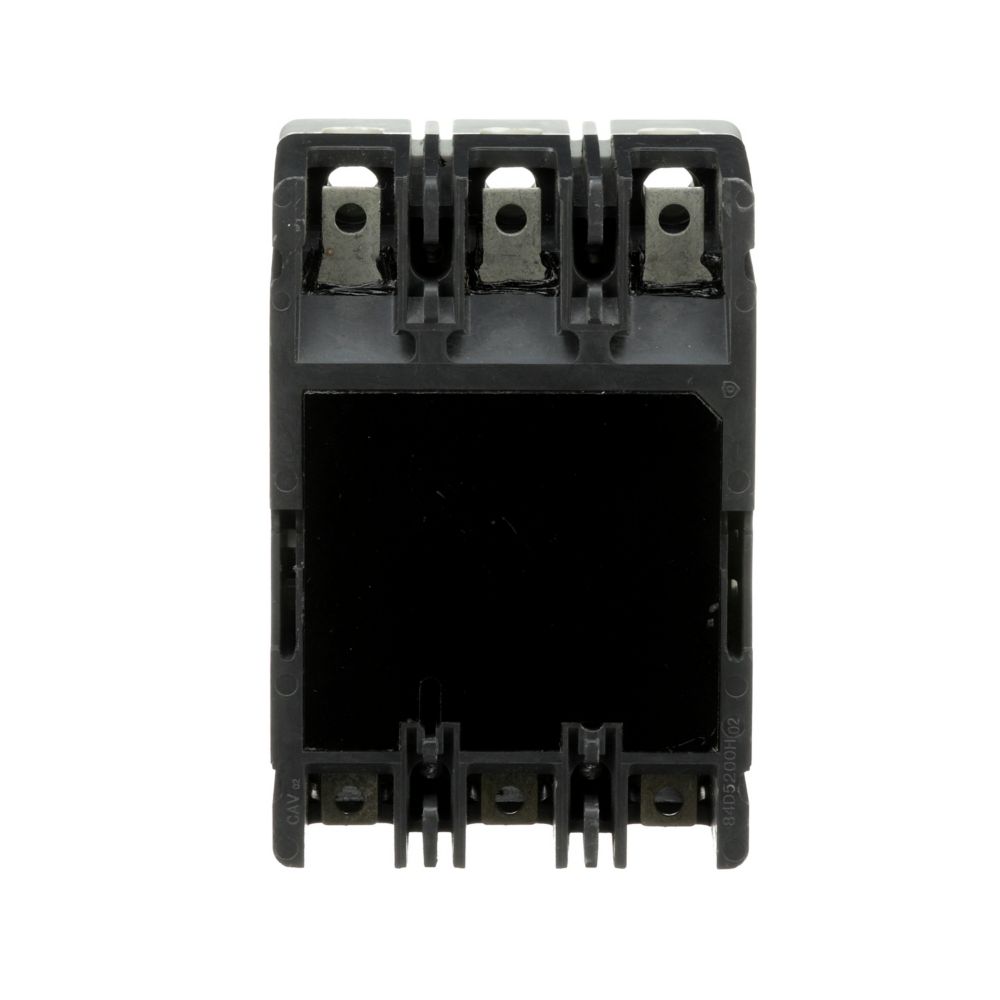

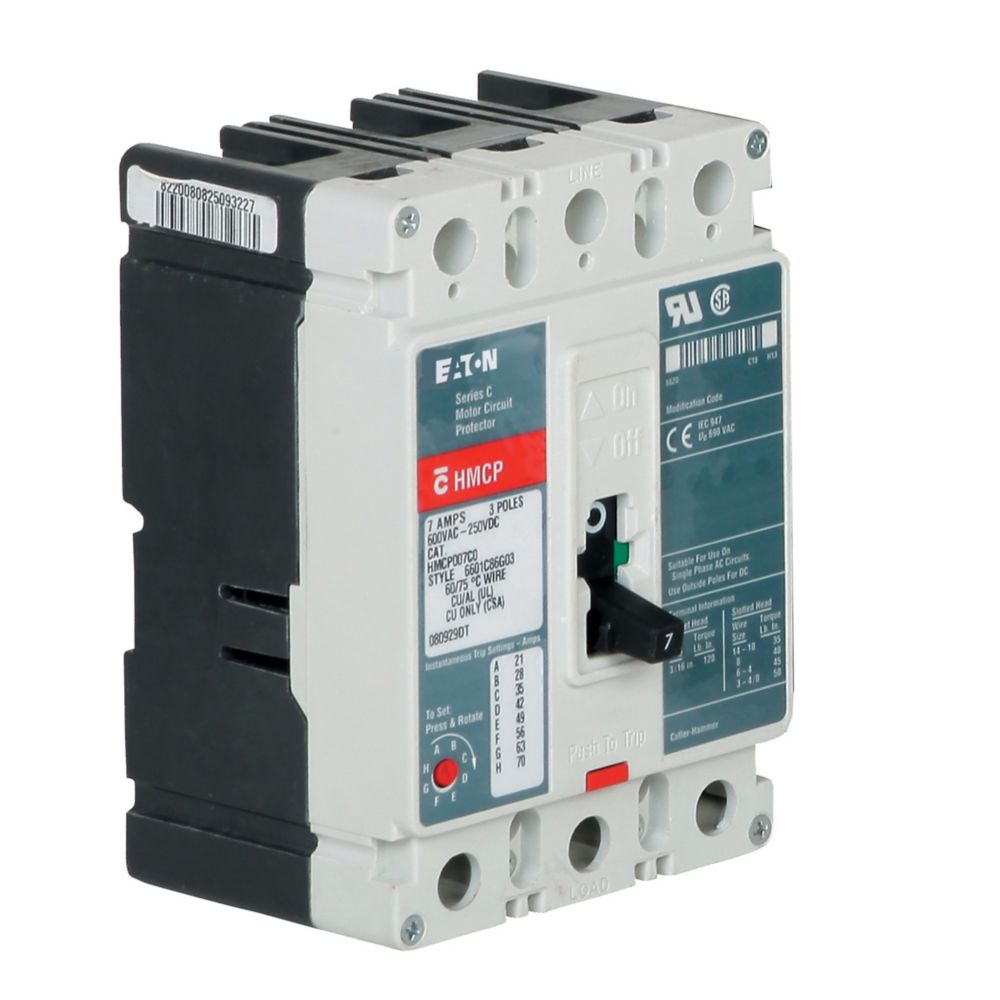

Eaton HMCP150U4C Series C 150A 3-Pole Motor Circuit Protector
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HMCP150U4C
Description
The Eaton HMCP150U4C is a molded case motor circuit protector designed to provide reliable short-circuit protection for motor circuits in industrial control systems. Eaton part number HMCP150U4C offers a 150 A rating and a magnetic-only trip mechanism specifically engineered for motor protection applications. Its robust construction and Series C design ensure dependable performance in motor control centers and heavy-duty electrical installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | HMCP150U4C |
| Subcategory | Motor Circuit Protector |
| Product Type | Molded case circuit breaker accessory |
| Series | Series C |
| Device Type | Motor circuit protector |
| Amperage Rating | 150 A |
| Magnetic Trip Range | 750–2500 A |
| Number of Poles | Three-pole |
| Terminal Material | Non-aluminum |
| Certifications | UL Listed; CSA Certified |
| Global Catalog | HMCP150U4C |
| Product Dimensions (L × W × H) | 8 × 5 × 5 in |
| Weight | 4.5 lb |
Information About HMCP150U4C
The HMCP150U4C is a motor circuit protector from Eaton’s Series C family of molded case circuit protection devices. It is designed with a magnetic-only trip mechanism that protects motor circuits against short-circuit faults while allowing motor starting currents to pass without nuisance tripping. The unit features a three-pole configuration suitable for three-phase motor control systems commonly used in industrial equipment. Built with non-aluminum terminal materials and certified to UL and CSA standards, it delivers durable and compliant protection for demanding electrical environments.
Key Features:
- 150 Amp Current Rating: Designed to protect motor branch circuits and industrial motor loads.
- Magnetic-Only Trip Protection: Provides instantaneous protection against short-circuit faults without thermal overload elements.
- Adjustable Magnetic Trip Range: Magnetic trip setting adjustable between 750 A and 2500 A for flexible motor protection.
- Series C Circuit Protection Platform: Part of Eaton’s proven Series C line known for reliability and durability.
- Three-Pole Design: Suitable for protecting three-phase motor circuits in industrial systems.
- Non-Aluminum Terminals: Durable terminal construction improves reliability and long-term electrical conductivity.
- Motor Control Compatibility: Ideal for installation in motor control centers, control panels, and industrial power systems.
- UL and CSA Certified: Meets recognized safety standards for industrial electrical protection devices.
The HMCP150U4C delivers the reliability and precision required for protecting industrial motor circuits from short-circuit faults.
