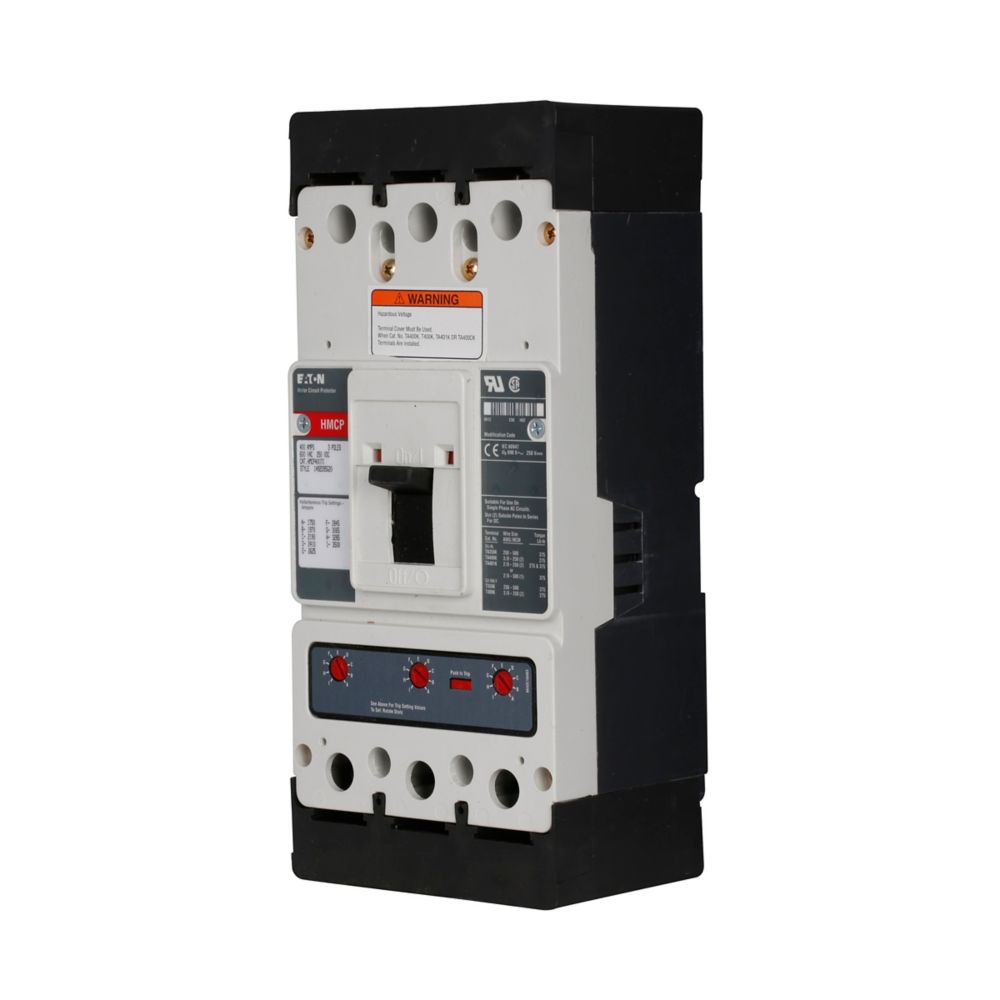

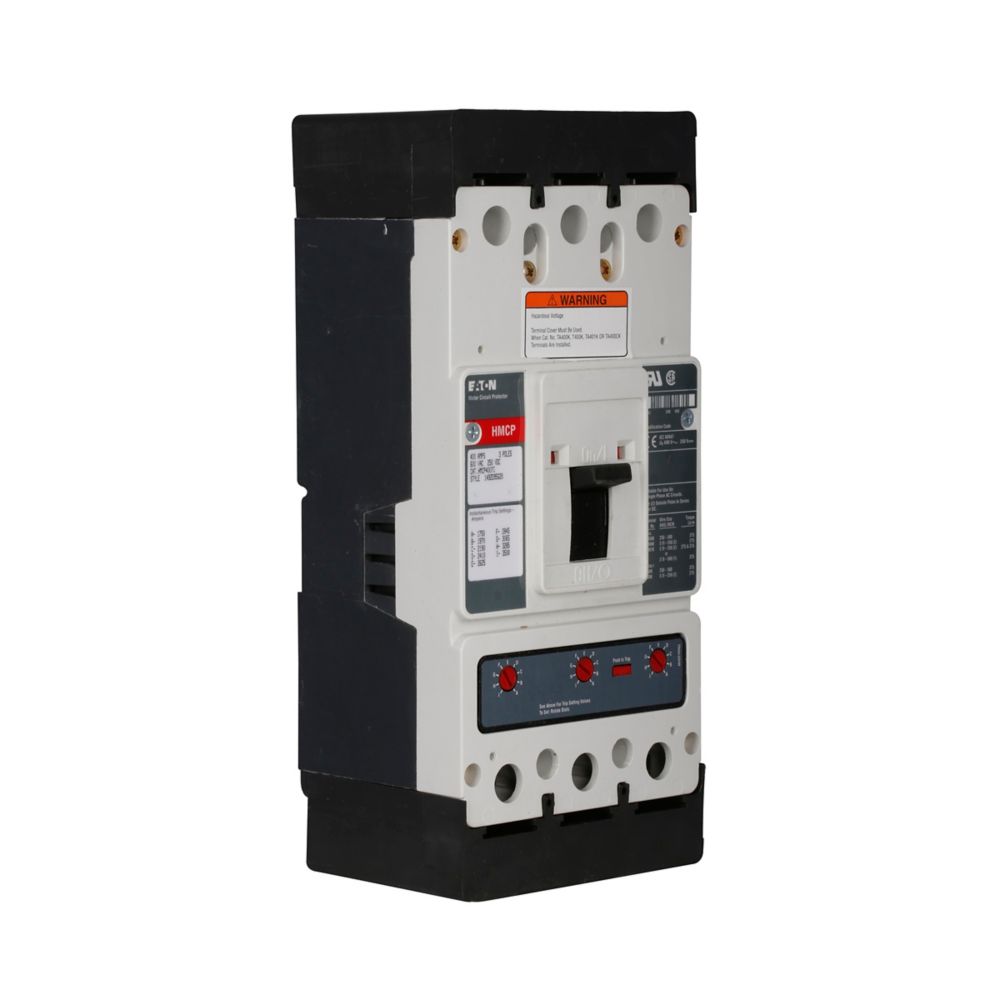

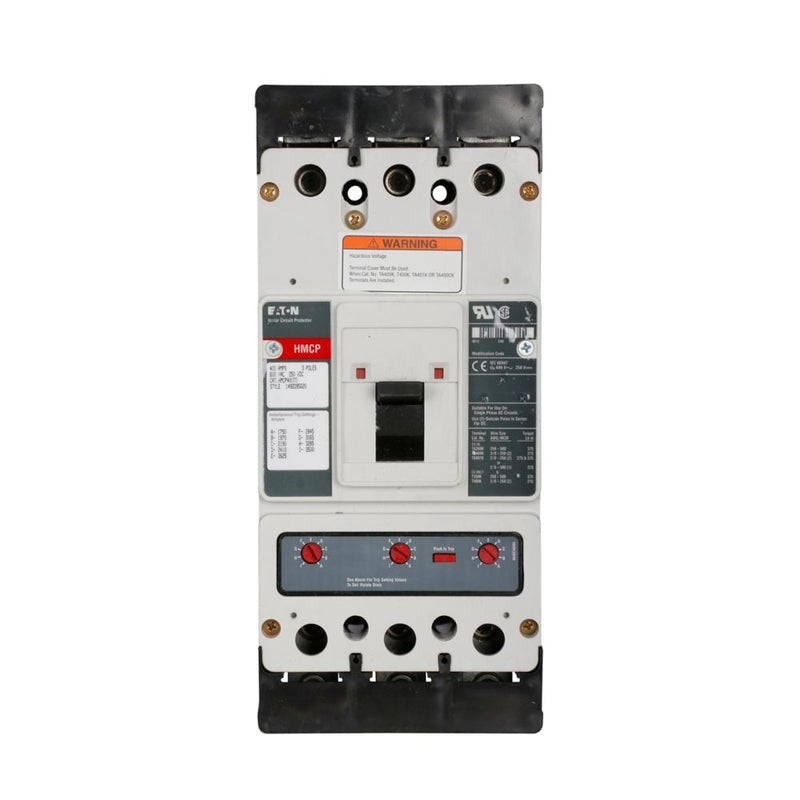

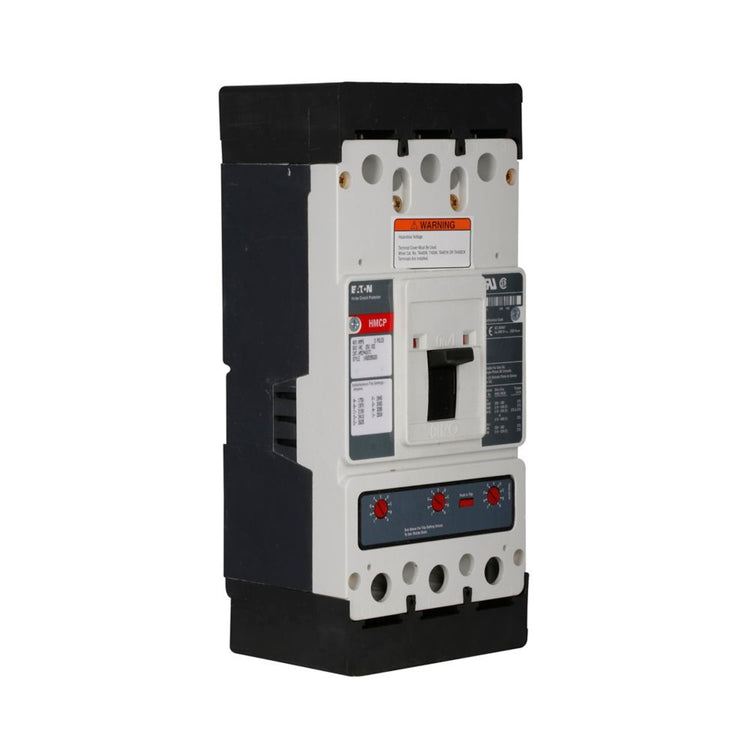

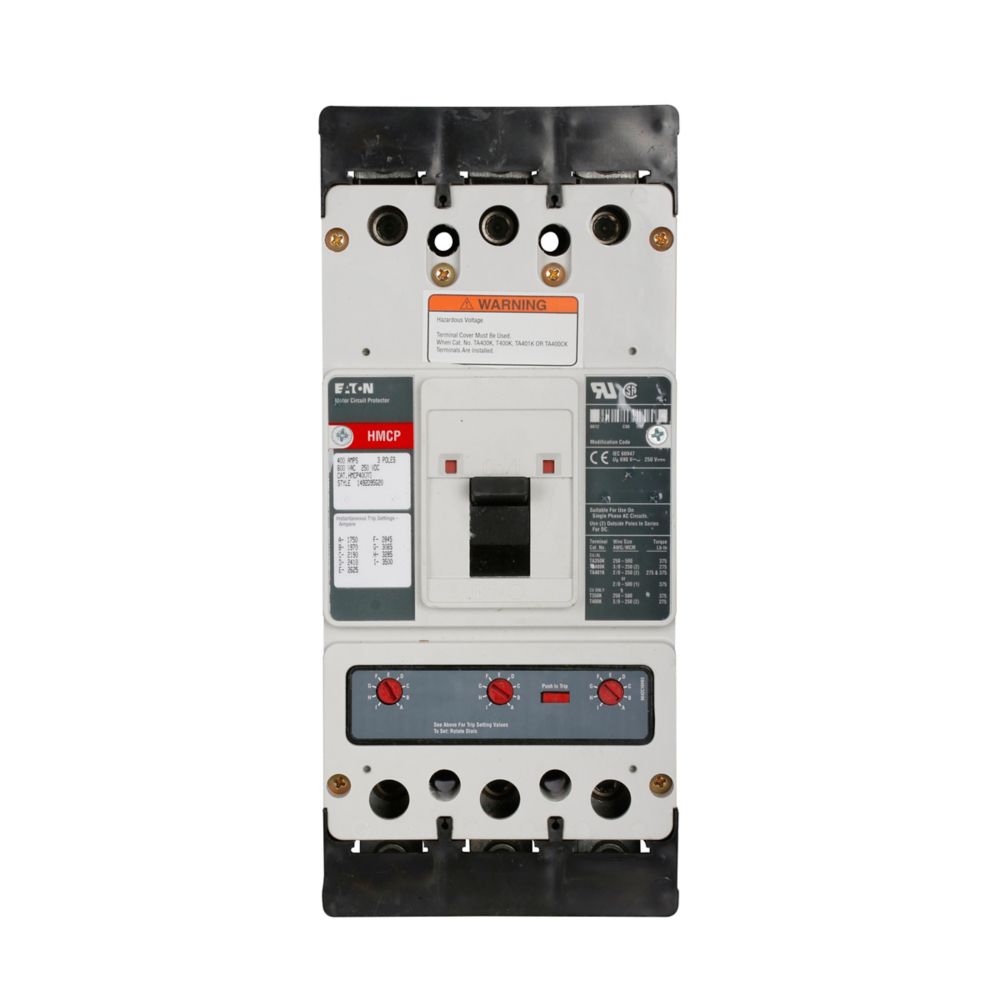

Eaton HMCP400X5W Series C 400A 3-Pole Motor Circuit Protector for Industrial Motor Protection
- Regular price
- $935.00
- Sale price
- $935.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HMCP400X5W
Description
The Eaton HMCP400X5W is a motor circuit protector designed to provide magnetic-only short-circuit protection for industrial motor circuits. Eaton part number HMCP400X5W is rated for 400 A and is engineered for use with Eaton Series C J-K frame systems. Its compact molded case design delivers fast fault response and dependable protection for motor control installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | HMCP400X5W |
| Subcategory | Motor Circuit Protector |
| Product Type | Molded Case Circuit Breaker Accessory |
| Series | Series C |
| Amperage Rating | 400 A |
| Number of Poles | Three-pole |
| Frame Size | J-K Frame |
| Magnetic Trip Range | 2000–4000 A |
| Maximum Voltage | 600 V AC, 250 V DC |
| Terminal Configuration | Without terminals |
| Number of Terminals | Without terminals |
| Certifications | UL Listed; CSA Certified |
| Product Dimensions (L × W × H) | 4.1 × 5.5 × 10.13 in |
| Warranty | Eaton Selling Policy 25-000 |
| Weight | 11.5 lb |
Information About HMCP400X5W
The HMCP400X5W is a molded case motor circuit protector from Eaton’s Series C product family, developed specifically for protecting motor branch circuits from short-circuit faults. Unlike thermal-magnetic breakers, this device uses a magnetic-only trip mechanism to coordinate with external overload relays in motor control systems. It is designed for J-K frame configurations and is commonly installed in motor control centers, industrial machinery panels, and automation equipment. The unit supports operation up to 600 V AC or 250 V DC and features a magnetic trip range of 2000–4000 A for reliable short-circuit protection.
Key Features:
- Magnetic-Only Motor Protection: Provides rapid short-circuit protection while allowing coordination with external overload relays.
- 400 Amp Current Rating: Designed for protecting large industrial motor branch circuits.
- Adjustable Magnetic Trip Range: Trip range of 2000–4000 A enables coordination with motor starting characteristics.
- Series C Compatibility: Built for Eaton Series C J-K frame motor protection systems.
- Three-Pole Configuration: Supports protection of three-phase industrial motor circuits.
- High Voltage Capability: Rated for operation up to 600 V AC and 250 V DC.
- Industrial Motor Control Use: Commonly installed in motor control centers and heavy equipment panels.
- Terminal-Free Configuration: Supplied without terminals for flexible installation in specialized assemblies.
The HMCP400X5W delivers the reliability and precision required for protecting industrial motor circuits from short-circuit faults.
