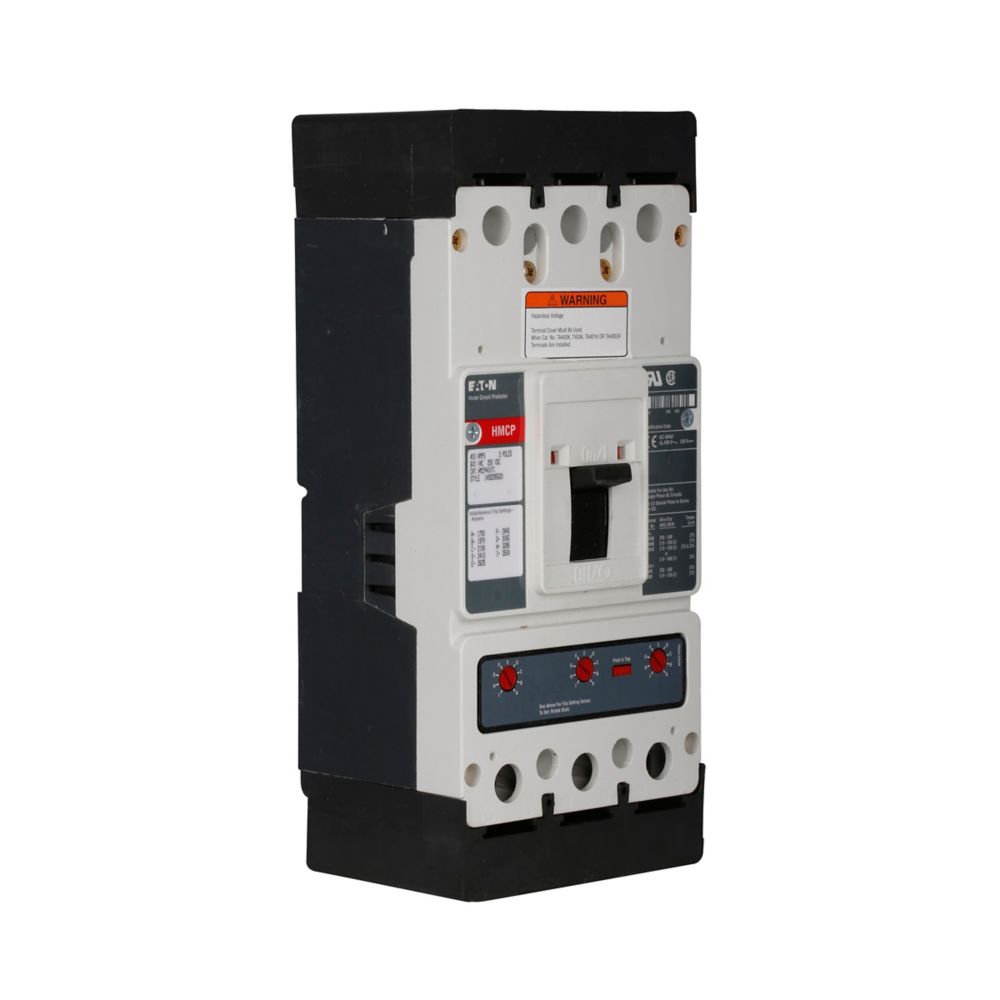

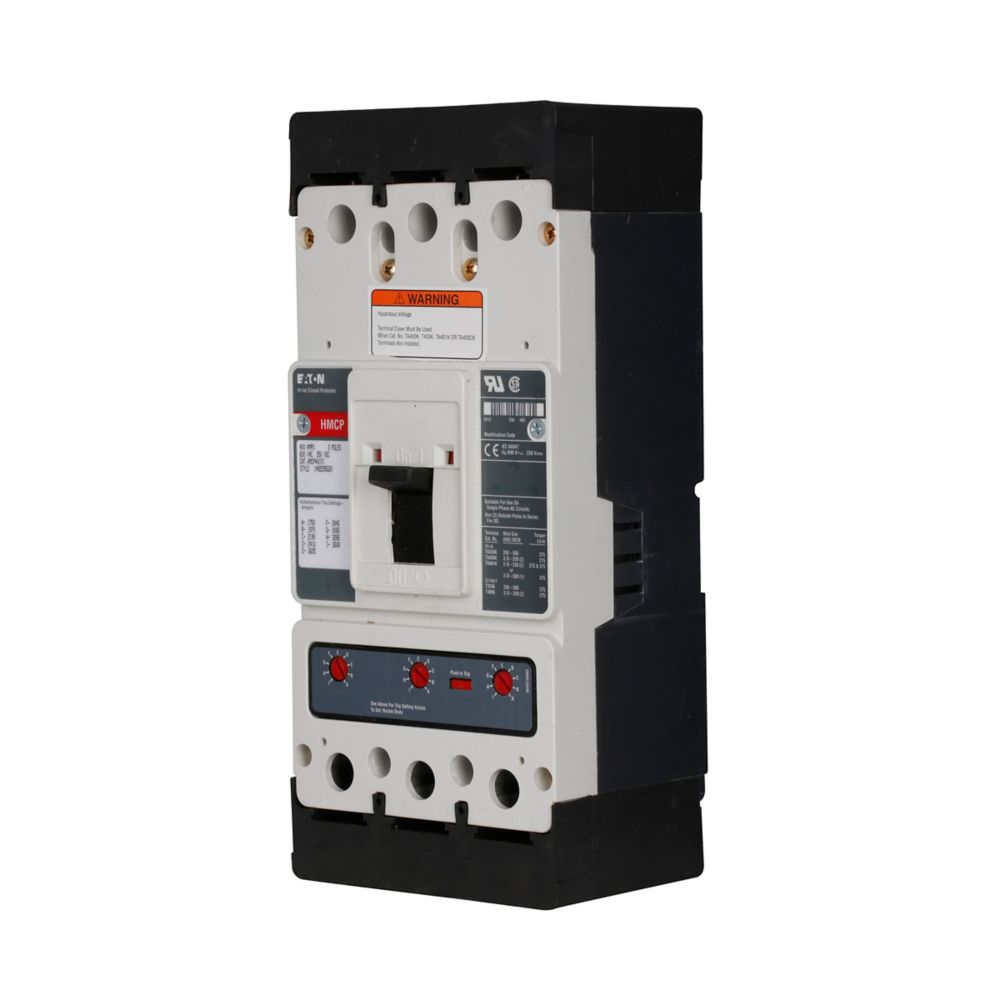

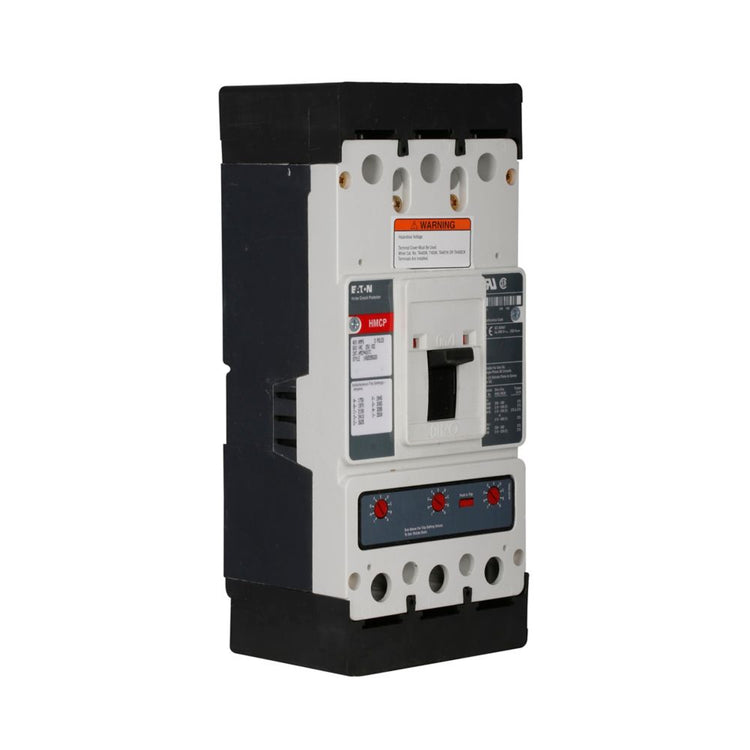

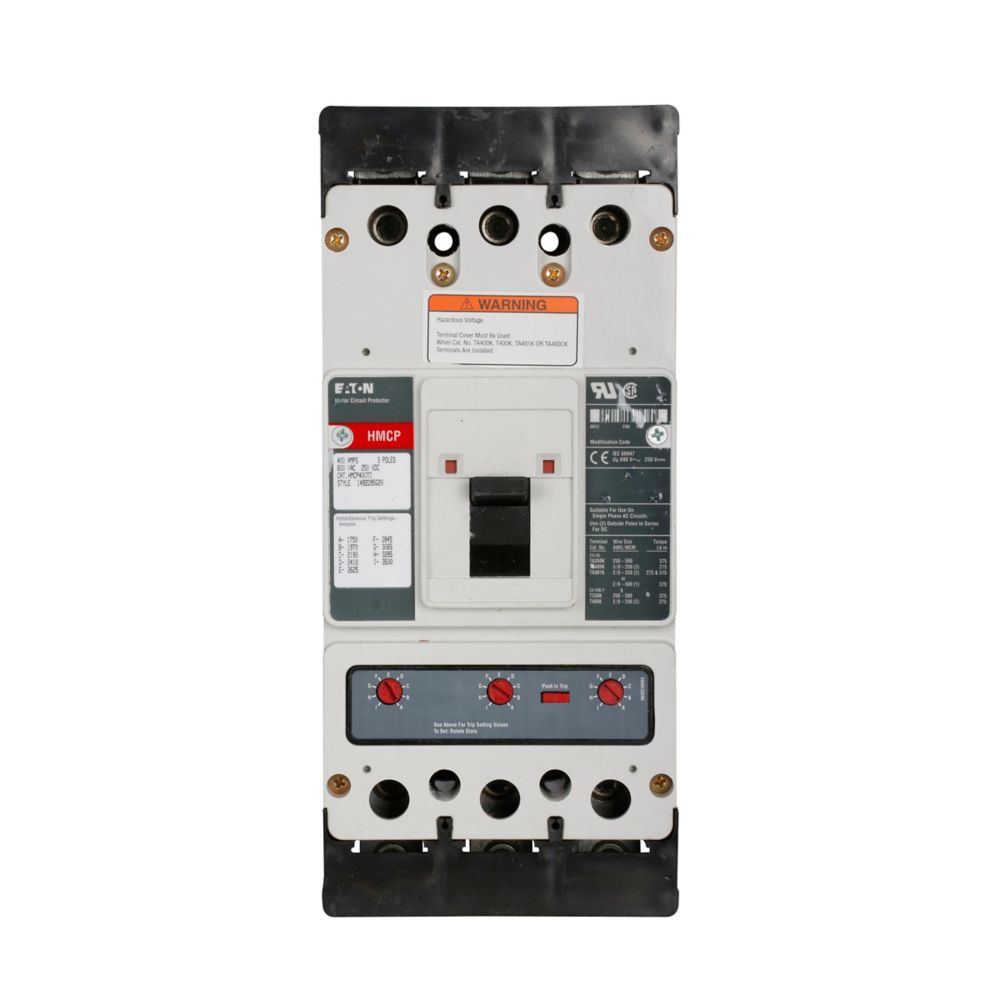

HMCP400Y5C | Eaton Series C 400A Motor Circuit Protector for J-K Frame Breakers
- Regular price
- $3,992.00
- Sale price
- $3,992.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HMCP400Y5C
Description
The Eaton HMCP400Y5C is a motor circuit protector designed to provide instantaneous short-circuit protection for industrial motor control systems. This Eaton part number HMCP400Y5C supports a 400 A rating and is engineered for use with Series C J-K frame motor protection assemblies. Built as a molded case circuit breaker accessory, it helps safeguard motors and associated equipment from high fault currents.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Motor Protection |
| Part Number | HMCP400Y5C |
| Subcategory | Motor Circuit Protector |
| Product Type | Molded Case Circuit Breaker Accessory |
| Series | Series C |
| Frame Size | Frame J-K |
| Number of Poles | Three-pole |
| Amperage Rating | 400 A |
| Magnetic Trip Range | 2250–4500 A |
| Voltage Rating | 600 Vac / 250 Vdc |
| Terminals | Line and Load |
| Terminal Material | Non-aluminum |
| Certifications | UL Listed, CSA Certified |
| Product Dimensions (L × W × H) | 4.1 × 5.5 × 10.13 in |
| Weight | 11.5 lb |
Information About HMCP400Y5C
The HMCP400Y5C is a Series C motor circuit protector manufactured by Eaton for use in industrial motor control applications. It is designed for J-K frame platforms and provides magnetic-only protection that responds rapidly to short-circuit conditions. The device features a magnetic trip range of 2250–4500 A, ensuring reliable protection while allowing motors to start without nuisance tripping. With line and load terminals and UL and CSA certifications, it integrates into motor control centers, panelboards, and industrial automation systems requiring dependable motor protection.
Key Features:
- 400 Amp Protection Rating: Supports high-capacity motor circuits requiring robust protection.
- Magnetic-Only Trip Design: Provides instantaneous short-circuit protection without thermal overload elements.
- Adjustable Magnetic Trip Range: Operates within a 2250–4500 A range for precise protection settings.
- Series C Compatibility: Designed to integrate with Eaton Series C J-K frame breaker platforms.
- Three-Pole Configuration: Protects three-phase motor circuits in industrial electrical systems.
- High Voltage Capability: Rated for operation up to 600 Vac and 250 Vdc environments.
- Industrial Motor Protection: Ideal for motor control centers and heavy-duty automation systems.
- UL and CSA Certified: Meets recognized electrical safety and compliance standards.
The HMCP400Y5C delivers the reliability and precision required for protecting industrial motor circuits against high-level fault currents.
