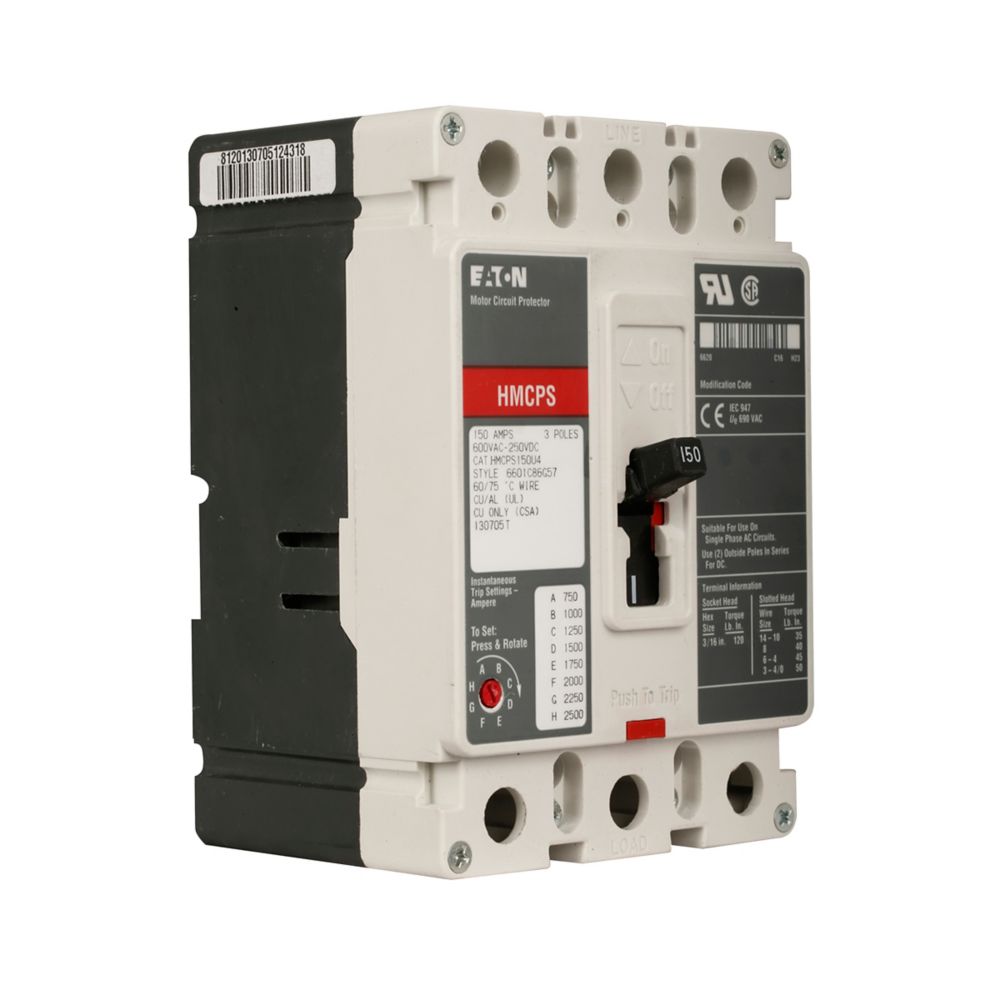

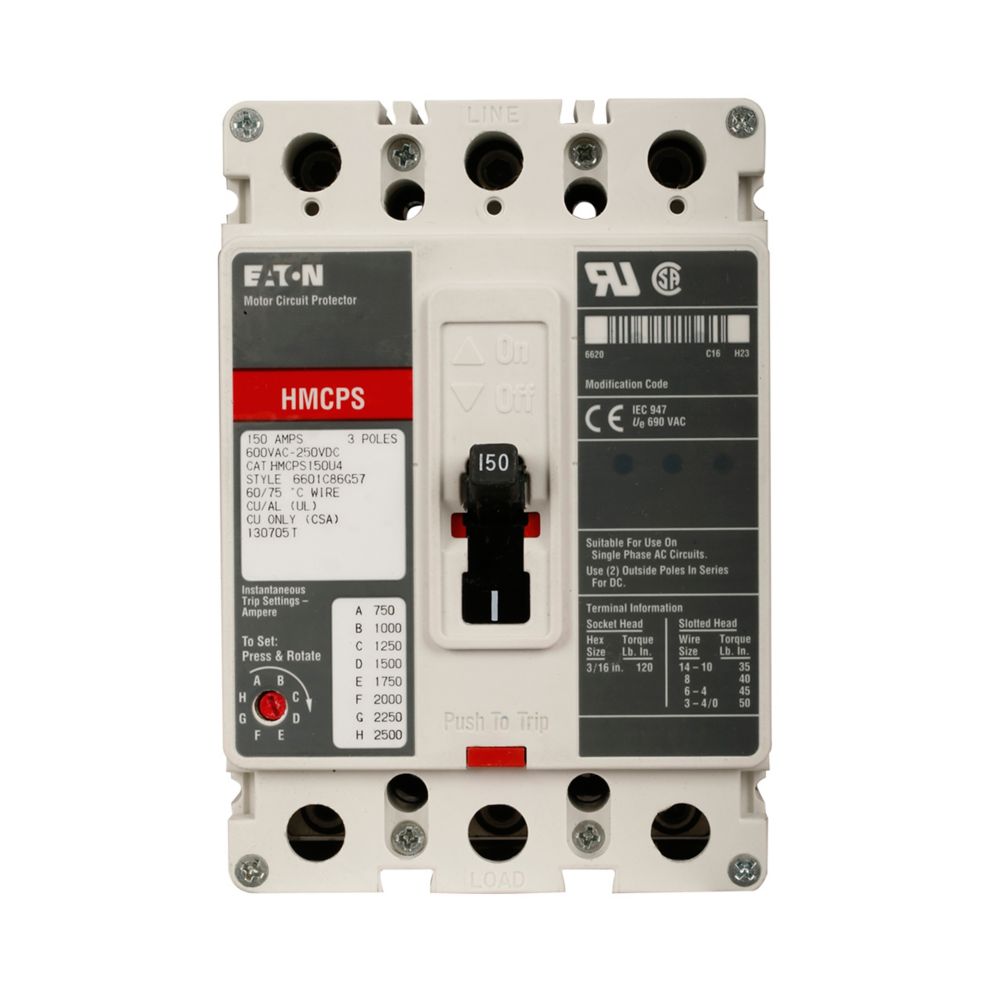

Eaton HMCPS150U4C Series C 150A 3-Pole Motor Circuit Protector for Electric Starters
- Regular price
- $633.00
- Sale price
- $633.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HMCPS150U4C
Description
The Eaton HMCPS150U4C is a Series C motor circuit protector designed to provide reliable short-circuit protection for industrial motor circuits. Eaton part number HMCPS150U4C features a 150 A rating with a magnetic-only trip mechanism specifically engineered for motor starter applications. Its rugged construction and adjustable magnetic trip range ensure dependable protection in demanding motor control and industrial power systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | HMCPS150U4C |
| Subcategory | Motor Circuit Protector |
| Product Type | Molded case circuit breaker accessory |
| Series | Series C |
| Device Type | Motor circuit protector |
| Amperage Rating | 150 A |
| Magnetic Trip Range | 750–2500 A |
| Frame Size | Frame J-K |
| Number of Poles | Three-pole |
| Terminal Material | Non-aluminum |
| Application | Motor starter protection |
| Used With | Electric starters |
| Certifications | UL Listed; CSA Certified |
| Product Dimensions (L × W × H) | 7.5 × 5 × 5 in |
| Weight | 4.45 lb |
Information About HMCPS150U4C
The HMCPS150U4C is a molded case motor circuit protector from Eaton’s Series C circuit protection family. It is designed to provide instantaneous magnetic protection for motor circuits while allowing normal motor starting currents to pass without nuisance tripping. The device features a three-pole configuration suitable for three-phase motor systems and is commonly installed with electric starters in motor control centers. With UL and CSA certifications and durable non-aluminum terminals, it offers reliable protection and long service life in industrial environments.
Key Features:
- 150 Amp Motor Protection Rating: Provides dependable short-circuit protection for industrial motor branch circuits.
- Magnetic-Only Trip Design: Protects against short-circuit faults while allowing motor inrush currents during startup.
- Adjustable Magnetic Trip Range: Configurable magnetic trip settings from 750 A to 2500 A for application flexibility.
- Series C Circuit Protection Platform: Built on Eaton’s proven Series C design for durability and reliable operation.
- Three-Pole Configuration: Designed for protection of three-phase motor circuits in industrial systems.
- Electric Starter Compatibility: Specifically engineered for integration with motor starters and motor control centers.
- Non-Aluminum Terminal Material: Provides improved electrical conductivity and long-term connection reliability.
- UL and CSA Certified: Meets recognized North American safety standards for industrial circuit protection.
The HMCPS150U4C delivers the reliability and precision required for protecting industrial motor circuits from short-circuit faults in motor control systems.
