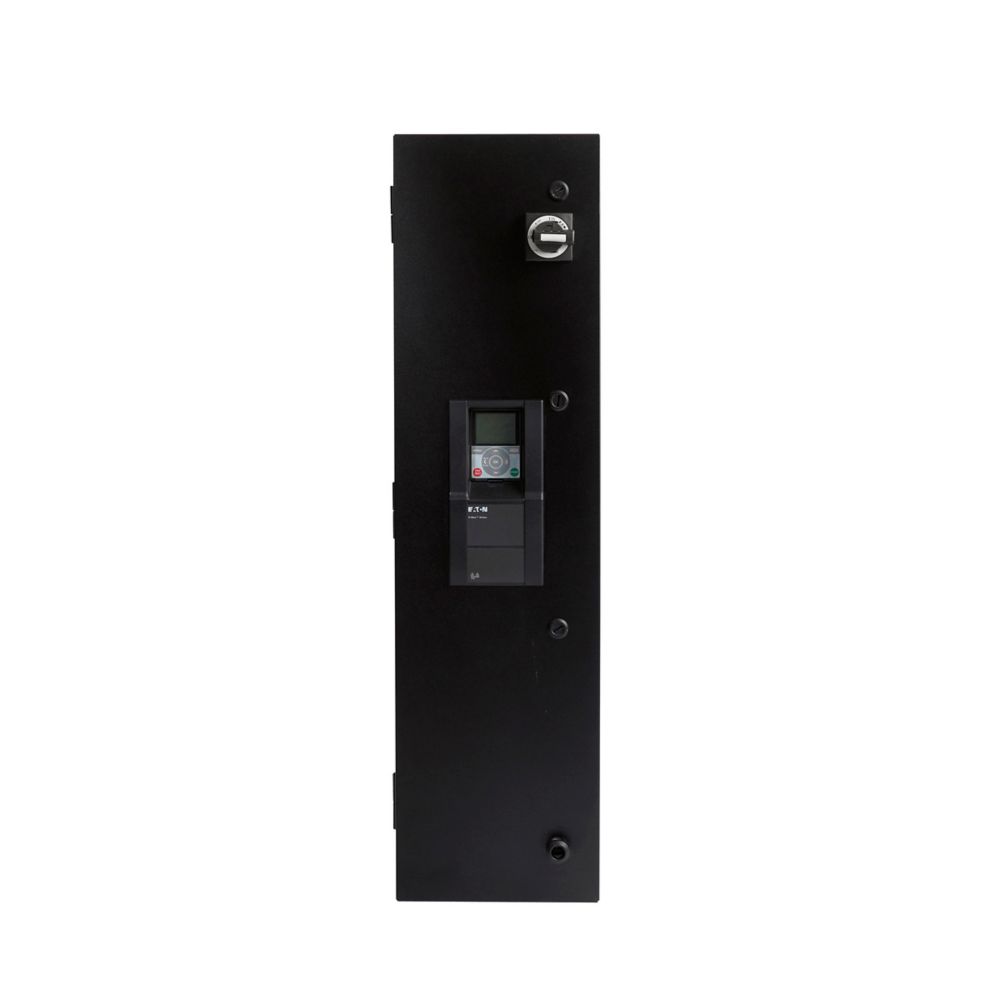

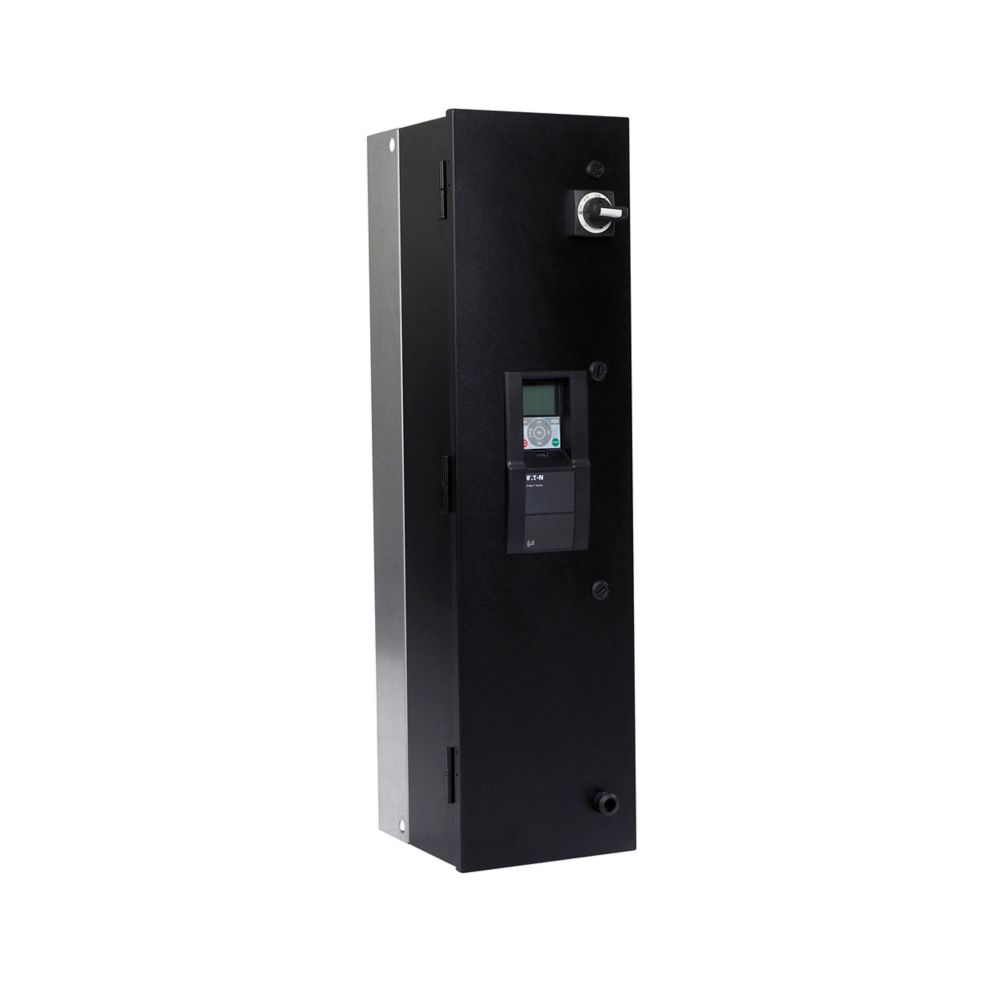

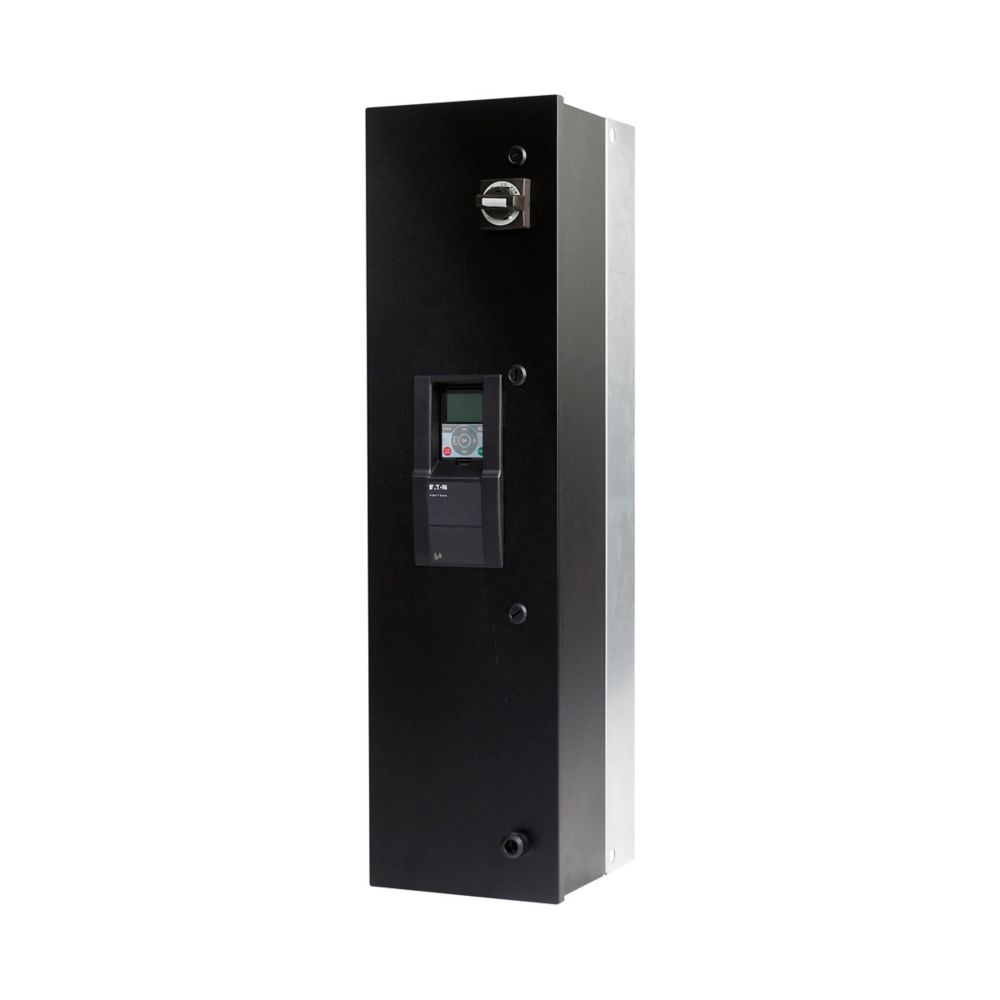

Eaton HMX34AG04621-N H-MAX 30 HP Variable Frequency Drive 380-480V

Eaton HMX34AG04621-N H-MAX 30 HP Variable Frequency Drive 380-480V

Part #: HMX34AG04621-N Manufactured by: Eaton

Regular price: $5,955.00
Sale price: $5,955.00
Regular price

1 in Stock

Condition: New-Surplus Original Box

Shipping calculated at checkout.

Product variants:

Quantity:

Product Overview

The Eaton HMX34AG04621-N is a 30 HP, 46 A H-MAX variable frequency drive designed for three-phase motor control applicatio... Read more

We accept:

Talk to a real expert.

+1 (828) 222-3490

sales@iqelectro.com

Mon–Sat, 7:00 AM – 8:00 PM (EST)

IQElectro 2-Year Warranty

Warranty for Product #: HMX34AG04621-N

IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms

2-3 Day Free Shipping

Packed Ready to Ship

24/7 Expert Support

Return within 30-Days

IQElectro is Not an authorized distributor for Eaton

Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: HMX34AG04621-N

Description / Specifications

Description

Eaton HMX34AG04621-N is a 30 HP H-MAX Series variable frequency drive designed for three-phase HVAC and motor control applications. It operates from a 380–480 VAC supply, provides a 46 A rating, and features an Open NEMA 1 IP21 enclosure with a graphical operator panel.

Technical Specifications

Condition	New/Never Used Surplus
Brand	Eaton
Category	Drives
Part Number	HMX34AG04621-N
Subcategory	Variable Frequency Drive
Product Type	H-MAX Variable Frequency Drive
Series	H-MAX
Horsepower	30 HP
Amperage Rating	46 A
Voltage Rating	380–480 VAC
Phase	3-Phase
Frame Size	FR6
Enclosure	Open NEMA 1, IP21
Keypad	Graphical Panel
Input	EMC C2
Brake Chopper	No
Software	Type A
EMI/RFI Filters	Included
DC Link Choke	Included
Product Length/Depth	26 in
Product Height	14 in
Product Width	12 in
UPC	786685513942
Certifications	IEC 61800-5-1, EN 61800-5-1, UL 508C, cUL
Compliance	CE Marked
Weight	50 lbs

Information About HMX34AG04621-N

The HMX34AG04621-N belongs to Eaton’s H-MAX family of variable frequency drives developed for HVAC and motor control systems. It provides adjustable-speed control of compatible three-phase AC motors and incorporates a graphical panel for equipment operation and monitoring. The drive features an FR6 frame and includes EMI/RFI filtering and a DC link choke.

Key Features:

30 HP Motor Rating: Designed for compatible three-phase motors rated up to 30 horsepower.
46 A Rating: Provides a rated current capacity of 46 amps.
380–480 VAC Operation: Supports common commercial and industrial three-phase power systems.
H-MAX Series: Part of Eaton’s variable frequency drive platform for HVAC and motor applications.
Graphical Panel: Provides an integrated interface for drive operation and monitoring.
NEMA 1 Enclosure: Open NEMA 1 IP21 construction provides protection for appropriate indoor installations.
Integrated Filtering: Includes EMI/RFI filters to support drive installation and operation.
DC Link Choke: Incorporates a DC link choke as part of the drive configuration.

The HMX34AG04621-N delivers the variable-speed motor control functionality required for compatible HVAC and industrial motor applications.
