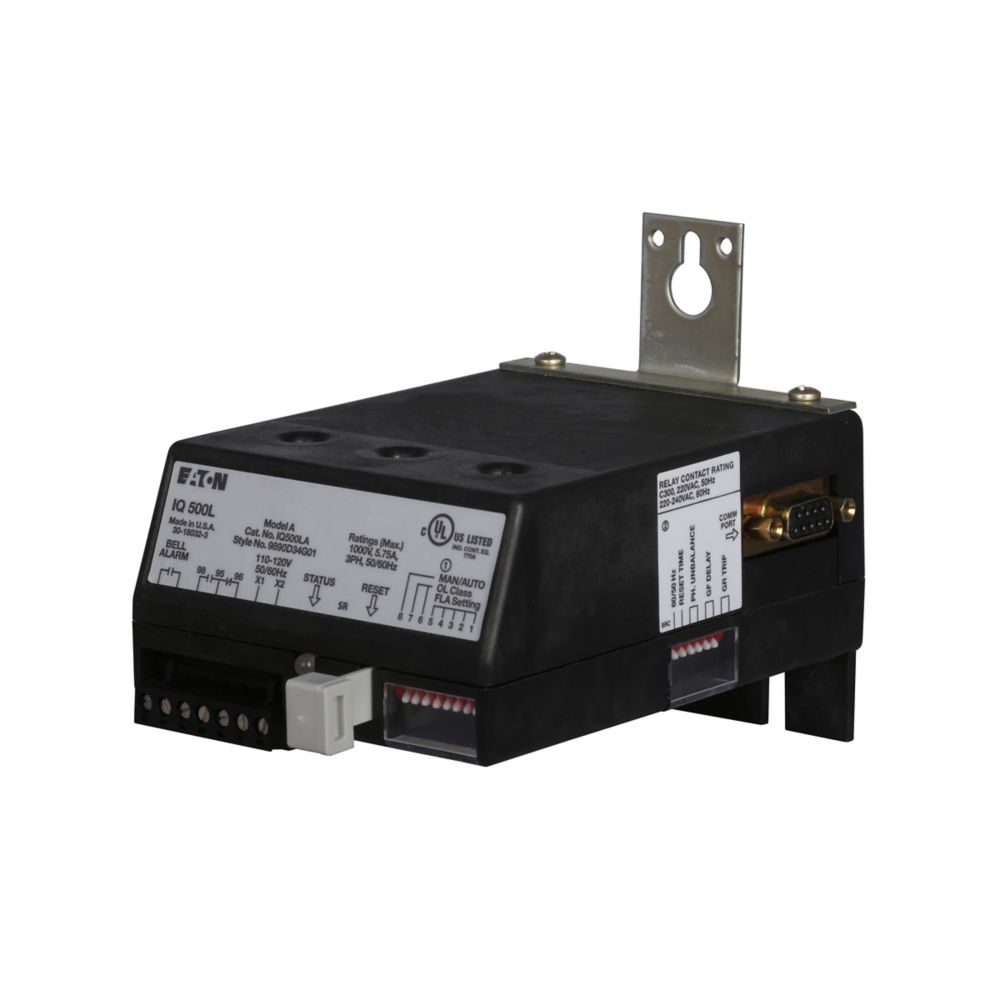

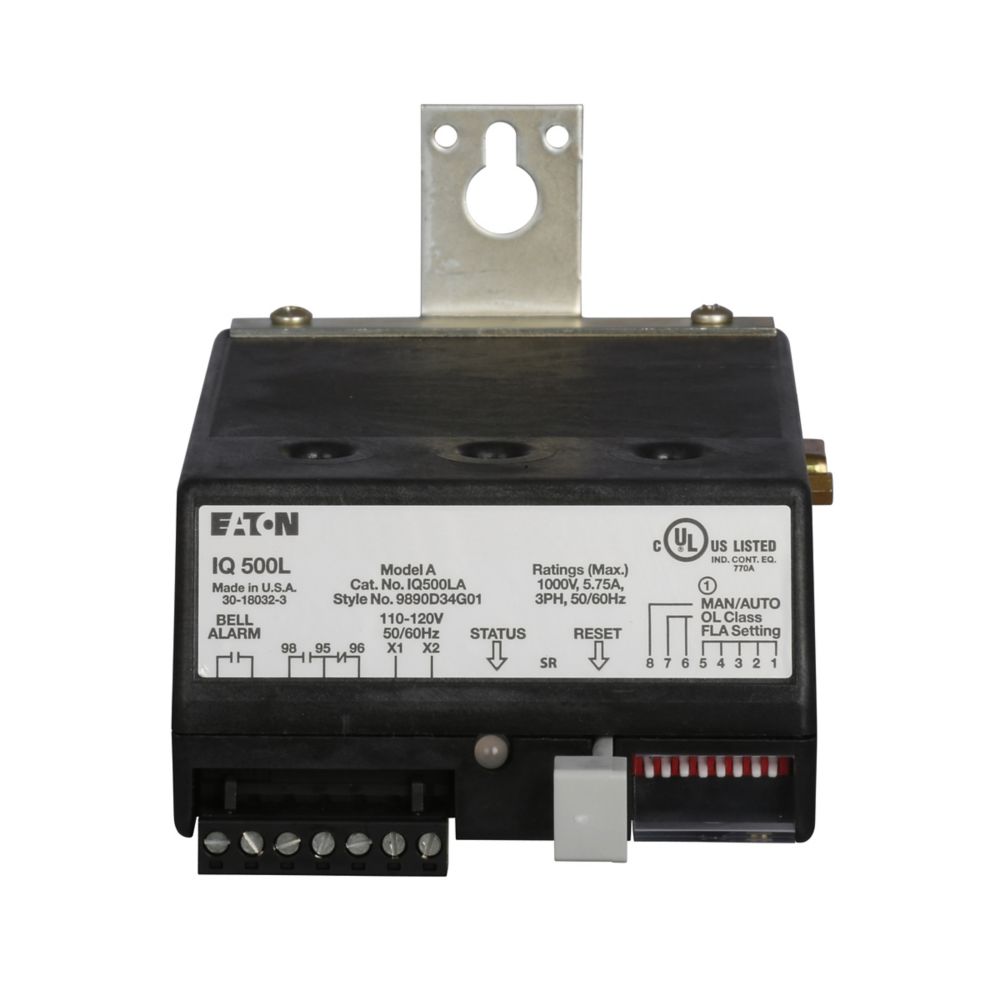

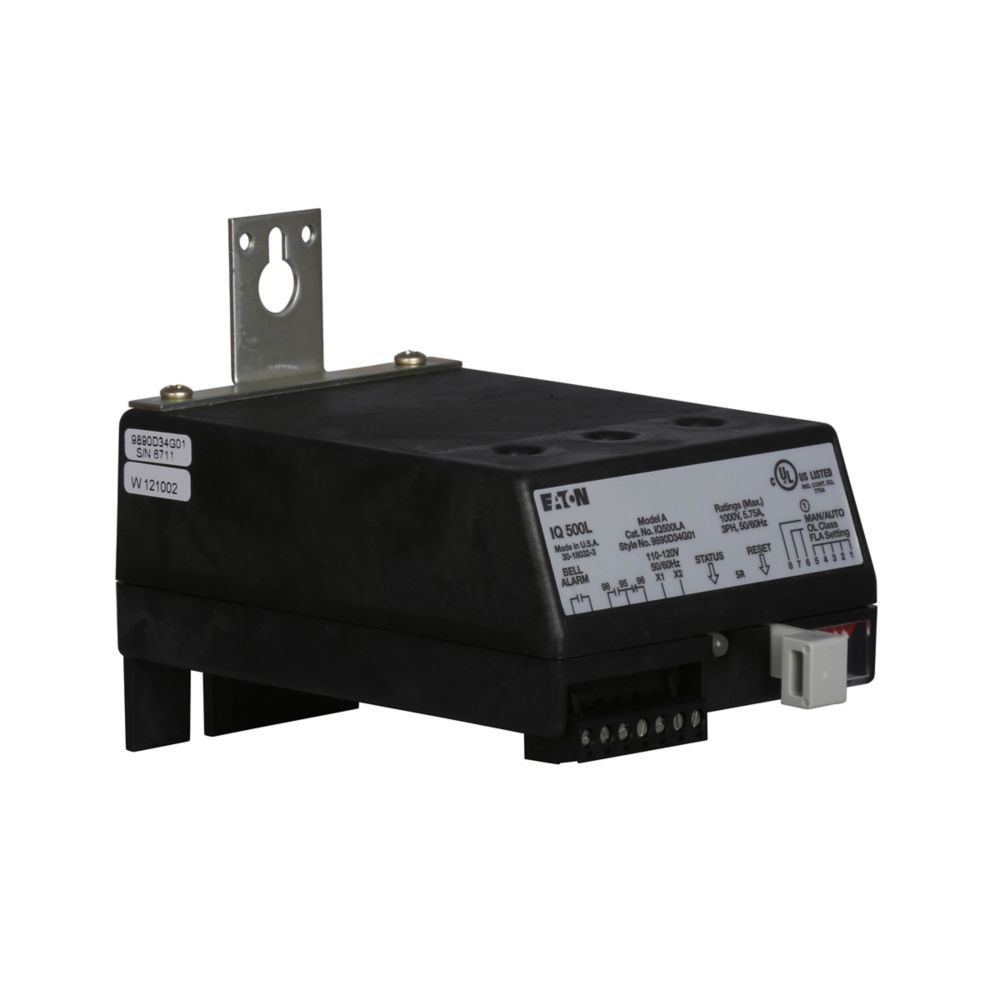

IQ504A | Eaton Freedom IQ500 NEMA Motor Overload Relay 10.8–207A for A200 Contactors
- Regular price
- $1,025.00
- Sale price
- $1,025.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: IQ504A
Description
The Eaton IQ504A is a Freedom NEMA overload relay designed to protect electric motors from overload conditions in industrial motor control systems. This Eaton part number IQ504A offers an adjustable current range from 10.80 A to 207 A and integrates with compatible Eaton contactors and starters. Engineered for reliable motor protection, it helps prevent damage caused by excessive current in heavy-duty motor-driven equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Motor Control |
| Part Number | IQ504A |
| Subcategory | Overload Relay |
| Product Type | Freedom NEMA Overload Relay |
| Series | Freedom |
| Relay Type | IQ 500 |
| Amperage Rating | 10.80–207 A |
| Control Characteristics | 120 V / 110 V – 60 / 50 Hz |
| Compatible Equipment | Eaton A200 Series NEMA Contactors and Starters |
| Maximum Horsepower | 60 HP @ 200 V; 75 HP @ 230 V; 150 HP @ 460–475 V |
| Certifications | UL Listed |
| Product Dimensions (L × W × H) | 11 × 6.3 × 4.5 in |
| Weight | 2.2 lb |
Information About IQ504A
The IQ504A is part of Eaton’s Freedom series of NEMA motor control components and functions as an overload relay for motor starter assemblies. It is specifically designed for use with A200 series NEMA contactors and starters, providing coordinated protection in industrial motor control circuits. The relay monitors motor current and trips the control circuit when overload conditions are detected, helping safeguard motors and connected equipment. With UL certification and compatibility with standard control voltages, it is widely used in motor control centers, automation panels, and industrial machinery systems.
Key Features:
- Adjustable Overload Protection: Provides an adjustable current range from 10.80 A to 207 A for flexible motor protection.
- Freedom Series Integration: Designed for use within Eaton’s Freedom motor control product line.
- A200 Contactor Compatibility: Engineered specifically to operate with Eaton A200 series NEMA contactors and starters.
- Motor Overload Protection: Helps prevent motor damage by interrupting the control circuit during overload conditions.
- Standard Control Voltage: Operates with 120 V (60 Hz) or 110 V (50 Hz) control circuits for common industrial applications.
- Industrial Motor Applications: Suitable for installation in motor control centers, control panels, and automation systems.
- UL Listed Certification: Meets recognized electrical safety standards for motor control equipment.
- High Horsepower Capability: Supports motors up to 150 HP at 460–475 V depending on system configuration.
The IQ504A delivers the reliability and precision required for protecting industrial electric motors in NEMA motor control systems.
