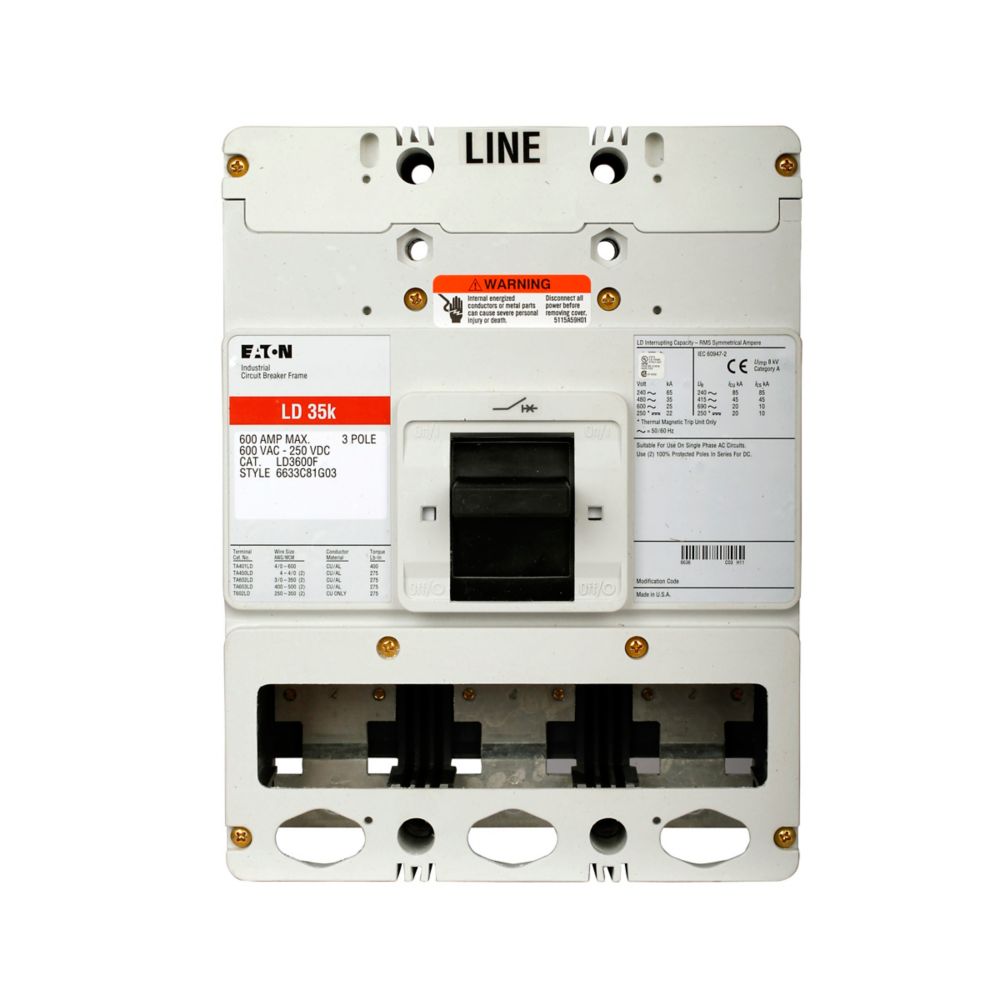

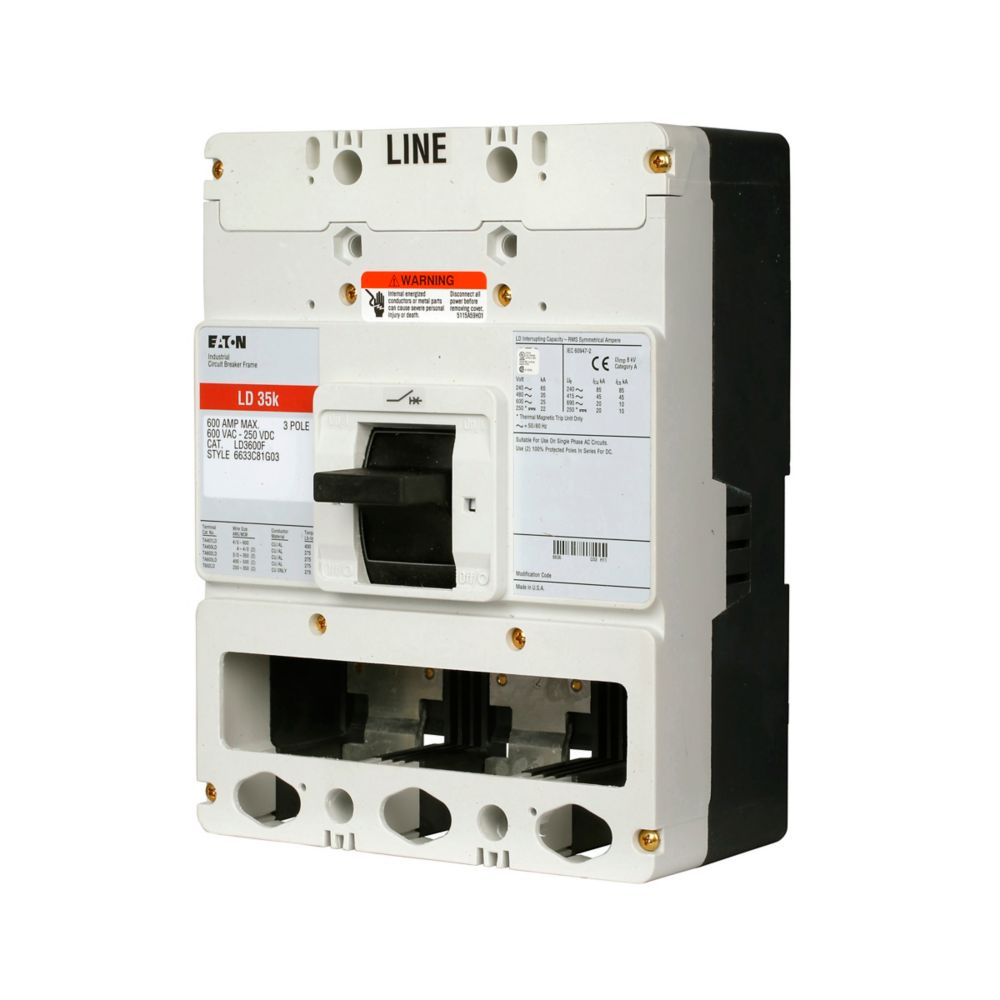

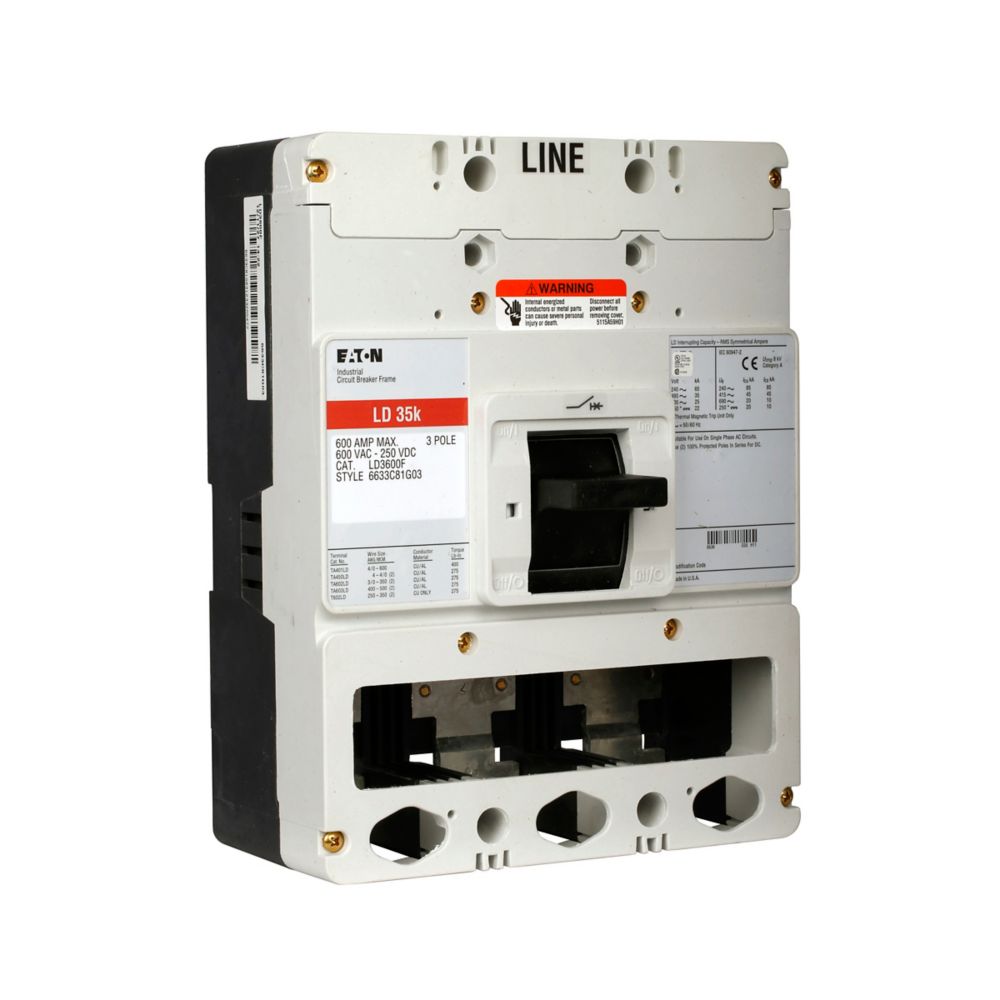

Eaton LDB3600FT33W Series C 600A 3-Pole Electronic Molded Case Circuit Breaker L-Frame
- Regular price
- $5,833.00
- Sale price
- $5,833.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LDB3600FT33W
Description
The Eaton LDB3600FT33W is a Series C electronic molded case circuit breaker designed to provide advanced overcurrent protection in high-capacity electrical distribution systems. Eaton part number LDB3600FT33W features a 600 A rating with a three-pole configuration and an electronic trip unit for precise fault detection. Its L-frame construction and high interrupting capacity make it suitable for demanding industrial and commercial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | LDB3600FT33W |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Electronic molded case circuit breaker |
| Series | Series C |
| Circuit Breaker Type | LDB |
| Frame | L |
| Circuit Breaker Frame Type | Frame only |
| Amperage Rating | 600 A |
| Trip Type | T167 electronic trip |
| Number of Poles | Three-pole |
| Frequency Rating | 50–60 Hz |
| Terminals | Without terminals |
| Interrupt Rating | 35 kAIC at 480 Vac |
| Additional Interrupt Rating | 65 kAIC at 240 Vac |
| Certifications | UL 489 |
| Product Dimensions (L × W × H) | 8.25 × 8.25 × 8.25 in |
| Warranty | Eaton Selling Policy 25-000 |
| Weight | 19.25 lb |
Information About LDB3600FT33W
The LDB3600FT33W is an electronic molded case circuit breaker from Eaton’s Series C platform, engineered for reliable protection of electrical systems with high current demands. Built on the L-frame platform, it incorporates a T167 electronic trip unit that provides accurate response to overload and short-circuit conditions. This unit is supplied as a frame-only configuration without terminals, allowing customization based on installation requirements. Designed for use in panelboards, switchgear, and industrial control systems, it meets UL 489 standards for dependable performance in power distribution environments.
Key Features:
- 600 Amp Current Rating: Designed for high-capacity feeder and distribution circuit protection.
- Series C Electronic Breaker Platform: Provides advanced circuit protection with consistent performance.
- T167 Electronic Trip Unit: Ensures precise and reliable detection of overload and short-circuit faults.
- Frame-Only Configuration: Allows flexible customization of terminals and accessories based on application needs.
- Three-Pole Design: Suitable for protecting three-phase electrical systems.
- High Interrupt Capacity: Rated up to 65 kAIC at 240 Vac for safe fault interruption.
- L-Frame Construction: Heavy-duty design supports high current operation and durability.
- Industrial Application Ready: Ideal for use in switchgear, panelboards, and large electrical distribution systems.
The LDB3600FT33W delivers the reliability and precision required for protecting high-capacity electrical distribution circuits in industrial and commercial environments.
