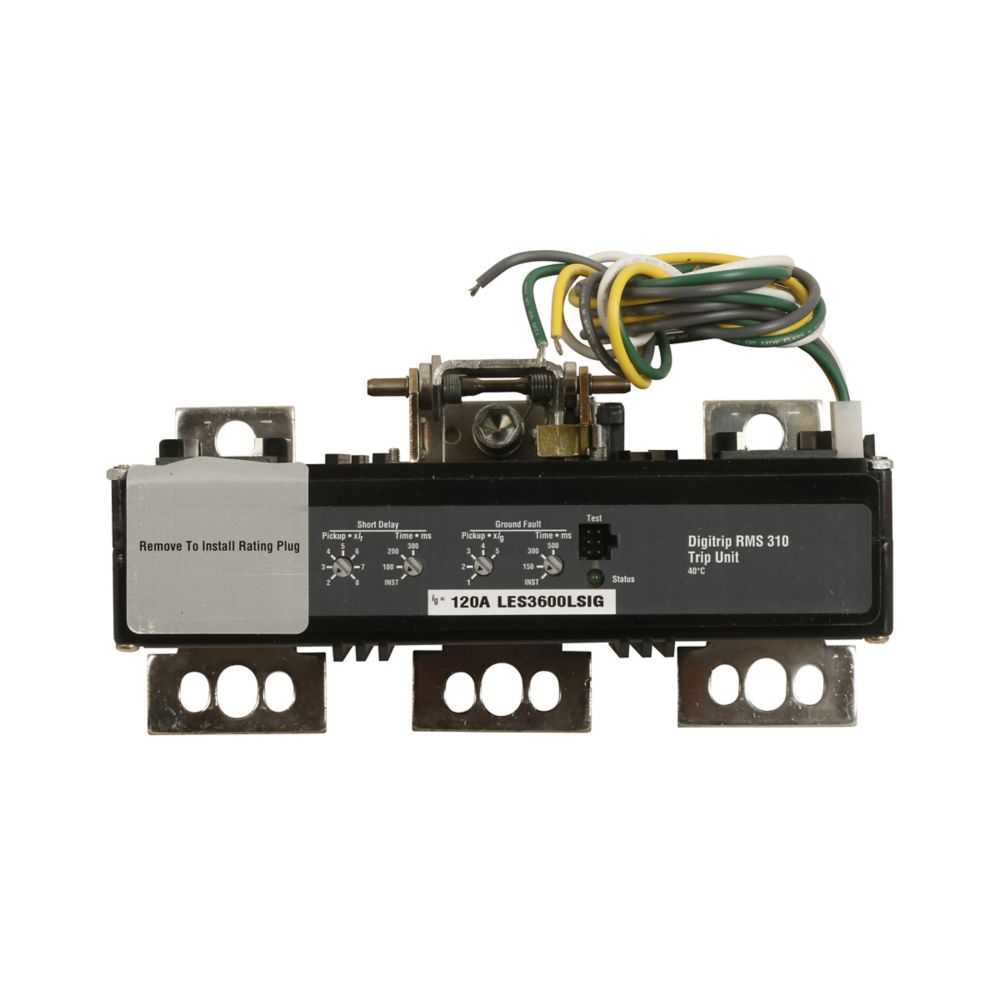

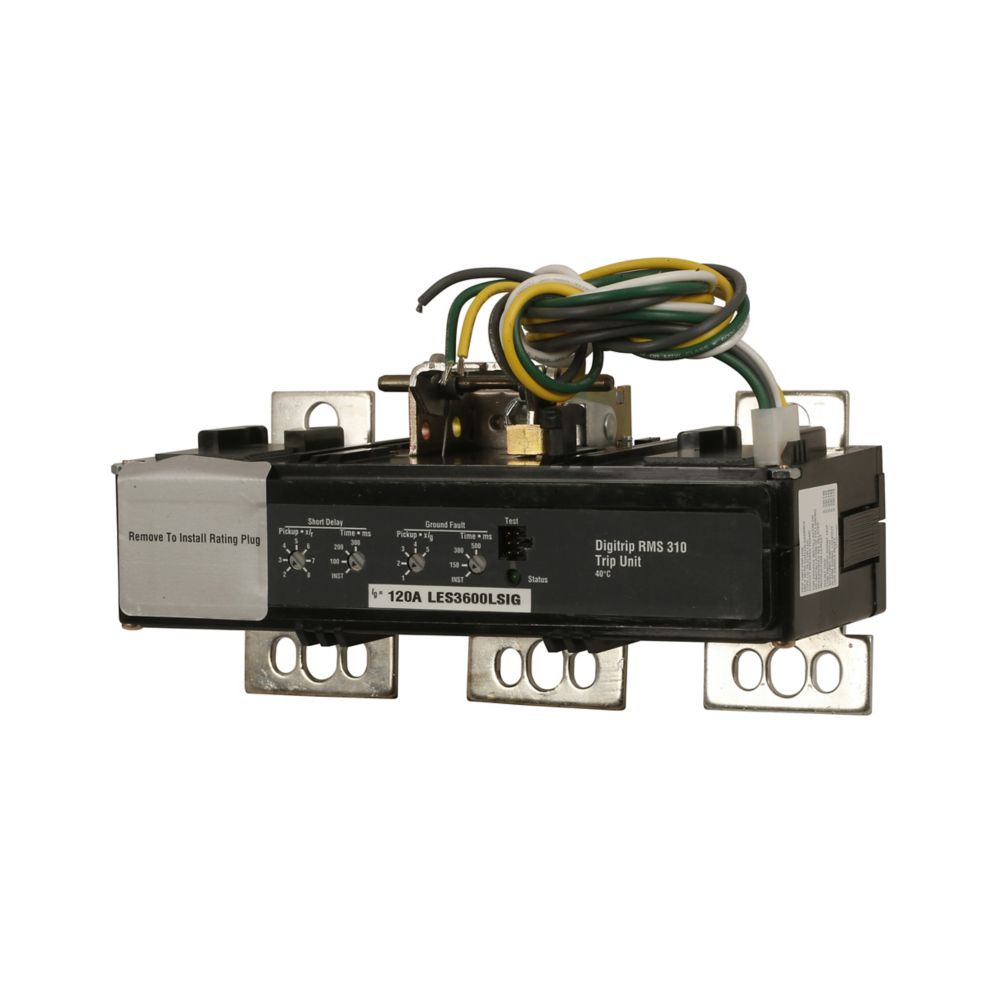

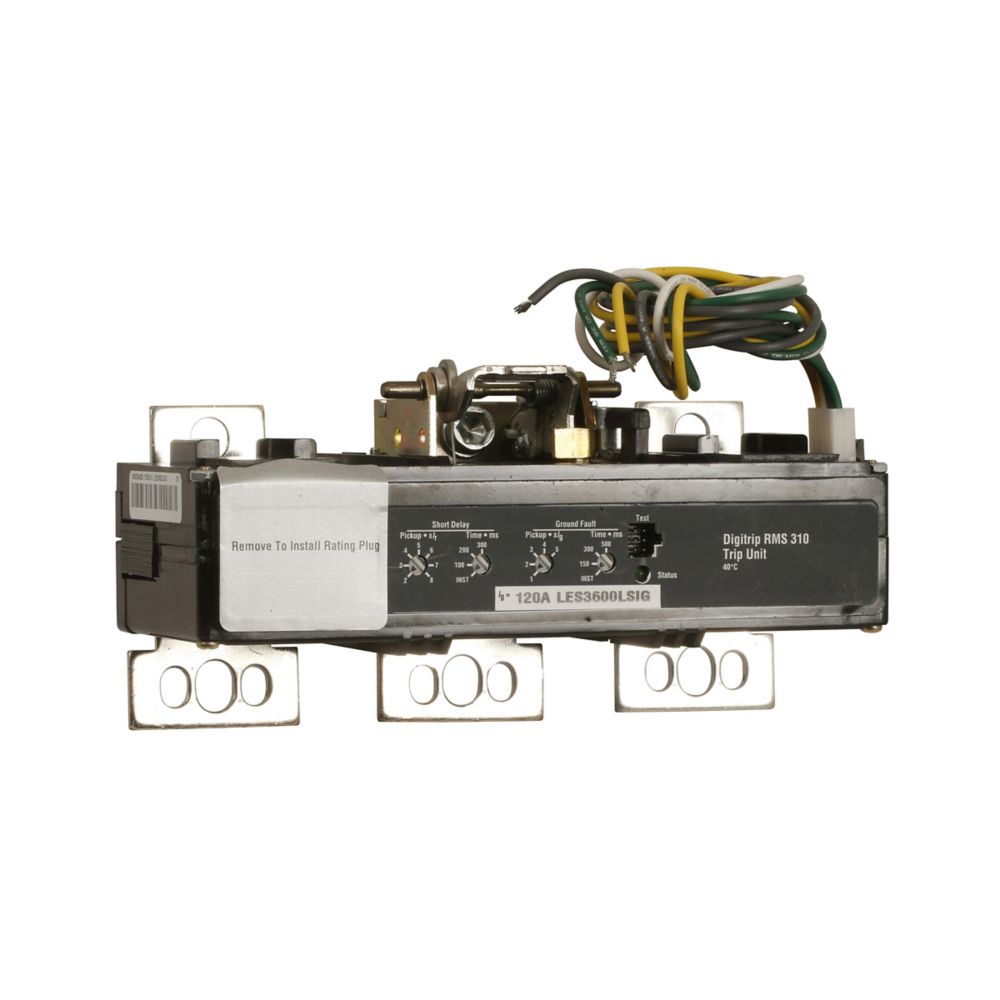

LES3600LSI | Eaton 600A LSI Electronic Trip Unit for Series C J-K Frame Molded Case Circuit Breakers
- Regular price
- $1,418.00
- Sale price
- $1,418.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LES3600LSI
Description
The Eaton LES3600LSI is an electronic trip unit designed for molded case circuit breakers used in industrial power distribution systems. This Eaton part number LES3600LSI supports a 600 A rating and incorporates advanced LSI (Long-time, Short-time, Instantaneous) protection functions. It provides precise fault detection and protection control for Series C breakers operating in demanding electrical environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker Accessories |
| Part Number | LES3600LSI |
| Subcategory | Trip Unit |
| Product Type | Molded Case Circuit Breaker Electronic Trip Unit |
| Series | Series C |
| Frame Compatibility | Frame J-K |
| Trip Type | LSI (Long-Time, Short-Time, Instantaneous) |
| Amperage Rating | 600 A |
| Number of Poles | Three-pole |
| Application | Electronic protection for molded case circuit breakers |
| Certifications | UL Listed |
| Product Dimensions (L × W × H) | 9 × 5.5 × 6 in |
| Weight | 4.5 lb |
Information About LES3600LSI
The LES3600LSI is an electronic trip unit manufactured by Eaton for integration with Series C molded case circuit breakers. It is designed for Frame J-K breakers and delivers programmable protection through its LSI trip configuration. The device monitors current conditions and provides coordinated protection against overloads, short circuits, and instantaneous faults within industrial electrical systems. With UL listing and compatibility with Eaton breaker platforms, it is commonly installed in switchboards, panelboards, and motor control centers requiring accurate electronic protection.
Key Features:
- 600 Amp Protection Rating: Designed to provide protection control for breakers rated up to 600 A.
- LSI Electronic Trip Technology: Incorporates long-time, short-time, and instantaneous protection functions.
- Series C Compatibility: Engineered for integration with Eaton Series C molded case circuit breakers.
- Frame J-K Breaker Support: Designed specifically for Eaton J-K frame breaker platforms.
- Three-Pole System Integration: Suitable for protection in three-phase power distribution systems.
- Electronic Monitoring Capability: Provides accurate sensing and response to overload and fault conditions.
- Industrial Installation Design: Used in switchgear, motor control centers, and panelboard systems.
- UL Listed Certification: Meets recognized safety standards for electrical protection components.
The LES3600LSI delivers the reliability and precision required for advanced electronic protection and coordination in industrial molded case circuit breaker systems.
