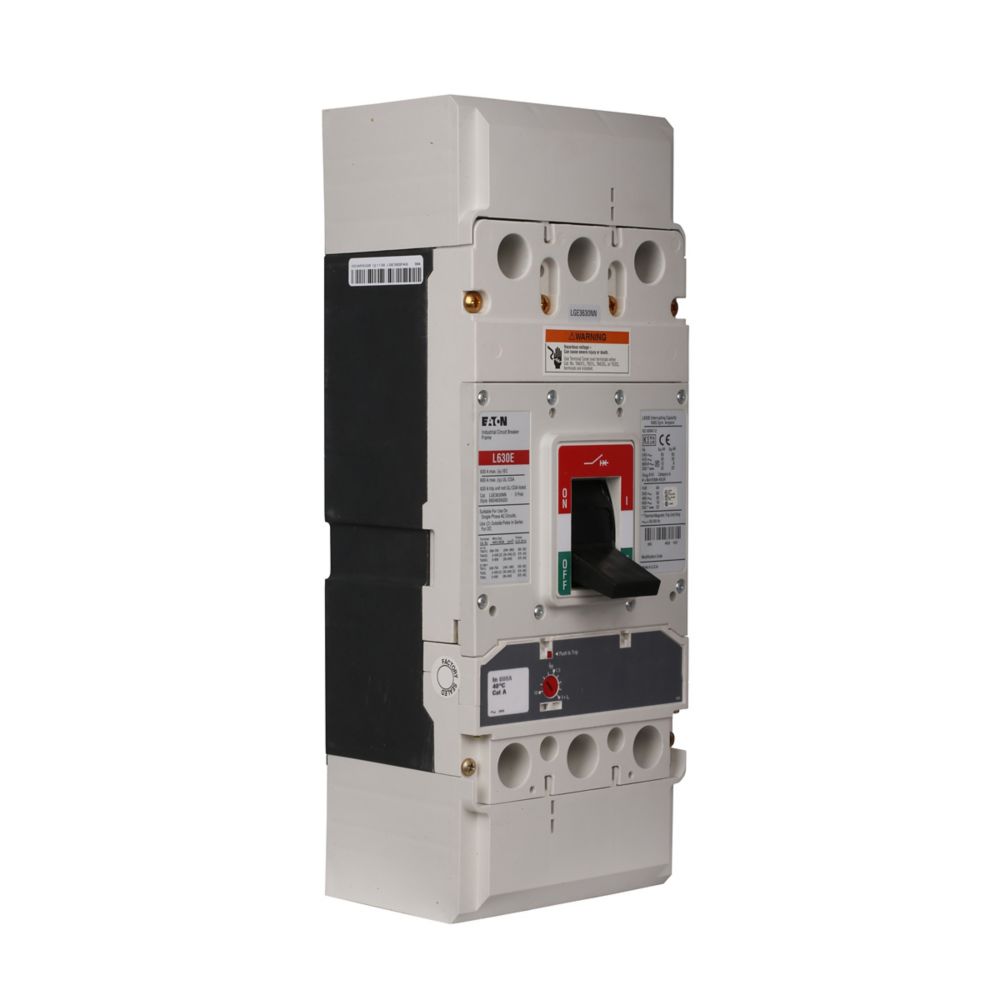

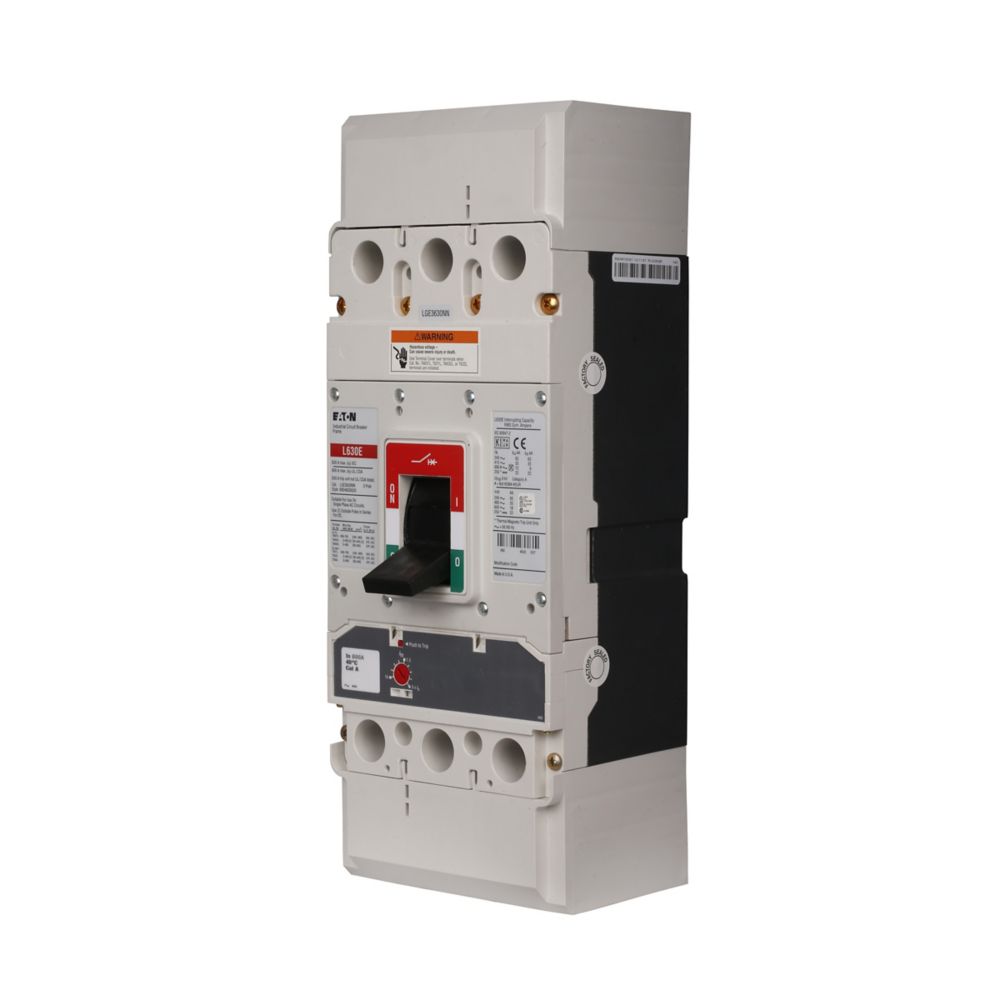

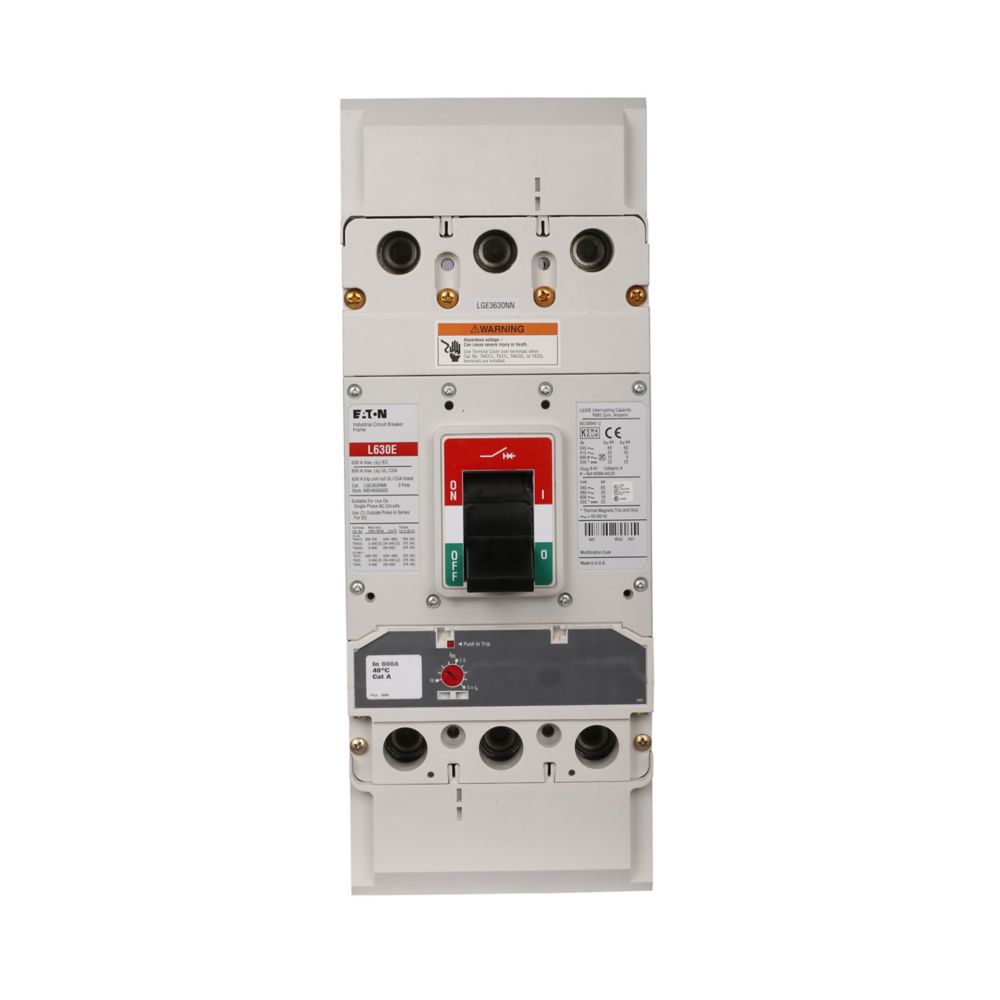

Eaton LGE3600FAG Series G 600A 3-Pole Molded Case Circuit Breaker for Industrial Power Distribution
- Regular price
- $4,258.00
- Sale price
- $4,258.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LGE3600FAG
Description
The Eaton LGE3600FAG is a Series G molded case circuit breaker designed to provide high-capacity overcurrent protection for industrial and commercial electrical distribution systems. Eaton part number LGE3600FAG features a 600 A rating and a three-pole configuration, supporting reliable protection of large three-phase power circuits. Its rugged construction and thermal-magnetic trip technology ensure dependable performance in demanding power distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | LGE3600FAG |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Molded Case Circuit Breaker |
| Series | Series G |
| Circuit Breaker Type | LG |
| Frame | LG |
| Circuit Breaker Frame Type | Complete breaker |
| Amperage Rating | 600 A |
| Number of Poles | Three-pole |
| Voltage Rating | 600 Vac |
| Trip Type | T185 |
| Interrupt Rating | 18 kAIC @ 600 Vac; 35 kAIC @ 415 Vac; 35 kAIC @ 480 Vac; 65 kAIC @ 240 Vac |
| Frequency Rating | 50/60 Hz |
| Terminals | Line and load |
| Mounting Hardware | Metric |
| Certifications | UL Listed; CSA Certified; IEC Rated; CE Marked |
| Product Dimensions (L × W × H) | 5.48 × 5.48 × 5.48 in |
| Warranty | Eaton Selling Policy 25-000 |
| Weight | 16 lb |
Information About LGE3600FAG
The LGE3600FAG is a complete molded case circuit breaker from Eaton’s Series G product family, engineered for heavy-duty circuit protection in industrial electrical systems. It incorporates a T185 trip unit that provides dependable protection against overload and short-circuit conditions. Built on the LG frame platform, the breaker supports high current loads while maintaining reliable interruption capability. With UL, CSA, and IEC certifications, it is suitable for installation in switchboards, panelboards, and industrial power distribution equipment.
Key Features:
- 600 Amp Current Rating: Designed to protect high-capacity feeders and electrical distribution circuits.
- Series G Breaker Platform: Engineered using Eaton’s Series G technology for durability and system compatibility.
- Thermal-Magnetic Trip Unit: T185 trip mechanism provides dependable overload and short-circuit protection.
- Three-Pole Configuration: Ideal for protecting three-phase electrical systems.
- High Interrupting Capacity: Rated up to 65 kAIC at 240 Vac for reliable interruption of high fault currents.
- HACR Rated Breaker: Suitable for heating, air-conditioning, and refrigeration equipment applications.
- Line and Load Terminals: Enables secure electrical connections and straightforward installation.
- Certified Performance: UL Listed, CSA Certified, IEC rated, and CE marked for global compliance.
The LGE3600FAG delivers the reliability and precision required for protecting heavy-duty industrial and commercial power distribution systems.
