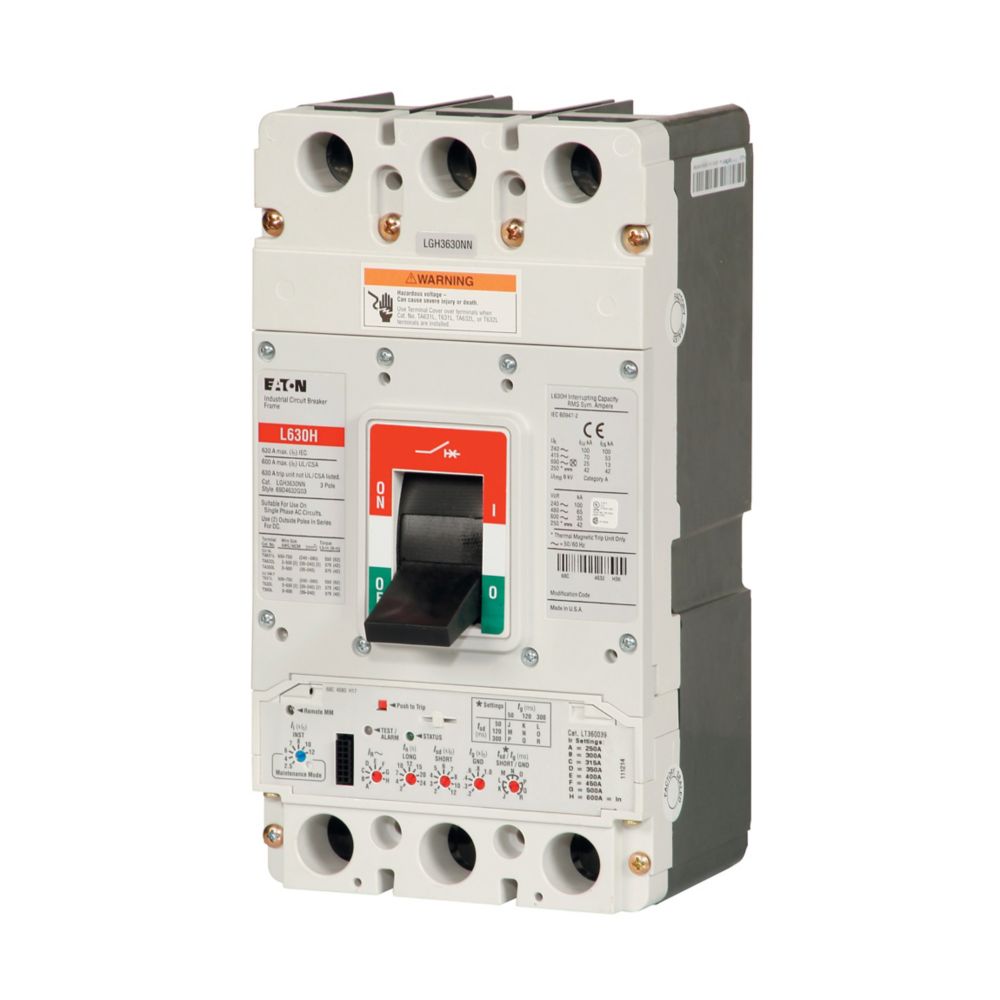

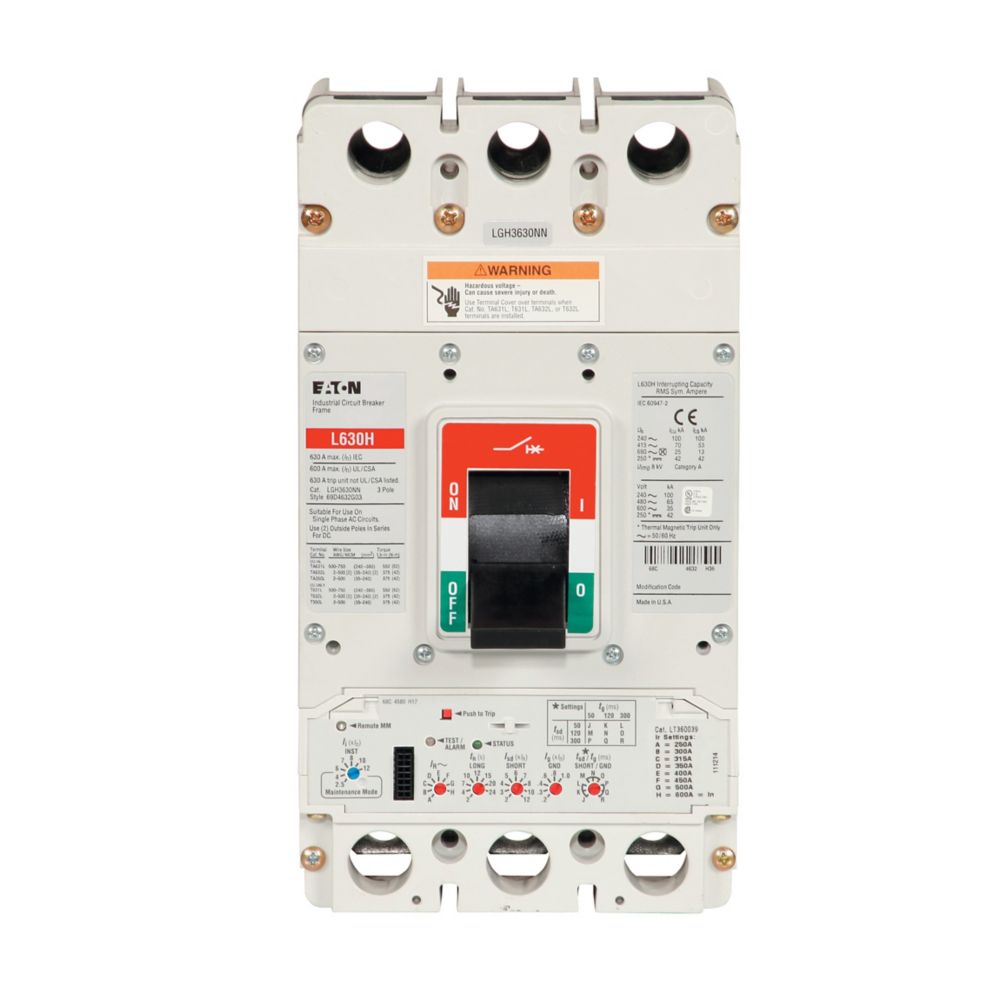

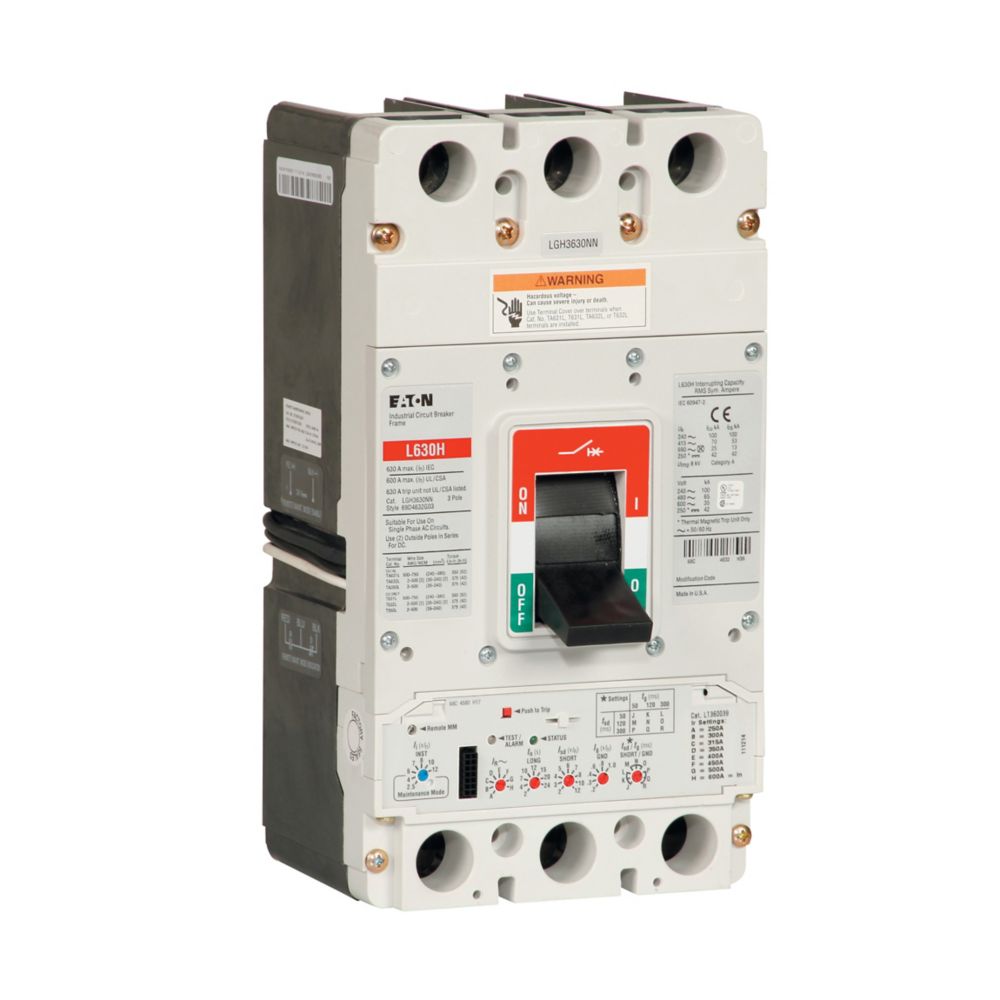

Eaton LGH3600FAG Series G 600A 3-Pole Molded Case Circuit Breaker 600V
- Regular price
- $4,572.00
- Sale price
- $4,572.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LGH3600FAG
Description
The Eaton LGH3600FAG is a Series G molded case circuit breaker engineered to provide dependable overcurrent protection for high-capacity electrical distribution systems. Eaton part number LGH3600FAG features a 600 A rating, three-pole configuration, and a T185 thermal-magnetic trip unit designed to protect circuits from overload and short-circuit faults. Its rugged LG frame construction and high interrupt capacity make it suitable for demanding industrial and commercial power applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | LGH3600FAG |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Molded case circuit breaker |
| Series | Series G |
| Circuit Breaker Type | LG |
| Frame | LG |
| Circuit Breaker Frame Type | Complete breaker |
| Amperage Rating | 600 A |
| Voltage Rating | 600 Vac |
| Trip Type | T185 |
| Number of Poles | Three-pole |
| Terminals | Line and load |
| Mounting Hardware | Metric |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 65 kAIC at 480 Vac |
| Additional Interrupt Ratings | 35 kAIC at 600 Vac; 70 kAIC at 415 Vac; 100 kAIC at 240 Vac |
| Certifications | UL Listed; CSA Certified; IEC Rated |
| Compliance | CE Marked |
| Catalog Notes | HACR rated |
| Product Dimensions (L × W × H) | 4.09 × 5.48 × 10.13 in |
| Warranty | Eaton Selling Policy 25-000 |
| Weight | 16 lb |
Information About LGH3600FAG
The LGH3600FAG is a complete molded case circuit breaker from Eaton’s Series G circuit protection lineup, designed for heavy-duty electrical distribution systems. Built on the LG frame platform, it incorporates a T185 thermal-magnetic trip unit that provides both long-time overload protection and instantaneous short-circuit interruption. The breaker includes line and load terminals and supports metric mounting hardware for reliable integration into switchboards and panelboards. Certified to UL, CSA, and IEC standards with CE compliance, it is also HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment protection.
Key Features:
- 600 Amp Current Rating: Designed to protect high-capacity feeders and power distribution circuits.
- Series G Breaker Platform: Eaton’s proven circuit protection technology for industrial and commercial electrical systems.
- T185 Thermal-Magnetic Trip Unit: Combines thermal overload protection with instantaneous magnetic short-circuit response.
- High Interrupt Capacity: Rated up to 100 kAIC at 240 Vac for safe interruption of large fault currents.
- Three-Pole Configuration: Ideal for protecting three-phase electrical distribution systems.
- LG Frame Construction: Heavy-duty design supports high current capacity and long operational life.
- Line and Load Terminals: Provides secure electrical connections for simplified installation.
- HACR Rated Design: Suitable for heating, air conditioning, and refrigeration equipment circuits.
The LGH3600FAG delivers the reliability and precision required for protecting large commercial and industrial electrical distribution systems.
