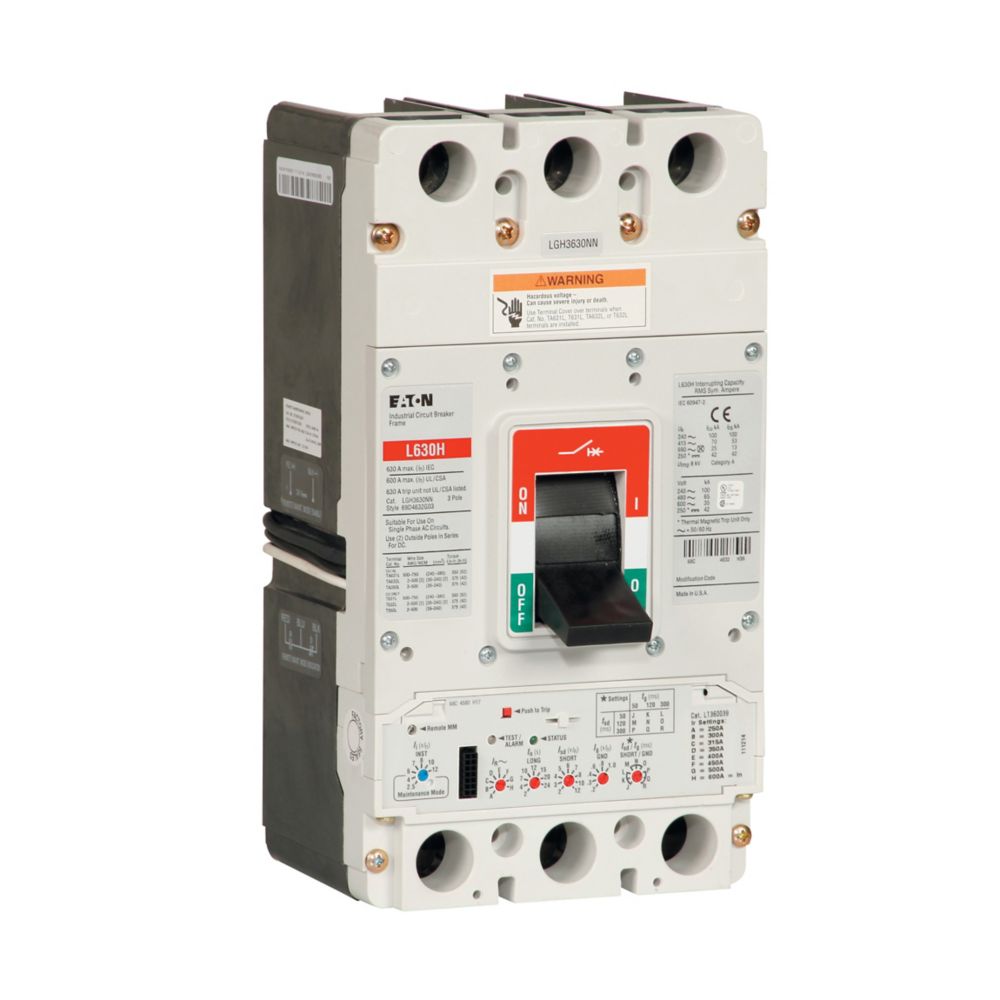

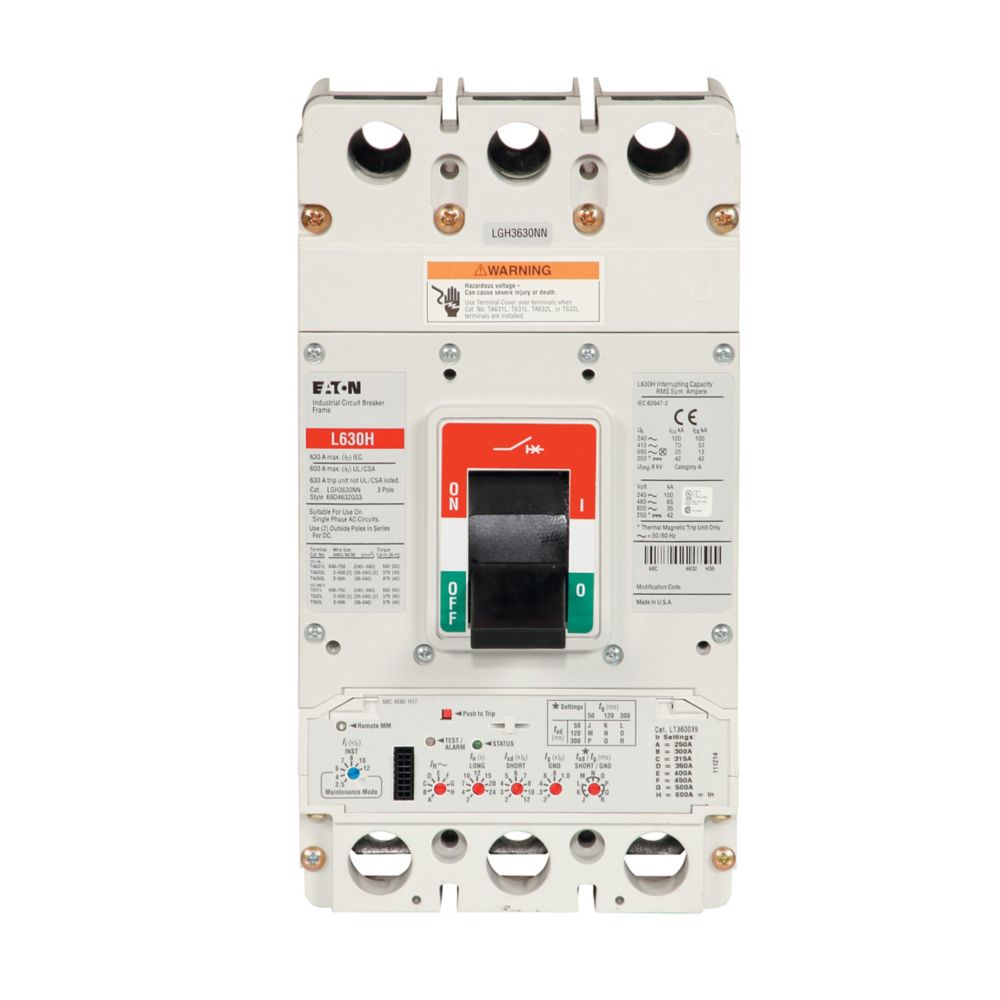

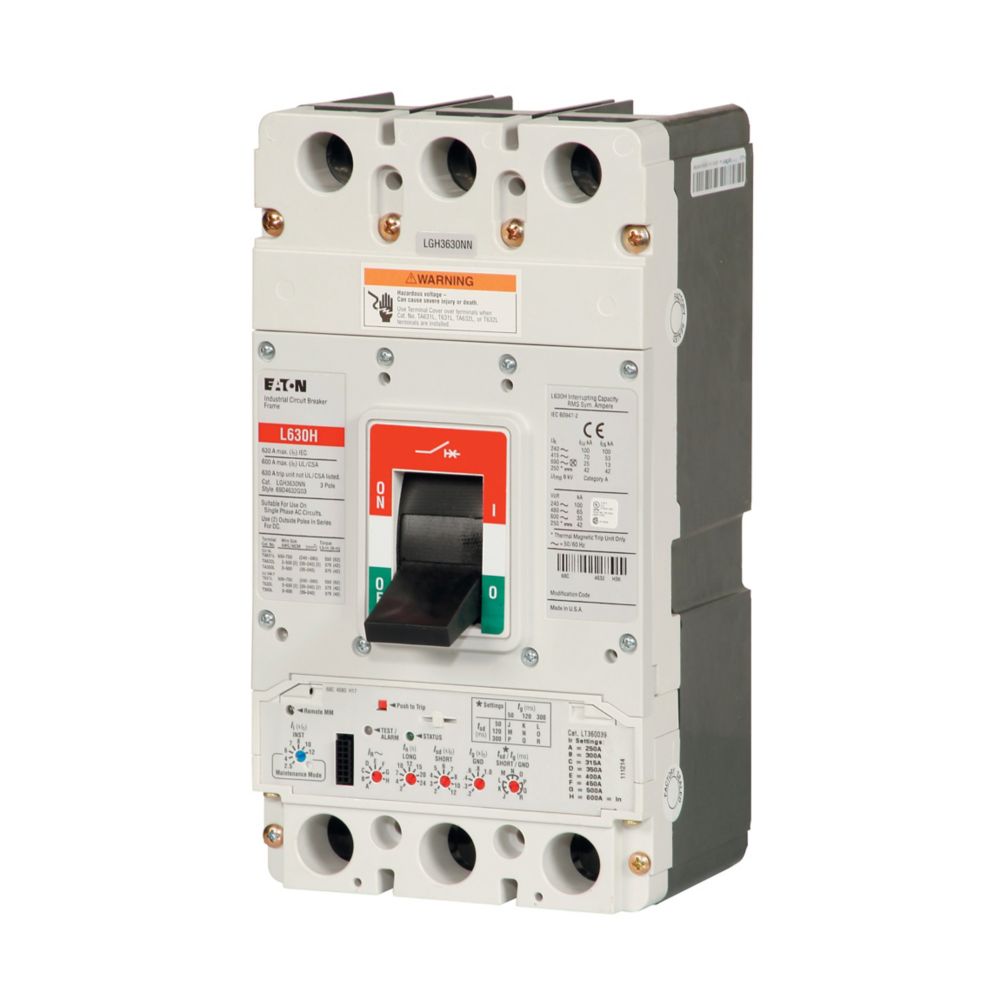

Eaton LGH3630NNWC Series G 630A 3-Pole Molded Case Circuit Breaker Frame Only
- Regular price
- $6,999.00
- Sale price
- $6,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LGH3630NNWC
Description
The Eaton LGH3630NNWC is a molded case circuit breaker accessory frame designed to support high-capacity circuit protection systems. Eaton LGH3630NNWC provides a 630 A rated frame with compatibility for advanced trip units, enabling flexible system configuration. It is used in industrial and commercial power distribution setups requiring reliable breaker frame infrastructure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | LGH3630NNWC |
| Subcategory | Circuit Breaker Accessories |
| Product Type | Molded case circuit breaker accessory frame |
| Series | Series G |
| Frame Size | Frame J-K |
| Amperage Rating | 630 A |
| Trip Type | T191 |
| Number of Poles | Three-pole |
| Rating | 100% rated |
| Interrupt Rating | 65 kAIC at 480 V |
| Interrupt Rating (Additional) | 70 kAIC at 415 V; 100 kAIC at 240 V; 25 kAIC at 600 V |
| Terminals | Without terminals |
| Certifications | UL Listed, IEC Rated, CSA Certified |
| Compliances | CE Marked |
| Product Length/Depth | 4.09 in |
| Product Height | 7.25 in |
| Product Width | 5.48 in |
| Weight | 11.9 lb |
Information About LGH3630NNWC
The LGH3630NNWC is part of Eaton’s Series G family, engineered for use with high-performance molded case circuit breakers. It features a frame-only configuration, allowing users to integrate appropriate trip units and accessories based on system requirements. Built for durability and performance, this frame supports a three-pole design and is rated for 100% continuous operation. With compliance to UL, IEC, and CSA standards, it is widely used in switchgear, panelboards, and distribution systems requiring adaptable protection solutions.
Key Features:
- Series G Platform: Designed for compatibility with Eaton’s advanced molded case breaker systems.
- 630 A Frame Rating: Supports high-capacity electrical distribution applications.
- Frame-Only Configuration: Allows flexible selection of trip units and accessories.
- High Interrupt Ratings: Handles up to 65 kAIC at 480 V for robust fault protection.
- Three-Pole Design: Suitable for three-phase power systems.
- 100% Rated Operation: Supports continuous full-load current without derating.
- Global Certifications: UL Listed, IEC Rated, and CSA Certified for wide applicability.
- HACR Rated Design: Suitable for heating, air conditioning, and refrigeration equipment applications.
The LGH3630NNWC delivers the reliability and precision required for configurable circuit protection systems in industrial and commercial environments.
