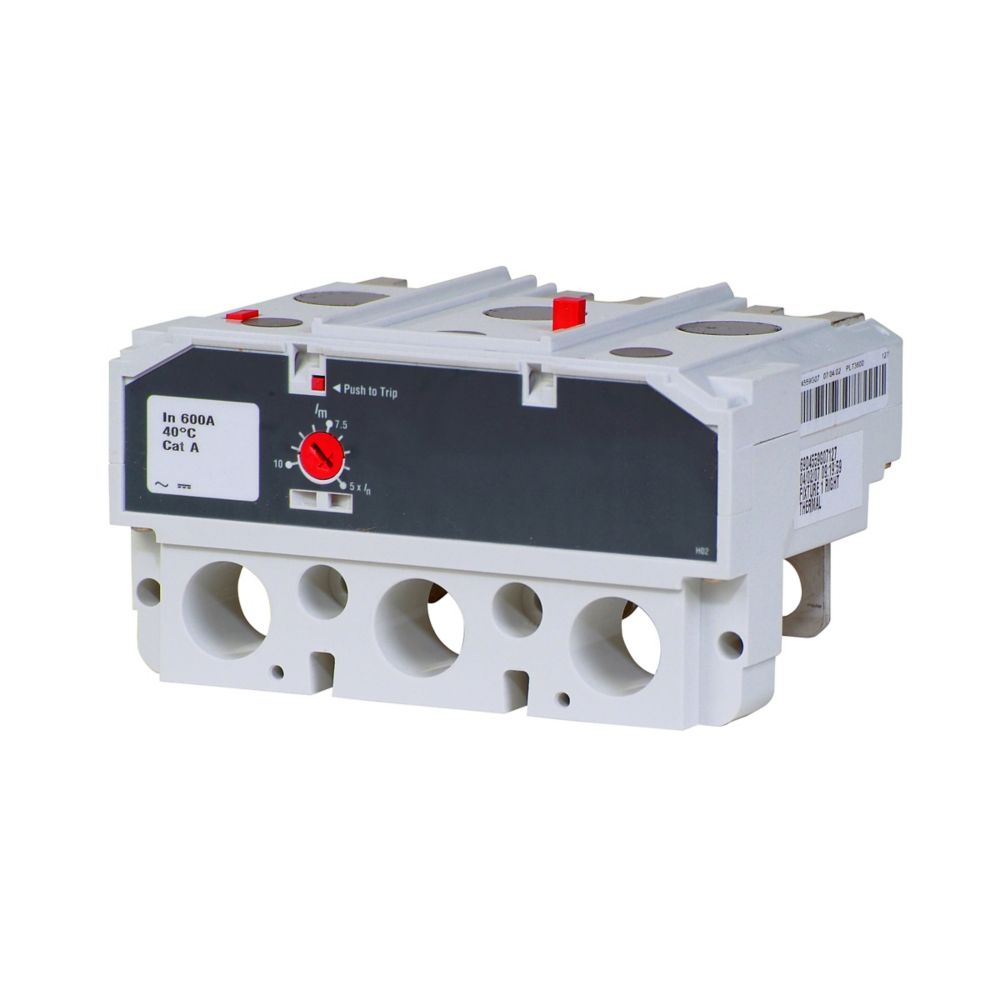

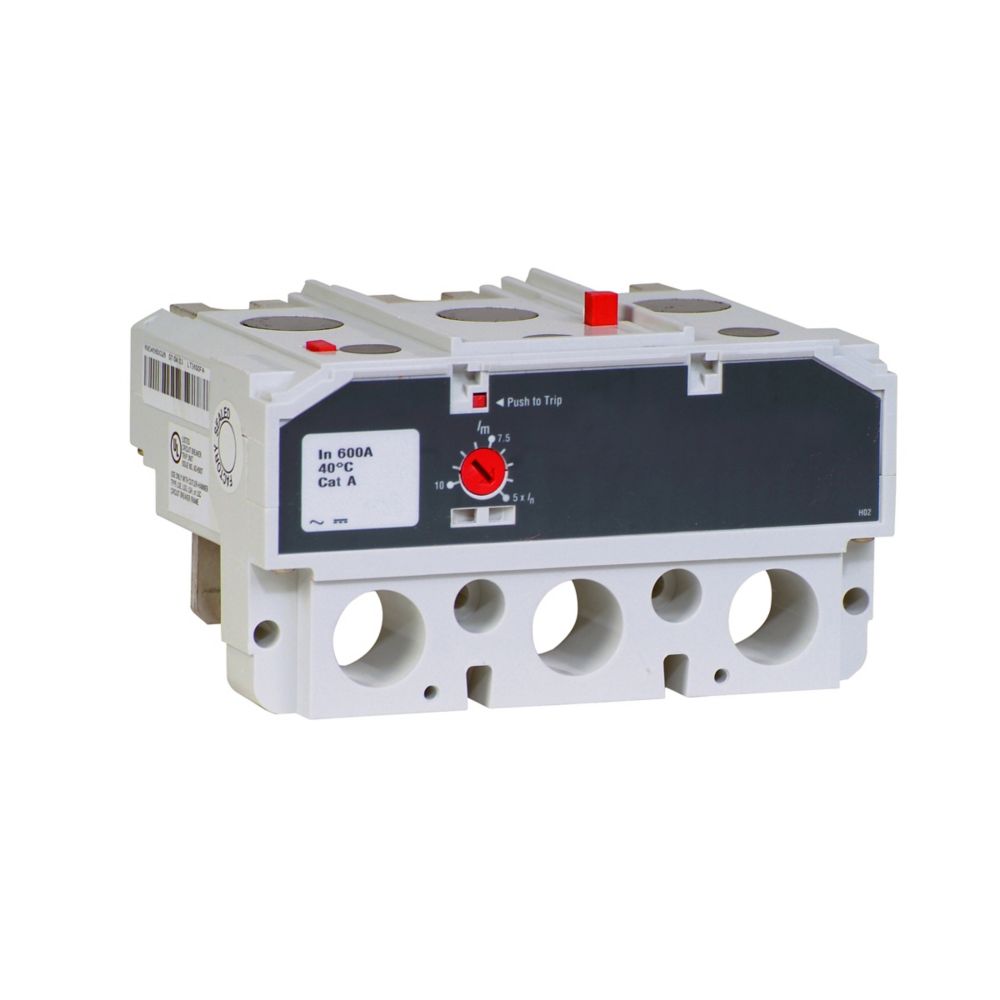

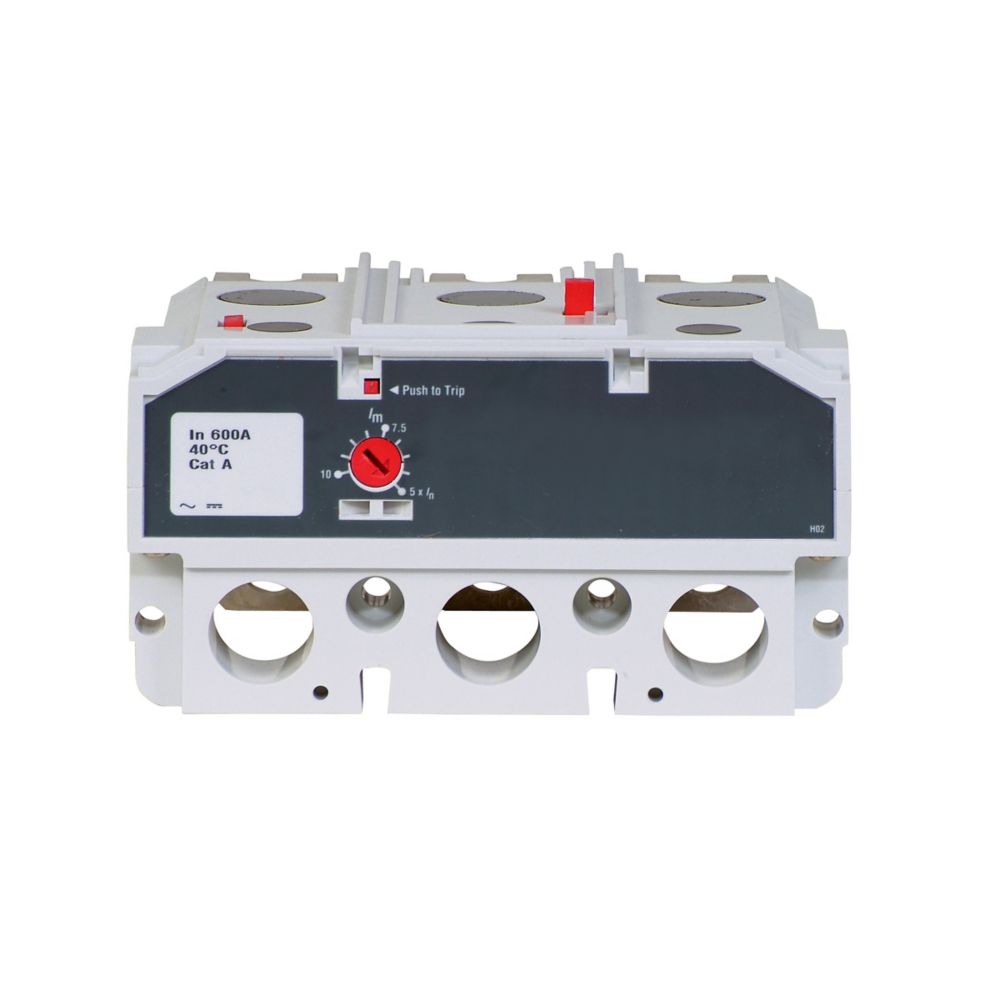

Eaton LT3600FA Series G 600A Circuit Breaker Trip Unit for J–K Frame Molded Case Breakers
- Regular price
- $255.00
- Sale price
- $255.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LT3600FA
Description
The Eaton LT3600FA is a molded case circuit breaker trip unit designed to provide precise overload and short-circuit protection in electrical distribution systems. Eaton part number LT3600FA is rated for 600 A and incorporates a T185 trip mechanism for dependable response to fault conditions. It is engineered for use with compatible Series G circuit breakers, ensuring reliable performance in industrial and commercial power protection applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | LT3600FA |
| Subcategory | Circuit Breaker Trip Unit |
| Product Type | Molded case circuit breaker accessory |
| Series | Series G |
| Circuit Breaker Type | LT |
| Frame Size | Frame J–K |
| Trip Type | T185 |
| Amperage Rating | 600 A |
| Number of Poles | Three-pole |
| Catalog Reference | LT3600FA |
| Compatibility | Eaton LT molded case circuit breakers |
| Application | Circuit breaker overload and short-circuit protection |
| Product Dimensions (L × W × H) | 8.5 × 4.5 × 4 in |
| Catalog Notes | LG breaker is HACR rated |
| Warranty | Eaton Selling Policy 25-000 |
| Weight | 2.03 lb |
Information About LT3600FA
The LT3600FA is a molded case circuit breaker accessory trip unit from Eaton’s Series G protection platform, designed for integration with compatible LT breaker assemblies. Built for J–K frame circuit breakers, it utilizes a T185 thermal-magnetic trip system to deliver accurate circuit protection against overload and instantaneous fault currents. The unit supports three-pole breaker configurations and is commonly used in feeder and distribution protection applications. Its robust design allows it to operate in demanding electrical environments where reliable fault interruption and system protection are critical.
Key Features:
- 600 Amp Protection Rating: Provides calibrated protection for high-capacity distribution circuits.
- T185 Thermal-Magnetic Trip System: Combines thermal overload protection with instantaneous magnetic short-circuit response.
- Series G Compatibility: Designed to operate with Eaton Series G molded case circuit breakers.
- J–K Frame Support: Engineered for use with breakers built on Frame J and Frame K platforms.
- Three-Pole Protection Capability: Suitable for integration into three-phase circuit breaker systems.
- Molded Case Breaker Accessory: Enables replacement or upgrade of existing breaker protection units.
- Industrial-Grade Construction: Built for dependable operation in commercial and industrial power systems.
- HACR Compatible Application: Suitable for installations involving heating, air conditioning, and refrigeration circuits.
The LT3600FA delivers the reliability and precision required for maintaining accurate protection and operational safety in molded case circuit breaker systems.
