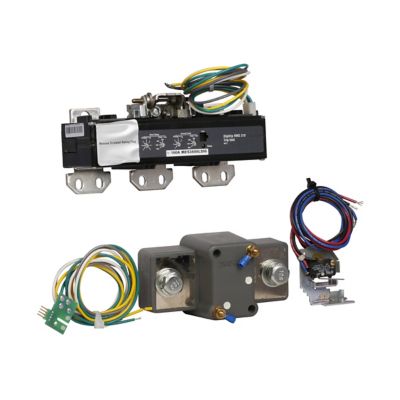

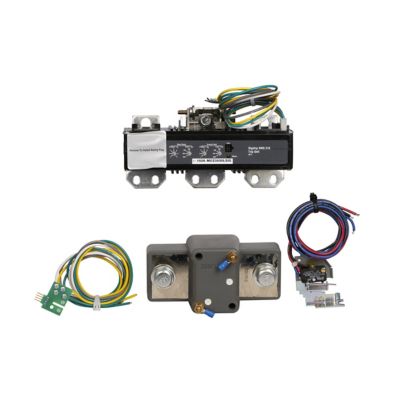

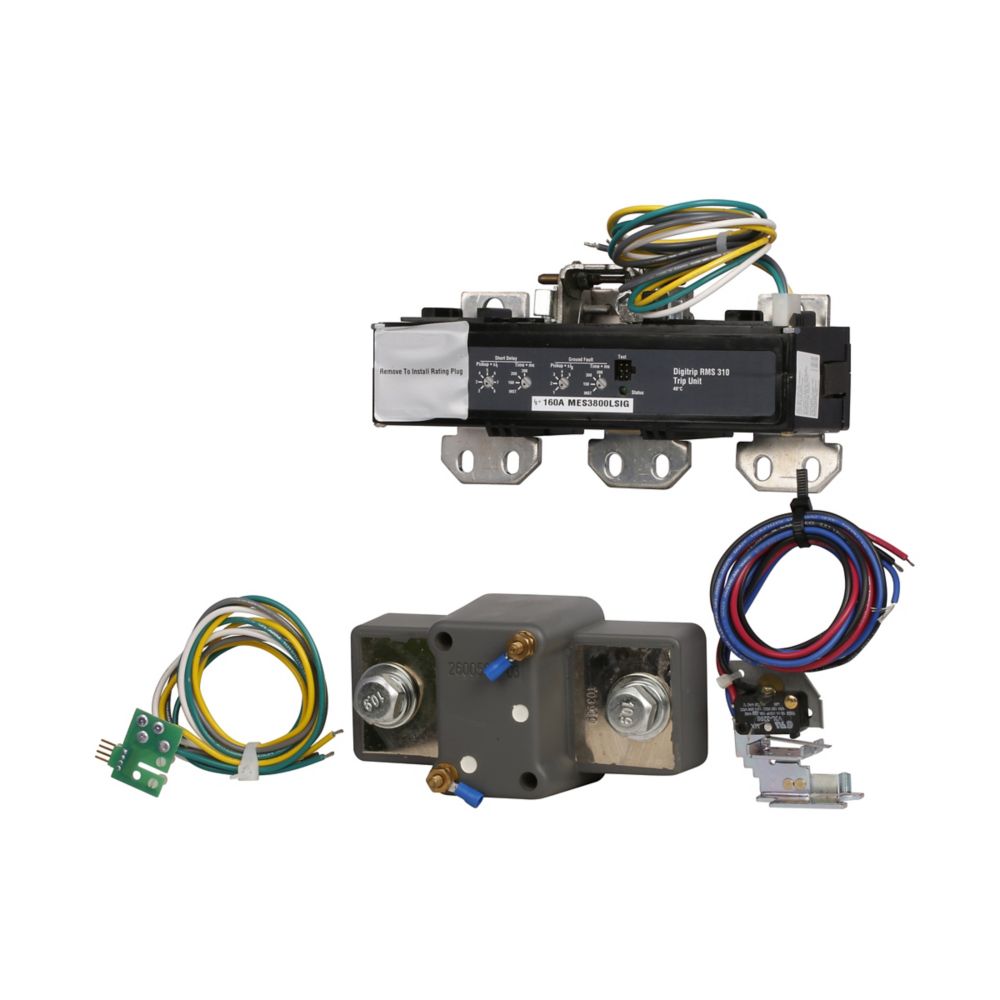

Eaton MES3800LSI Series C 800A Electronic Trip Unit LSI Ground Fault Protection
- Regular price
- $4,599.00
- Sale price
- $4,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MES3800LSI
Description
The Eaton MES3800LSI is an electronic trip unit designed to provide advanced protection and control for molded case circuit breakers in industrial power systems. Eaton MES3800LSI offers an 800 A rating with LSI (Long-Time, Short-Time, Instantaneous) protection functions for precise fault management. It is engineered for integration with Series C breakers, ensuring reliable and configurable circuit protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | MES3800LSI |
| Subcategory | Circuit Breaker Trip Unit |
| Product Type | Molded case circuit breaker accessory |
| Series | Series C |
| Trip Type | LSI (Long-Time, Short-Time, Instantaneous) |
| Amperage Rating | 800 A |
| Frame Size | Frame J-K |
| Protection | Ground fault |
| Number of Poles | Three-pole |
| Technology | Electronic trip unit |
| Certifications | UL Listed |
| Product Length/Depth | 9 in |
| Product Height | 6 in |
| Product Width | 5.5 in |
| Weight | 4.5 lb |
Information About MES3800LSI
The MES3800LSI is a Series C electronic trip unit developed by Eaton for use with molded case circuit breakers in Frame J-K configurations. It incorporates LSI protection functionality, allowing adjustable long-time, short-time, and instantaneous trip settings for enhanced system coordination. Designed to support up to 800 A applications, it provides dependable overload and short-circuit protection along with ground fault capabilities. This accessory is commonly used in industrial distribution systems where precise protection, system flexibility, and improved fault response are essential.
Key Features:
- LSI Protection Functions: Provides long-time, short-time, and instantaneous trip settings for accurate protection.
- 800 Amp Rating: Designed for medium to high-capacity electrical distribution systems.
- Electronic Trip Technology: Ensures precise and adjustable protection performance.
- Ground Fault Protection: Enhances system safety by detecting and responding to ground faults.
- Series C Compatibility: Engineered for seamless integration with Eaton Series C breakers.
- Frame J-K Support: Compatible with specific breaker frame sizes for flexible application.
- Three-Pole Configuration: Suitable for three-phase system protection.
- UL Listed Certification: Meets recognized safety and performance standards.
The MES3800LSI delivers the reliability and precision required for advanced protection and coordination of industrial electrical distribution systems.
