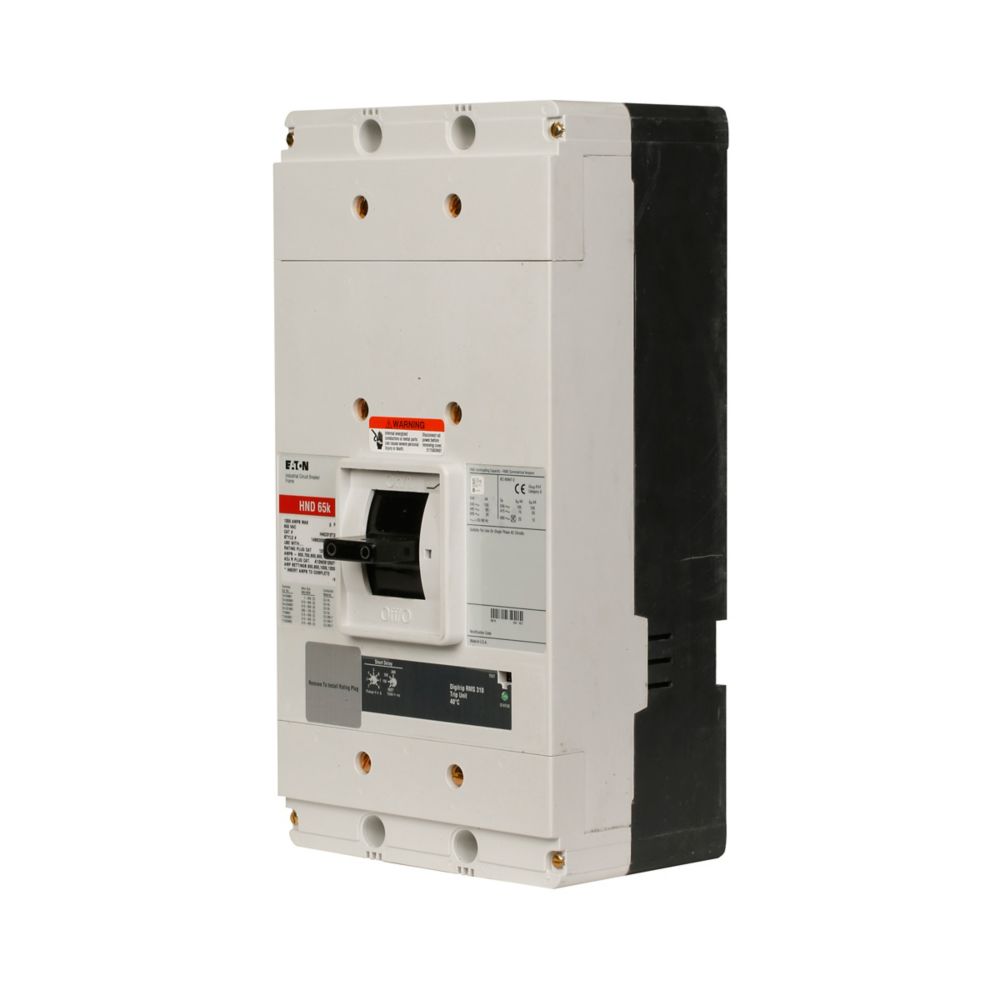

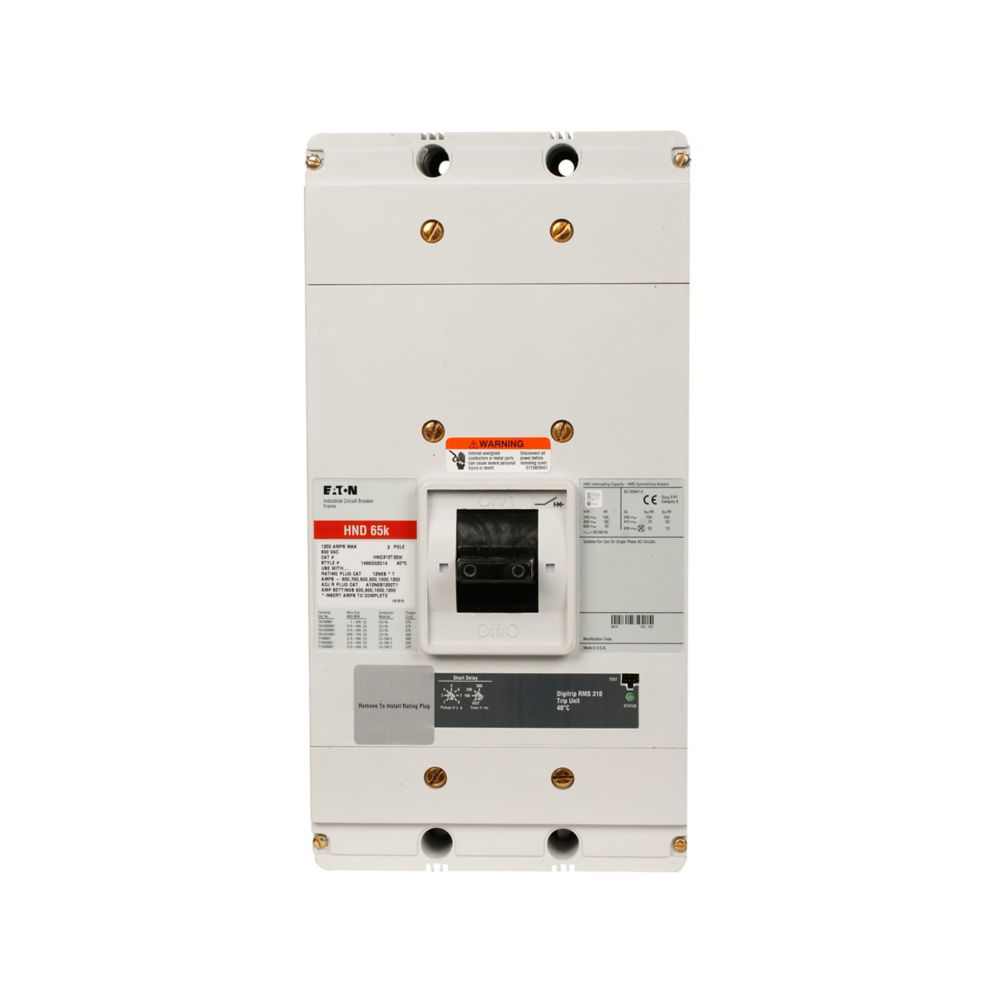

Eaton NDC3800T52WPN Series G 800A 3-Pole Electronic Molded Case Circuit Breaker 600Vac
- Regular price
- $14,399.00
- Sale price
- $14,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NDC3800T52WPN
Description
The Eaton NDC3800T52WPN is a Series G electronic molded case circuit breaker designed for high-capacity power distribution and protection. Eaton NDC3800T52WPN provides precise overload and short-circuit protection using an advanced electronic LSI trip system. It is suited for industrial and commercial installations requiring reliable interruption performance and system monitoring capability.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | NDC3800T52WPN |
| Subcategory | Molded Case Circuit Breakers |
| Product Type | Electronic molded case circuit breaker |
| Series | Series G |
| Design | OPTIM 550 |
| Frame | NG |
| Circuit Breaker Type | NDC |
| Frame Type | Complete breaker |
| Amperage Rating | 800 A |
| Voltage Rating | 600 Vac |
| Trip Type | Electronic LSI |
| Number of Poles | Three-pole |
| Interrupt Rating | 100 kAIC at 480 Vac |
| Interrupt Rating (Alt.) | 200 kAIC at 240 Vac |
| Terminals | Without terminals |
| Accessories | PowerNet kit compatible |
| Compliances | HACR Rated |
| Product Length/Depth | 5.5 in |
| Product Height | 8.25 in |
| Product Width | 8.25 in |
| Weight | 46 lb |
Information About NDC3800T52WPN
The NDC3800T52WPN is part of Eaton’s Series G family, featuring the OPTIM 550 design for enhanced protection and system integration. It is built on an NG frame with a complete breaker configuration, supporting three-phase electrical systems up to 800 A. The breaker incorporates an electronic LSI trip unit, offering adjustable long-time, short-time, and instantaneous protection for optimized coordination. Additionally, it includes compatibility with PowerNet communication kits, enabling advanced monitoring and integration into facility power management systems.
Key Features:
- Series G Construction: Engineered for durability and performance in demanding power systems.
- 800 A Rating: Suitable for high-load distribution circuits and industrial equipment.
- Electronic LSI Trip Unit: Provides adjustable long-time, short-time, and instantaneous protection.
- High Interrupt Capacity: Up to 100 kAIC at 480 Vac for effective fault interruption.
- NG Frame Design: Supports heavy-duty applications and system scalability.
- Three-Pole Configuration: Designed for three-phase electrical systems.
- PowerNet Compatibility: Enables communication and monitoring through optional accessories.
- HACR Rated: Approved for heating, air conditioning, and refrigeration equipment applications.
The NDC3800T52WPN delivers the reliability and precision required for protecting large-scale electrical distribution systems in commercial and industrial environments.
