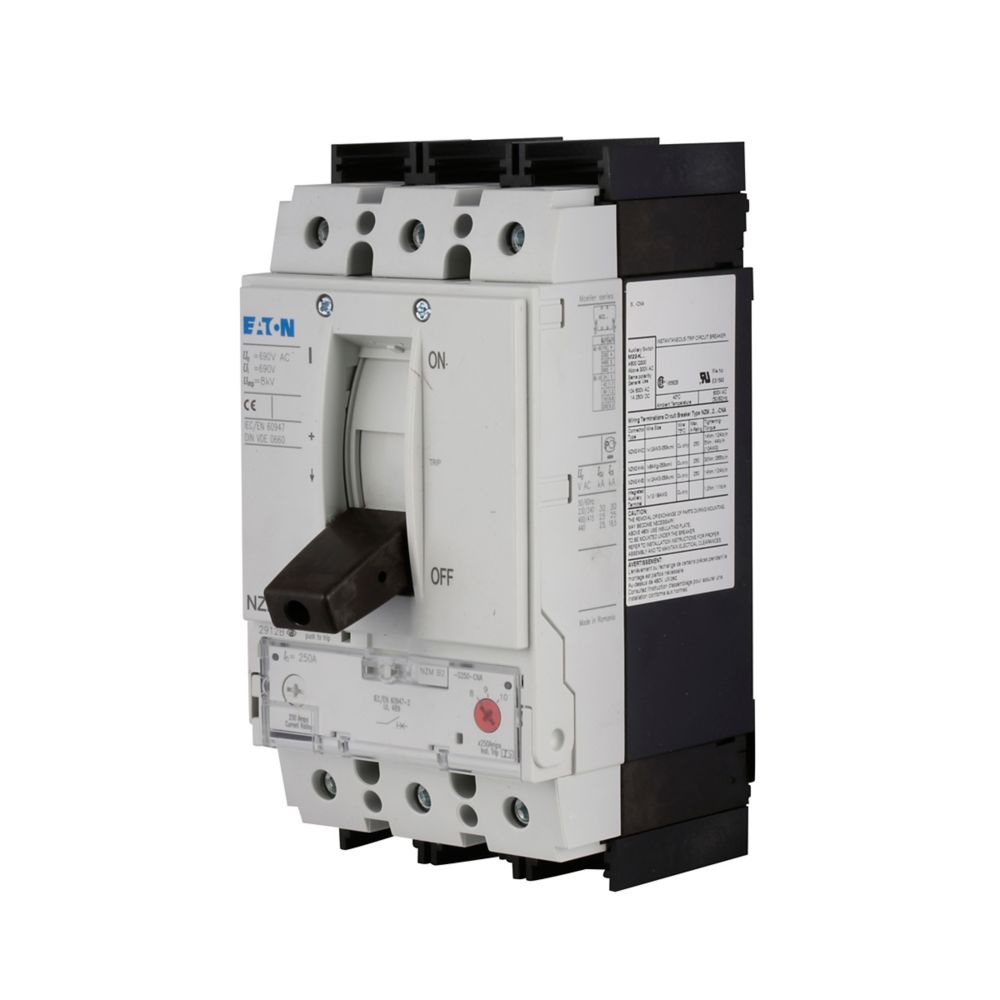

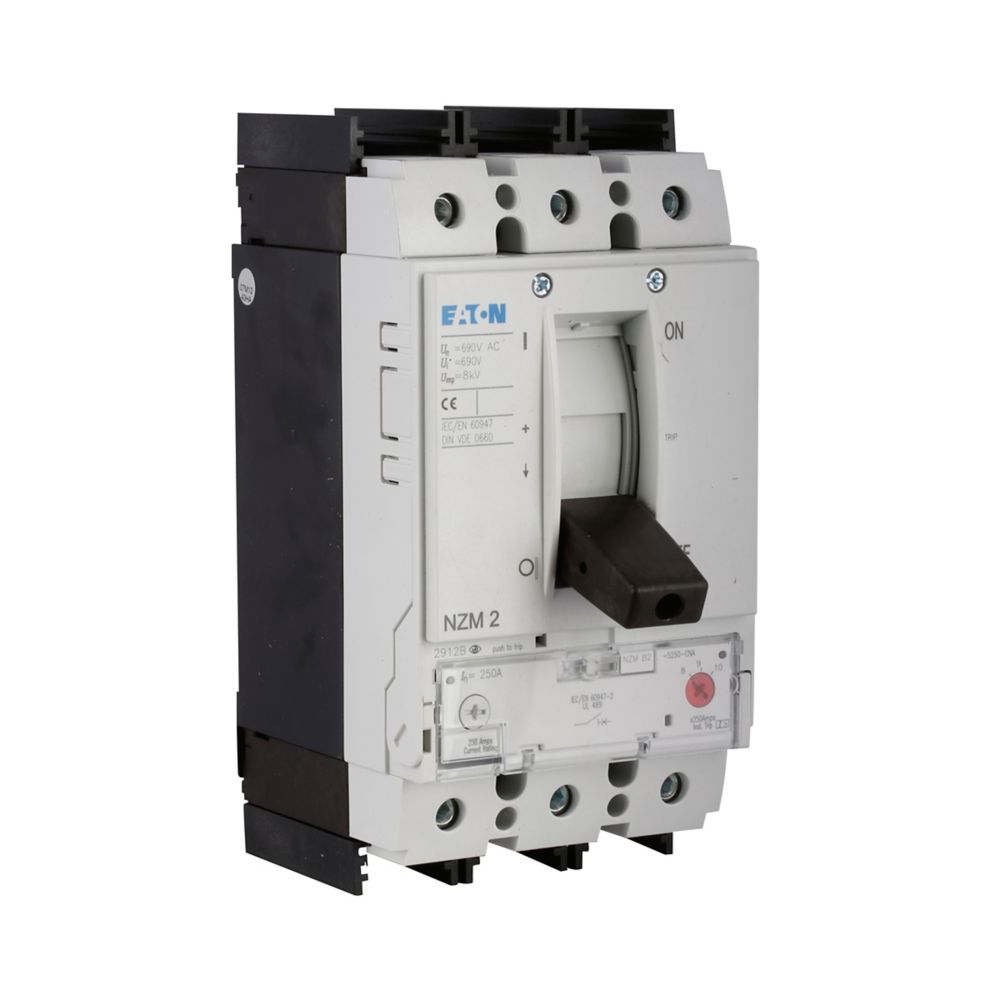

Eaton NZMB2-AF150-NA NZM2 150A 3-Pole Molded Case Circuit Breaker
- Regular price
- $1,136.00
- Sale price
- $1,136.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NZMB2-AF150-NA
Description
The Eaton NZMB2-AF150-NA is a molded case circuit breaker designed to provide reliable distribution circuit protection in commercial and industrial electrical systems. Eaton part number NZMB2-AF150-NA features a 150 A rating and a three-pole configuration, offering dependable protection against overload and short-circuit conditions. Its NZM Series construction ensures durable operation and consistent performance in demanding power distribution environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | NZMB2-AF150-NA |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Molded Case Circuit Breaker |
| Series | NZM Series |
| Circuit Breaker Type | NZMB2 |
| Frame | NZM2 |
| Amperage Rating | 150 A |
| Voltage Rating | 440 Vac |
| Trip Type | T185 |
| Number of Poles | Three-pole |
| Interrupt Rating | 25 kAIC |
| Short-Circuit Breaking Capacity | 25 kAIC |
| Trip Rating | 960–1600 A delayed |
| Overload Protection Range | 150–150 A |
| Connection Type | Front screw |
| Accessories | Rocker lever, optional motor drive |
| Application Class | Distribution circuit protection |
| Product Dimensions (L × W × H) | 5.51 × 5.86 × 5.86 in |
| Warranty | Eaton Selling Policy 25-000 |
| Weight | 5.17 lb |
Information About NZMB2-AF150-NA
The NZMB2-AF150-NA is part of Eaton’s NZM Series molded case circuit breaker family, engineered for efficient protection and switching of distribution circuits. Built on the NZM2 frame platform, it is designed for three-phase electrical systems and supports front screw connections for secure conductor termination. The breaker uses a T185 trip unit with a fixed overload protection setting to provide precise circuit interruption when abnormal conditions occur. Compatible with accessories such as rocker levers and motor drives, it can be adapted for various control and automation requirements.
Key Features:
- 150 Amp Current Rating: Provides dependable overcurrent protection for distribution circuits in industrial and commercial systems.
- NZM2 Frame Platform: Engineered within Eaton’s NZM Series architecture for reliable electrical protection and switching.
- T185 Trip Unit: Ensures accurate detection and interruption of overload and short-circuit conditions.
- Three-Pole Design: Suitable for protecting three-phase electrical distribution networks.
- High Fault Protection Capability: Rated for 25 kAIC short-circuit breaking capacity for reliable fault interruption.
- Front Screw Connection: Provides secure wiring and simplified installation in panelboards and distribution equipment.
- Accessory Compatibility: Supports optional rocker lever operation and motor drive accessories for remote control capability.
- Distribution Circuit Protection Class: Designed specifically for protecting feeder and distribution circuits.
The NZMB2-AF150-NA delivers the reliability and precision required for protecting electrical distribution circuits in commercial and industrial power systems.
