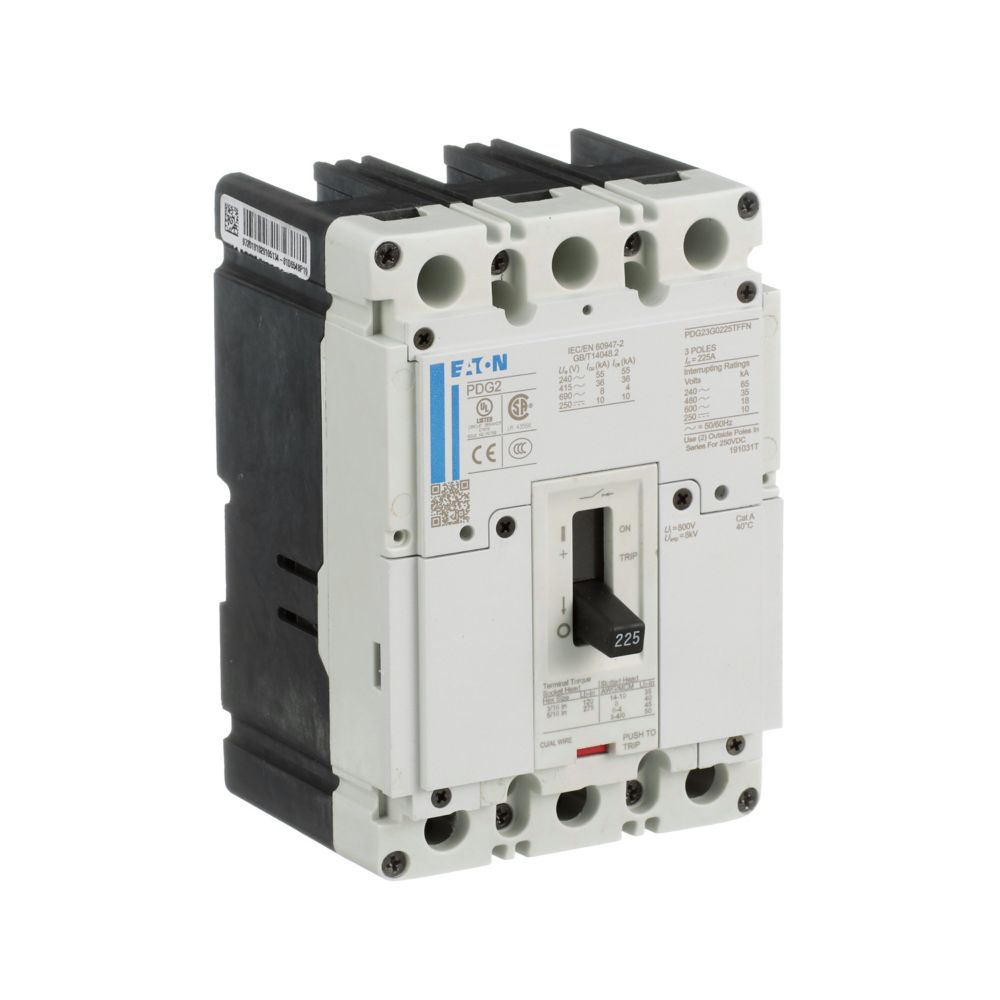

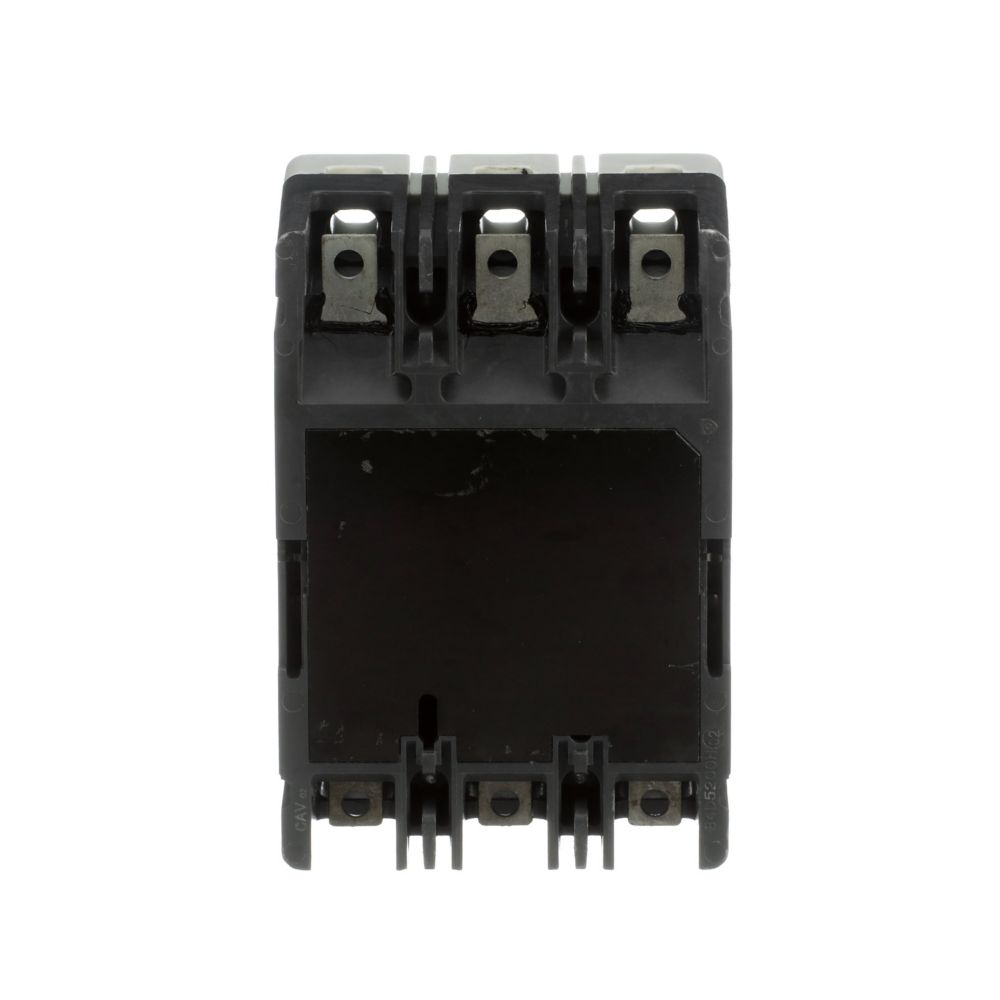

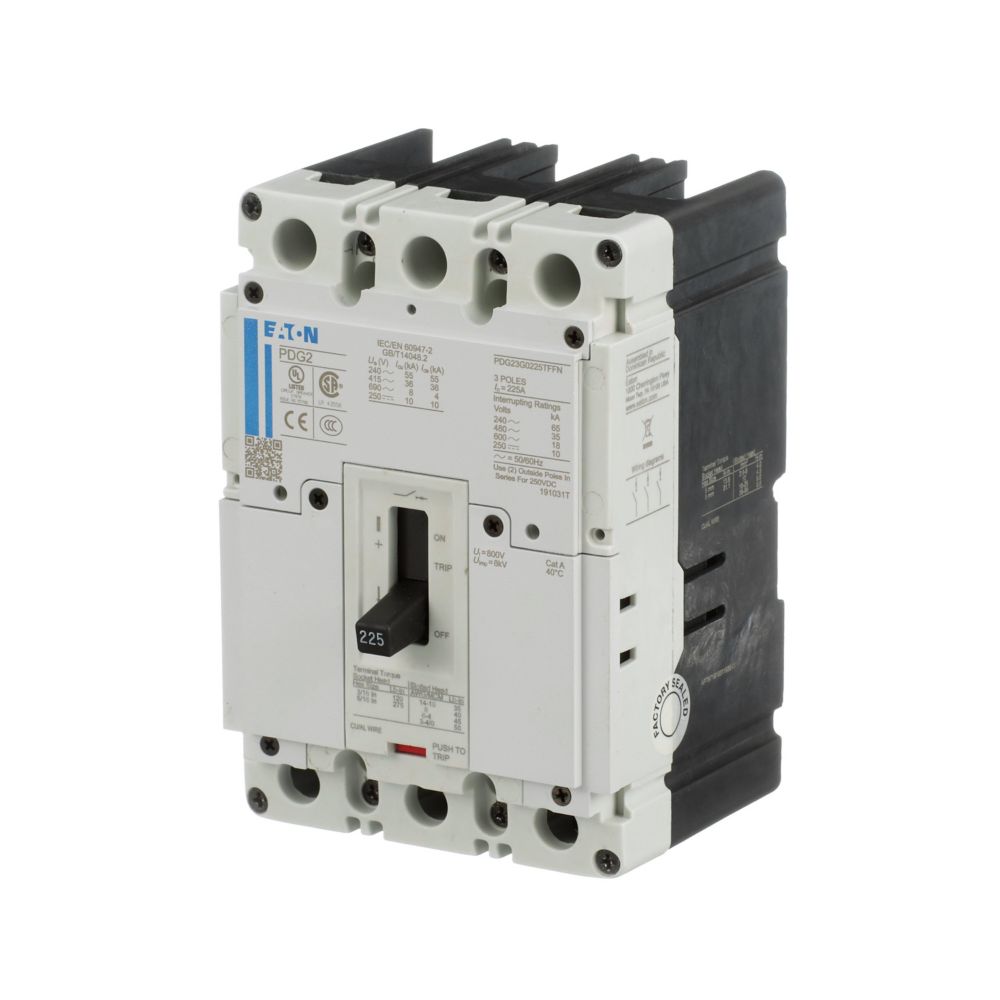

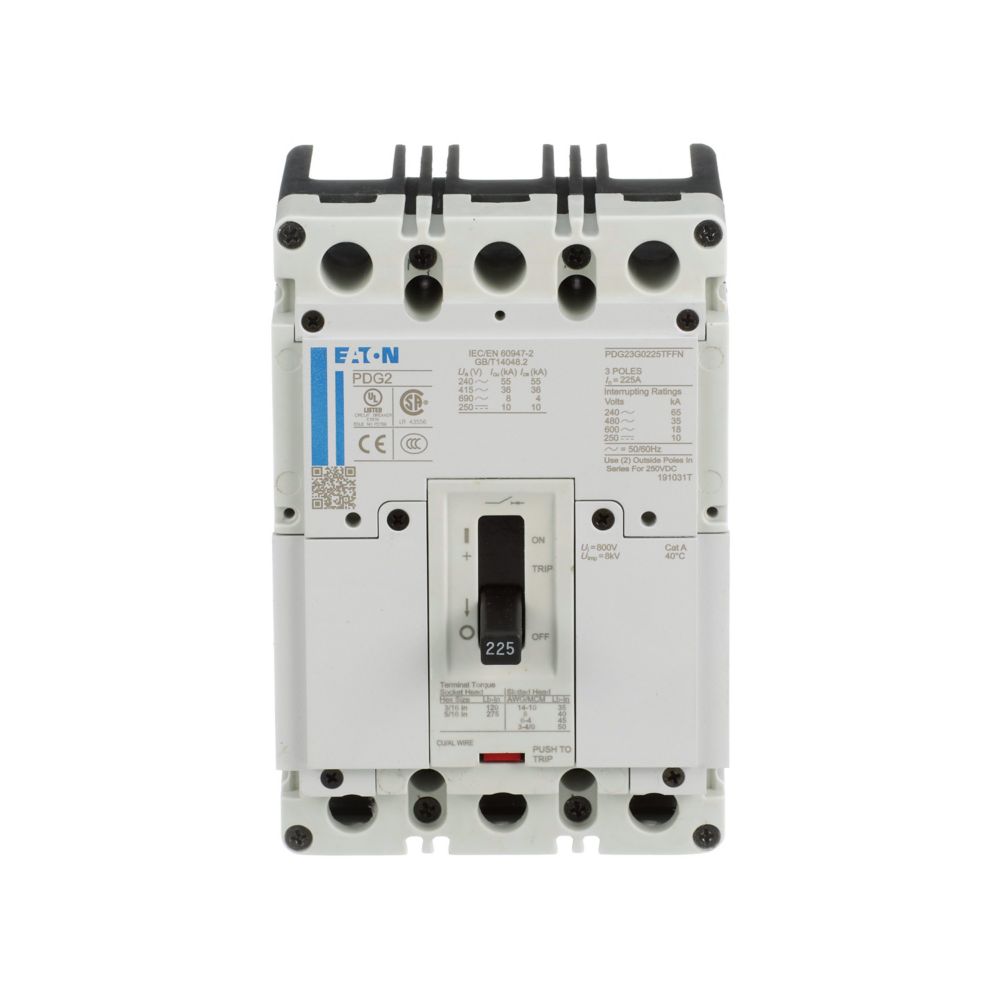

Eaton PDD23G0225TFFL Power Defense 225A 3-Pole Molded Case Circuit Breaker 240V
- Regular price
- $699.00
- Sale price
- $699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PDD23G0225TFFL
Description
The Eaton PDD23G0225TFFL is a Power Defense molded case circuit breaker designed to provide reliable overcurrent protection for low-voltage electrical distribution systems. Eaton part number PDD23G0225TFFL features a 225 A rating and a three-pole configuration with an advanced electronic trip unit for accurate fault detection. Its compact Frame 2 design and high interrupting capacity make it suitable for commercial and industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | PDD23G0225TFFL |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Molded case circuit breaker |
| Series | Power Defense |
| Circuit Breaker Type | PD2 UL/CSA Only |
| Frame | Frame 2 |
| Circuit Breaker Frame Type | Complete breaker |
| Class | Class A |
| Amperage Rating | 225 A |
| Voltage Rating | 240 Vac |
| Trip Type | T298 electronic trip |
| Number of Poles | Three-pole |
| Terminals | Standard terminals load only |
| Interrupt Rating | 65 kAIC at 240 Vac |
| Additional Interrupt Ratings | 10 kAIC at 250 Vdc; 10 kAIC at 125 Vdc |
| Certifications | UL 489; CSA |
| Compliance | RoHS Compliant |
| Product Dimensions (L × W × H) | 88.9 × 104.6 × 152.4 mm |
| Warranty | Eaton Selling Policy 25-000 |
| Weight | 1.82 kg |
Information About PDD23G0225TFFL
The PDD23G0225TFFL is a complete molded case circuit breaker from Eaton’s Power Defense PD2 series, engineered for UL and CSA applications. Built on a Frame 2 platform, it incorporates a T298 electronic trip unit that provides precise protection against overload and short-circuit conditions. The breaker is equipped with standard load-side terminals and is rated for 240 Vac systems, making it ideal for panelboards and switchgear installations. Designed to meet UL 489 and CSA standards with RoHS compliance, it delivers dependable performance in modern electrical infrastructure.
Key Features:
- 225 Amp Current Rating: Provides reliable protection for feeder and branch circuits in commercial and industrial systems.
- Power Defense PD2 Platform: Advanced Eaton circuit breaker technology for enhanced system protection and reliability.
- T298 Electronic Trip Unit: Ensures accurate detection and response to overload and short-circuit faults.
- High Interrupt Capacity: Rated up to 65 kAIC at 240 Vac for safe interruption of high fault currents.
- Three-Pole Configuration: Designed for use in three-phase electrical distribution systems.
- Compact Frame 2 Design: Space-efficient construction for integration into panelboards and switchgear.
- Load-Side Terminal Configuration: Simplifies installation with secure conductor connections.
- UL and CSA Certified: Meets key North American safety and performance standards.
The PDD23G0225TFFL delivers the reliability and precision required for protecting low-voltage electrical distribution circuits in commercial and industrial environments.
