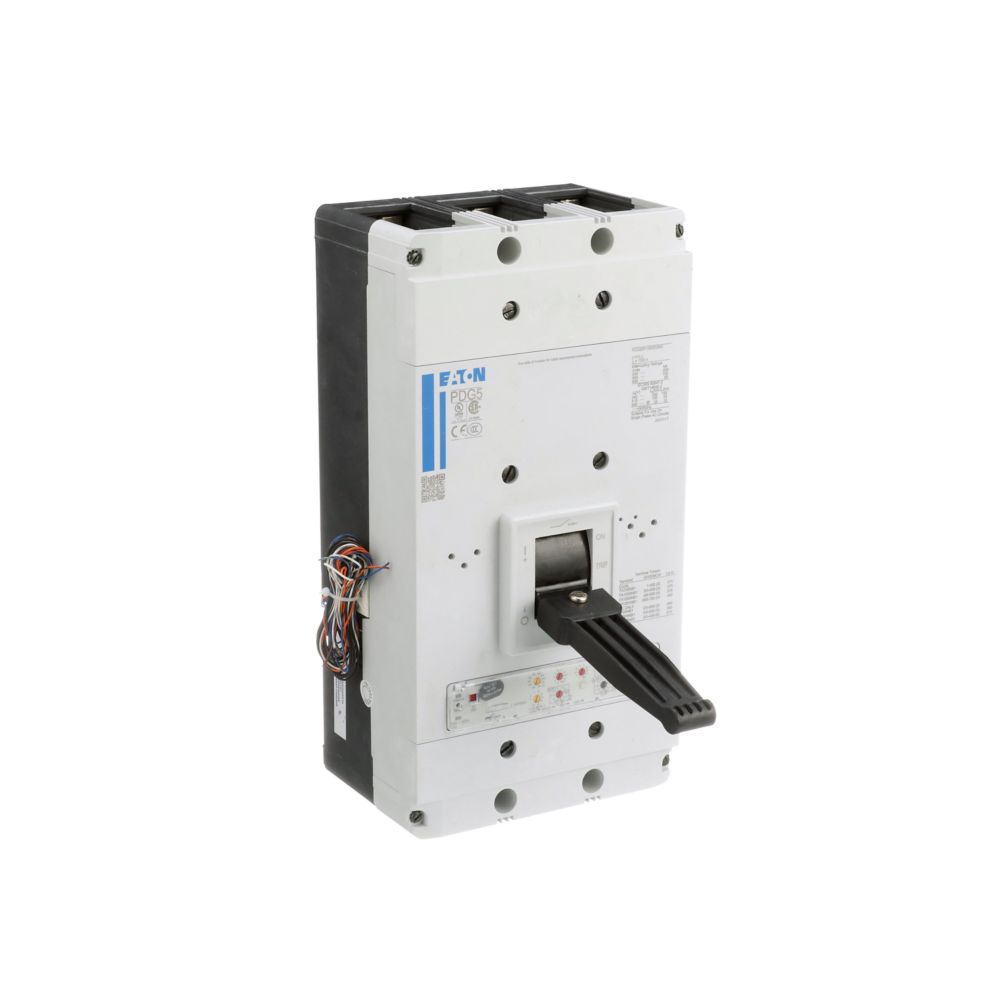

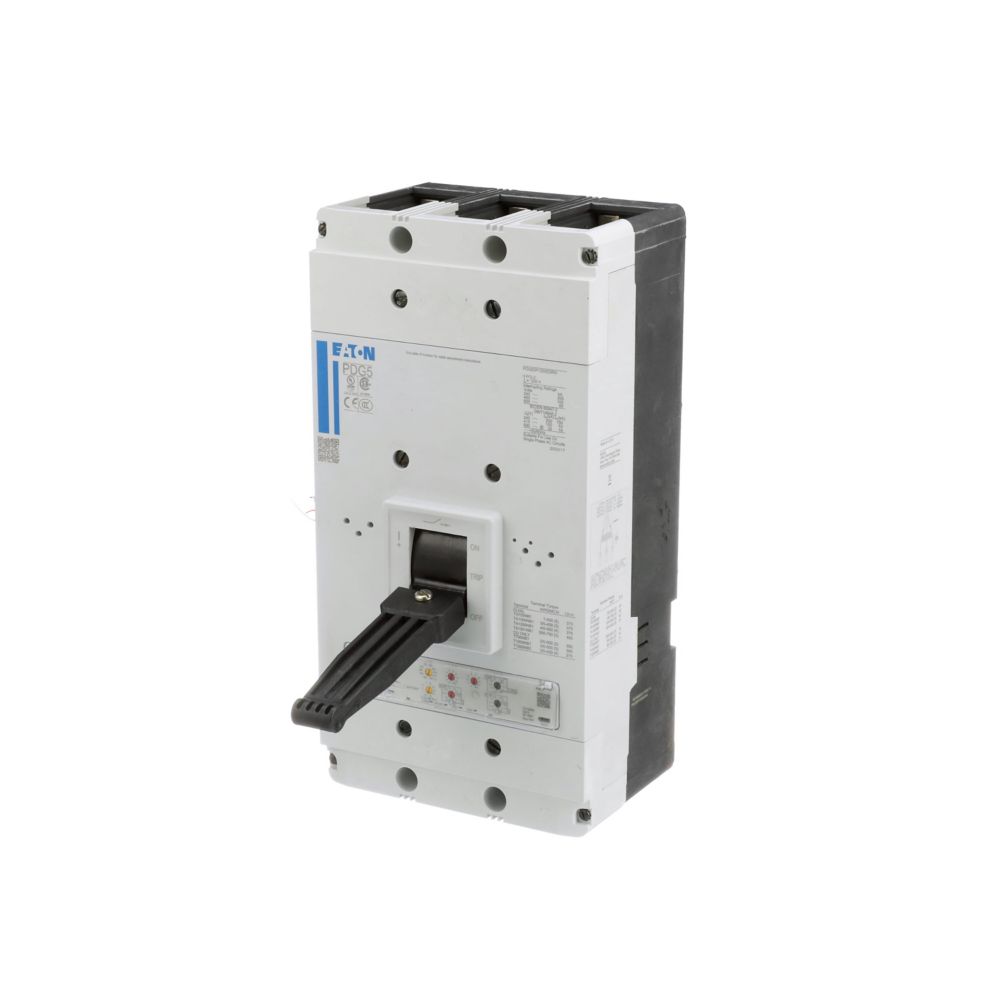

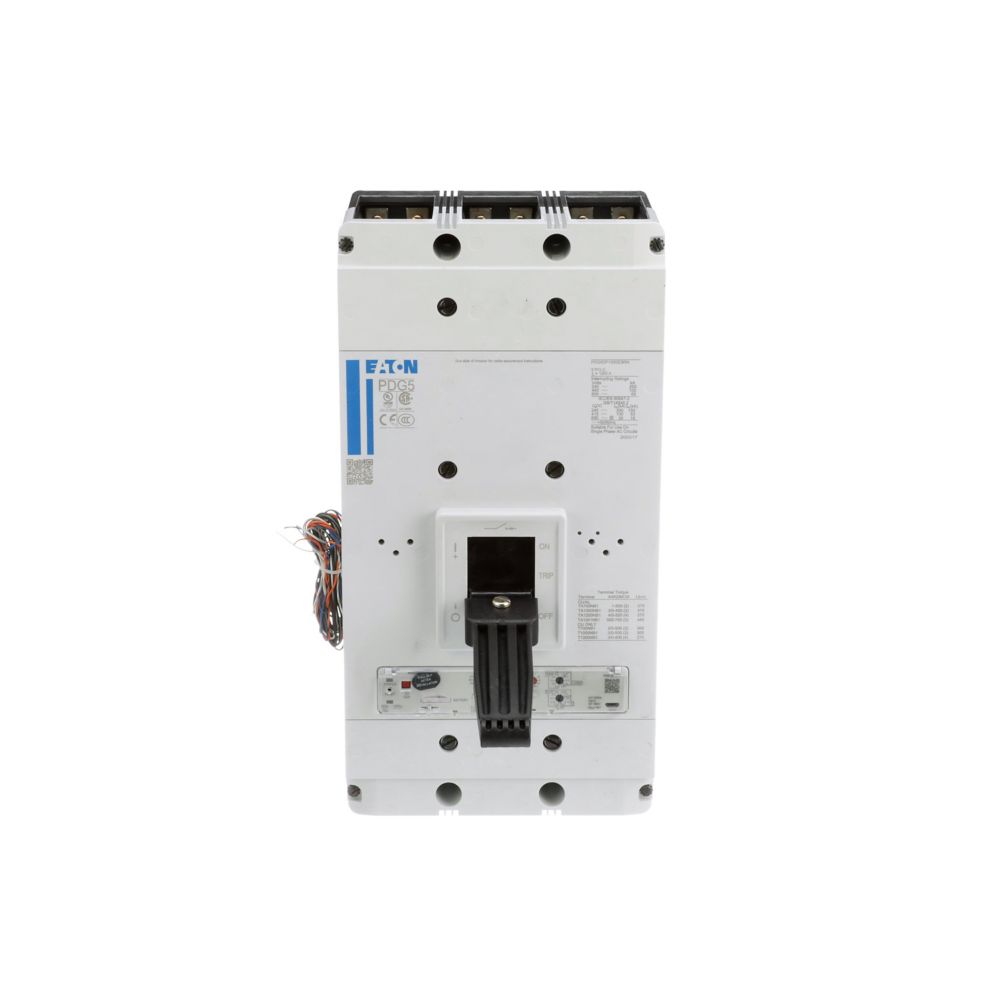

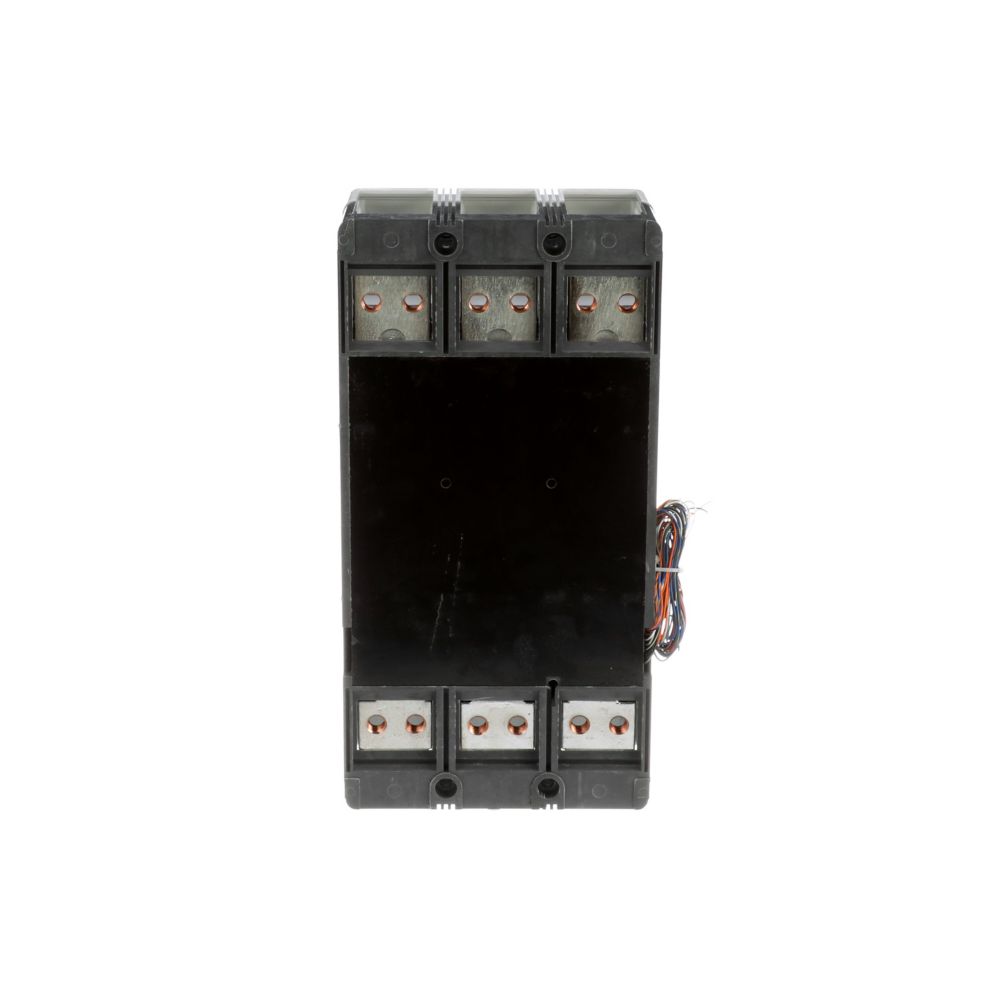

Eaton PDF53P0800E3RN Power Defense 800A 3-Pole Molded Case Circuit Breaker 600VAC
- Regular price
- $16,333.00
- Sale price
- $16,333.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PDF53P0800E3RN
Description
The Eaton PDF53P0800E3RN is a Power Defense molded case circuit breaker engineered for high-capacity protection in industrial and commercial electrical systems. Eaton part number PDF53P0800E3RN features an 800 A rating with a three-pole configuration and advanced electronic trip functionality. It is designed to deliver reliable interruption and precise protection for critical power distribution applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | PDF53P0800E3RN |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Molded case circuit breaker |
| Series | Power Defense |
| Circuit Breaker Type | PD5 Global (100% UL) |
| Frame | 5 |
| Circuit Breaker Frame Type | Complete breaker |
| Amperage Rating | 800 A |
| Trip Type | T285 electronic trip |
| Trip Rating | 800 A |
| Voltage Rating | 600 Vac |
| Number of Poles | Three-pole |
| Terminals | No terminals |
| Interrupt Rating | 100 kAIC at 480 Vac |
| Additional Interrupt Rating | 65 kAIC at 600/347 V (UL), 200 kAIC at 240 V (UL) |
| Standards | IEC 60947-2, CCC Marked |
| Compliances | RoHS Compliant |
| Dimensions (L × W × H) | 139.7 × 209.5 × 406.4 mm |
| Warranty | Eaton Selling Policy 25-000 |
| Weight | 21.32 kg |
Information About PDF53P0800E3RN
The PDF53P0800E3RN is a molded case circuit breaker from Eaton’s Power Defense PD5 Global series, built for robust performance in demanding electrical environments. It incorporates a T285 electronic trip unit that provides accurate and adjustable protection against overloads and short circuits. Designed as a complete breaker on a Frame 5 platform, it supports high-current applications with a voltage rating of up to 600 Vac. With compliance to IEC 60947-2 and global certifications, it is suitable for use in international industrial, commercial, and infrastructure power systems.
Key Features:
- 800 Amp Current Rating: Supports high-capacity feeders and main distribution circuits.
- Power Defense PD5 Platform: Advanced Eaton breaker series designed for global applications.
- T285 Electronic Trip Unit: Provides precise and configurable protection for overload and fault conditions.
- High Interrupt Capacity: Rated up to 100 kAIC at 480 Vac for safe fault interruption.
- Three-Pole Configuration: Designed for three-phase electrical systems.
- Frame 5 Complete Breaker: Delivered as a fully assembled unit for straightforward installation.
- Global Compliance Standards: Meets IEC, CCC, and UL performance requirements.
- Flexible Terminal Configuration: Supplied without terminals for application-specific customization.
The PDF53P0800E3RN delivers the reliability and precision required for protecting high-capacity power distribution systems in industrial and commercial environments.
