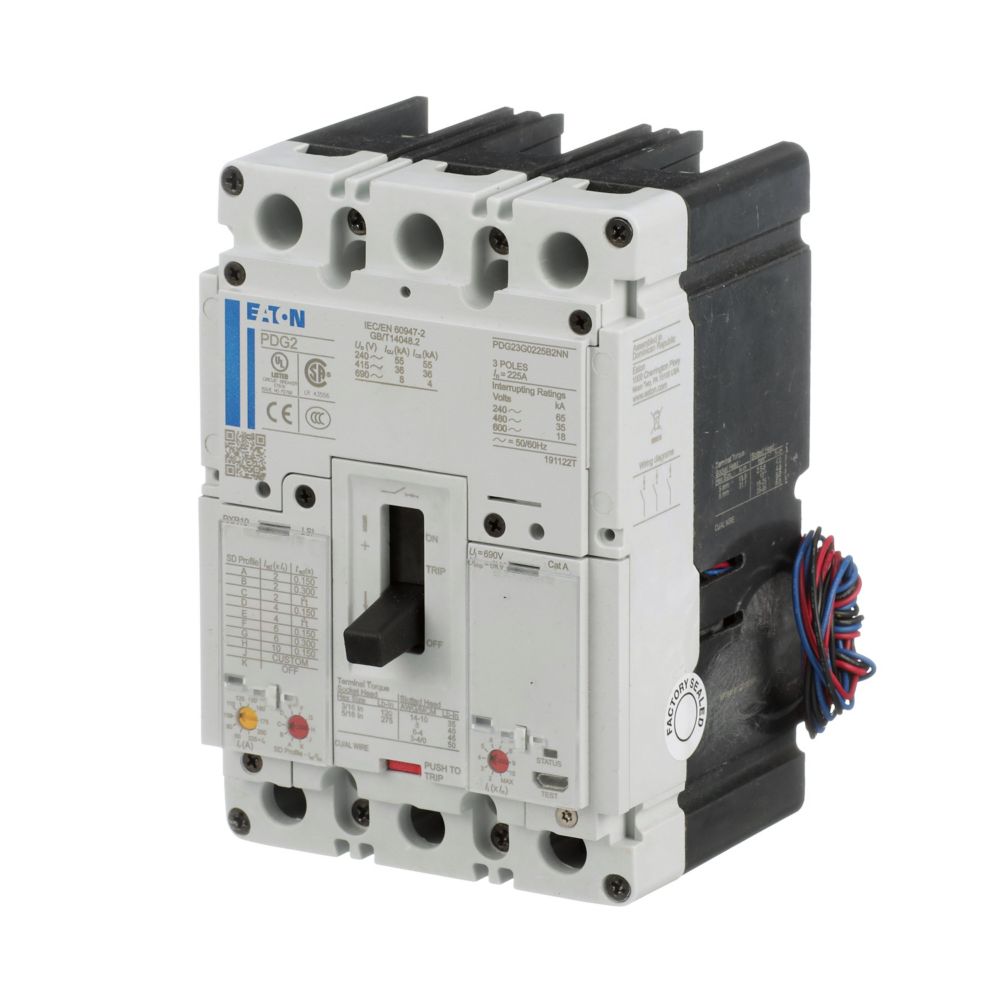

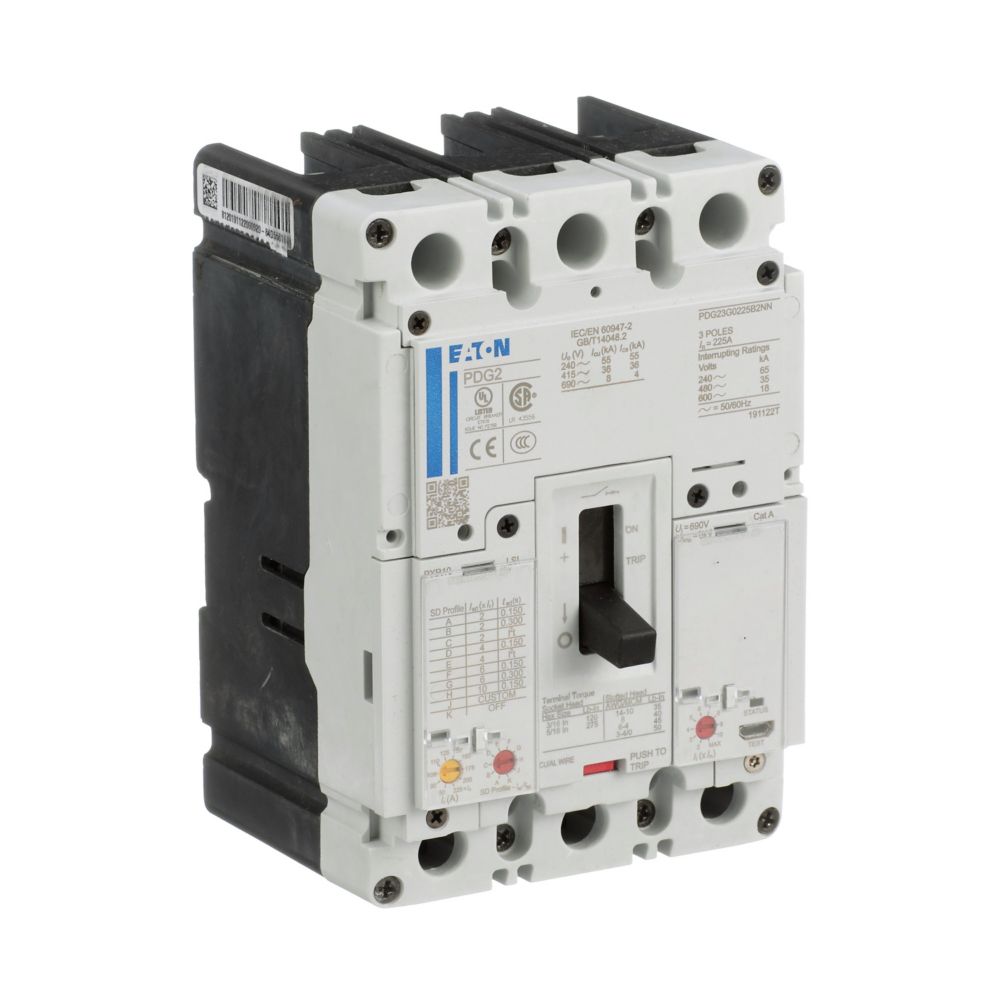

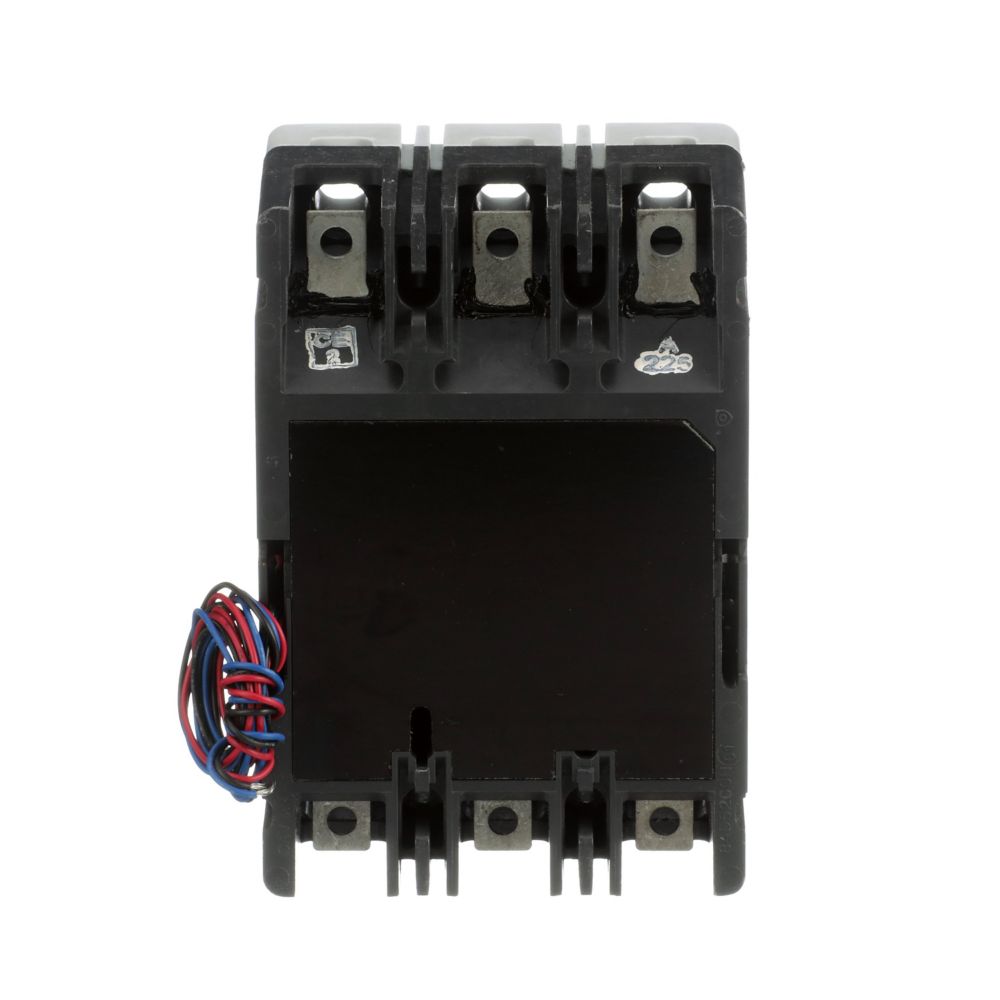

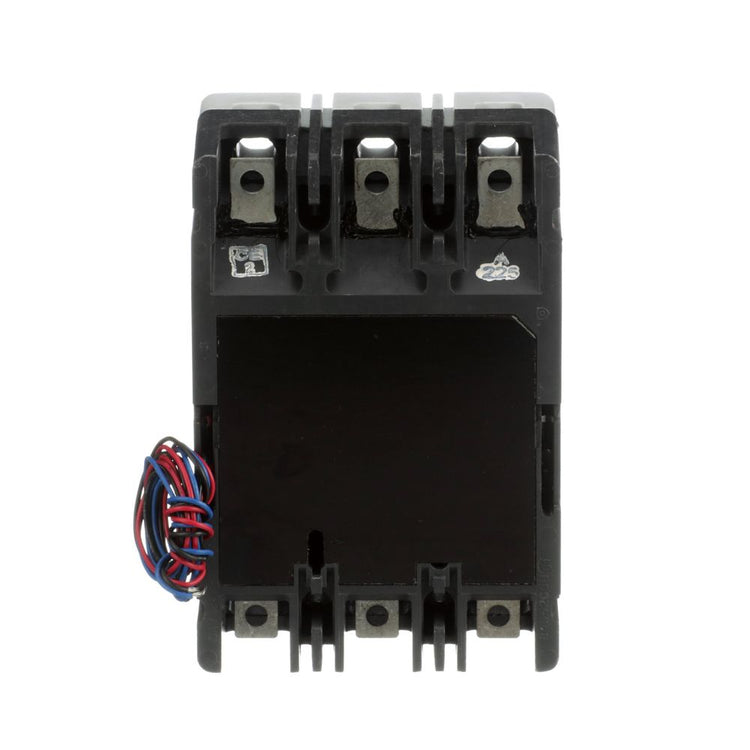

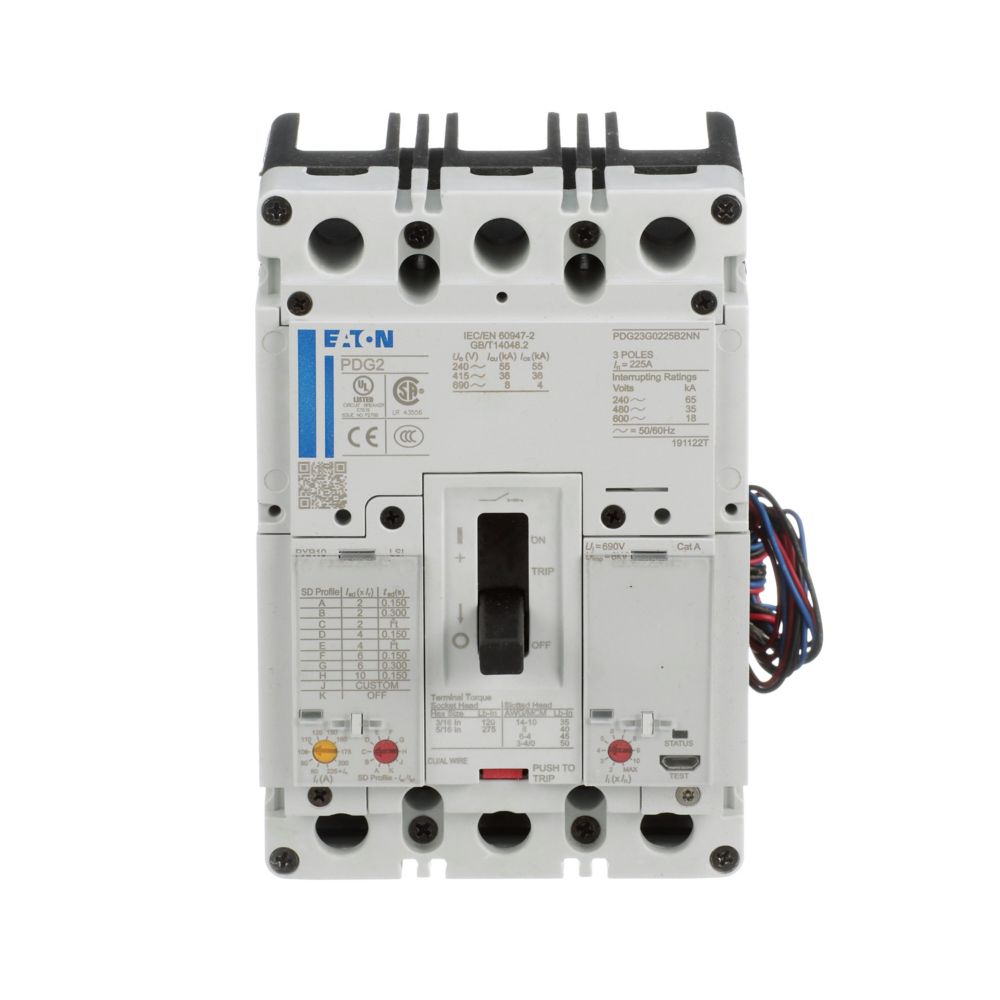

Eaton PDG23G0100B2NL Power Defense 100A 3-Pole Molded Case Circuit Breaker 600Vac
- Regular price
- $838.00
- Sale price
- $838.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PDG23G0100B2NL
Description
The Eaton PDG23G0100B2NL is a Power Defense molded case circuit breaker designed to provide reliable protection for electrical distribution systems. Eaton PDG23G0100B2NL offers a 100 A rating with advanced trip functionality, ensuring accurate fault detection and interruption. It is suited for industrial and commercial applications requiring dependable circuit protection and system coordination.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | PDG23G0100B2NL |
| Subcategory | Molded Case Circuit Breakers |
| Product Type | Molded case circuit breaker |
| Series | Power Defense PD2 Global |
| Frame Size | Frame 2 |
| Number of Poles | Three-pole |
| Amperage Rating | 100 A |
| Voltage Rating | 600 Vac |
| Trip Type | T281 |
| Interrupt Rating | 35 kAIC at 480 Vac |
| Interrupt Rating (UL) | 65 kAIC at 240 Vac; 18 kAIC at 600 Vac |
| Terminals | Standard terminals (load side) |
| Certifications | UL 489, IEC 60947-2, CSA, CCC |
| Compliances | RoHS Compliant |
| Product Length/Depth | 6.5 in |
| Product Height | 6 in |
| Product Width | 8 in |
| Weight | 5 lb |
Information About PDG23G0100B2NL
The PDG23G0100B2NL is part of Eaton’s Power Defense PD2 Global series, built for high-performance protection in low-voltage power distribution systems. It features a compact Frame 2 design with a three-pole configuration, making it suitable for space-constrained panel installations. Equipped with a T281 trip unit, it delivers precise overcurrent protection with consistent response characteristics. This breaker is engineered for global compliance, supporting UL, IEC, CSA, and CCC standards, and is commonly used in control panels, switchgear, and distribution boards.
Key Features:
- Power Defense Series Design: Part of Eaton’s PD2 Global platform for advanced protection performance.
- 100 A Current Rating: Provides reliable circuit protection for medium-load applications.
- T281 Trip Unit: Ensures accurate and consistent overcurrent and short-circuit response.
- High Interrupting Capacity: Rated up to 35 kAIC at 480 Vac for robust fault protection.
- Three-Pole Configuration: Supports three-phase power distribution systems.
- Global Compliance Standards: Certified to UL 489, IEC 60947-2, CSA, and CCC requirements.
- Compact Frame 2 Size: Optimized for efficient panel space utilization.
- Load-Side Terminal Design: Standard terminals simplify installation and wiring.
The PDG23G0100B2NL delivers the reliability and precision required for protecting electrical distribution systems in industrial and commercial environments.
