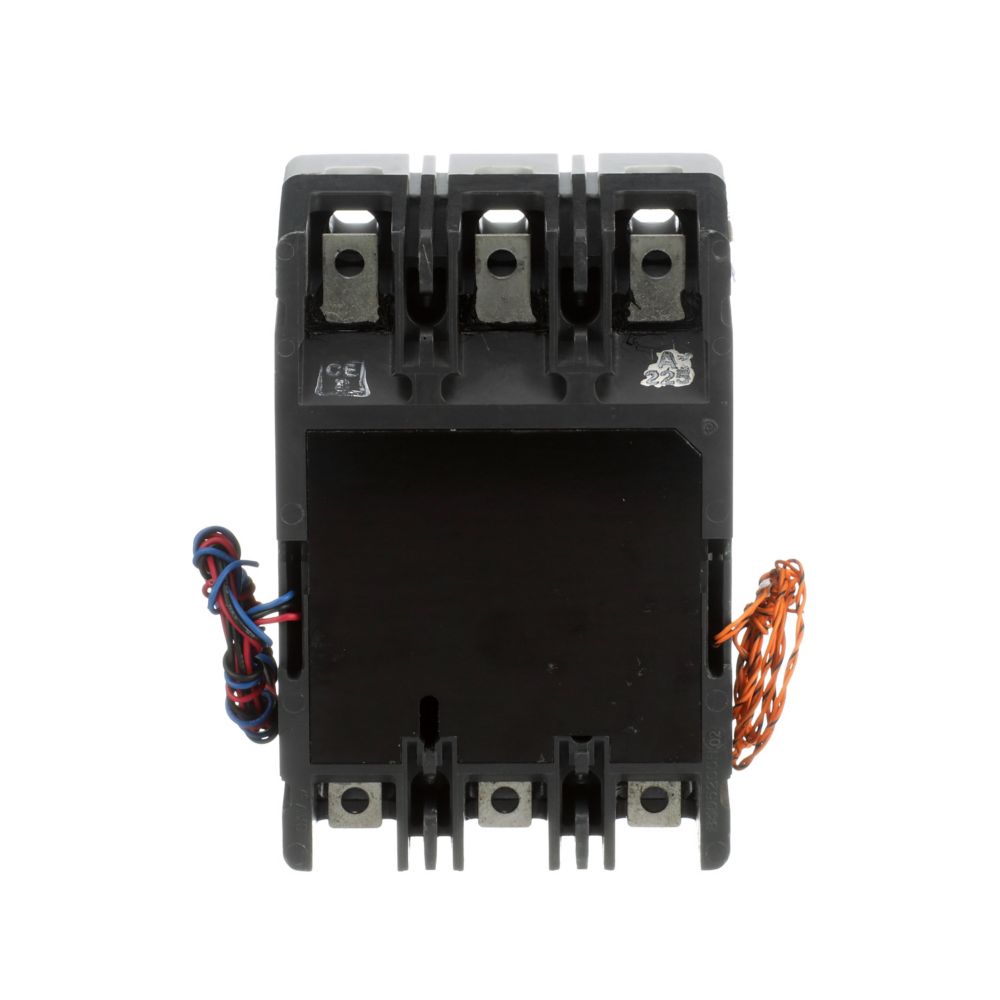

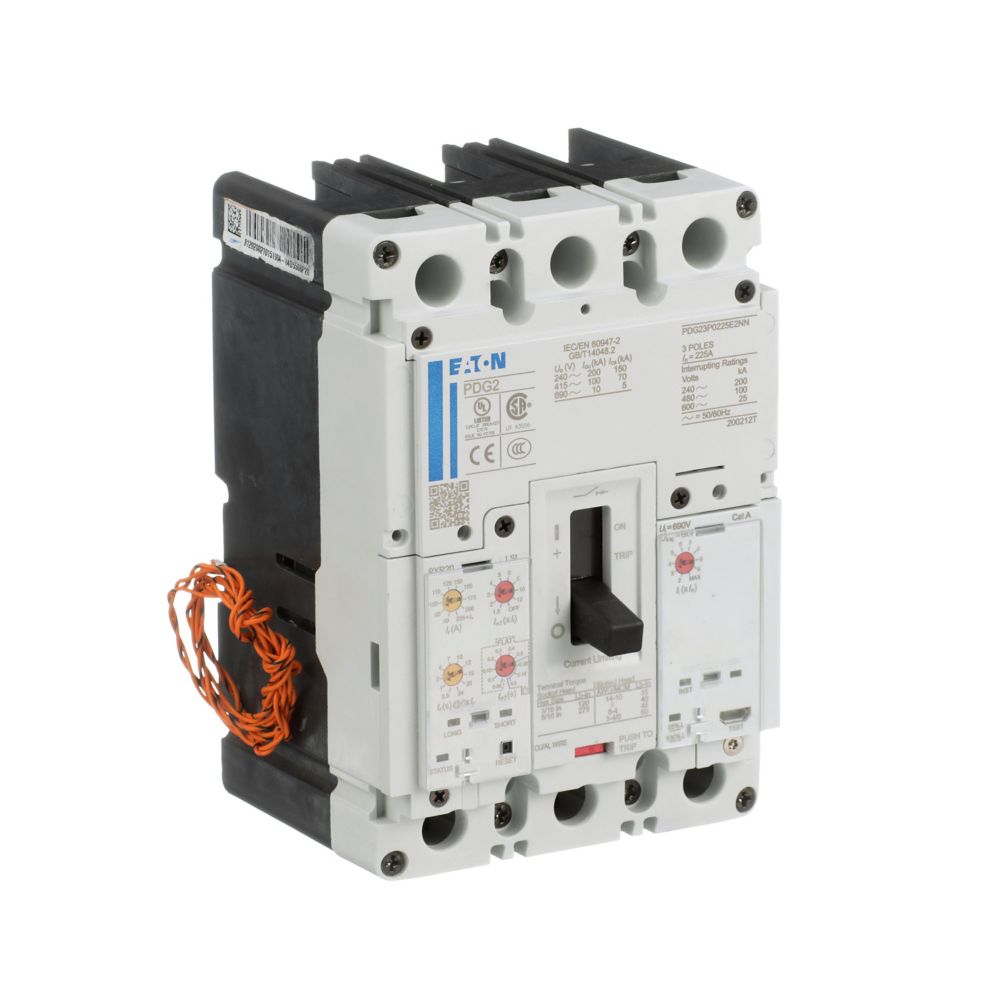

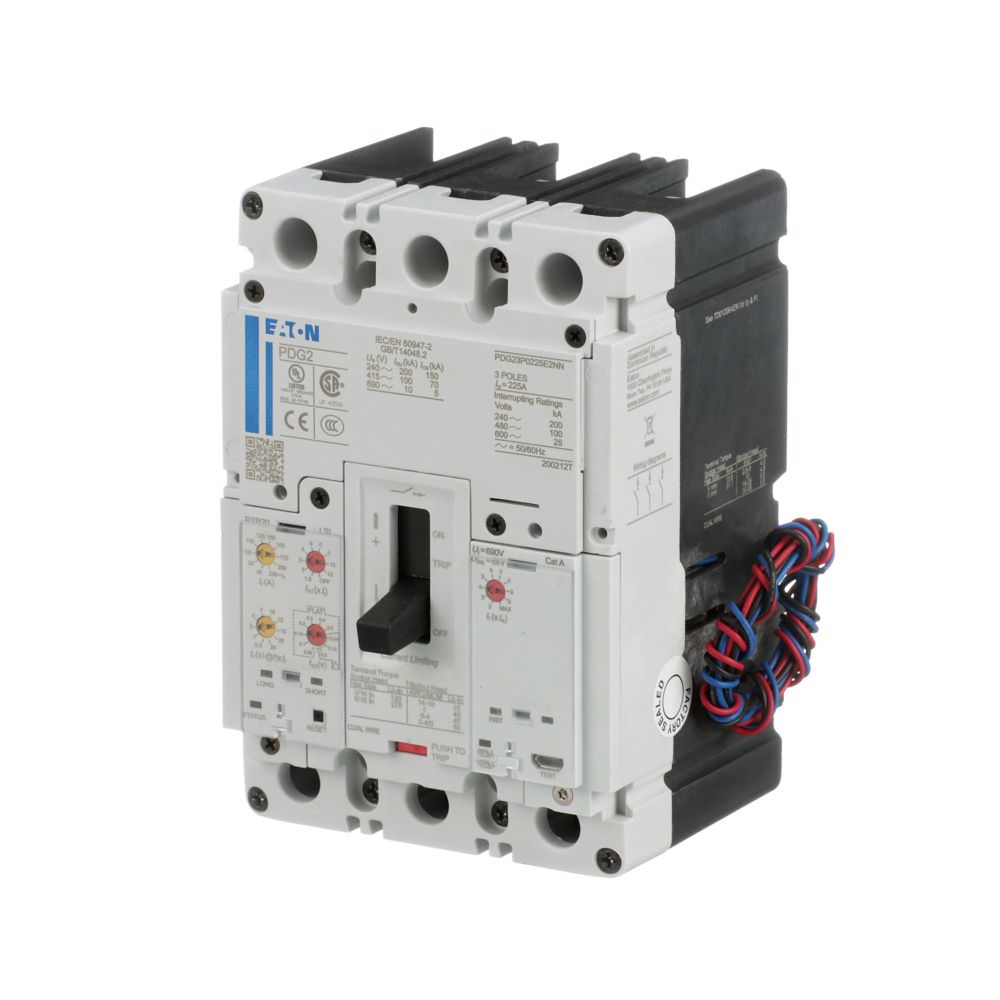

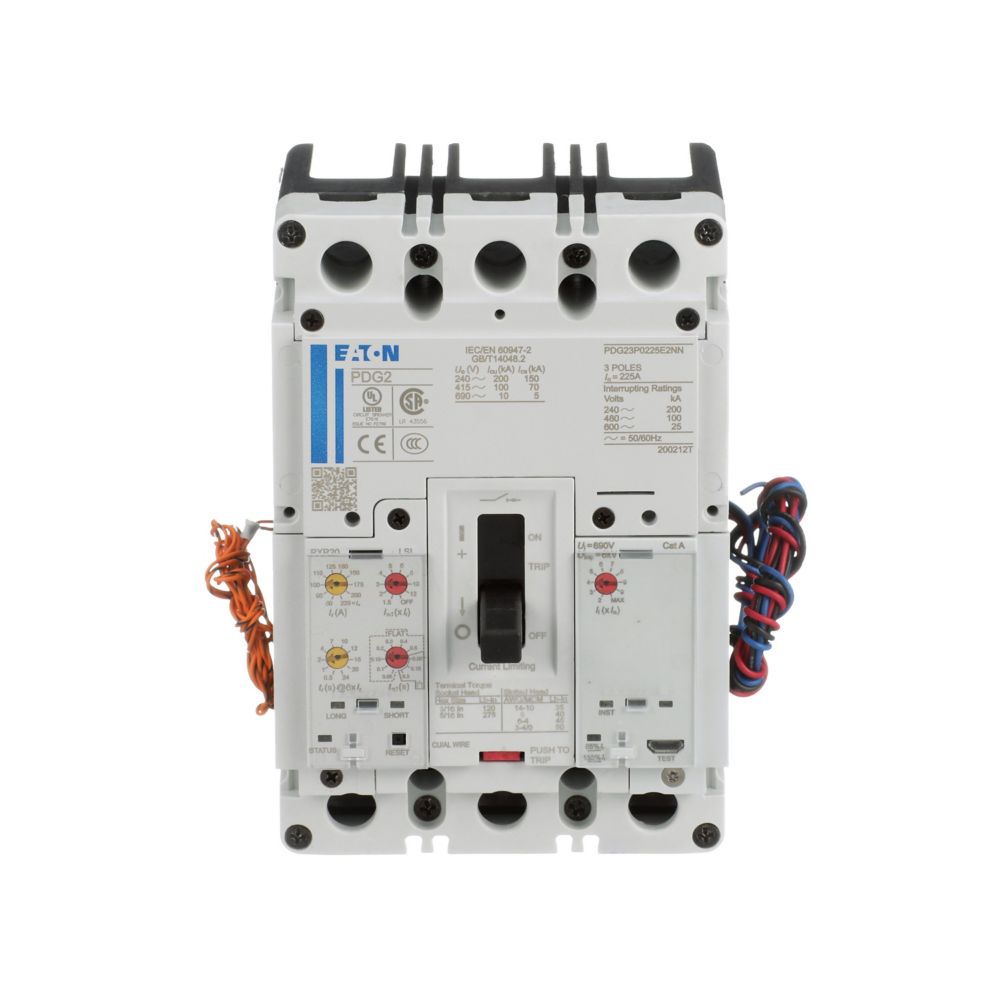

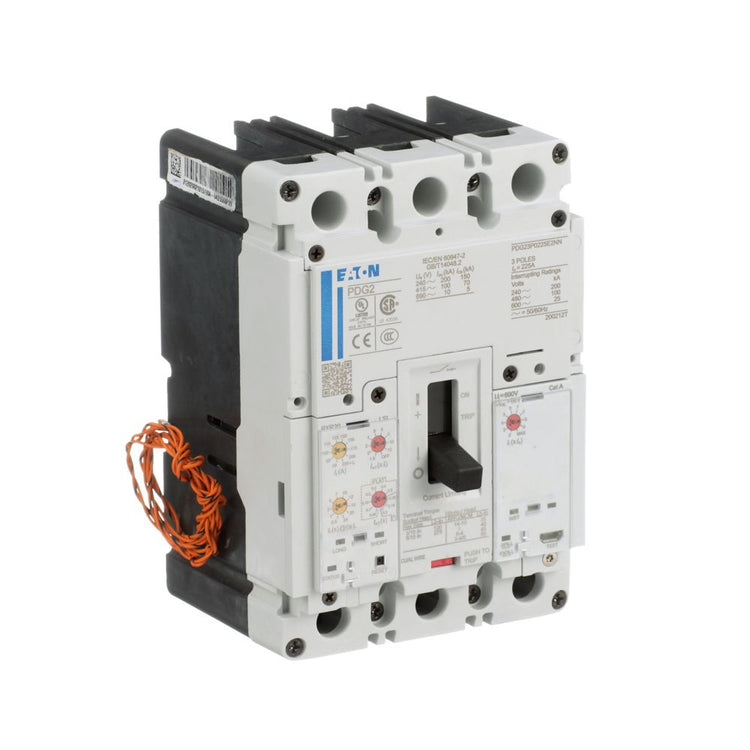

Eaton PDG23G0225E2NL Power Defense 225A 3-Pole Molded Case Circuit Breaker 600Vac
- Regular price
- $3,402.00
- Sale price
- $3,402.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PDG23G0225E2NL
Description
The Eaton PDG23G0225E2NL is a Power Defense molded case circuit breaker designed to provide dependable overcurrent protection in low-voltage electrical systems. Eaton PDG23G0225E2NL features a 225 A rating and advanced trip functionality for precise fault detection and interruption. It is ideal for industrial and commercial distribution panels requiring consistent and safe circuit protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | PDG23G0225E2NL |
| Subcategory | Molded Case Circuit Breakers |
| Product Type | Molded case circuit breaker |
| Series | Power Defense PD2 Global |
| Frame Size | Frame 2 |
| Number of Poles | Three-pole |
| Amperage Rating | 225 A |
| Voltage Rating | 600 Vac |
| Trip Type | T283 |
| Trip Rating | 225 A |
| Interrupt Rating | 35 kAIC at 480 Vac |
| Interrupt Rating (UL) | 65 kAIC at 240 Vac; 18 kAIC at 600 Vac |
| Terminals | Standard terminals (load side) |
| Certifications | UL 489, IEC 60947-2, CSA, CCC |
| Compliances | RoHS Compliant |
| Product Length/Depth | 6.5 in |
| Product Height | 6 in |
| Product Width | 7.5 in |
| Weight | 5 lb |
Information About PDG23G0225E2NL
The PDG23G0225E2NL is part of Eaton’s Power Defense PD2 Global series, engineered for high performance and global compliance in circuit protection applications. It utilizes a compact Frame 2 construction with a three-pole configuration, allowing efficient integration into switchboards and panelboards. Equipped with a T283 trip unit, the breaker delivers accurate response to overload and short-circuit conditions. Designed for versatility, it meets UL, IEC, CSA, and CCC standards, making it suitable for both domestic and international installations.
Key Features:
- Power Defense PD2 Series: Advanced breaker platform designed for global applications and consistent protection.
- 225 A Current Rating: Supports medium-to-high load circuits in commercial and industrial systems.
- T283 Trip Unit: Provides precise overcurrent protection with reliable trip characteristics.
- High Interrupting Capacity: Rated up to 35 kAIC at 480 Vac for effective fault interruption.
- Three-Pole Design: Suitable for three-phase power distribution systems.
- Global Certifications: Complies with UL 489, IEC 60947-2, CSA, and CCC standards.
- Compact Frame 2 Construction: Optimized for space-saving panel integration.
- Load-Side Terminals: Standard terminals simplify installation and maintenance.
The PDG23G0225E2NL delivers the reliability and precision required for protecting electrical distribution systems in demanding industrial and commercial environments.
