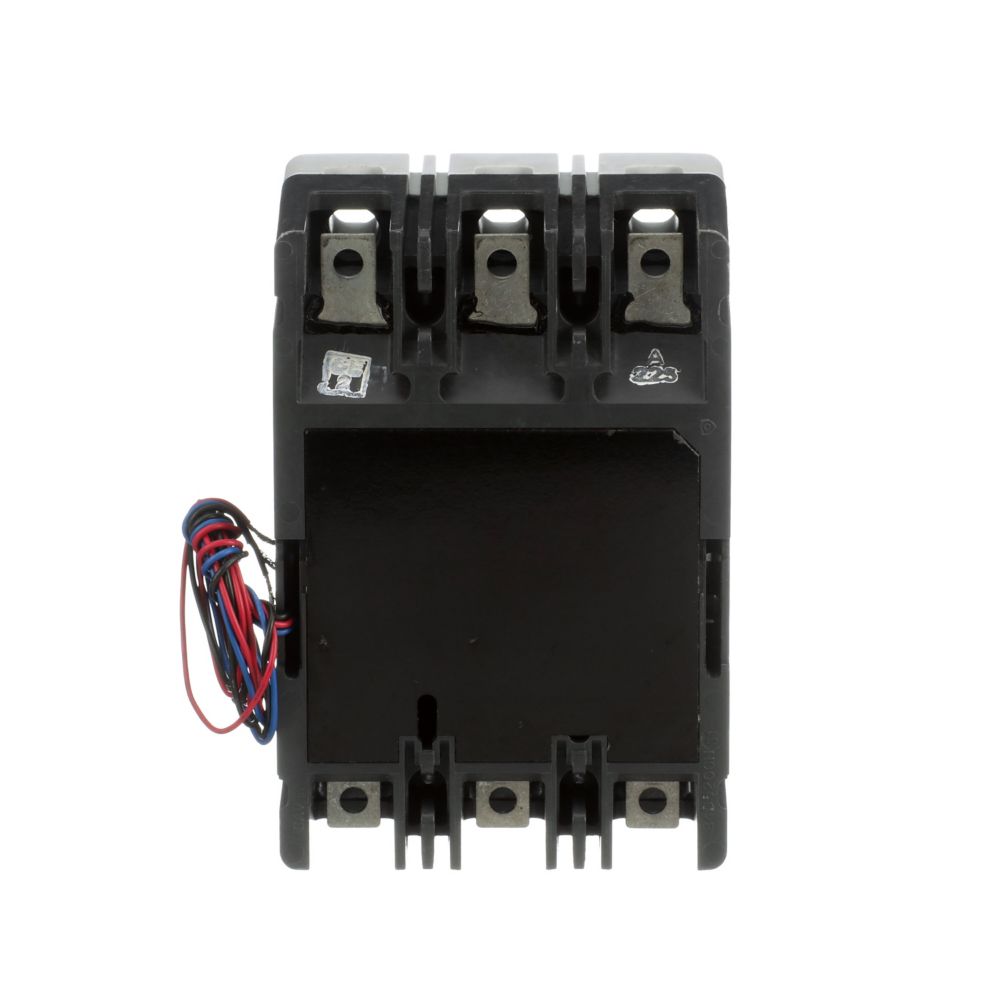

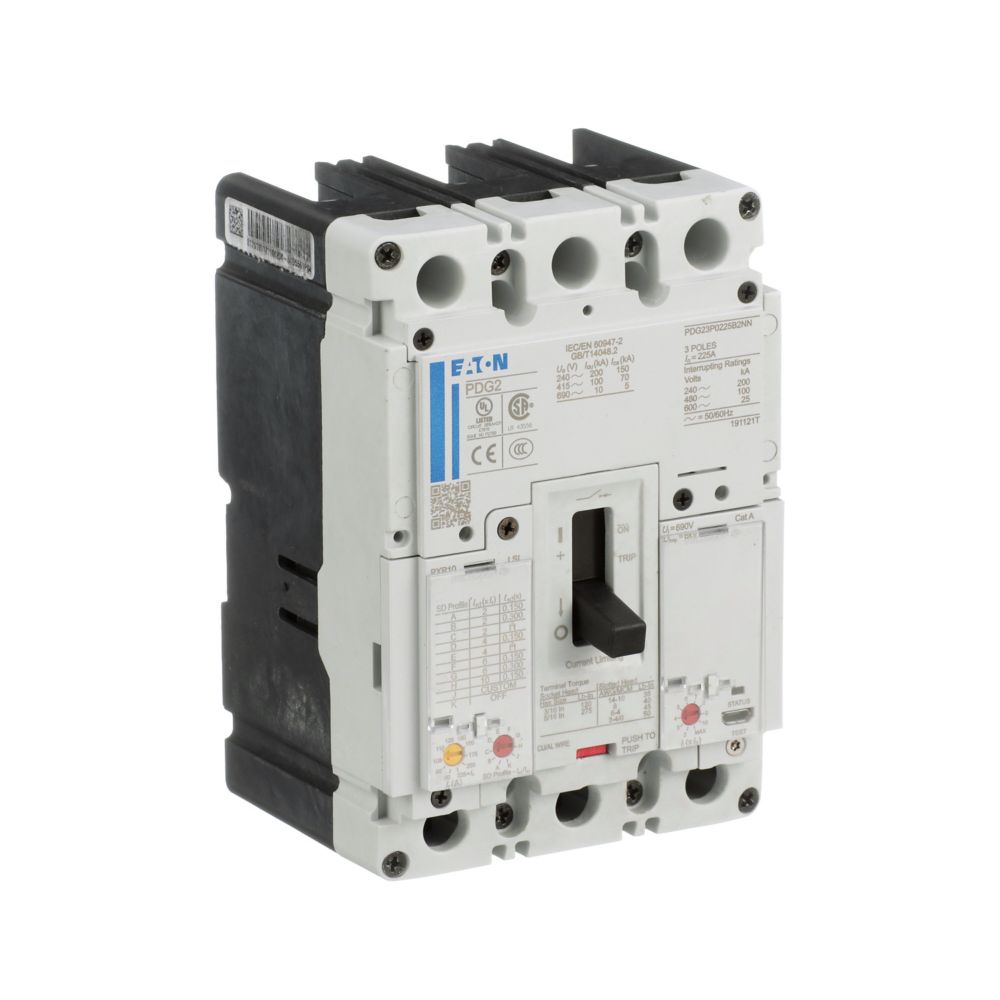

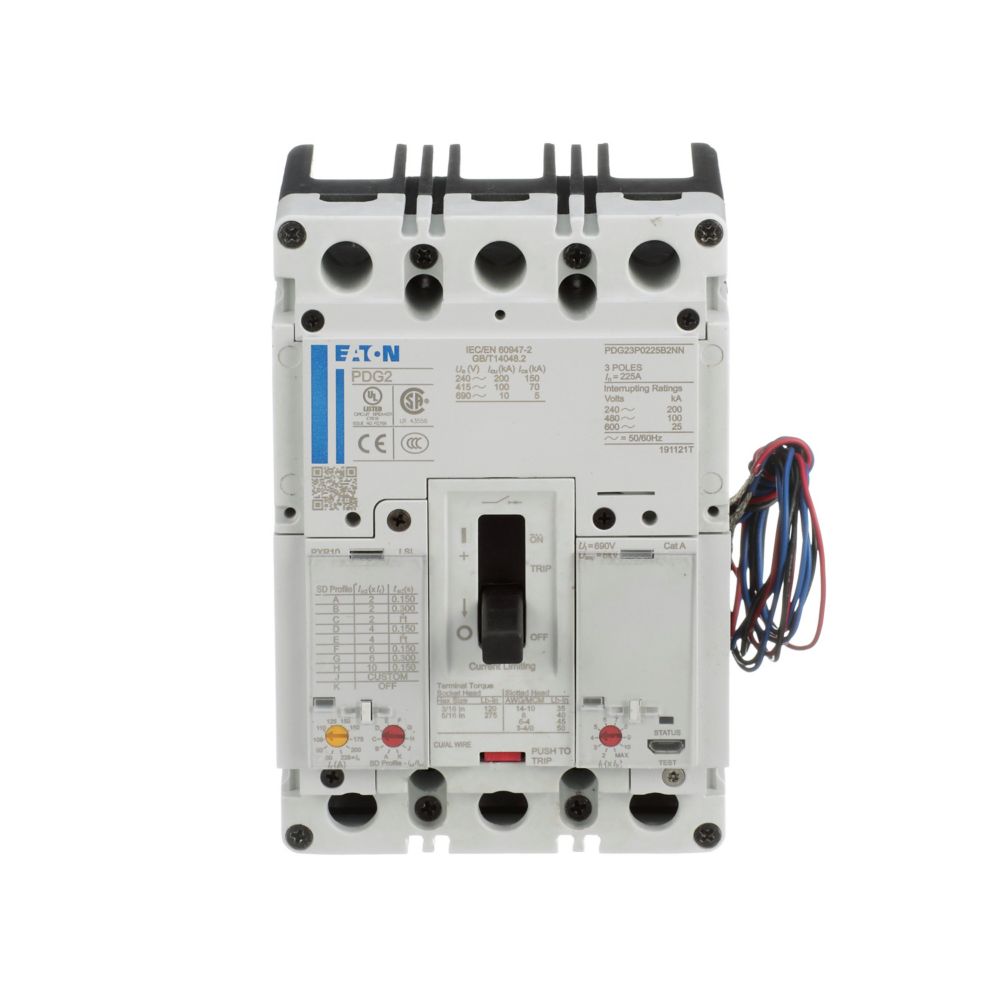

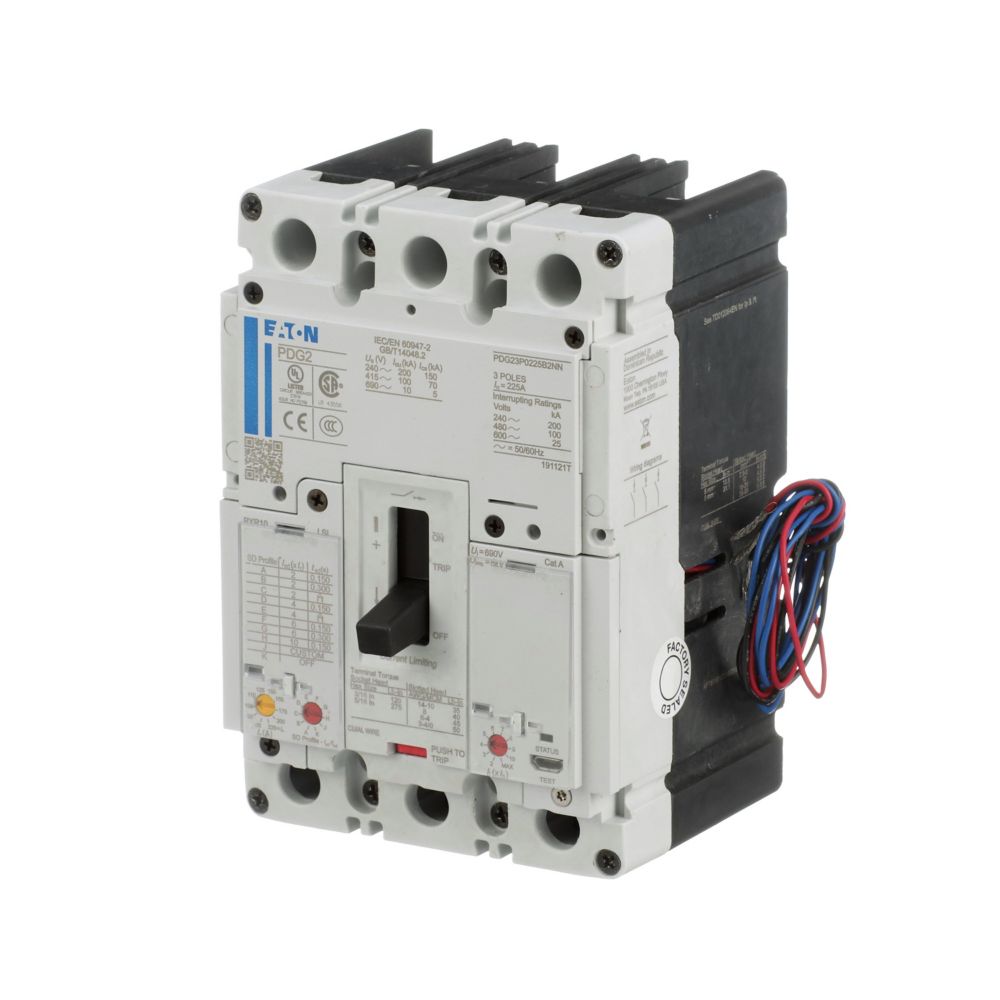

Eaton PDG23M0225B2NL Power Defense 225A 3-Pole Molded Case Circuit Breaker 600Vac
- Regular price
- $2,599.00
- Sale price
- $2,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PDG23M0225B2NL
Description
The Eaton PDG23M0225B2NL is a Power Defense molded case circuit breaker designed to provide dependable protection in low-voltage electrical distribution systems. Eaton PDG23M0225B2NL features a 225 A rating with advanced trip functionality to ensure accurate fault detection and interruption. It is well-suited for industrial and commercial applications requiring consistent performance and system reliability.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | PDG23M0225B2NL |
| Subcategory | Molded Case Circuit Breakers |
| Product Type | Molded case circuit breaker |
| Series | Power Defense PD2 Global |
| Frame | Frame 2 |
| Circuit Breaker Type | PD2 Global |
| Frame Type | Complete breaker |
| Amperage Rating | 225 A |
| Trip Type | T281 |
| Number of Poles | Three-pole |
| Voltage Rating | 600 Vac |
| Interrupt Rating | 65 kAIC at 480 Vac |
| Interrupt Rating (UL) | 100 kAIC at 240 V; 35 kAIC at 600 V |
| Terminals | Standard terminals (load side) |
| Certifications | UL 489, IEC 60947-2, CSA, CCC |
| Compliances | RoHS Compliant |
| Product Length/Depth | 88.9 mm |
| Product Height | 152.4 mm |
| Product Width | 104.6 mm |
| Weight | 1.82 kg |
Information About PDG23M0225B2NL
The PDG23M0225B2NL is part of Eaton’s Power Defense PD2 Global series, engineered for high efficiency and global compliance. It utilizes a compact Frame 2 design with a three-pole configuration, making it ideal for panelboards and switchgear installations. Equipped with a T281 trip unit, the breaker delivers precise protection against overloads and short circuits. Designed to meet UL, IEC, CSA, and CCC standards, it provides flexibility for use in both domestic and international electrical systems.
Key Features:
- Power Defense PD2 Series: Advanced breaker platform designed for global applications.
- 225 A Current Rating: Suitable for medium-load electrical distribution systems.
- T281 Trip Unit: Ensures accurate and reliable overcurrent protection.
- High Interrupting Capacity: Rated up to 65 kAIC at 480 Vac for effective fault clearing.
- Three-Pole Configuration: Designed for three-phase power distribution.
- Global Certifications: UL 489, IEC 60947-2, CSA, and CCC compliant.
- Compact Frame 2 Design: Enables efficient use of panel space.
- Load-Side Terminals: Standard terminals simplify wiring and installation.
The PDG23M0225B2NL delivers the reliability and precision required for protecting electrical distribution systems in industrial and commercial environments.
