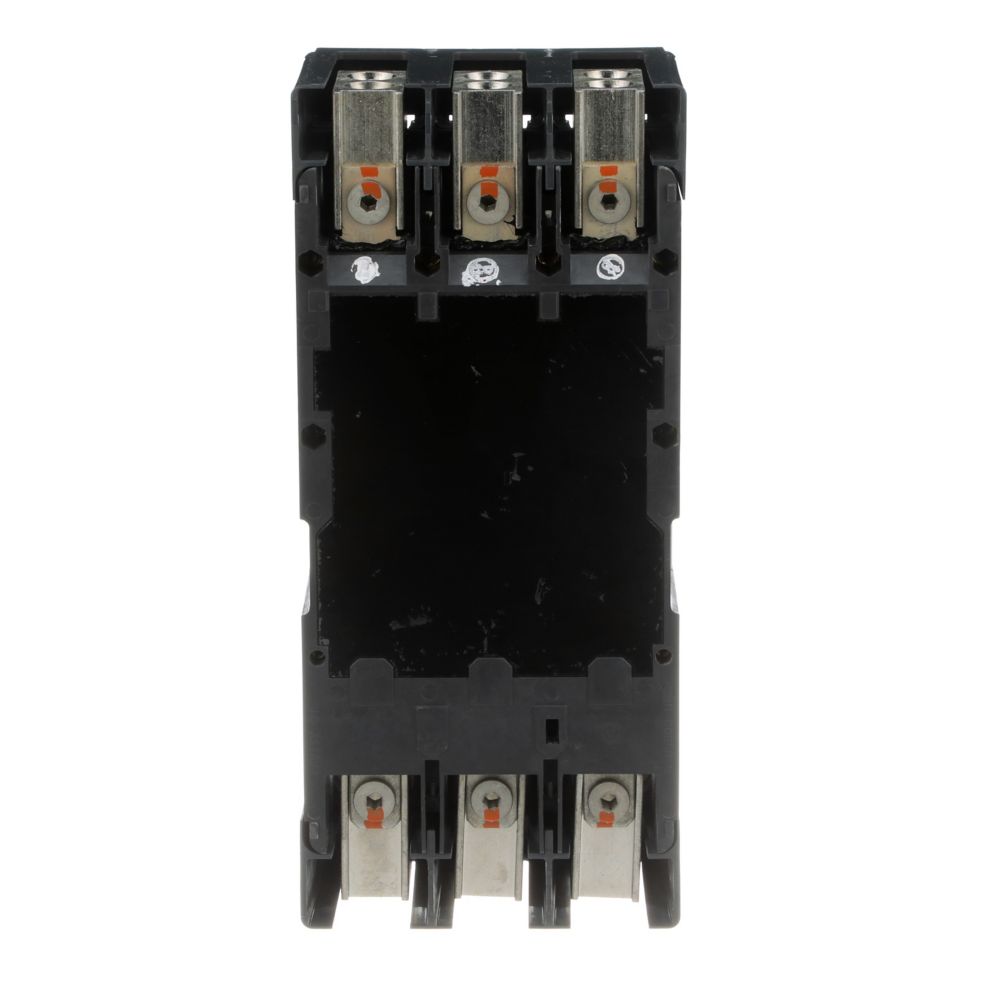

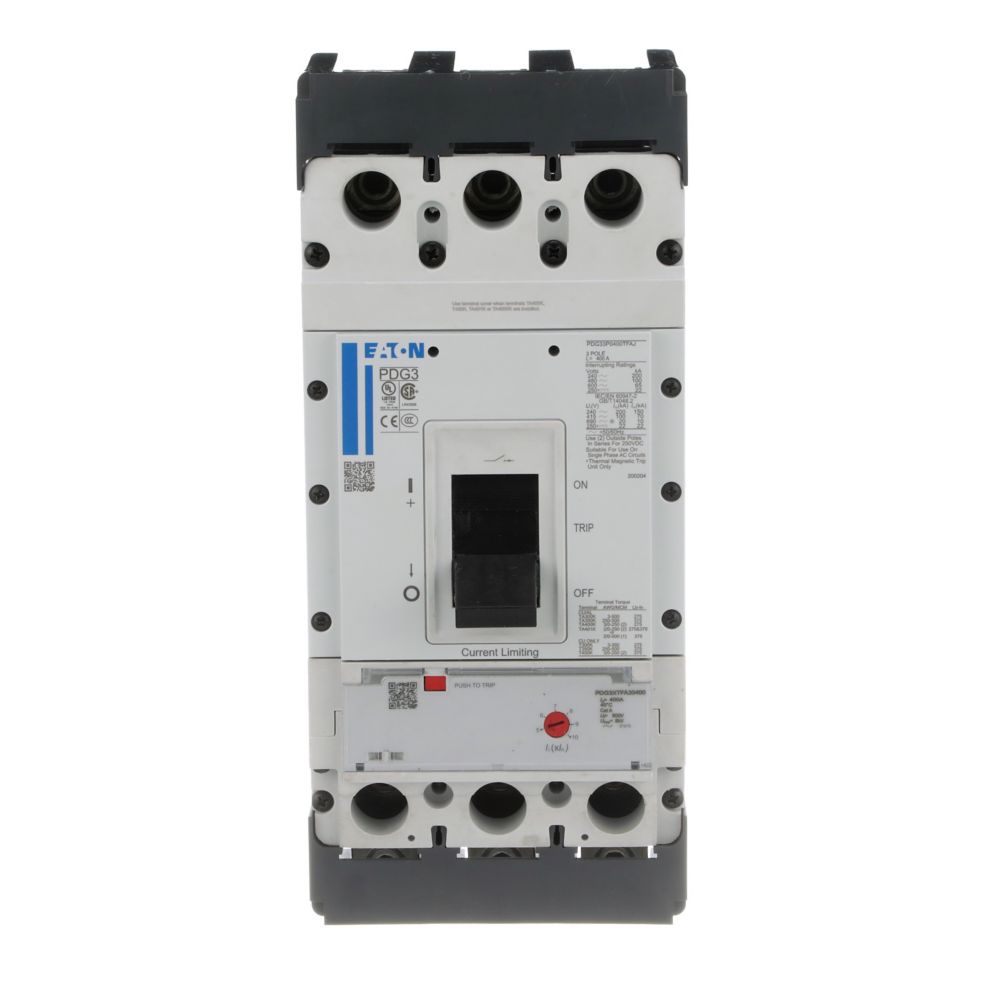

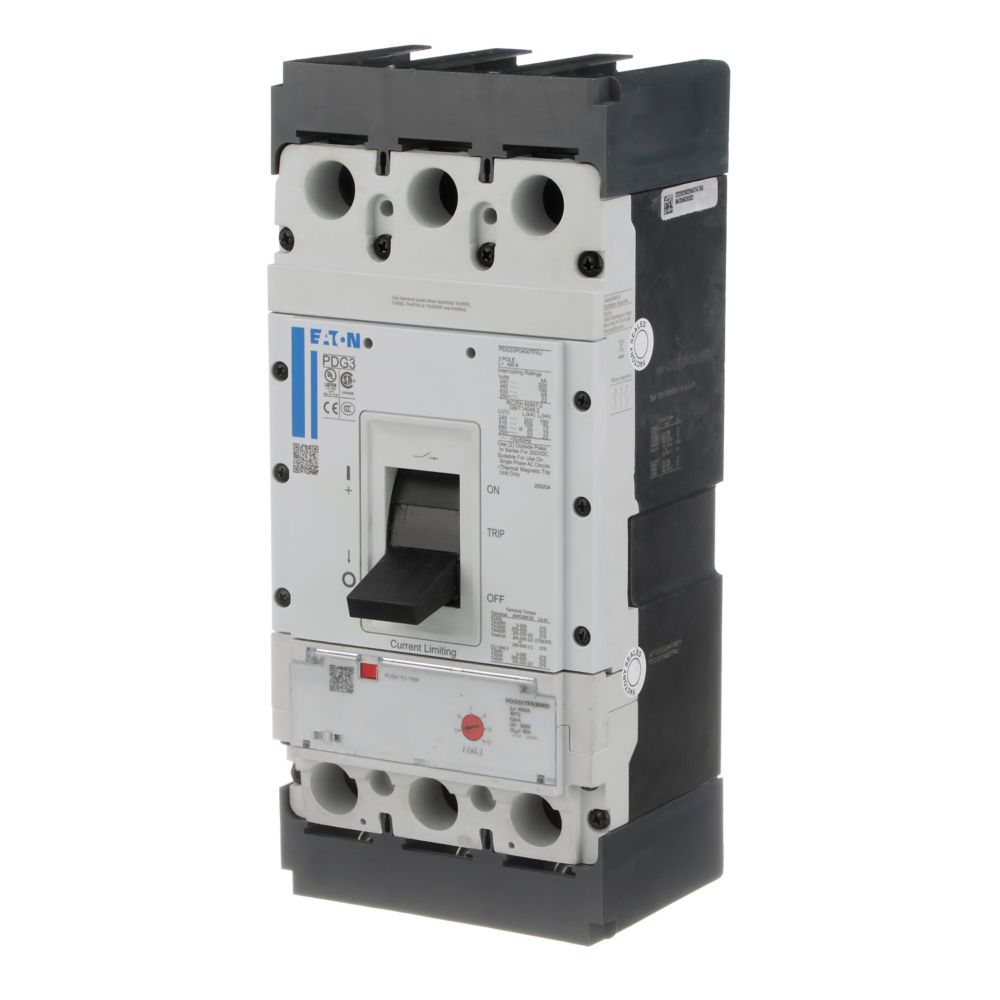

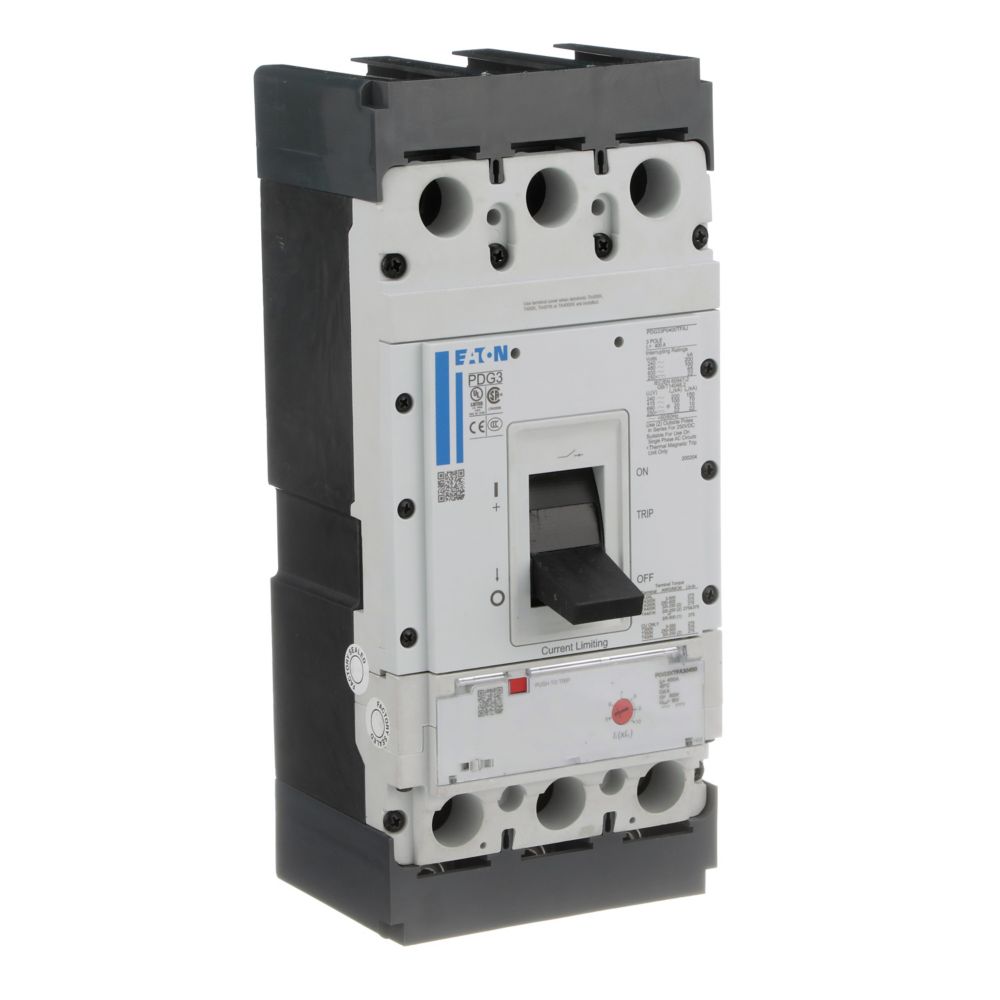

Eaton PDG33M0100TFAJ Power Defense 100A 3-Pole Molded Case Circuit Breaker
- Regular price
- $4,877.00
- Sale price
- $4,877.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PDG33M0100TFAJ
Description
The Eaton PDG33M0100TFAJ is a Power Defense molded case circuit breaker designed to provide reliable overcurrent protection in commercial and industrial power distribution systems. Eaton part number PDG33M0100TFAJ features a 100 A rating, a three-pole configuration, and a robust interrupting capacity to safeguard equipment against overloads and short-circuit conditions. Its advanced Power Defense architecture ensures dependable circuit protection and operational reliability.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | PDG33M0100TFAJ |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Power Defense Molded Case Circuit Breaker |
| Series | Power Defense PD3 Global |
| Circuit Breaker Frame Type | Complete breaker |
| Frame | Frame 3 |
| Amperage Rating | 100 A |
| Number of Poles | Three-pole |
| Voltage Rating | 600 Vac |
| Trip Type | T297 |
| Interrupt Rating | 65 kAIC at 480 Vac |
| Interrupt Rating Range | 100 kAIC @240V (UL); 22 kAIC Icu @250 Vdc |
| Terminals | Standard Line and Load |
| Certifications | UL 489; IEC 60947-2; CSA; CCC Marked |
| Compliance | RoHS Compliant |
| Product Dimensions (L × W × H) | 109.1 × 138.9 × 257.1 mm |
| Warranty | Eaton Selling Policy 25-000 |
| Weight | 5.61 kg |
Information About PDG33M0100TFAJ
The PDG33M0100TFAJ is a complete molded case circuit breaker from Eaton’s Power Defense PD3 Global series, engineered for modern electrical distribution applications. It utilizes a T297 trip unit that offers precise and consistent protection for electrical circuits under varying load conditions. Built on the Frame 3 platform, the breaker supports three-phase electrical systems with a strong focus on safety and durability. With UL 489, CSA, IEC 60947-2, and CCC certifications along with RoHS compliance, the device meets rigorous international safety and environmental standards.
Key Features:
- 100 Amp Current Rating: Provides reliable protection for feeder and branch circuits in commercial and industrial installations.
- Power Defense PD3 Global Series: Incorporates Eaton’s advanced protection technology for improved reliability and performance.
- T297 Electronic Trip Unit: Enables precise detection and interruption of overload and fault currents.
- Three-Pole Configuration: Designed for balanced protection in three-phase electrical distribution systems.
- High Interrupting Capacity: Rated up to 65 kAIC at 480 Vac for safe interruption of high fault currents.
- Frame 3 Construction: Engineered for durability and higher capacity applications in demanding environments.
- Standard Line and Load Terminals: Simplifies installation and integration into existing power systems.
- Global Compliance Certifications: UL, CSA, IEC, and CCC approved for worldwide electrical safety standards.
The PDG33M0100TFAJ delivers the reliability and precision required for protecting critical power distribution circuits in industrial and commercial electrical systems.
