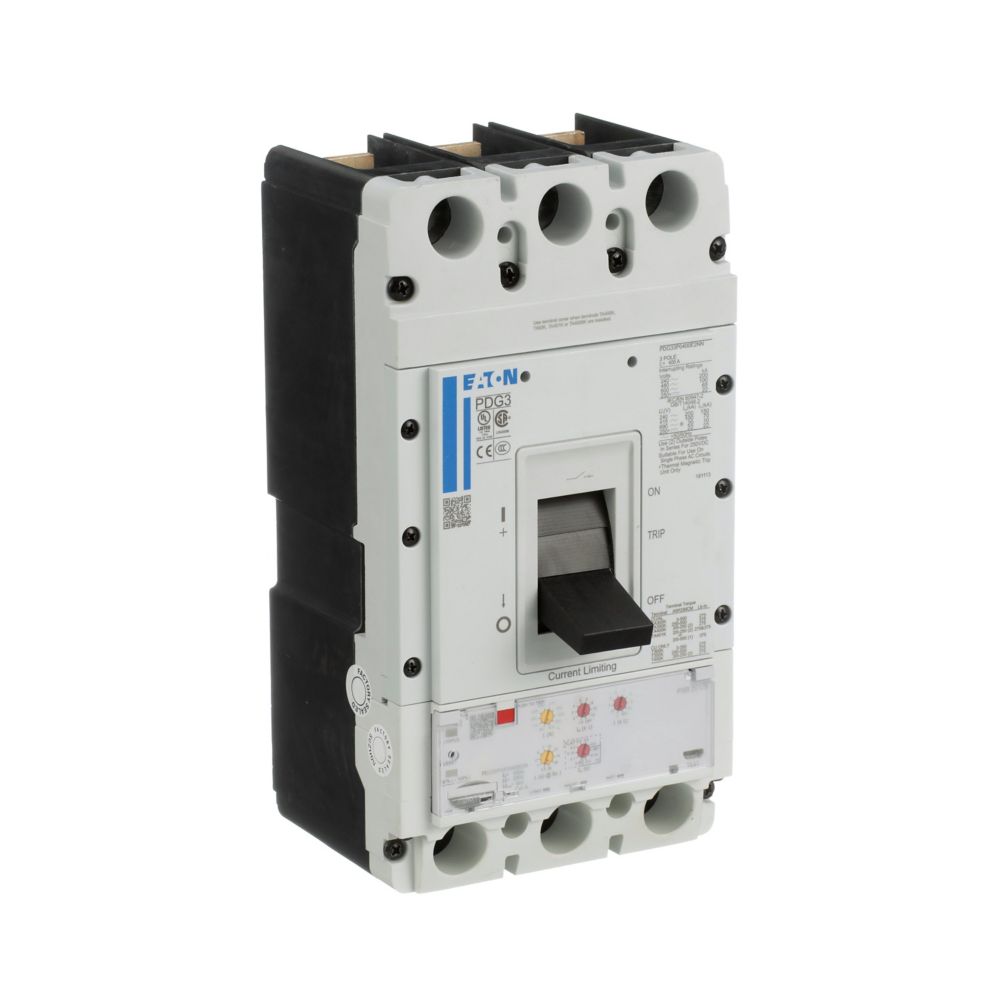

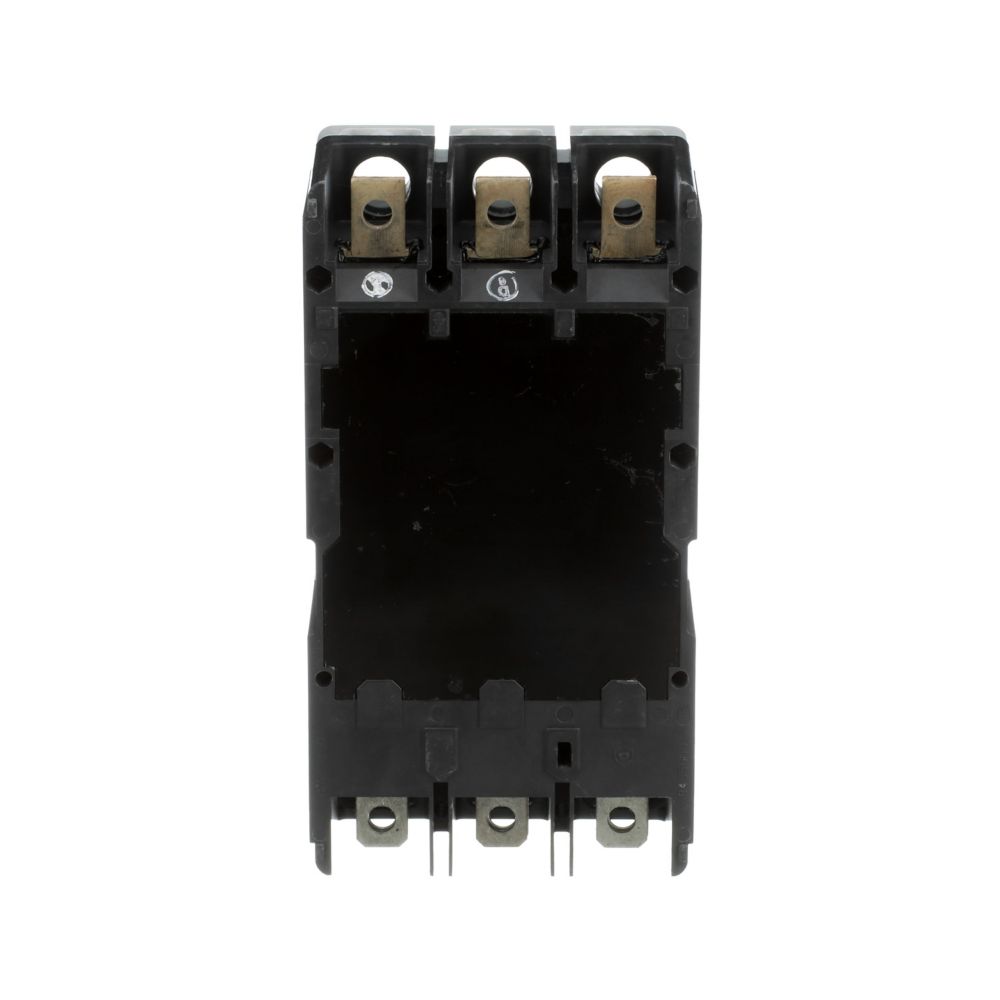

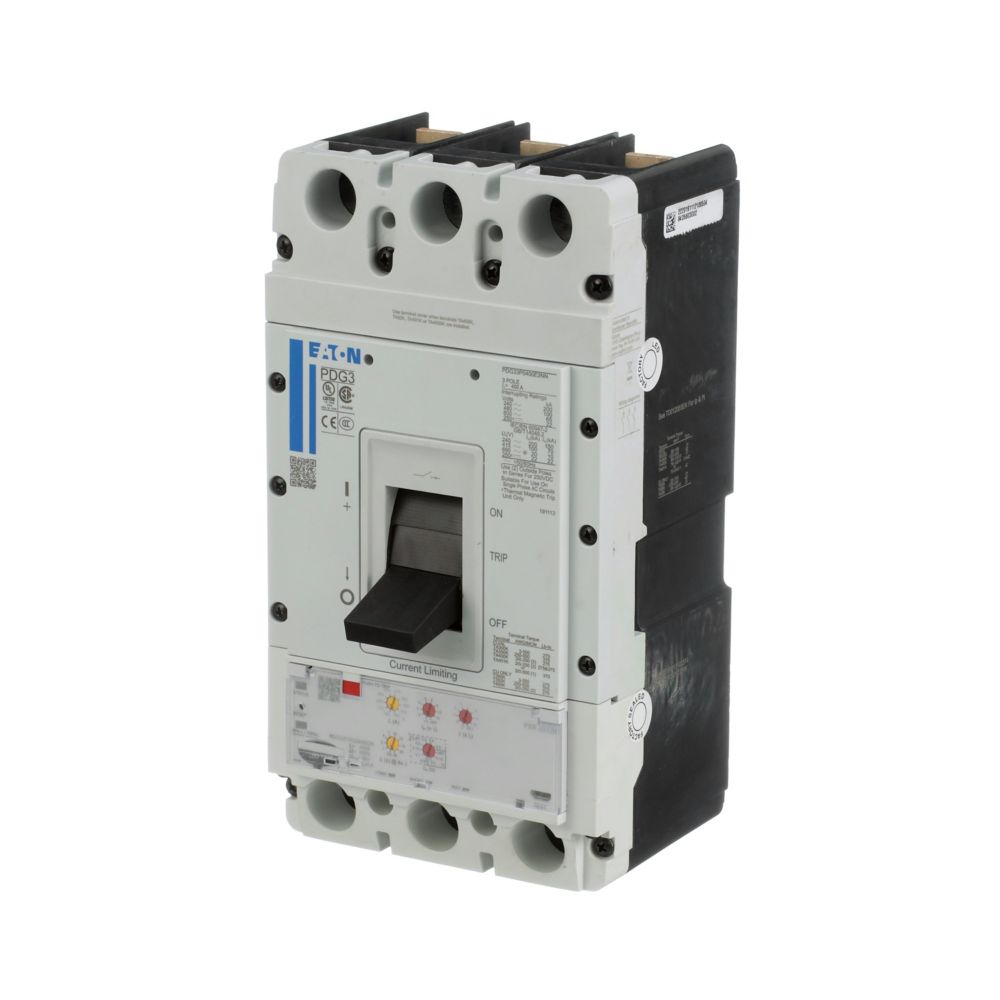

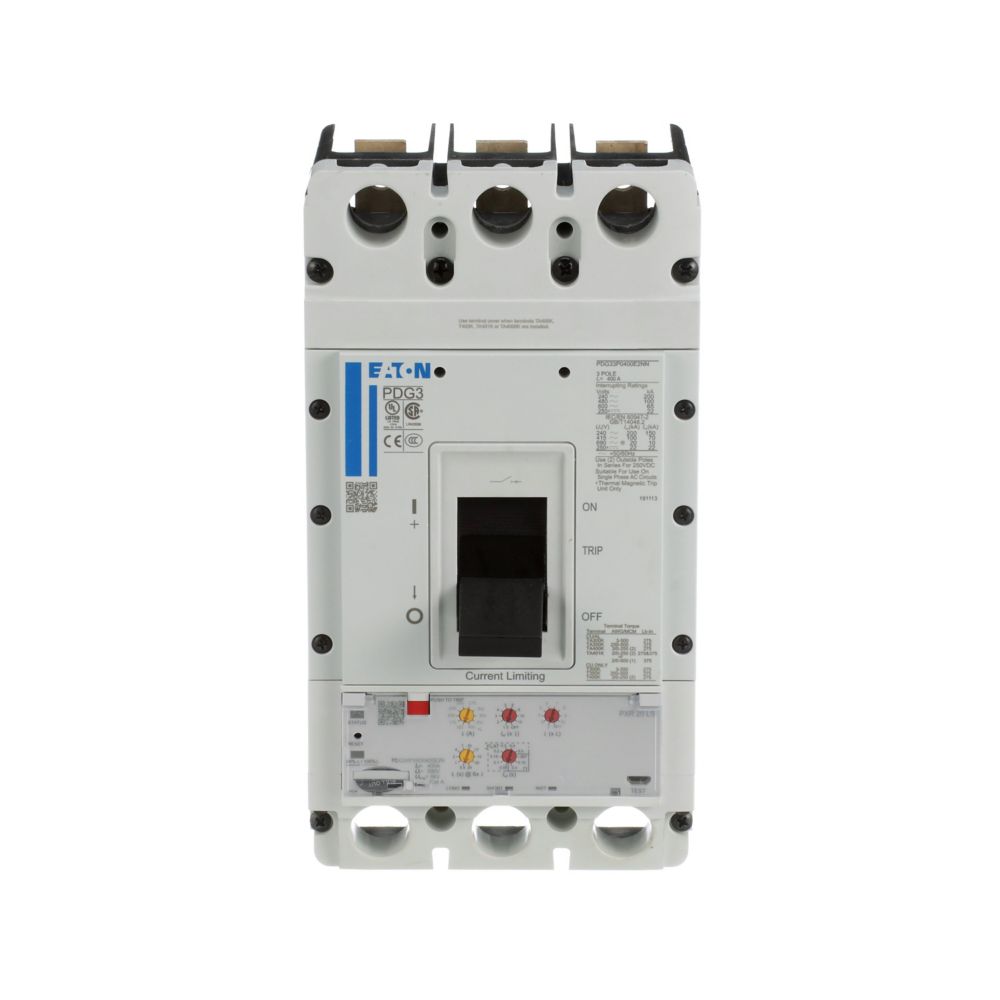

Eaton PDG33M0250E2NL Power Defense 250A 3-Pole Molded Case Circuit Breaker 600V
- Regular price
- $3,976.00
- Sale price
- $3,976.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PDG33M0250E2NL
Description
The Eaton PDG33M0250E2NL is a Power Defense molded case circuit breaker designed to provide reliable overcurrent protection in modern electrical distribution systems. Eaton part number PDG33M0250E2NL features a 250 A rating, three-pole configuration, and a T283 electronic trip unit engineered for accurate detection of overload and short-circuit conditions. Its robust design and high interrupting capacity make it suitable for commercial, industrial, and infrastructure power applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | PDG33M0250E2NL |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Molded case circuit breaker |
| Series | Power Defense |
| Circuit Breaker Type | PD3 Global |
| Frame | Frame 3 |
| Circuit Breaker Frame Type | Complete breaker |
| Class | Class A |
| Amperage Rating | 250 A |
| Voltage Rating | 600 Vac |
| Trip Type | T283 electronic trip |
| Trip Rating | 250 A |
| Number of Poles | Three-pole |
| Terminals | Standard terminals load only |
| Interrupt Rating | 65 kAIC at 480 Vac |
| Additional Interrupt Ratings | 35 kAIC at 600V (UL/CSA); 100 kAIC at 240V (UL); 22 kAIC at 250 Vdc |
| Compliance | RoHS Compliant |
| Certifications | UL 489; IEC 60947-2; CSA; CCC Marked |
| Product Dimensions (L × W × H) | 109.1 × 138.9 × 257.1 mm |
| Warranty | Eaton Selling Policy 25-000 |
| Weight | 5.92 kg |
Information About PDG33M0250E2NL
The PDG33M0250E2NL is a complete molded case circuit breaker from Eaton’s Power Defense PD3 Global series, developed to meet demanding electrical protection requirements. Built on a Frame 3 platform, it incorporates an advanced T283 electronic trip unit that delivers precise protection and monitoring of electrical circuits. The breaker supports standard load-only terminals and is rated for systems up to 600 Vac, ensuring compatibility with a wide range of industrial distribution panels and switchboards. Certified to UL 489, CSA, IEC 60947-2, and CCC standards with RoHS compliance, it is engineered for global installation in modern electrical infrastructure.
Key Features:
- 250 Amp Current Rating: Designed to protect power distribution circuits in commercial and industrial electrical systems.
- Power Defense PD3 Platform: Advanced Eaton circuit protection technology engineered for high reliability and system integration.
- T283 Electronic Trip Unit: Provides precise detection of overload and short-circuit faults for improved system protection.
- High Interrupting Capacity: Rated up to 65 kAIC at 480 Vac for safe interruption of high fault currents.
- Three-Pole Configuration: Ideal for protecting three-phase electrical distribution networks.
- Frame 3 Breaker Construction: Supports high current performance with durable internal components.
- Standard Load-Only Terminals: Simplifies installation and integration into electrical panels or switchgear assemblies.
- Global Safety Compliance: Certified to UL, CSA, IEC, and CCC standards for international electrical installations.
The PDG33M0250E2NL delivers the reliability and precision required for protecting commercial and industrial electrical distribution systems.
