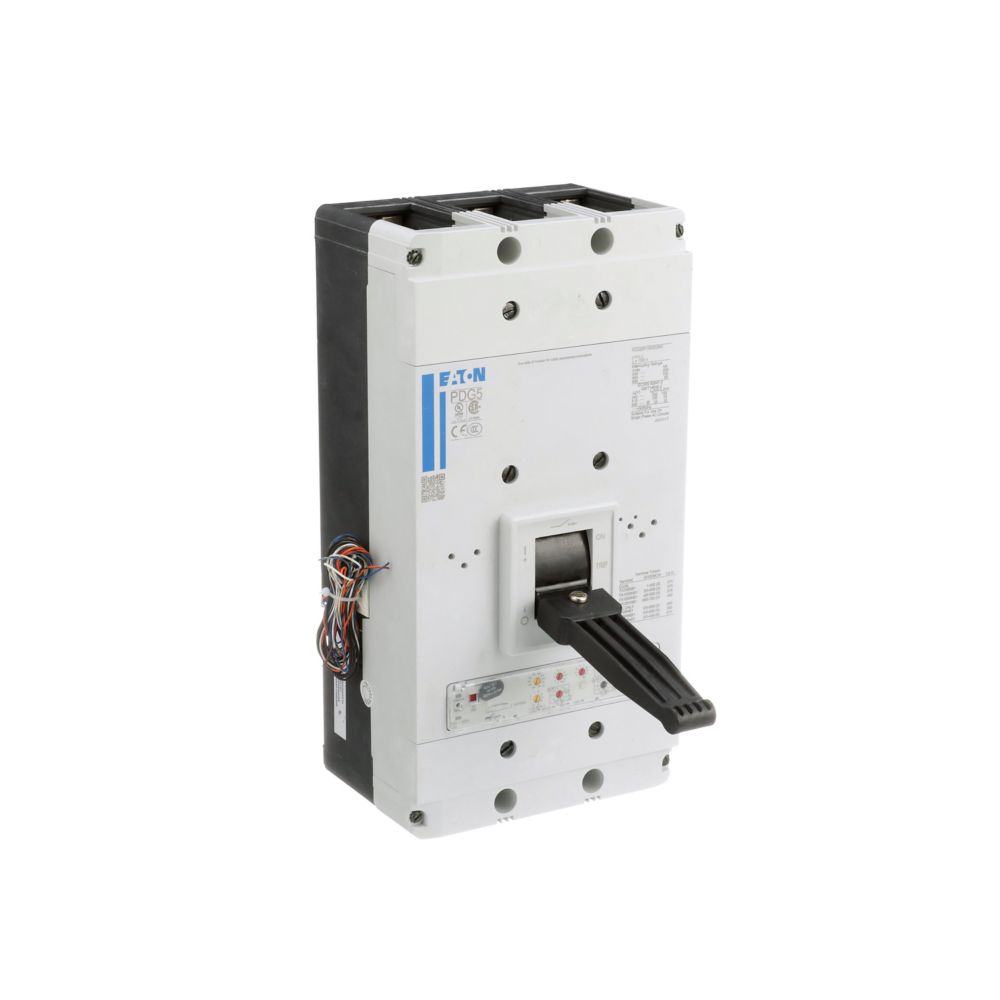

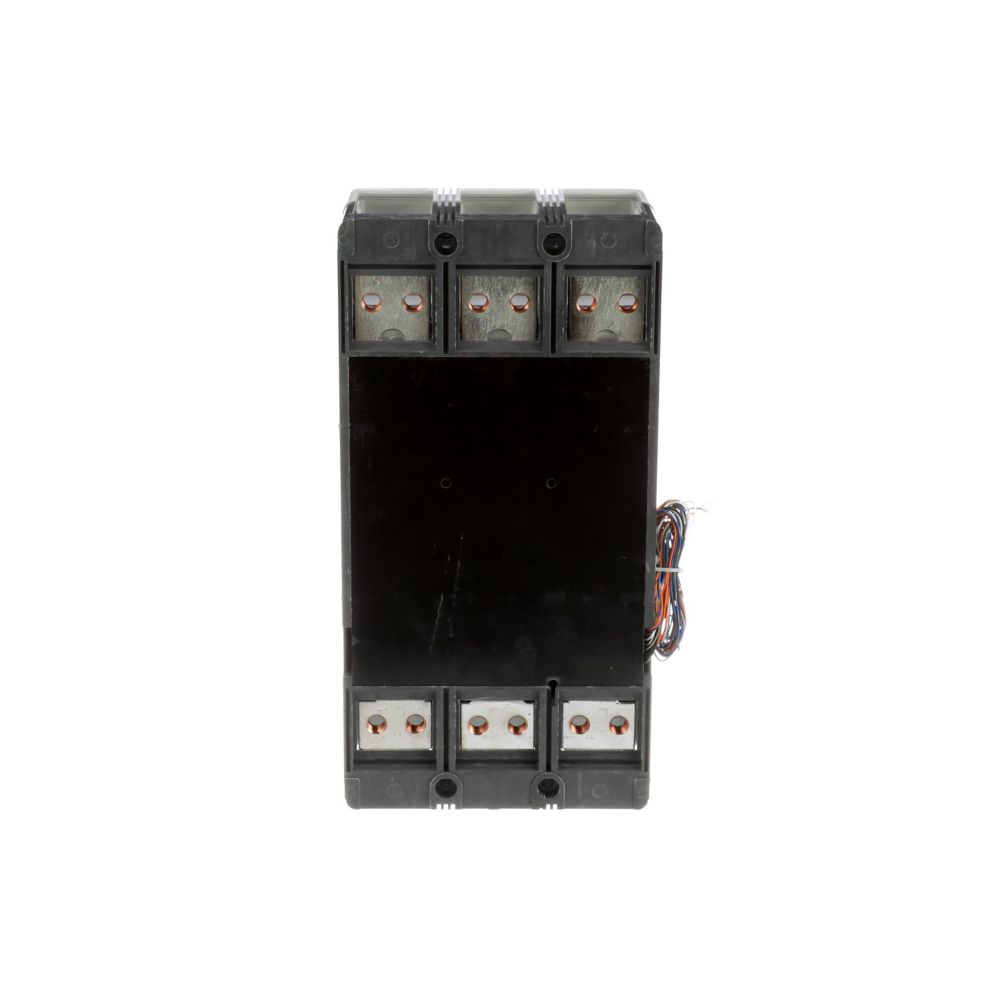

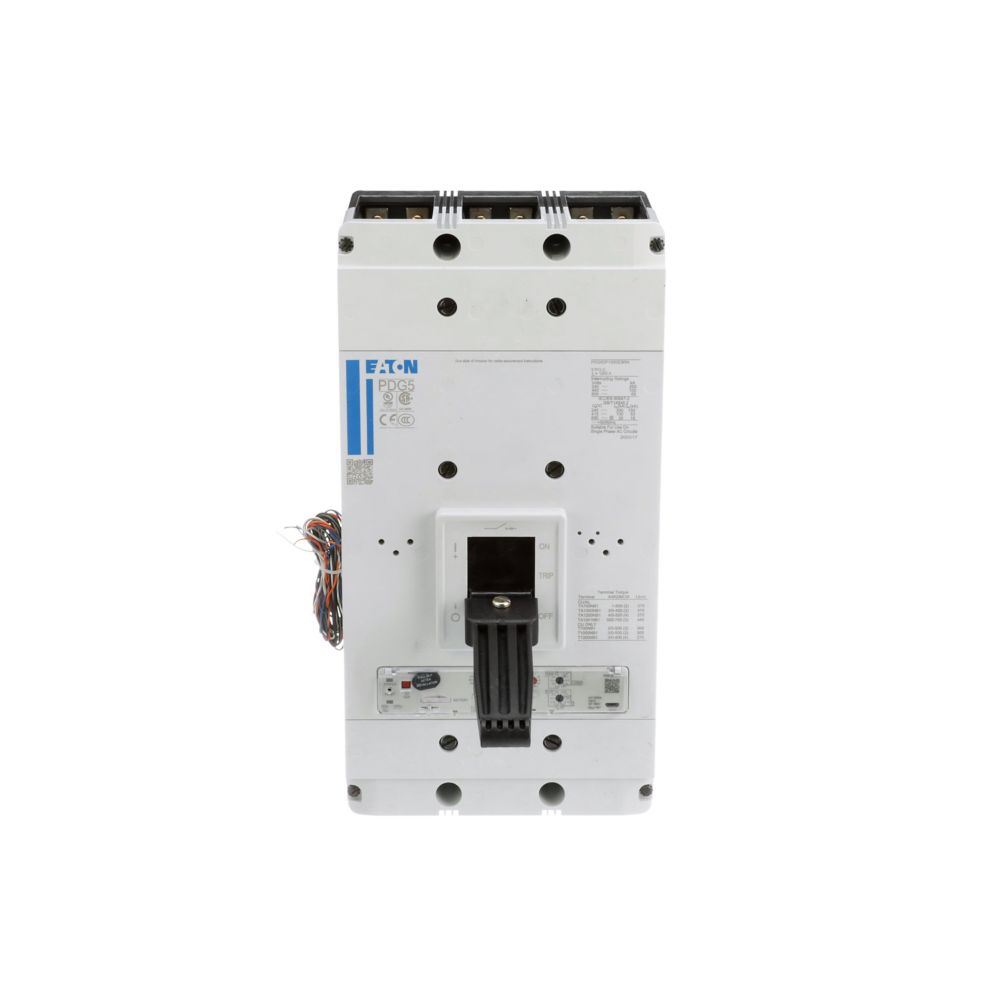

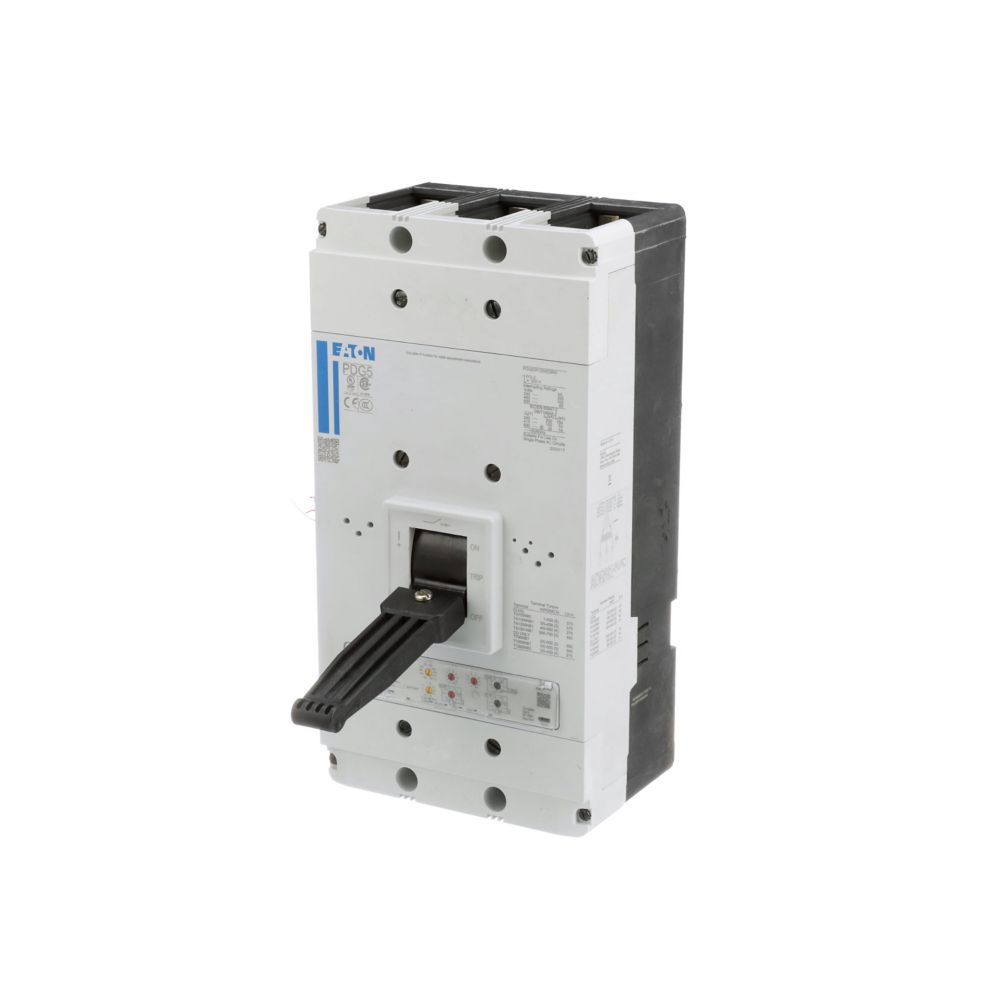

Eaton PDG53M1200E3MN Power Defense 1200A 3-Pole MCCB with Modbus RTU 600Vac
- Regular price
- $5,999.00
- Sale price
- $5,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PDG53M1200E3MN
Description
The Eaton PDG53M1200E3MN is a Power Defense molded case circuit breaker engineered for high-capacity electrical distribution systems. Eaton PDG53M1200E3MN delivers a 1200 A rating with advanced trip functionality and integrated communication capability for precise monitoring and protection. It is designed for industrial and commercial applications requiring reliable performance and system integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Protection |
| Part Number | PDG53M1200E3MN |
| Subcategory | Molded Case Circuit Breakers |
| Product Type | Molded case circuit breaker |
| Series | Power Defense PD5 Global |
| Frame | Frame 5 |
| Circuit Breaker Type | PD5 Global |
| Frame Type | Complete breaker |
| Amperage Rating | 1200 A |
| Trip Rating | 1200 A |
| Trip Type | T285 |
| Number of Poles | Three-pole |
| Voltage Rating | 600 Vac |
| Interrupt Rating | 65 kAIC at 480 Vac |
| Interrupt Rating (UL) | 100 kAIC at 240 V; 35 kAIC at 600/347 V |
| Communication | Modbus RTU |
| Terminals | No terminals |
| Certifications | UL 489, IEC 60947-2, CSA, CCC |
| Compliances | RoHS Compliant |
| Product Length/Depth | 139.7 mm |
| Product Height | 406.4 mm |
| Product Width | 209.5 mm |
| Weight | 21.32 kg |
Information About PDG53M1200E3MN
The PDG53M1200E3MN is part of Eaton’s Power Defense PD5 Global series, built for demanding low-voltage power distribution environments. It features a complete breaker configuration with a Frame 5 design and a three-pole arrangement for three-phase systems. Equipped with a T285 electronic trip unit, it ensures accurate protection against overloads and short circuits while enabling system coordination. Additionally, the inclusion of Modbus RTU communication allows integration into monitoring and control systems for enhanced operational visibility.
Key Features:
- Power Defense PD5 Series: Designed for high-performance protection in critical power systems.
- 1200 A Current Rating: Suitable for large-scale industrial and commercial applications.
- T285 Electronic Trip Unit: Provides precise and adjustable protection characteristics.
- Integrated Modbus RTU Communication: Enables remote monitoring and system integration.
- High Interrupting Capacity: Rated up to 65 kAIC at 480 Vac for reliable fault clearing.
- Three-Pole Configuration: Supports three-phase electrical distribution systems.
- Global Compliance: Certified to UL 489, IEC 60947-2, CSA, and CCC standards.
- No-Terminal Configuration: Allows flexible customization of connection options.
The PDG53M1200E3MN delivers the reliability and precision required for protecting and monitoring high-capacity electrical distribution systems.
