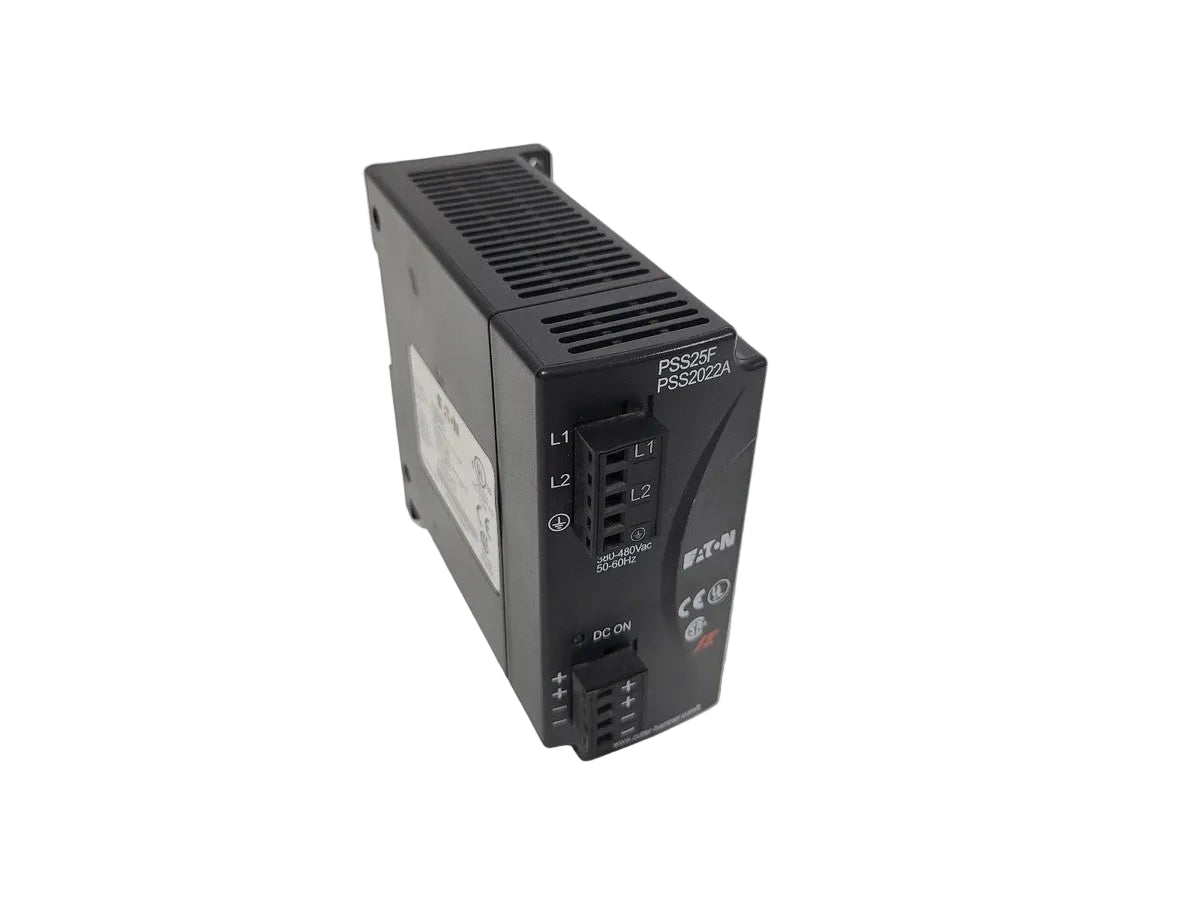

Eaton PSS25F Industrial Switching DC Power Supply
- Regular price
- $825.00
- Sale price
- $825.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PSS25F
Description
Eaton PSS25F is an industrial switching power supply designed to convert high-voltage AC input power into regulated 24VDC output for control and automation equipment. It provides 25W output capacity with short-circuit protection, automatic restart, and convection cooling in a compact IP20 enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Power Supplies |
| Part Number | PSS25F |
| Subcategory | Power Supply |
| Product Type | DC Switching Power Supply |
| Series | PSS |
| Power Rating | 25W |
| Input Voltage | 380–480VAC |
| Operating Input Range | 340–576VAC |
| Output Voltage | 24VDC |
| Output Current | 1.0A |
| Input Current | 0.17A |
| Inrush Current | 35A |
| Frequency | 47–63Hz |
| Efficiency | 80% at Maximum Load |
| Cooling Method | Convection |
| Mounting | TS35 DIN Rail or Chassis |
| Enclosure Rating | IP20 |
| Operating Temperature | -5°C to 50°C |
| Protection | Short-Circuit Protection |
| Restart Function | Automatic Restart |
| Cover | Finger-Safe |
| Certifications | UL 508, CSA, F47 |
| Compliance | CE Marked |
| Weight | 0.79 lbs |
Information About PSS25F
The PSS25F belongs to Eaton’s PSS Series of industrial DC power supplies. It is designed for control-panel applications requiring a reliable 24VDC source from a 380–480VAC input supply. The unit can be installed on a TS35 DIN rail or directly to a chassis and incorporates a finger-safe cover for enclosed industrial installations.
Key Features:
- Switching Power Supply: Converts AC input power into regulated DC power for industrial control equipment.
- 24VDC Output: Provides a standard low-voltage supply for compatible automation devices.
- Compact Power Capacity: Delivers 25W with a rated operational output current of 1.0A.
- Wide AC Input Range: Designed for 380–480VAC input operation.
- Flexible Mounting: Supports TS35 DIN rail or chassis installation.
- Short-Circuit Protection: Protects the power supply and connected equipment during output faults.
- Automatic Restart: Restores operation automatically after compatible fault conditions are cleared.
- Convection Cooling: Operates without requiring an integrated cooling fan.
The PSS25F delivers reliable DC power conversion and protection for industrial control and automation applications.
