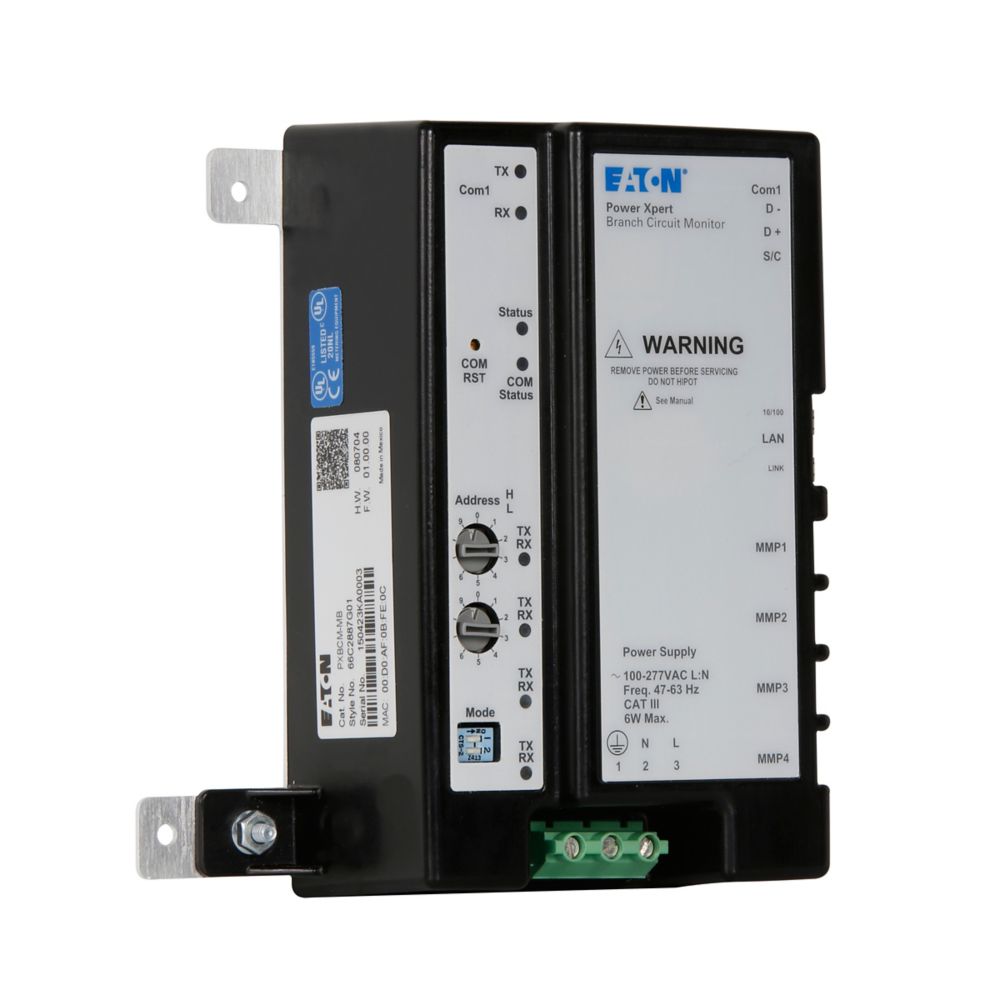

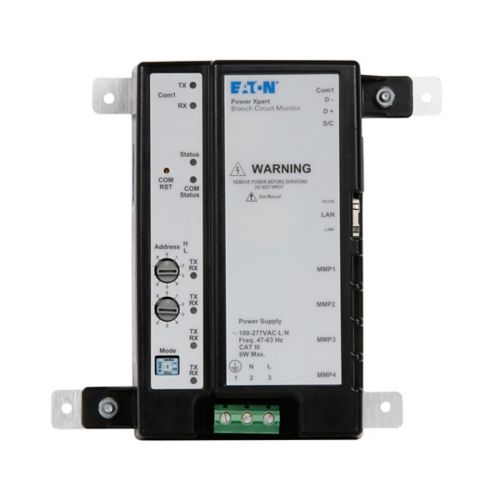

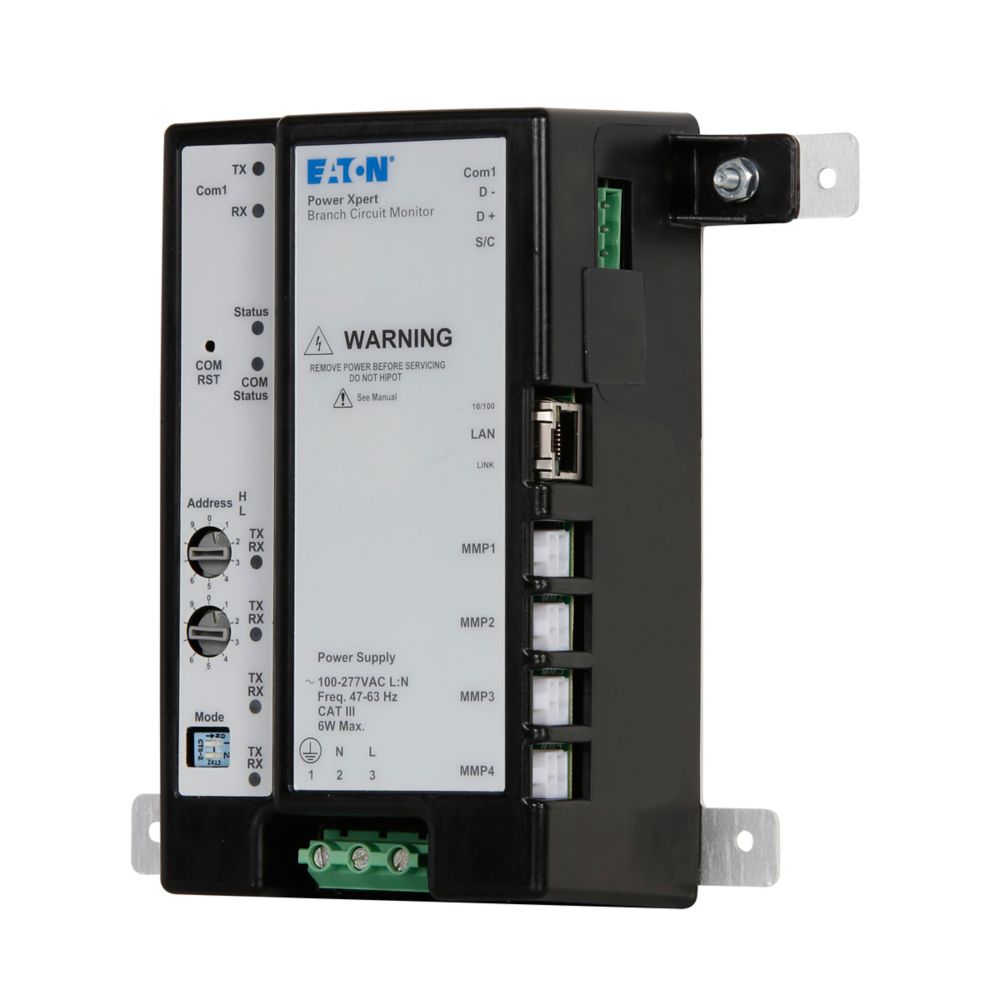

Eaton PXBCM-MB Branch Circuit Monitor Meter Base for Power Xpert Systems
- Regular price
- $6,544.00
- Sale price
- $6,544.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PXBCM-MB
Description
The Eaton PXBCM-MB Power Xpert Branch Circuit Monitor Meter Base is a foundational component designed to support branch circuit energy monitoring systems in commercial and industrial environments. It provides reliable voltage input and communication capabilities for integration with compatible monitoring modules.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Power Monitoring |
| Part Number | PXBCM-MB |
| Subcategory | Branch Circuit Monitors |
| Product Type | Power Xpert Branch Circuit Monitor Meter Base |
| Model | External Power Source |
| Voltage Rating | 100–277 VAC |
| Phase Type | Single-phase |
| Current Sensor Input | 333 mV |
| Number of CT Inputs | Single-phase |
| Communication Protocols | Modbus RTU (RS-485), Modbus TCP |
| Display Capability | Graphic Display (Local/Remote) |
| Accuracy Class | ANSI C12.20 (0.5%) |
| Certifications | UL Listed, CSA, EN Standards |
| Compatibility | PXBCM MMS or MME |
| Dimensions | 9.5 x 9 x 5 in |
| Weight | 1.68 lb |
Information About PXBCM-MB
The PXBCM-MB is a meter base unit within Eaton’s Power Xpert Branch Circuit Monitoring series, built to provide essential infrastructure for distributed energy monitoring applications. It operates with an external power source and supports single-phase configurations, making it suitable for panelboard and distribution monitoring setups. The device is designed to interface directly with PXBCM MMS or MME modules, enabling scalable and modular system deployment. It incorporates communication support such as Modbus RTU and TCP, along with graphical display compatibility for both local and remote monitoring functions.
Key Features:
- External Power Configuration: Operates using an external 100–277 VAC power source for flexible installation
- Single-Phase Monitoring Support: Designed for single-phase branch circuit measurement applications
- System Compatibility: Specifically engineered for use with PXBCM MMS and MME modules
- Integrated Communication Protocols: Supports Modbus RTU (RS-485) and Modbus TCP for system integration
- High Measurement Accuracy: Meets ANSI C12.20 (0.5%) standards for reliable energy data
- Compact Form Factor: Designed for efficient installation within electrical panels
- Wide Instrumentation Capability: Measures voltage, current, power demand, and energy parameters
- Graphical Display Support: Enables local and remote visualization of electrical data
The PXBCM-MB delivers the reliability and precision required for branch circuit energy monitoring and electrical distribution analysis in modern power systems.
