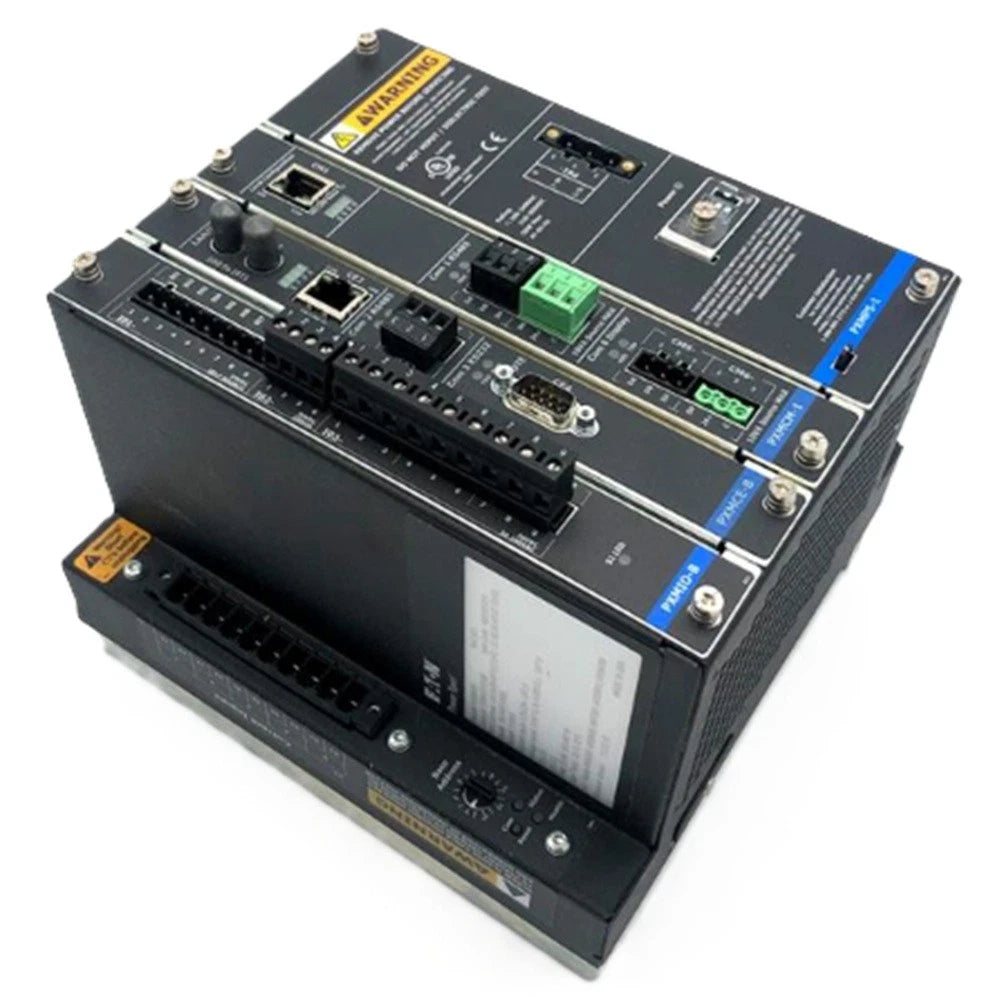

Eaton PXM4051A1BB Power Xpert Meter 4000 Power Quality Monitoring Device
- Regular price
- $22,547.00
- Sale price
- $22,547.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PXM4051A1BB
Description
The Eaton PXM4051A1BB Power Xpert Meter 4000 is an advanced power monitoring device designed for high-accuracy energy measurement and power quality analysis in industrial and commercial systems. It provides detailed electrical data, including harmonics, waveform capture, and demand metrics, ensuring reliable system diagnostics and optimization.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Power Monitoring |
| Part Number | PXM4051A1BB |
| Subcategory | Power Quality Meters |
| Product Type | Power Xpert Meter 4000 |
| Power Supply Voltage | 100–240 Vac / 110–250 Vdc |
| Voltage Input Range | 0–347 Vac |
| Current Input | 0.05–20 A (5A nominal) |
| Memory | 2 GB |
| Accuracy Class | ANSI C12.20 (0.2) |
| Harmonic Measurement | Up to 127th order |
| Waveform Sampling Rate | 4096 samples per cycle |
| Frequency Range | 350–450 Hz |
| Communication Ports | Ethernet, RS-485, RS-232, Fiber-optic |
| Protocols Supported | Modbus TCP/RTU, BACnet/IP, SNMP, FTP, HTTP |
| I/O Capability | 8 digital inputs, 5 relay outputs, pulse outputs |
| Certifications | UL Listed, CE, IEC, ANSI/IEEE |
| Dimensions | 9.56 x 6.72 x 8.32 in |
| Weight | 7.1 lb |
Information About PXM4051A1BB
The PXM4051A1BB is a member of Eaton’s Power Xpert Meter 4000 series, engineered for precision metering and advanced power quality analysis. It features a robust design with integrated communication expansion and I/O cards, enabling flexible deployment across electrical distribution systems. The unit supports multiple voltage inputs and is compatible with standard industrial power supplies, making it suitable for both AC and DC applications. Its embedded technologies include harmonic analysis up to the 127th order, waveform capture, and comprehensive data logging for detailed system evaluation.
Key Features:
- High Accuracy Metering: Meets ANSI C12.20 (0.2) standard for precise revenue-grade measurements
- Advanced Harmonic Analysis: Measures total harmonic distortion and individual harmonics up to the 127th order
- Waveform Capture Capability: Captures and records voltage disturbances with 4096 samples per cycle
- Extensive Communication Options: Supports Modbus TCP/RTU, BACnet/IP, SNMP, and Ethernet connectivity
- Integrated Data Logging: Includes event logs, min/max tracking, and time-stamped data storage
- Flexible I/O Configuration: Provides programmable inputs and relay outputs for automation and control
- Built-in Web Interface: Enables remote monitoring via HTTP server and FTP access
- Power Quality Monitoring: Tracks K-factor, crest factor, and PQ index for system health analysis
The PXM4051A1BB delivers the reliability and precision required for advanced power monitoring, energy management, and power quality diagnostics in critical electrical systems.
